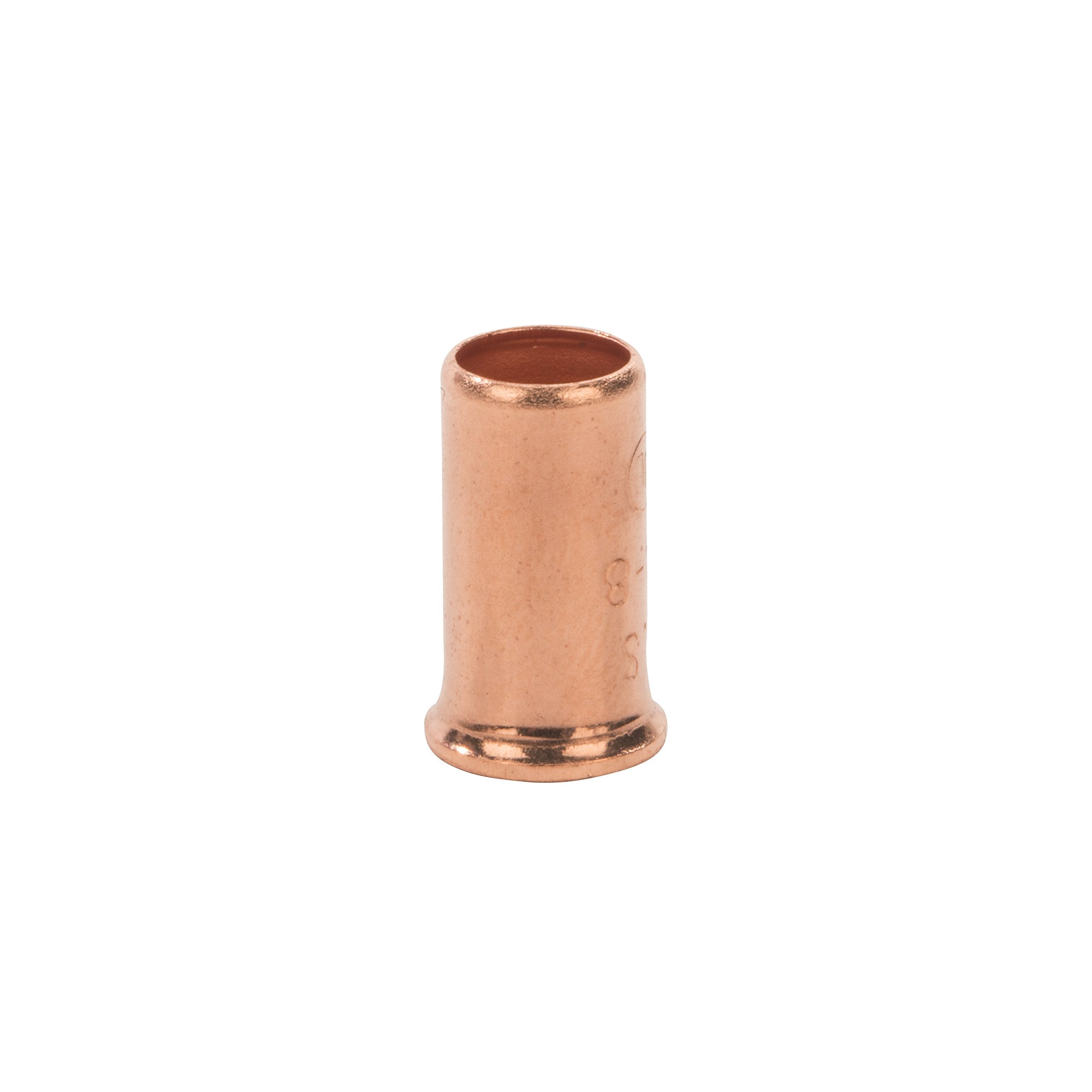

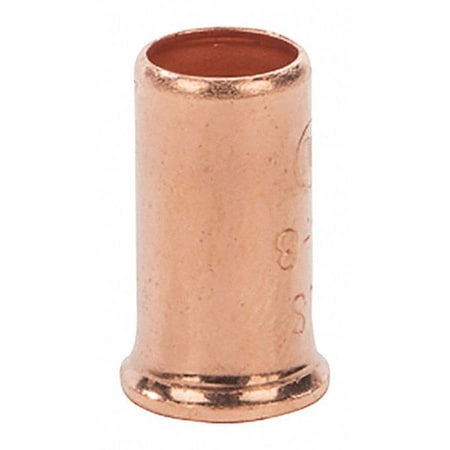

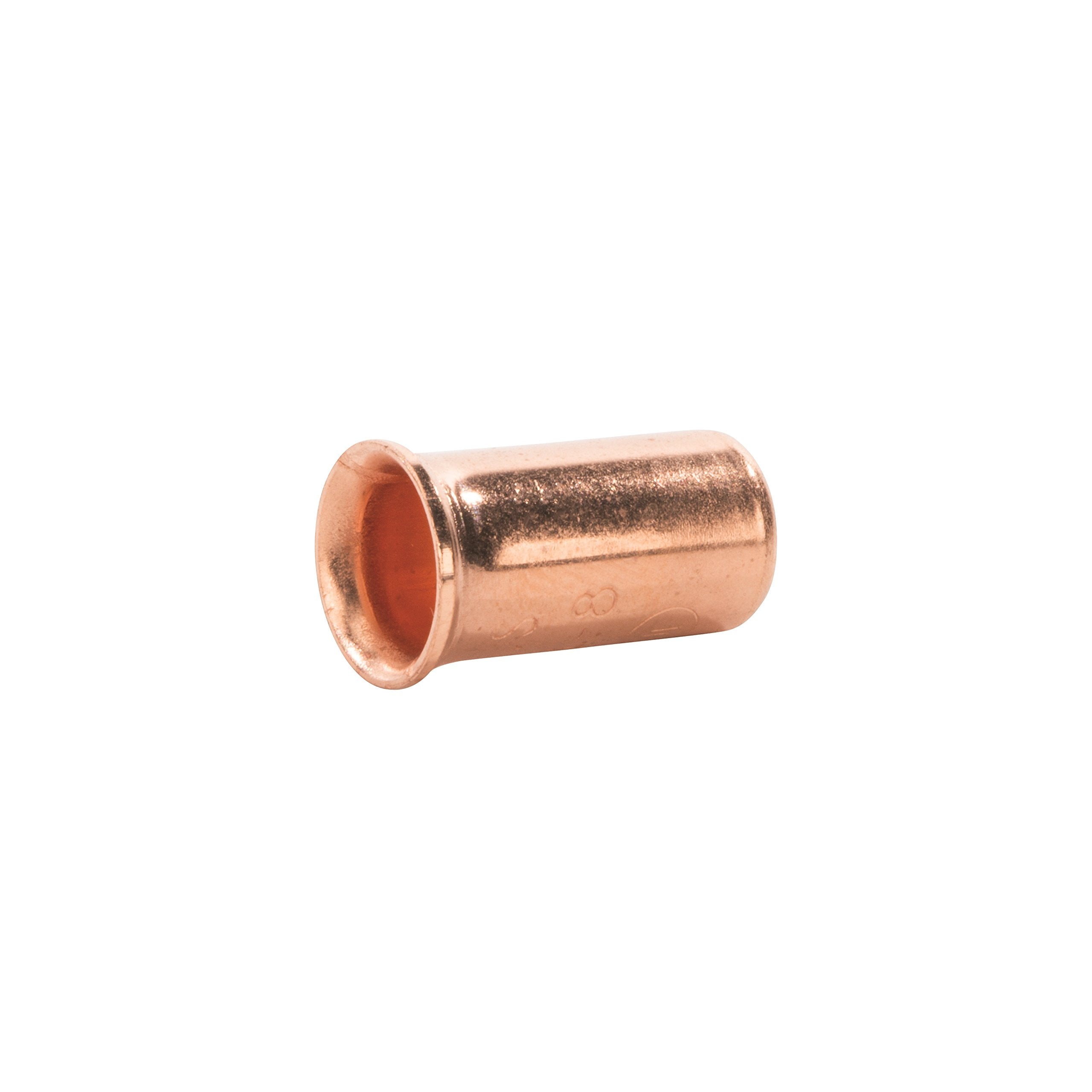

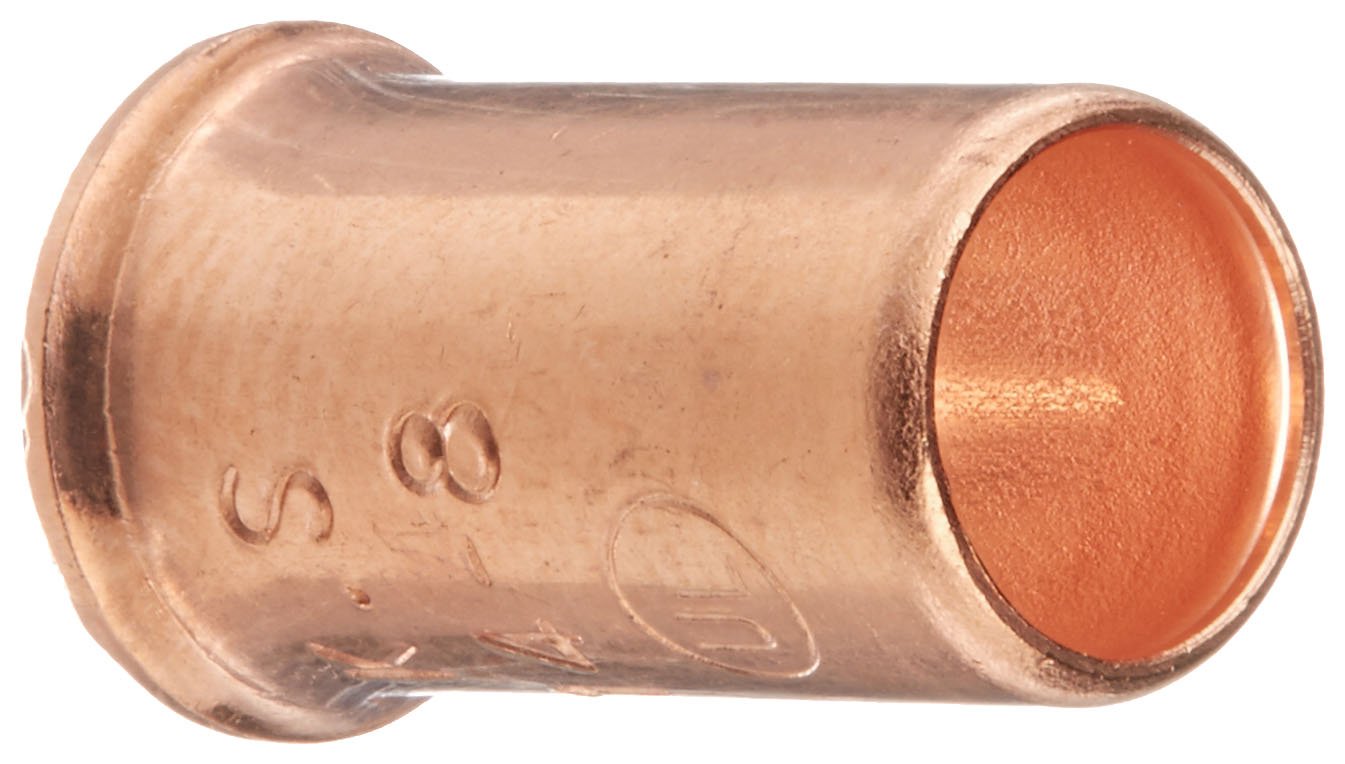

Nsi Industries SB1808 Easy-Twist Copper Crimp Sleeves 18-8 Awg

Product Description

The NSI INDUSTRIES SB1808 Easy-Twist Copper Crimp Sleeves, designed for 18-8 AWG wires, are used for termination and splicing in both indoor and outdoor applications. These sleeves ensure quick, secure connections between wires. They are suitable for applications requiring vibration resistance and can be installed using a crimp tool or pliers. Rated for up to 600V.

• Easy-Twist wire connectors for quick, secure connections
• Copper crimp sleeves for simple, affordable, and vibration-resistant connections
• Designed for wires in the 18-8 AWG size range

Product Highlights

Provides secure wire connections for indoor/outdoor use. Ideal for grounding, uninsulated, or small motor applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SB1808
• Country of Origin: Taiwan

Technical Specifications

• Conductor Size: 18-8
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Wire Range: 18-8 AWG
• Material: Copper
• Voltage Rating: 600 V
• Length: 0.61 in
• Conductor Type: Copper
• Temperature Rating: 105 deg C
• Application: For Splicing Wire
• Finish: Copper
• Connector Type: Crimp
• Standard & Approvals: UL486C Listed
• Number Of Conductors: 1
• Wire Type: CU Wire Only
• Environmental Conditions: 105 C
• I.D.: .263
• Width: .307
