NSI Industries SB12 12-10 Shrink Tube Butt 600 Volt (25 Pack) Replacement MPN

Product Description

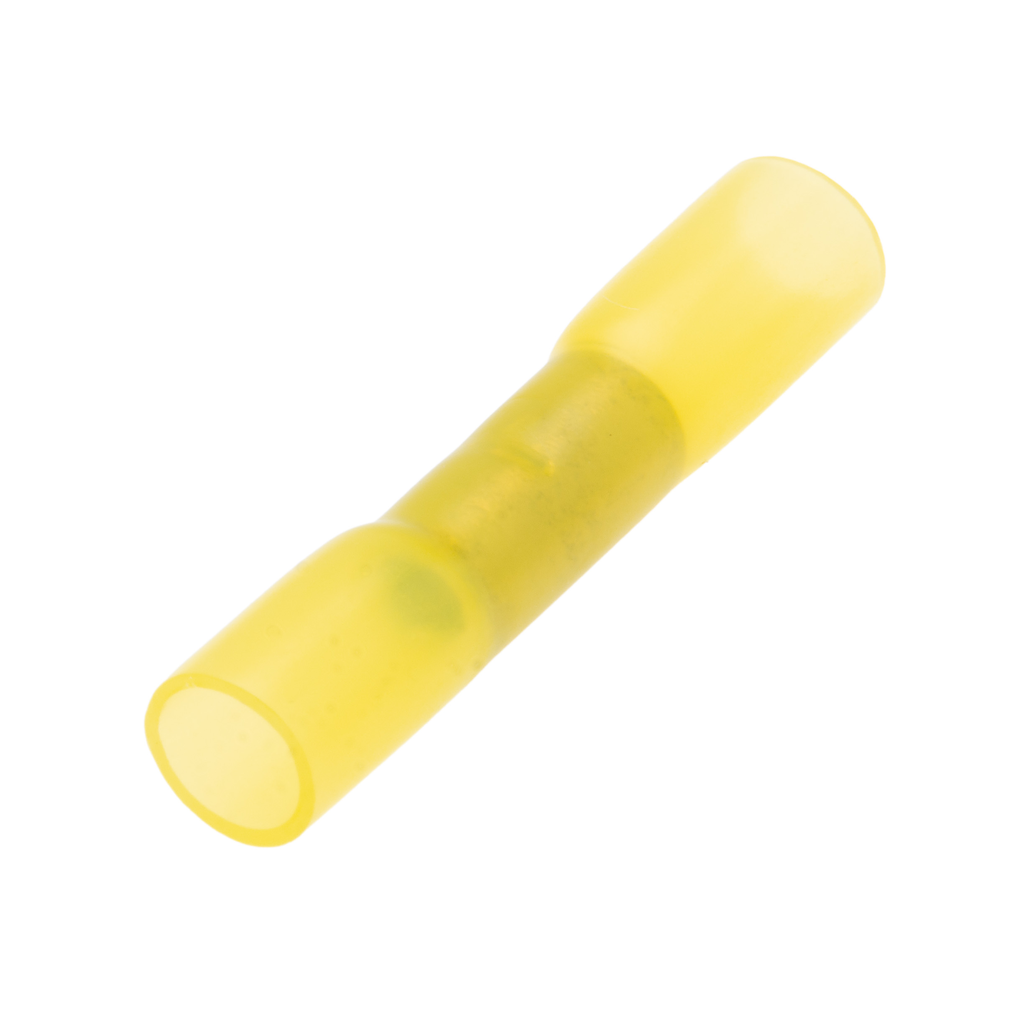

NSI Industries SB12 is a heat shrink butt connector designed for wire termination applications. This connector is suitable for conductor sizes ranging from twelve to ten American wire gauge (AWG). Each pack contains twenty-five connectors, making it ideal for various projects.

• Type: Heat Shrink Tube Butt Connector
• Voltage: Rated for six hundred volts
• Material: Made from heat shrink polyolefin insulation

Product Highlights

The product features seamless construction for improved reliability and performance.

Product Information

Standard Information

• Brand: NSI Industries
• Sub Brand: Miniterms

Technical Specifications

• Conductor Size: 12-10 AWG
• Barrel Size: 0.142 inches ID x 0.256 inches OD
• Length: 0.591 inches
• Material: Copper with Electro-Plated Tin
• Temperature Rating: 105 degrees Celsius
• Voltage Rating: 600 VAC
• Environmental Conditions: Suitable for conditions up to 105 degrees Celsius
• Terminals: One terminal connection
