Nsi Industries S12-10V Vinyl Insulated Spade Terminal 300V (12-10 AWG)

Product Description

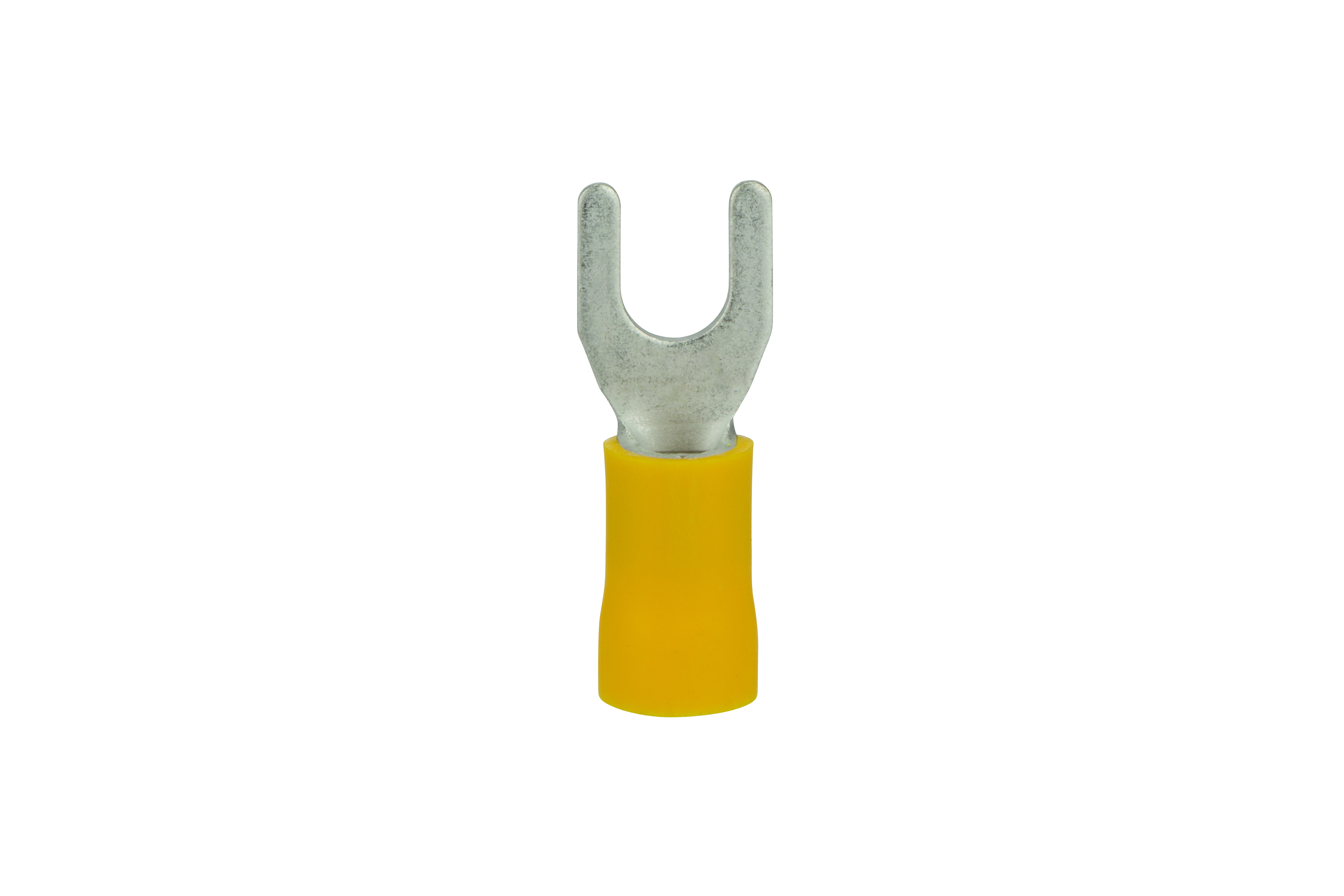

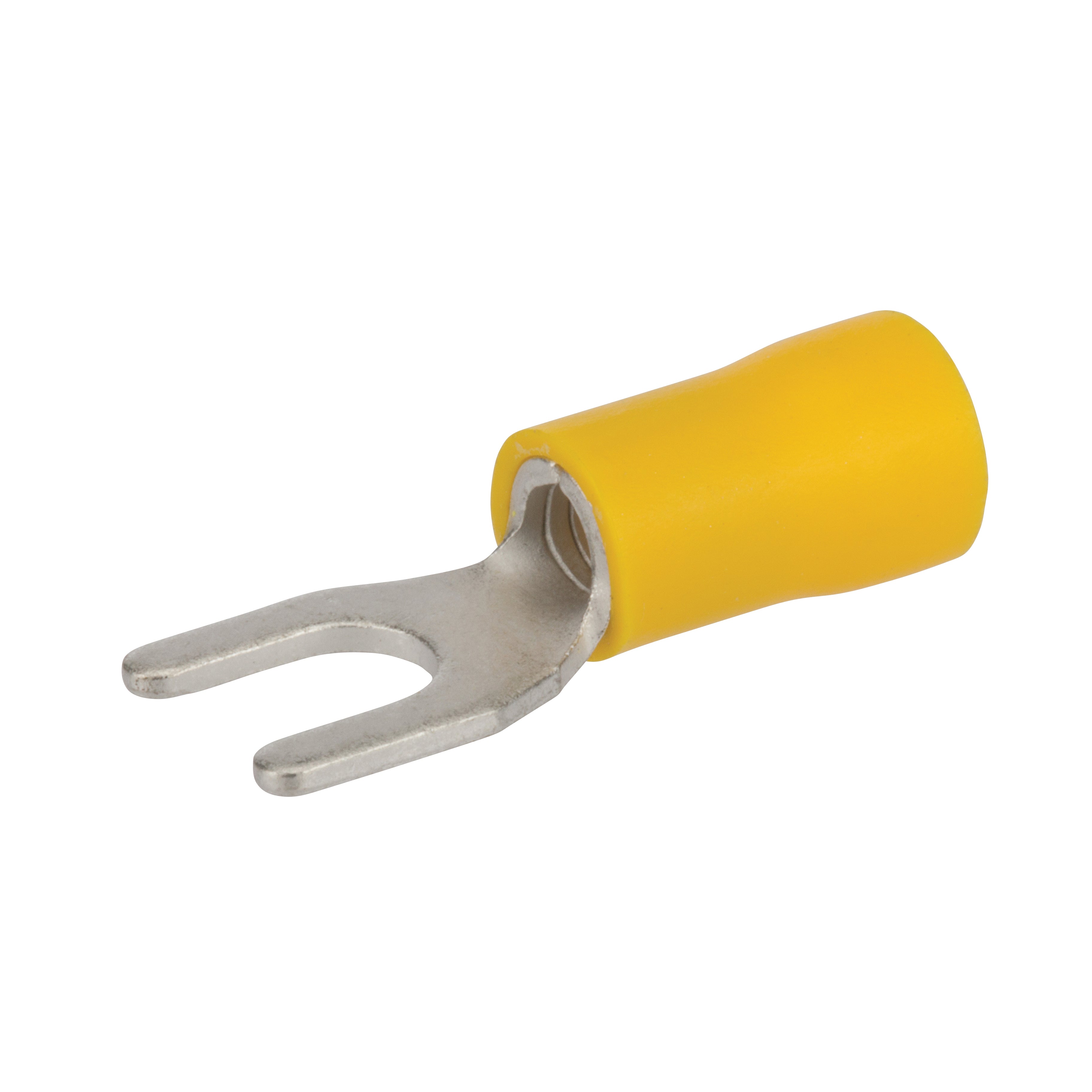

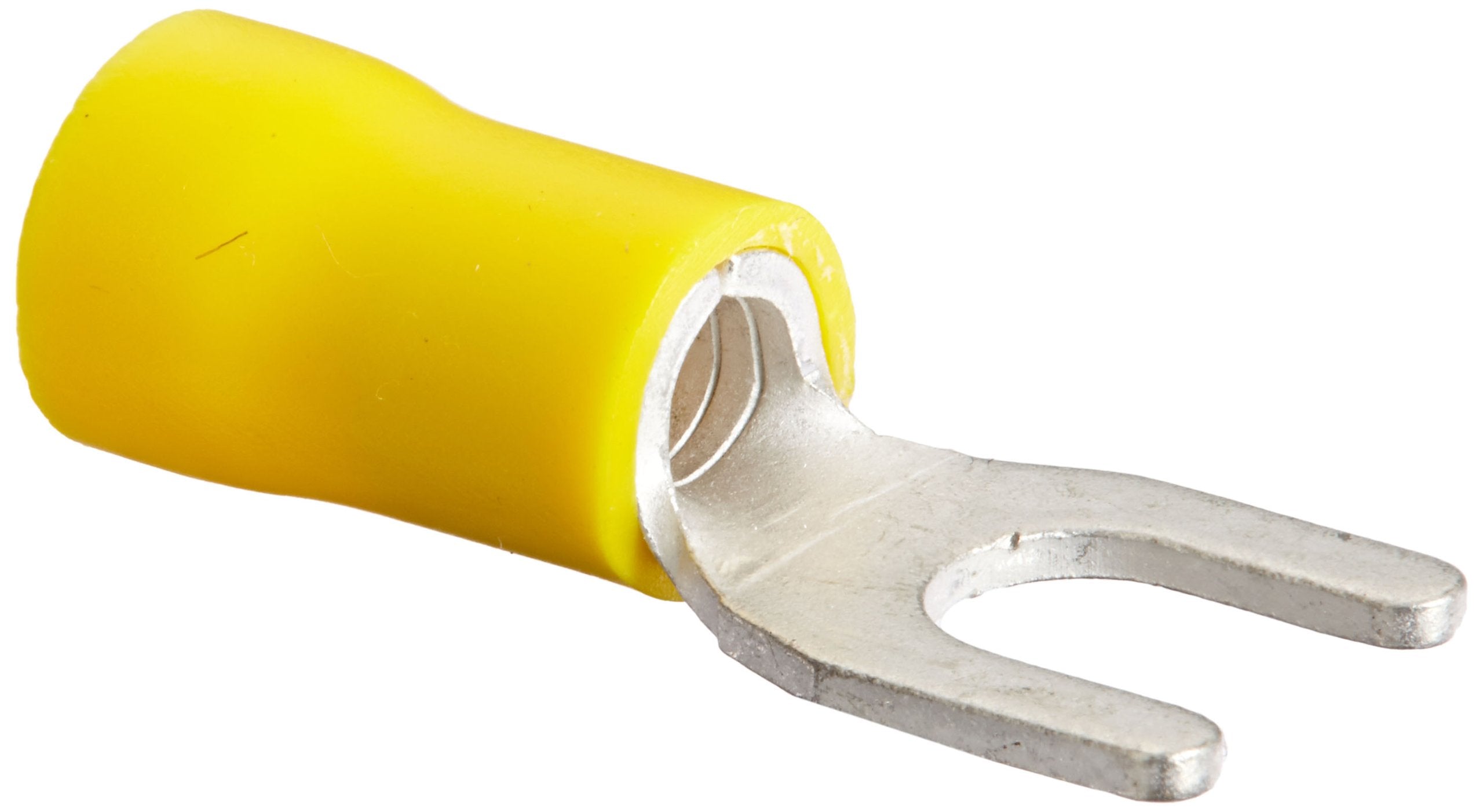

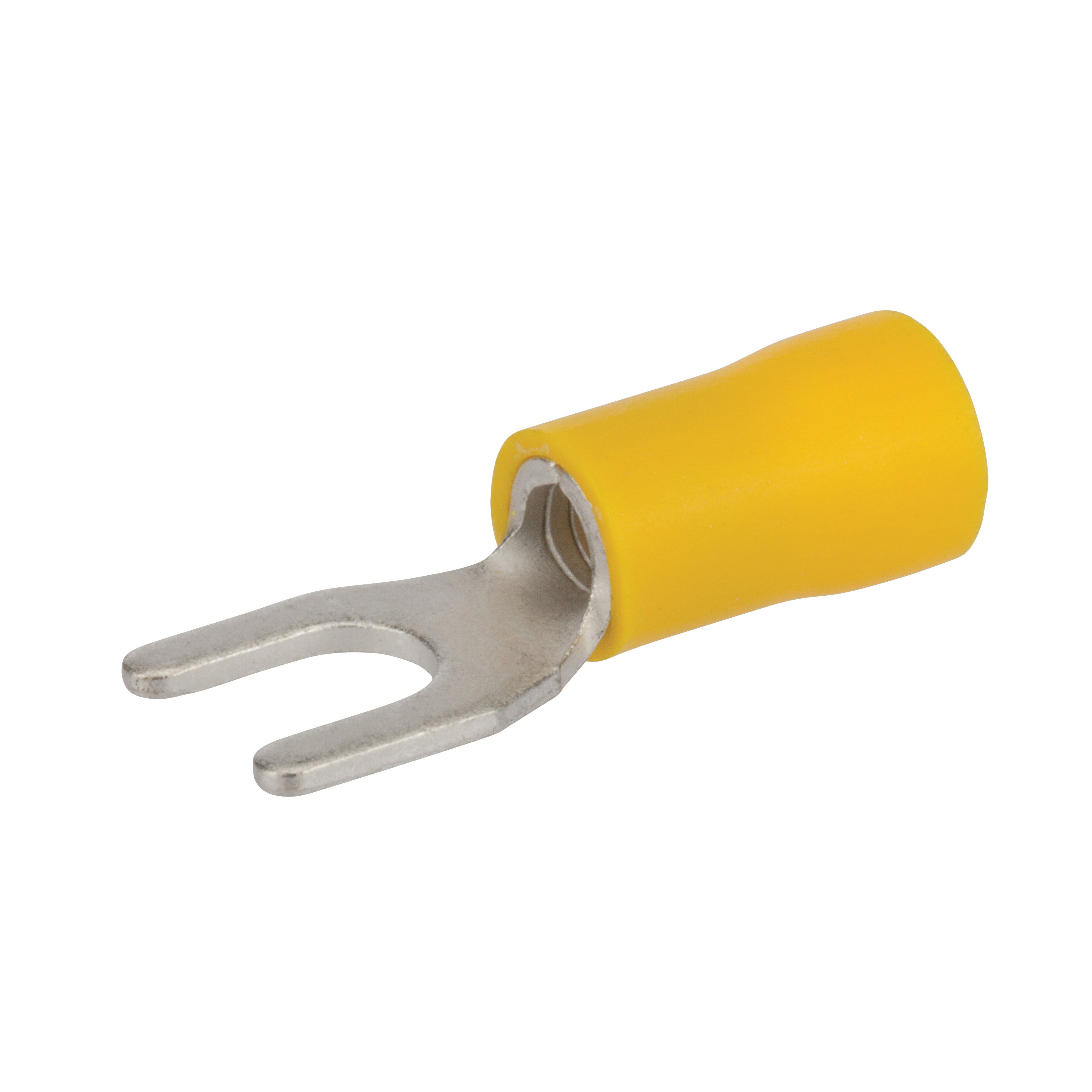

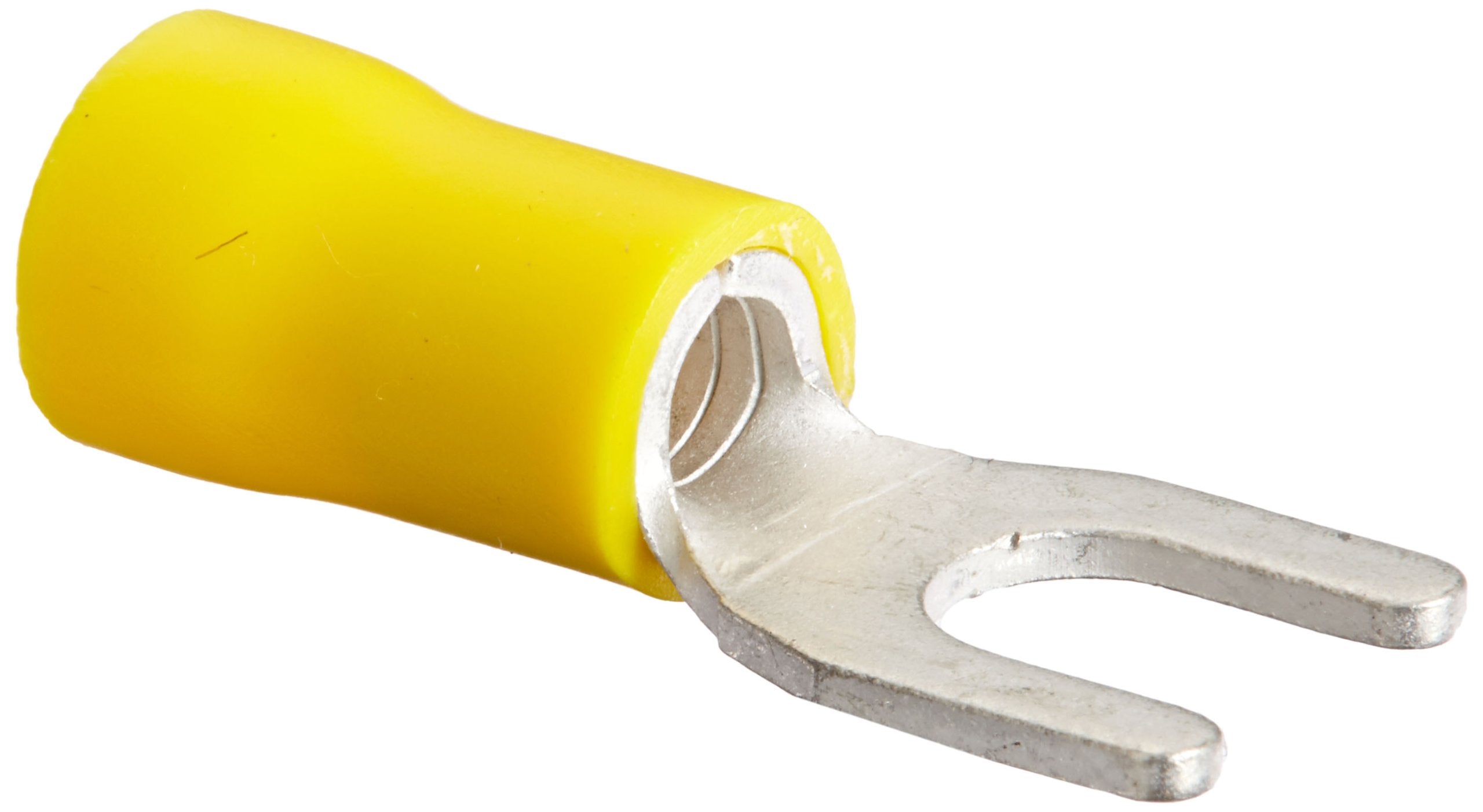

Nsi Industries S12-10V is a vinyl insulated spade terminal rated for 300 V for use with 12-10 AWG conductors. The S12-10V features a spade (fork) tongue for screw or stud terminations and is suitable for indoor or outdoor applications. Construction includes tin-plated copper for the conductive element and a vinyl insulating sleeve; typical use is wire termination on No. 10 studs at temperatures up to 75 C.

• Fits 12–10 AWG conductors and mates to No. 10 studs
• Voltage rating 300 V, temperature rating 75 C; UL Listed and CULUS compliant
• Tin-plated copper terminal with vinyl insulation for electrical protection

Product Highlights

Vinyl insulated spade terminal, 12-10 AWG, 300 V rating, No. 10 stud compatibility

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: S12-10V
• Country of Origin: Taiwan

Technical Specifications

• Brand: Nsi Industries
• Manufacturer Part Number: S12-10V
• Product Type: Vinyl insulated spade (fork) terminal
• Product Type Detail: Open tongue spade for rapid insertion on mounting screws
• Wire Size: 12-10 AWG
• Stud Size: #10
• Voltage Rating: 300 V
• Insulation Material: Vinyl
• Material: Tin plated copper
• Finish: Tin plated
• Temperature Rating: 75 deg C
• UL Listed: Yes
• Standard/Certifications: cULus (CULUS indicated)
• Dimensions (Length): 1.012 inches
• Dimensions (Width): 0.354 inches

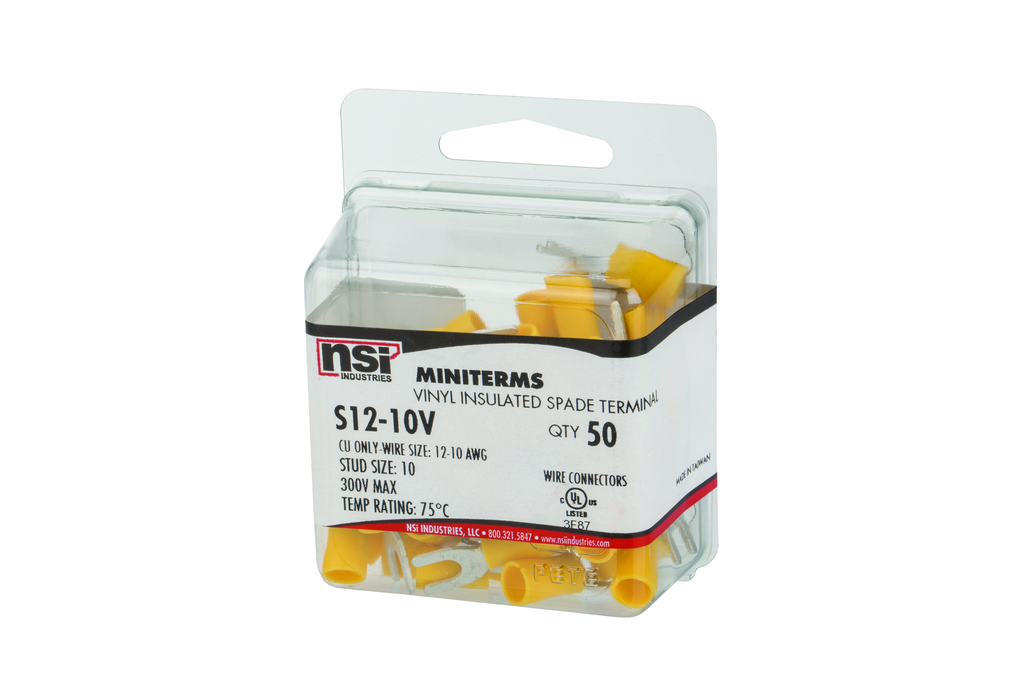

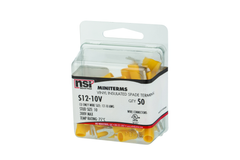

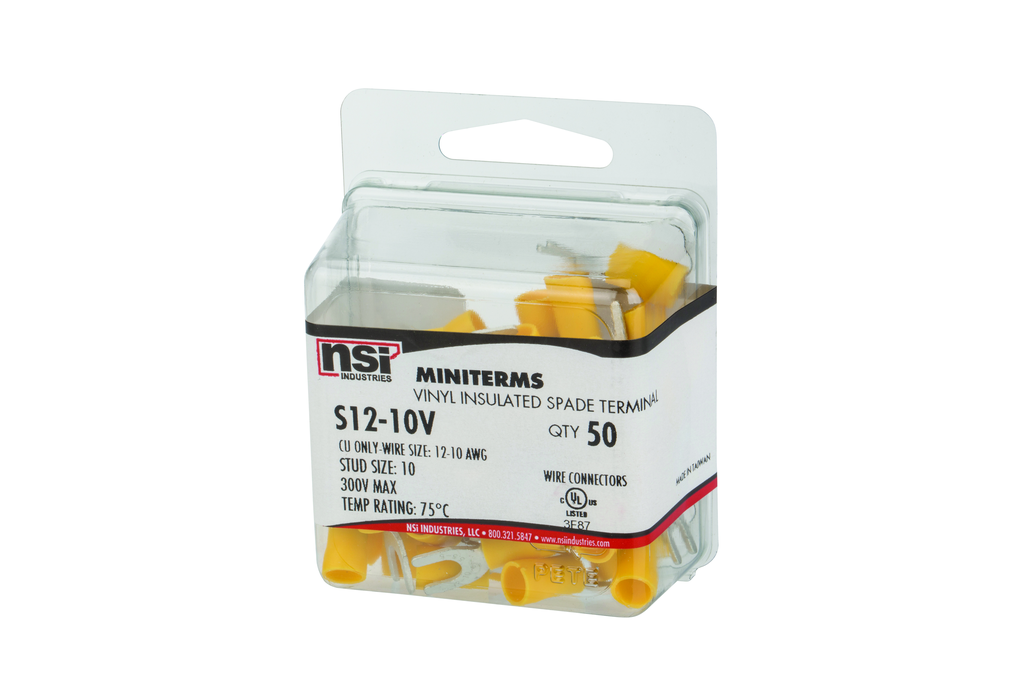

• Pack Quantity: 50
• Number of Terminations: 1
• Application: Wire termination
• UNSPSC Code: 39121400
• ECCN: EAR99
• Country of Origin: Taiwan
• UPC: 662381062949
