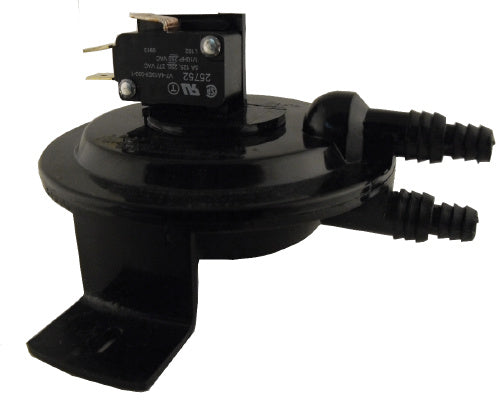

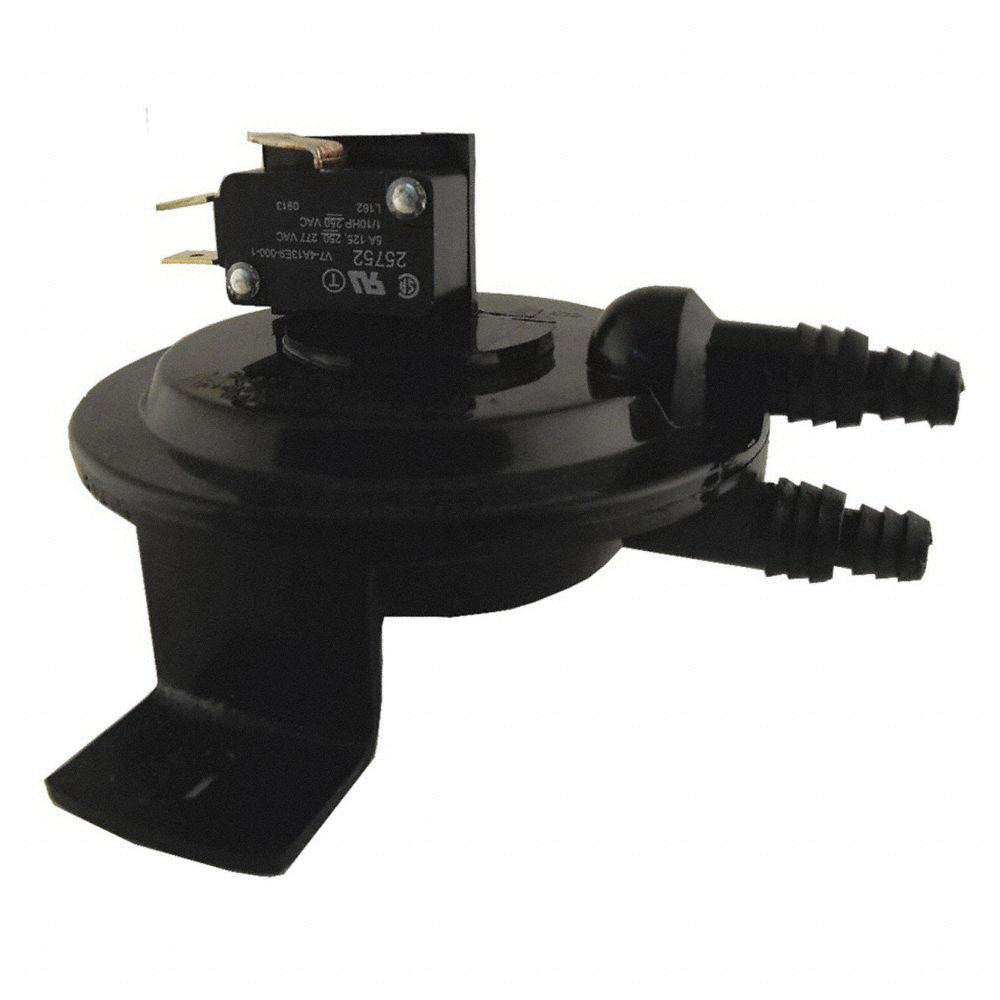

NSI INDUSTRIES RSS495011 Adjustable Air Pressure Switch

Product Description

The NSI INDUSTRIES RSS495011 Adjustable Air Pressure Switch is a crucial component in HVAC systems. It is designed to monitor pressure and activate based on user-defined settings. The unit comes with a push-on connection and features a single pole double throw (SPDT) contact configuration.

• Adjustable set points for customized pressure settings
• Compatible with horizontal and vertical mounting
• Ideal for residential and light commercial applications

Product Highlights

This air pressure switch is perfect for integration into humidifiers and electric air cleaners, making it suitable for both residential and commercial furnace systems.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• MPN: RSS495011

Technical Specifications

• Contact Configuration: SPDT
• Pressure Range: 0.25 to 1 inches WC
• Horsepower: 1/10 hp at 120 to 277 VAC
• Poles: 1
• Mounting Type: Horizontal, Vertical
• Temperature Rating: -40 to 190 degrees F
• Dimensions: 3.25 inches H x 3.25 inches W x 1.5 inches D
• Application: Suitable for humidifiers, electric air cleaners, and residential or light commercial furnaces
