Nsi Industries Rsr-314 Cord Grip, Alum, 1 inches NPT, Cable Range .750.875, Form Size 4

Product Description

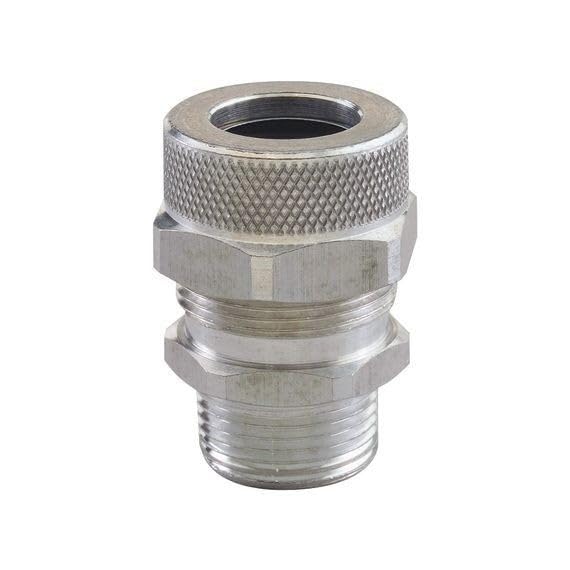

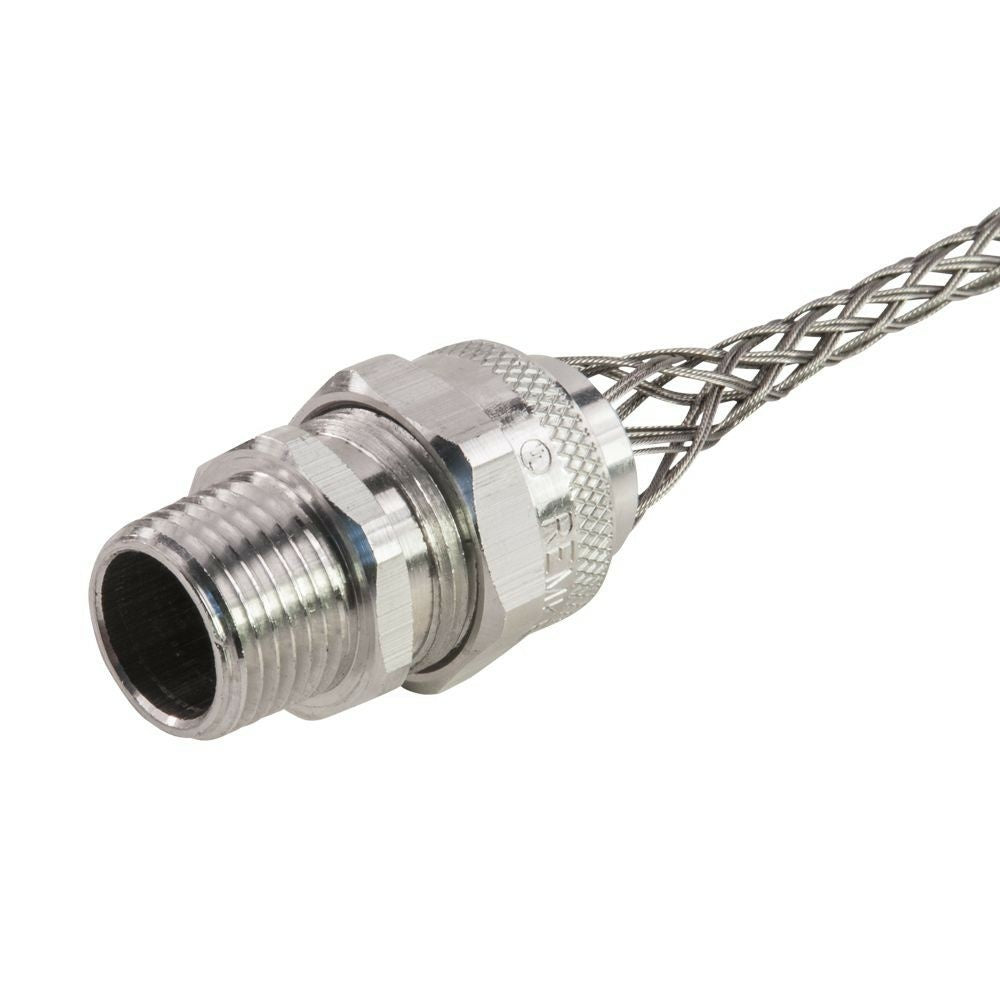

The NSI INDUSTRIES RSR-314 is a straight type cord grip. Constructed with an aluminum body and neoprene bushing, it is 2.08 inches in length. This cord grip is suitable for indoor and outdoor hazardous locations. It has a thread size of 1 inch and accommodates a cord size of 0.75 to 0.875 inch.

• Aluminum body with neoprene bushing
• Suitable for indoor, outdoor, and hazardous locations
• UL and CSA approved

Product Highlights

The NSI INDUSTRIES RSR-314 cord grip is ideal for securing cables in various environments, offering durability and compliance with safety standards.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: RSR-314

Technical Specifications

• Material: ALUMINUM (BODY), NEOPRENE (BUSHING)
• Length Size: 2.08 INCH
• Approval: UL, CSA
• Application: INDOOR AND OUTDOOR, HAZARDOUS LOCATION
• Thread Size: 1 INCH
• Cord Size: 0.75 TO 0.875 INCH
• Brand: TUFF-SEAL[TM]
• Form Size: 4
• Knockout Size: 1.406 INCH
• Clearance Hole Size: 1.406 INCH
• Nut Diameter: 1.72 INCH
• Number of Bushing Holes: 1
• Flammability Rating: UL 94V-2
• Temperature Rating: -40 TO 250 DEG F (OPERATING)
• Applicable Standard: CLASS I, DIV 2, NEC
• Model: RSR
