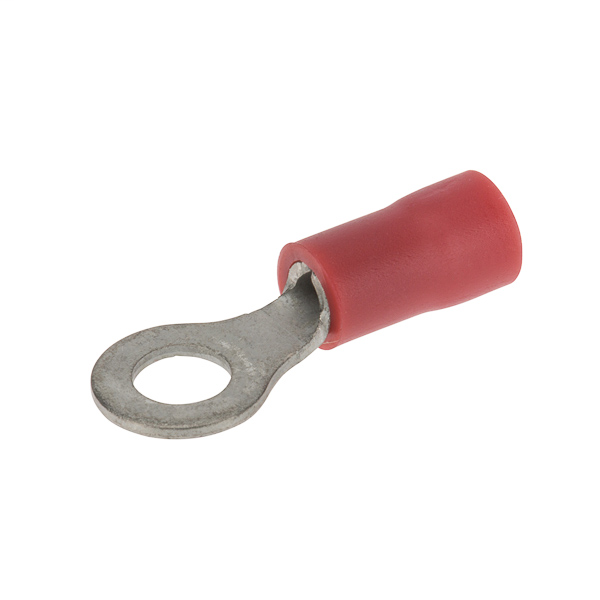

NSI Industries R22-8V-S Vinyl Insulated Ring Terminal 22 to 18 AWG #8 Stud

Product Description

The NSI Industries R22-8V-S is a vinyl insulated ring terminal designed for reliable electrical connections. This terminal supports wire sizes from twenty-two to eighteen AWG with a stud size of #8. The product ensures secure connections that cannot be disconnected unless the screw is fully removed.

• Material: Tin-plated copper with a vinyl (PVC) insulation
• Voltage Rating: 300 volts, Temperature Rating: seventy-five degrees Celsius
• Quantity: Available in packs of twenty-five

Product Highlights

The R22-8V-S terminal is essential for wire termination applications. It features a brazed seam for enhanced durability and a comfortable grip when using. The size and design make it suitable for various electrical projects, ensuring safety and compliance with standards.

Product Information

Standard Information

• Brand: NSI Industries
• Type: Vinyl Insulated Ring Terminal

Technical Specifications

• Wire Size: 22-18 AWG
• Stud Size: #8
• Length: 0.826 inches
• Width: 0.314 inches
• Color: Red
• Country of Origin: Taiwan
• Voltage: 300 VAC
• Environmental Conditions: 75 degrees Celsius
