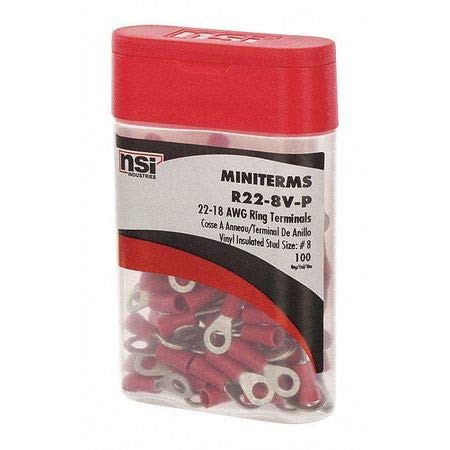

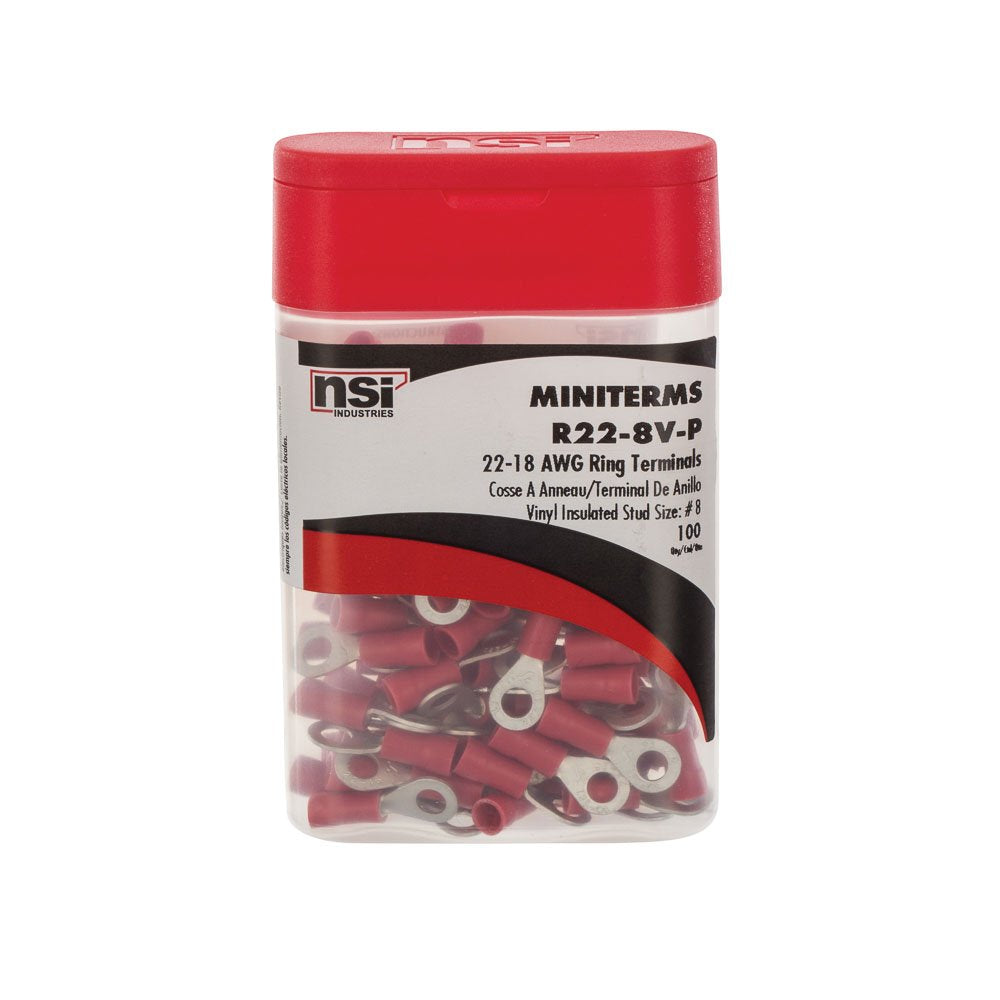

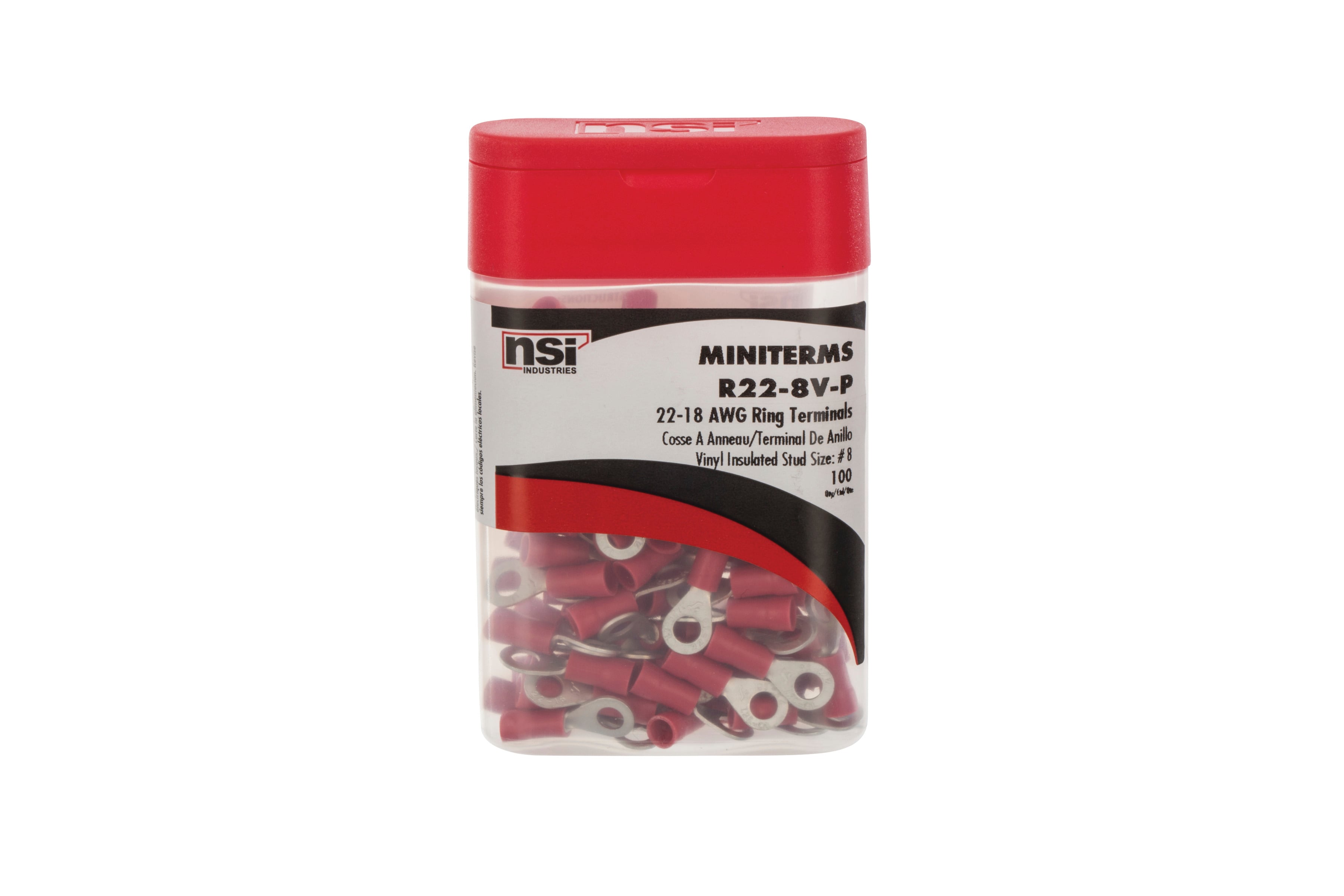

Nsi Industries R22-8V-P Vinyl Ring Terminal 22-18 Awg #8 Stud (Pack of 100)

Product Description

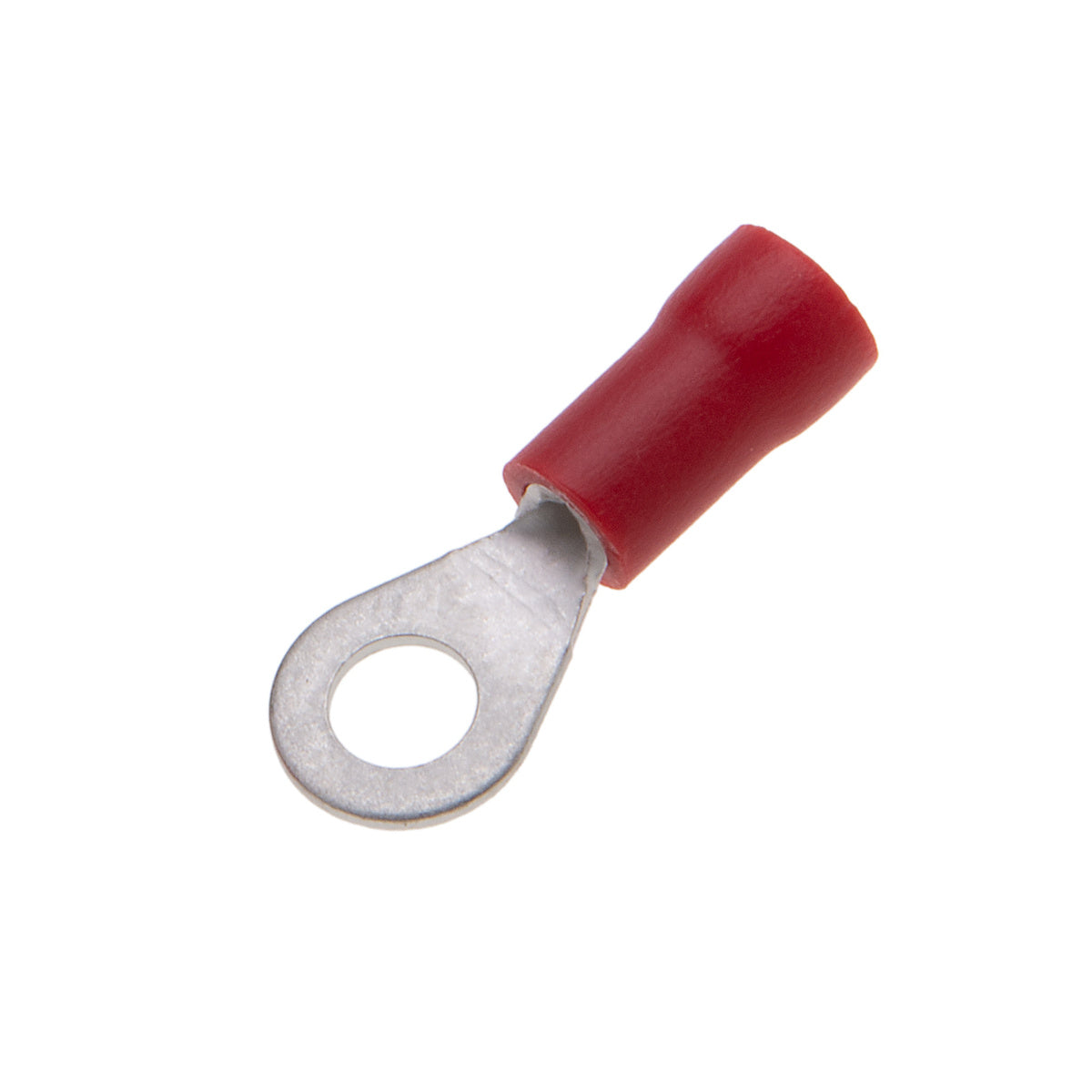

The NSI INDUSTRIES R22-8V-P is a vinyl insulated ring terminal designed for safe and reliable wire terminations. This ring terminal is suitable for 22-18 AWG wires and features a #8 stud size. It ensures secure connections, remaining connected unless the screw is completely removed. Packaged in a pro pack of 100.

• Vinyl insulated ring terminal
• Electro tin plated
• Suitable for 22-18 AWG wires

Product Highlights

The NSI Industries R22-8V-P ring terminal provides secure and reliable connections for 22-18 AWG wires with a #8 stud, ideal for various electrical applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: R22-8V-P
• Country of Origin: Taiwan

Technical Specifications

• ECCN: EAR99
• Country of Origin: TW - Taiwan
• UNSPSC: 39121432
• AWG: 22-18
• Stud Size: #8
• IGCC: 4603
• Type: Vinyl Insulated Ring Terminal
• Color: Red
• Vendor: 662381
• Material: Vinyl Insulation
• Standard: cULus
• Wire Size: 22-18 AWG
• Application: Wire Termination
• Family group: CONNECTORS
• Manufacturer: NSI INDUSTRIES
• Terminal Size: NO. 8 IN
• Voltage Rating: 300 V
• Special Features: Vinyl Insulated Ring Terminal 22-18 AWG - 100 Pack
• WES Product code: 2918251775
• Number Of Terminals: 1
• Environmental Conditions: 75 C
• Finish: Tin Plated
• Pack Qty: 25
• GTIN: 662381201003
• UPC: 662381201003
• EAN: 0662381201003
• Wire Range: 22 AWG – 16 AWG
• Insulation Type: Partially Insulated
• BRAND: NSI
• MPN: R22-8V-P
• MATERIAL: copper
• PRODUCT LINE: Ring Terminals
• PRODUCT GROUP: Wire Connectors and Terminals
• PRODUCT FAMILY: Connectivity
• PRODUCT CATEGORY: Wire Terminals
• PRODUCT NUMBER: R22-8V-P
• PACK SIZE: 100
• FLAMMABILITY RATING: V-0
• TANG END SHAPE: Ring Terminal
• SEAM TYPE: Butted
• VOLTAGE RATING (AC): 22 AWG - 16 AWG
• SHORT DESCRIPTION (INVOICE): Vinyl Rng 22-18 8 Stud (100 EA)
• ADDITIONAL TITLE: Vinyl Rng 22-18 8 Stud (100 EA)
• PRODUCT LENGTH (IN): 21.00
• PRODUCT WIDTH (IN): 8.00
• PRODUCT HEIGHT (IN): 4.1
• FASTENER HEAD SIZE (IN): V-0
• Weight: 1.10 LBS
• Package Dimensions (L x W x H): 20.9804 mm x 7.9756 mm x 0.9144 mm
• Package Weight (Imperial): 0.190 L
• Package Weight (Metric): 0.086 kg
