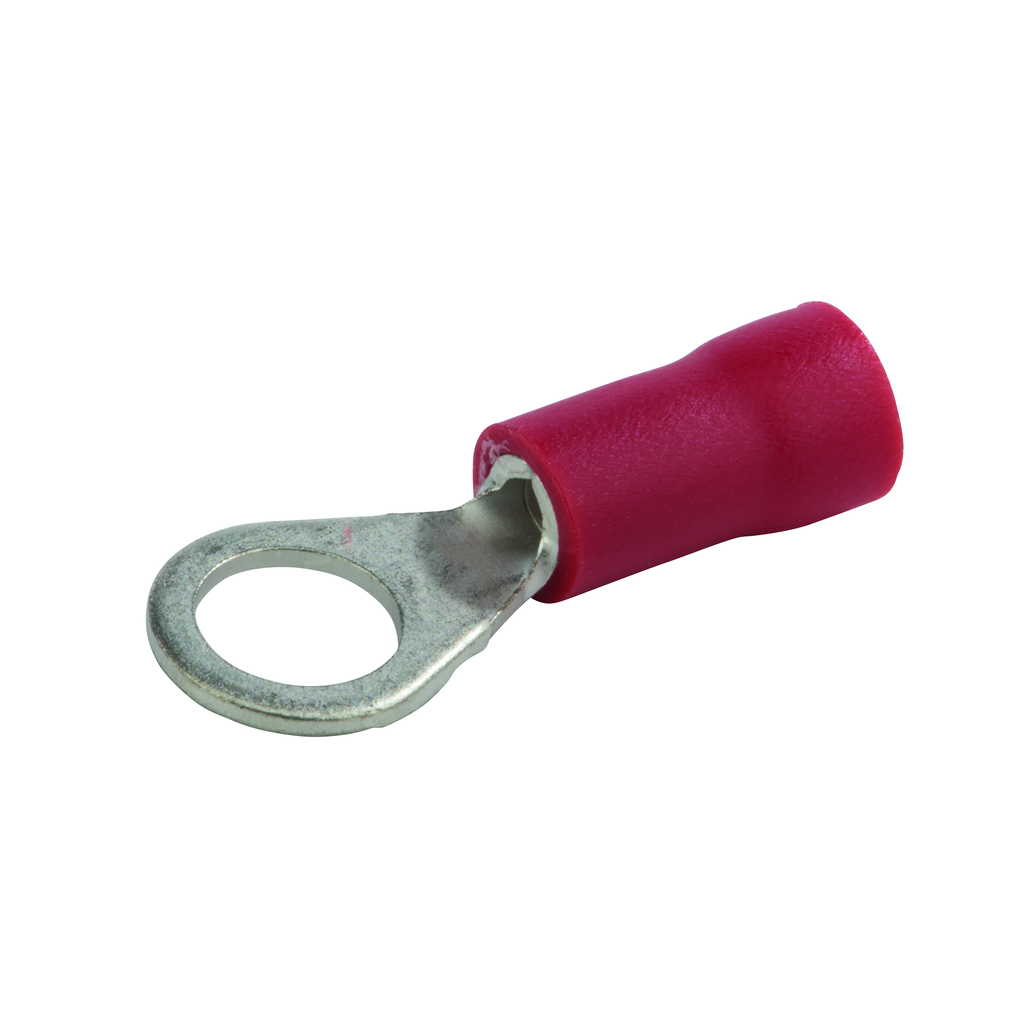

NSI Industries R22-10V-S Ring Terminal 22 to 18 AWG Red

Product Description

The NSI Industries R22-10V-S is a ring terminal designed for wire connections. It fits wire sizes from twenty-two to eighteen AWG and has a size #10 stud opening. This terminal ensures secure connections, as it cannot be undone unless the screw is removed entirely. The terminal is constructed from tin-plated copper with a vinyl insulation, making it suitable for various electrical applications.

• Wire Size: 22 to 18 AWG
• Stud Size: #10
• Quantity: 25 count per package

Product Highlights

This ring terminal is ideal for safe and reliable electrical connections in various settings.

Product Information

Standard Information

• Brand: NSI Industries
• Material: Vinyl Insulated Copper

Technical Specifications

• Voltage Rating: 300 Volt
• Temperature Rating: 75 degrees C
• Standard: cULus Listed
• Length: 0.826 inches
• Width: 0.314 inches
• Country of Origin: Taiwan
• Applications: Wire Termination
• ECCN: EAR99
• UNSPSC: 39121432
