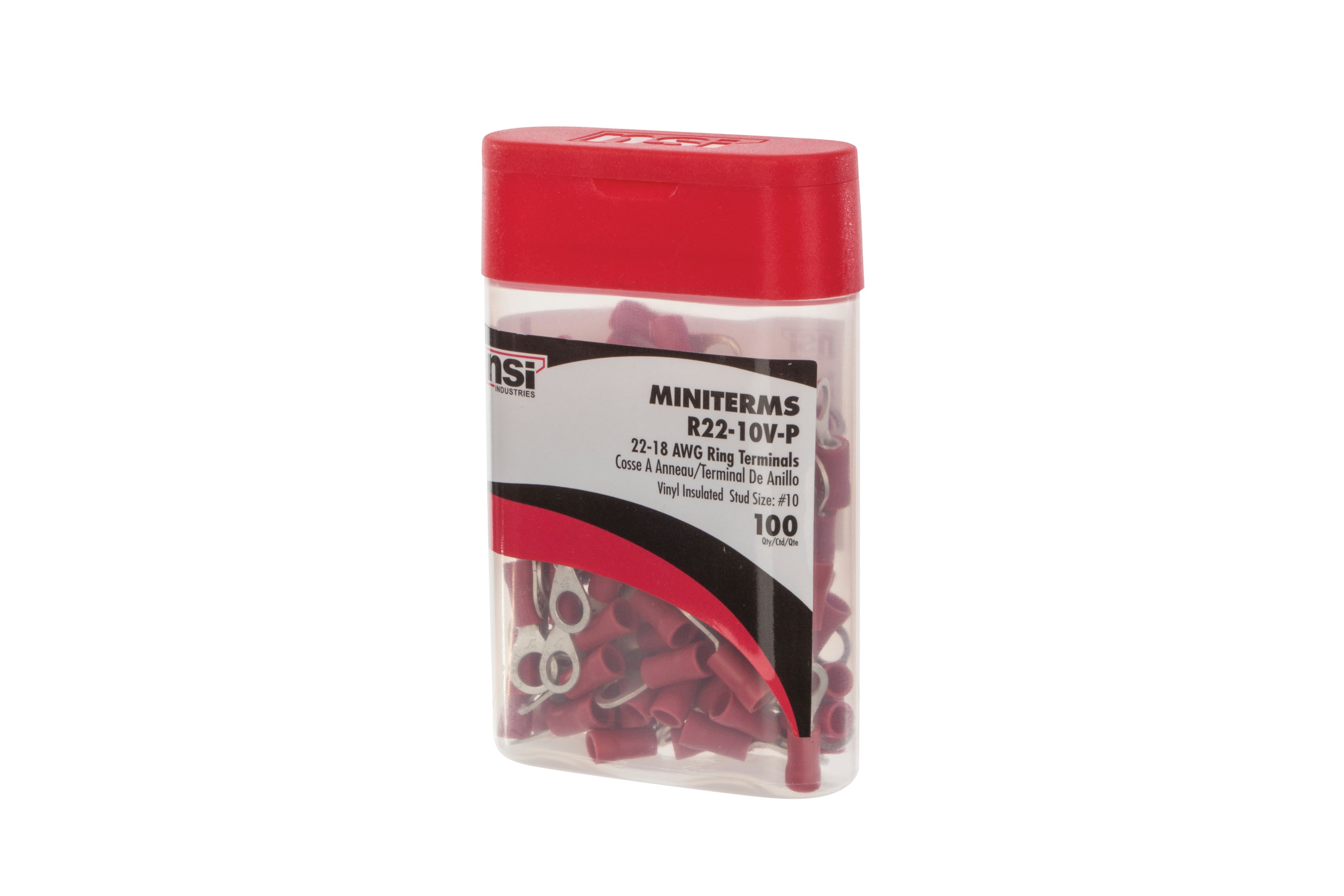

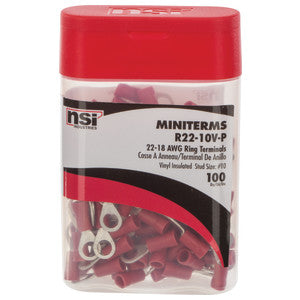

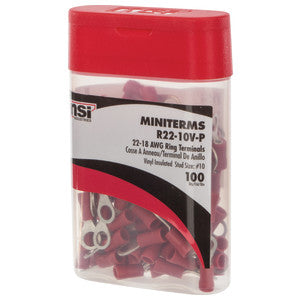

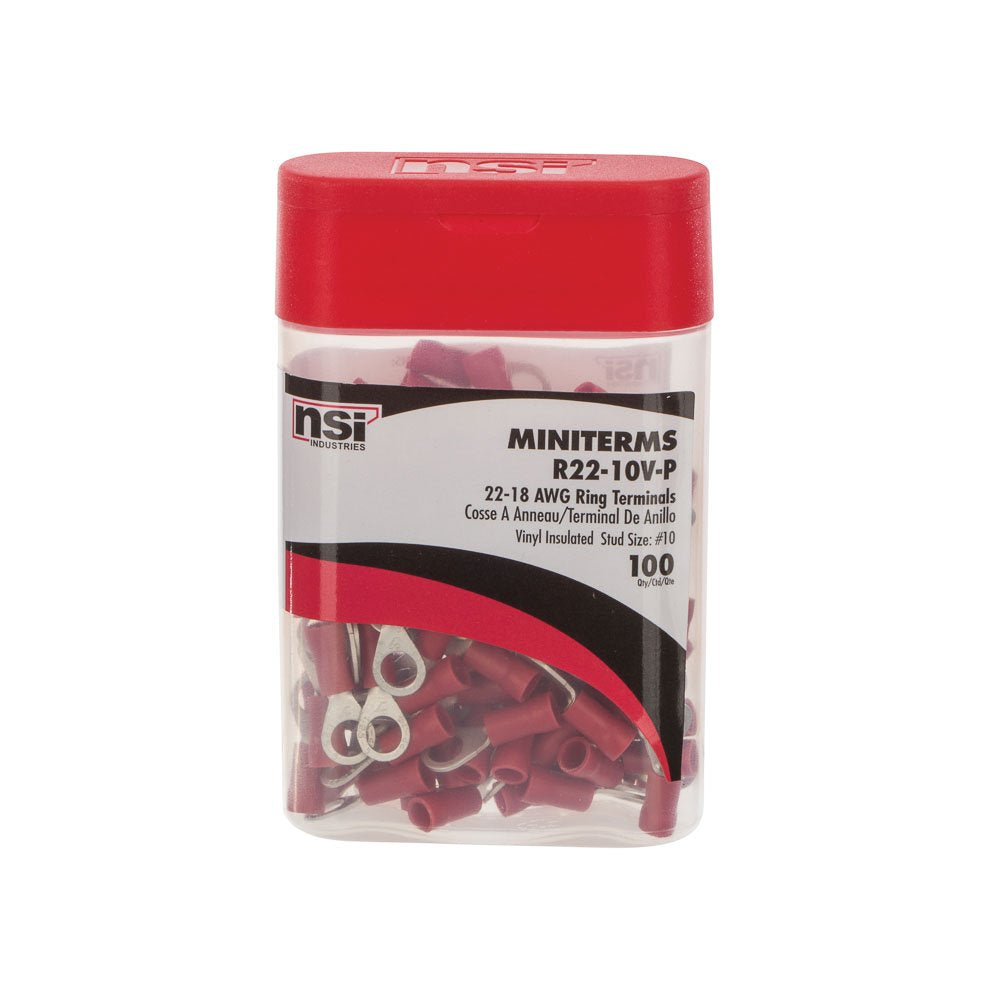

Nsi Industries R22-10V-P Miniterminal Propack Vinyl Ring Terminal 22-18 AWG #10 Stud (Pack of 100)

Product Description

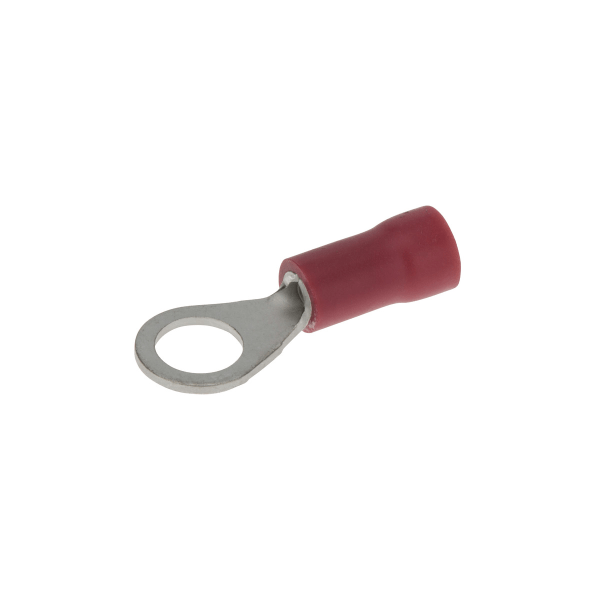

The NSI Industries R22-10V-P Miniterminal Propack vinyl ring terminals are basic tongue ring terminals. These vinyl insulated ring terminals ensure safe and reliable wire connections, as they remain connected unless the screw is completely removed. Made of tin-plated copper with brazed seam, these terminals are rated to 300V and 75 degrees C.

• Standard style vinyl ring terminals
• Made of tin-plated copper with brazed seam, vinyl (PVC)
• Safe and reliable connections

Product Highlights

The NSI Industries R22-10V-P vinyl ring terminals provide a secure and reliable wire termination solution for various applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: R22-10V-P
• Country of Origin: Taiwan

Technical Specifications

• Type: Vinyl Insulated Ring Terminal
• Brand: NSI Industries
• Wire Size: 22-18 AWG
• Terminal Size: #10
• Standard: cULus
• Material: Vinyl Insulation
• Voltage: 300 Volt
• Applications: Wire Termination
• Conductor Size: 22-18 AWG
• Country of Origin: Taiwan
• Buy American Compliant: Y
• Number of Terminations: 1
• Environmental Conditions: 75 C
• Finish: Tin Plated
• Stud Terminal Size: #10
• Insulation Type: Partially Insulated
• Certifications: RoHS
• Rated Voltage: 300V
• No. of Terminals: 1
• MATERIAL: copper
• Application: Termination
• Tang End Shape: Ring Terminal
• Flammability Rating: V-0
• Product Line (L4): Ring Terminals
• Product Group (L2): Wire Connectors and Terminals
• Product Category (L3): Wire Terminals
• UPC w/ check digit: 662381200365
• TITLE: 22-18 Vinyl Ring #10 Stud 100Pc PRO Pack
• SKU: R22-10V-P
• Short Description (invoice): Vinyl Rng 22-18 10 Stud (100 EA)
• Primary Parent Category: Ring Terminals
• GTIN w check digit: 662381200365
• EAN w/ check digit: 0662381200365
• Parent Category: NSI Products, Ring Terminals
• Pack Size: 100
