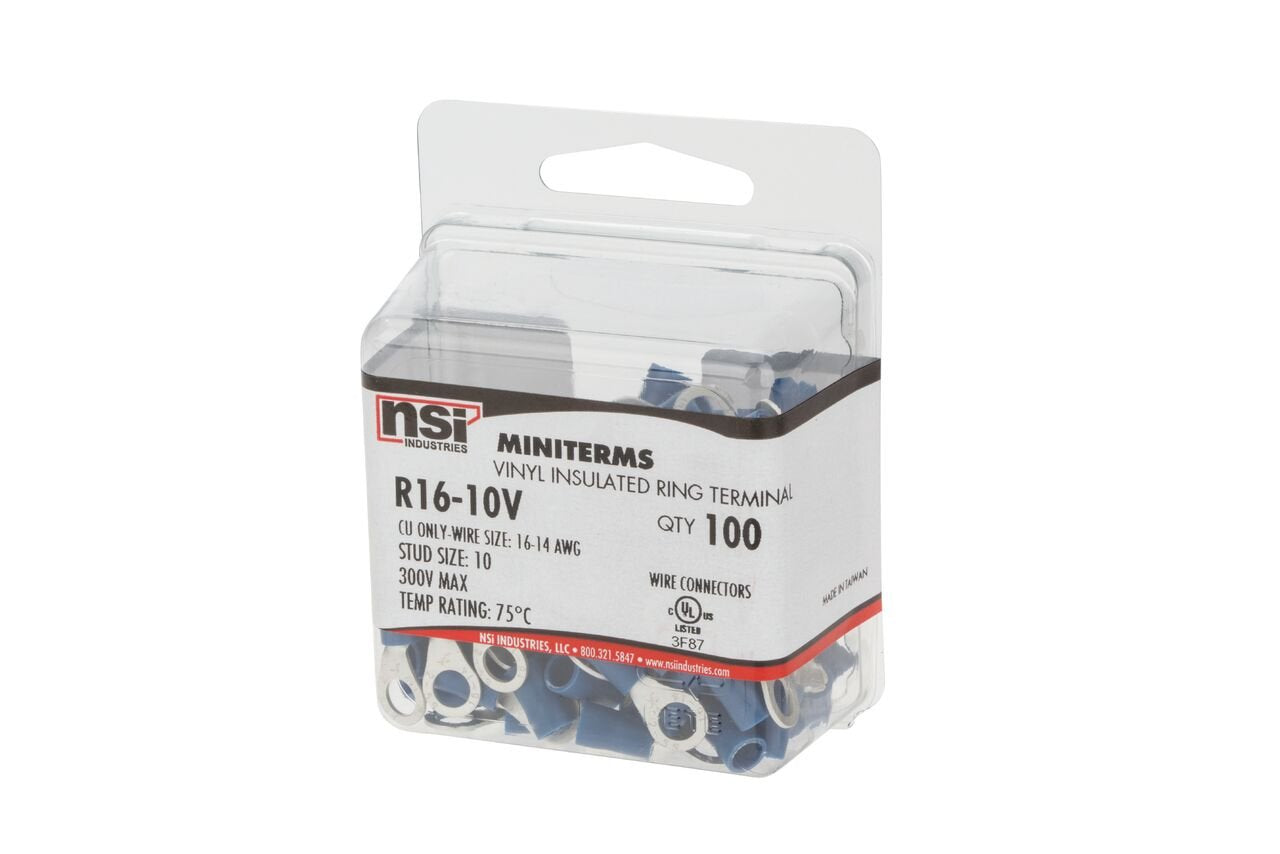

Nsi Industries R16-10V Vinyl Insulated Ring Terminal 16-14 AWG (100 per Pack)

Product Description

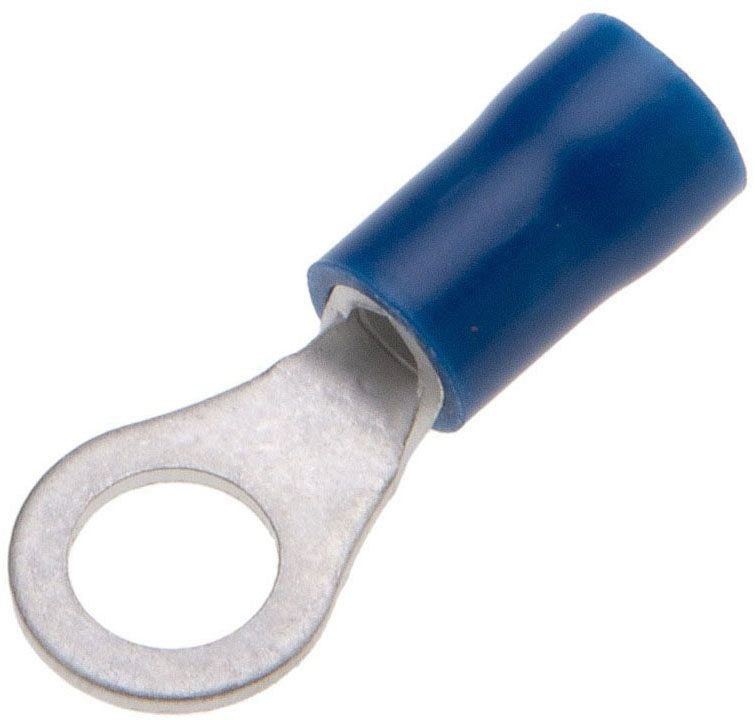

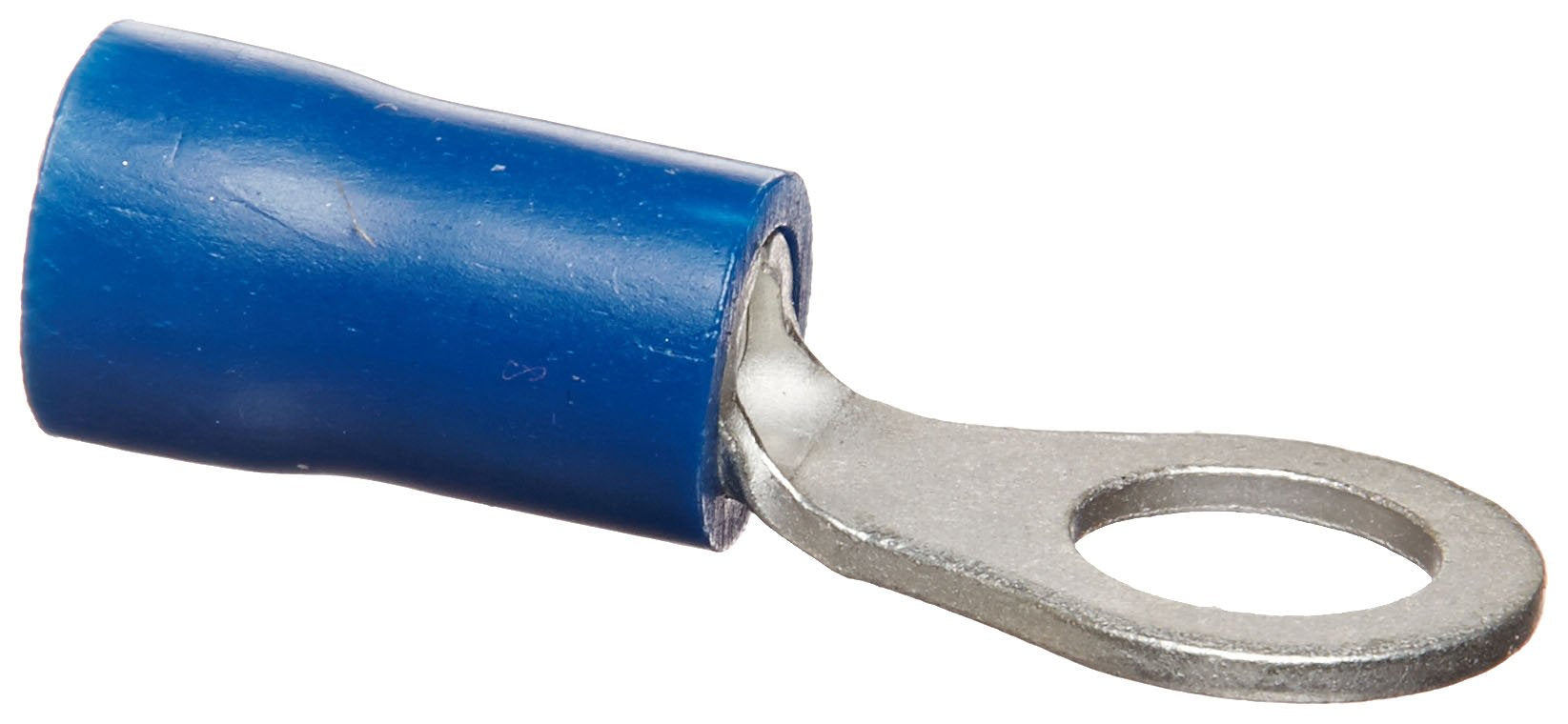

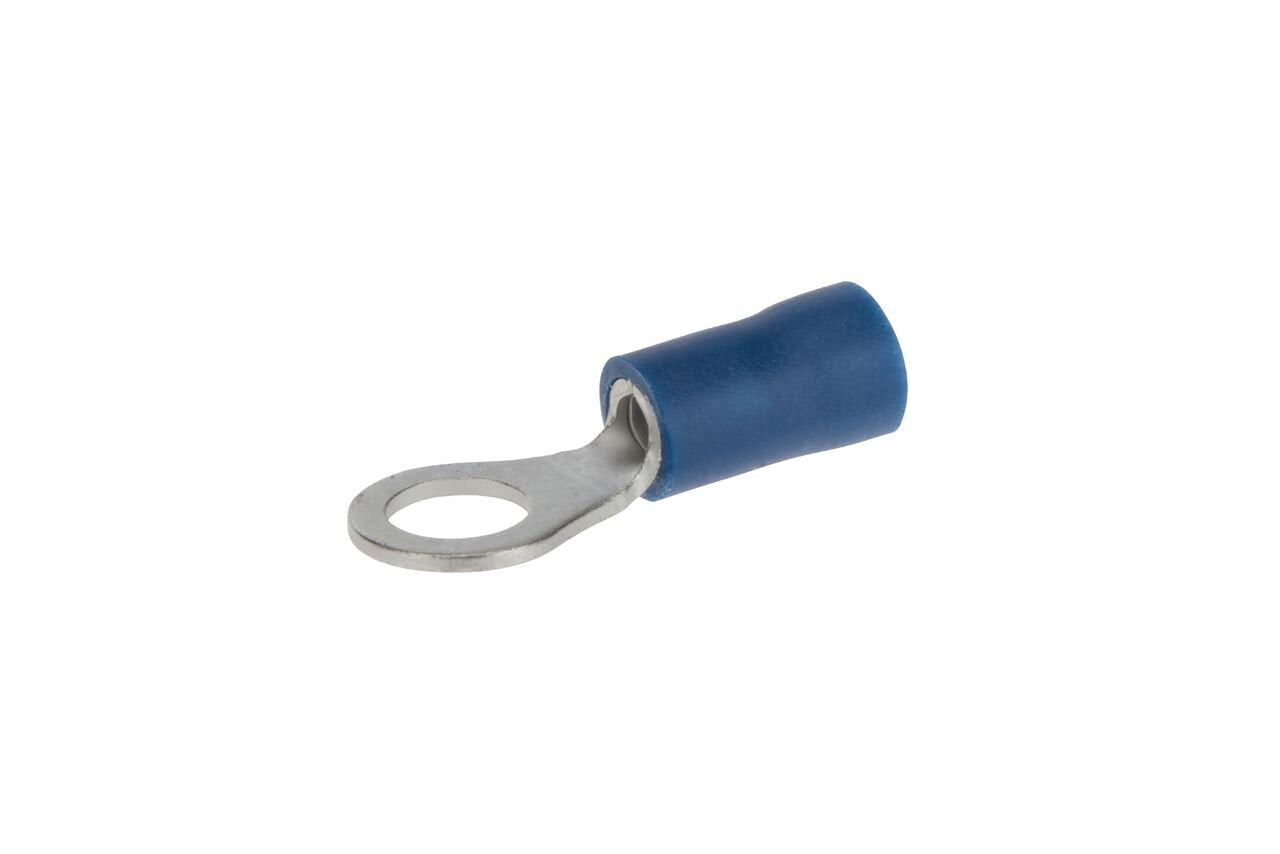

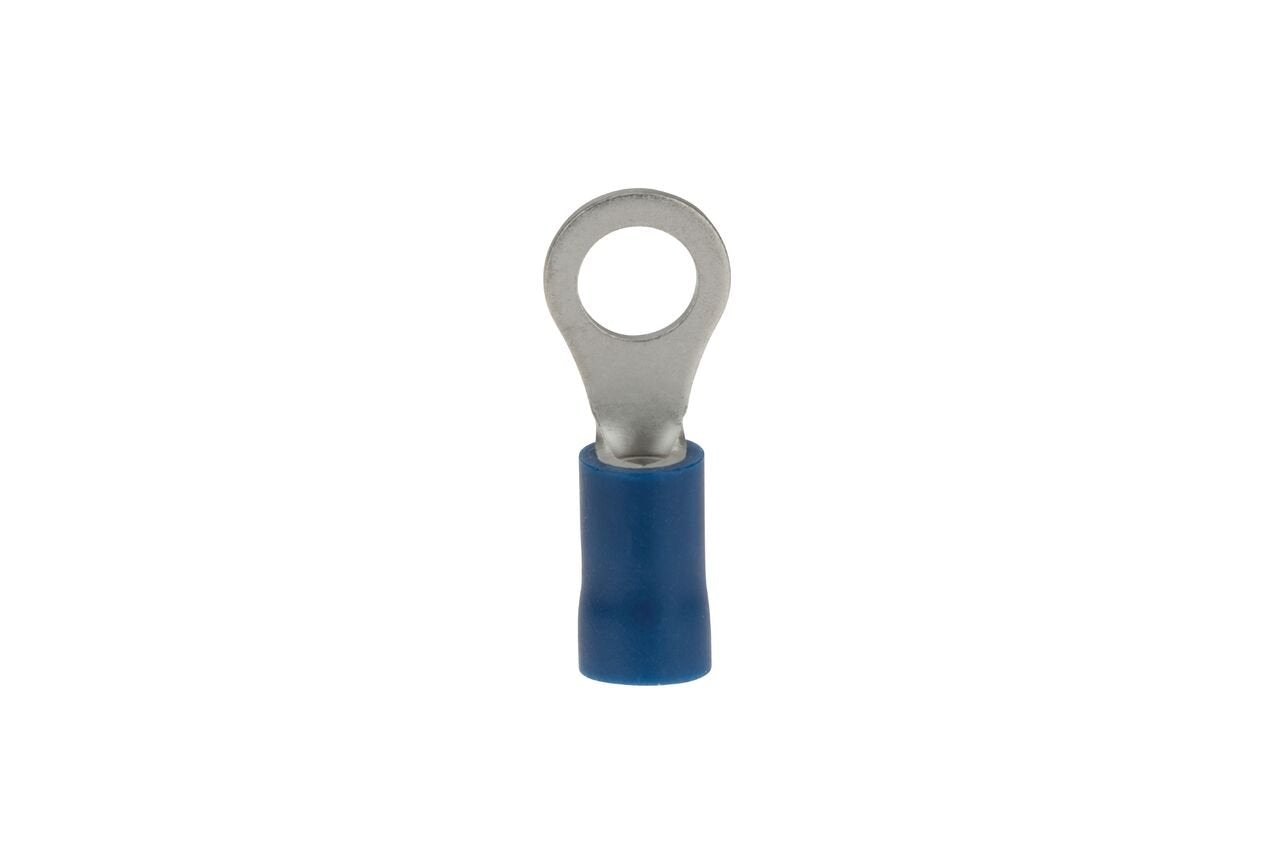

NSI Industries R16-10V is a vinyl-insulated ring terminal designed to terminate 16-14 AWG conductors to a #10 stud, rated 300 V. It has a tin-plated copper body with butted seam construction and is cULus/UL listed for indoor or outdoor use with a 75°C temperature rating. Dimensions are approximately 0.315 in width by 0.846 in length. Common applications include wire termination and general electrical wiring.

• Vinyl-insulated ring terminal for 16-14 AWG conductors; fits #10 stud.
• Tin-plated copper body with butted seam construction; cULus/UL listed; 300 V, 75°C rating.
• Dimensions ~0.315 in x 0.846 in; sold in standard 100 per pack; suitable for indoor/outdoor wire termination.

Product Highlights

Vinyl-insulated #10 stud ring terminal; 16-14 AWG; tin-plated copper; 300 V, 75°C; 100 per pack.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: R16-10V
• Country of Origin: Taiwan

Technical Specifications

• Brand: NSI Industries
• MPN: R16-10V
• Part Number: 880922
• Conductor Size: 16-14 AWG
• Stud Size: #10
• Terminal Type: Ring Terminal (1-hole)
• Insulation Material: Vinyl
• Material: Tin-plated copper (electro tin plated)
• Construction: Butted seam
• Voltage Rating: 300 V
• Temperature Rating: 75°C
• Standards/Certifications: cULus / UL listed
• Application: Wire termination / general electrical wiring
• Pack Quantity: 100 per pack
• Country of Origin: Taiwan
• Dimensions (Width x Length): 0.315 in x 0.846 in
• Number of Terminations: 1
• UNSPSC: 39121400
• ECCN: EAR99
• Package Weight: 91.0 g (0.201 lb)
• UL Listed: Yes
