Nsi Industries R16-10-P R16-10-P 16-14 Nylon Ring #10 S

Product Description

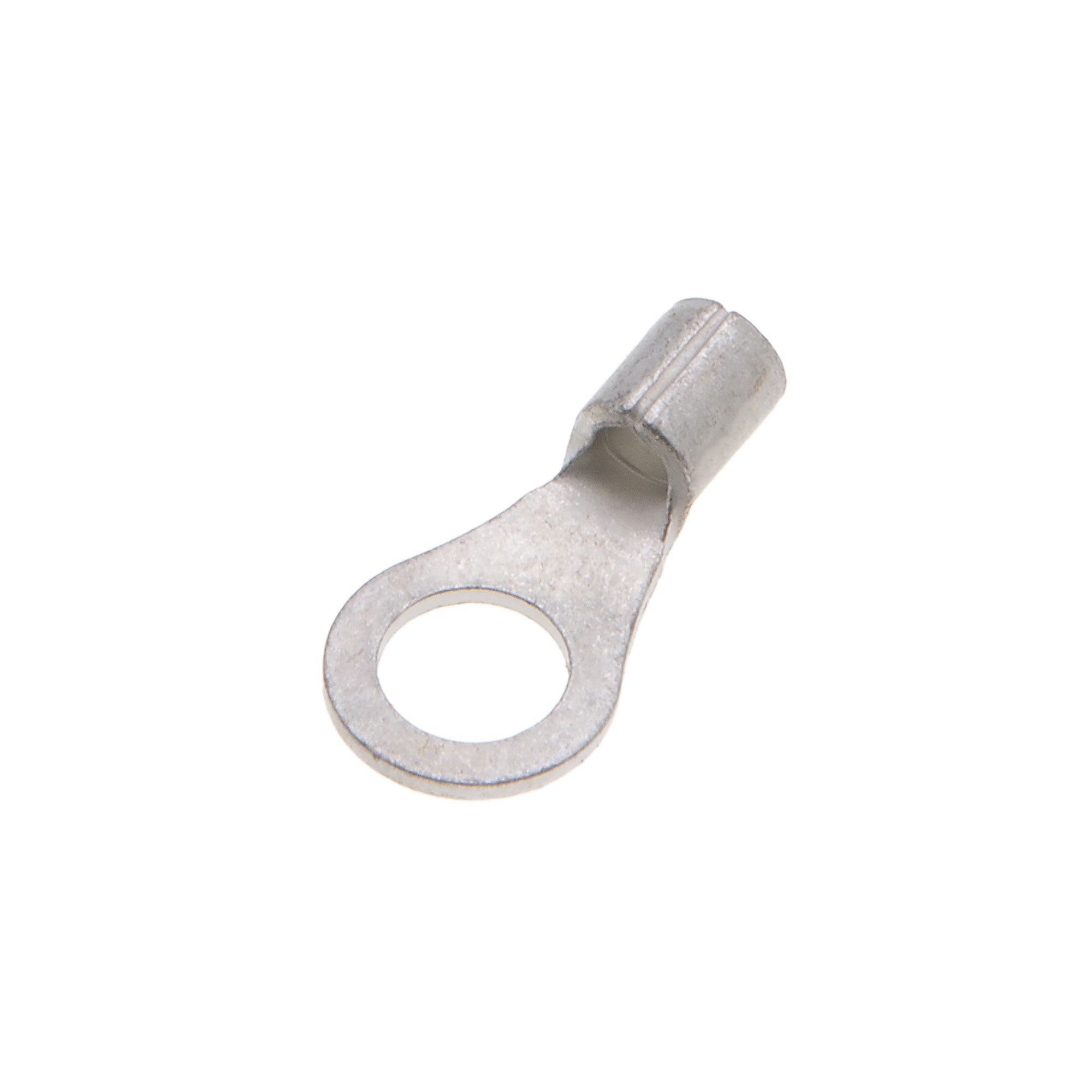

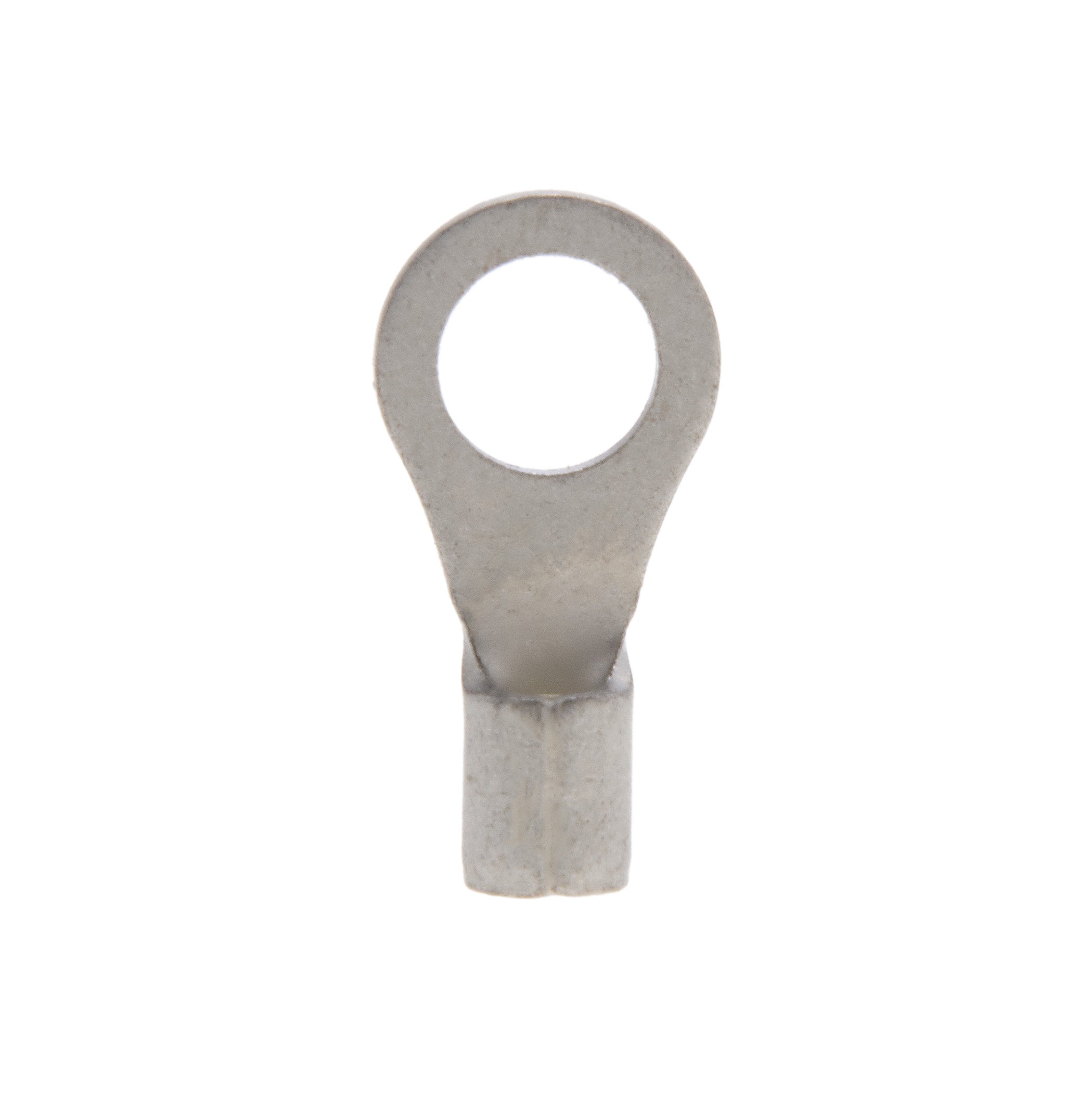

The NSI INDUSTRIES R16-10-P is a 16-14 AWG uninsulated ring terminal with a #10 stud. These uninsulated ring terminals provide safe and reliable connections because they cannot be disconnected unless the screw is completely removed. They are made of electro tin-plated copper with brazed seam and are rated to 600V and 105 degrees C.

• Uninsulated style
• Made of tin-plated copper
• Wire size: 16-14 AWG, stud size: #10

Product Highlights

The NSI INDUSTRIES R16-10-P ring terminals are ideal for wire termination applications requiring a secure and permanent connection.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: R16-10-P
• Country of Origin: Taiwan

Technical Specifications

• Type: Non-Insulated Ring Terminal
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Copper
• Standard: CULUS
• Sub Brand: Miniterms
• Wire Size: 16-14 AWG
• Applications: Wire Termination
• Terminal Size: #10
• Conductor Size: 16-14 AWG
• Country of Origin: Taiwan
• Number of Terminations: 1
• Environmental Conditions: 105 C
• Manufacturer: NSi Industries
• Model / MPN: R16-10-P
• Number of Items: 125.0
• Terminal Type: Bare Ring Tongue
• Insulation: Non-insulated
• Stud Size: #10
• Conductor Min: 16 AWG
• Conductor Max: 14 AWG
• Temperature Rating: 105 Degree C (221 Degree F)
• Package Quantity: 100/Pack
• PRODUCT LINE: Ring Terminals
• Product Category (L3): Wire Terminals
• Product Family (L1): Connectivity
• PRODUCT GROUP: Wire Connectors and Terminals
• Product Group (L2): Wire Connectors and Terminals
• Product Line (L4): Ring Terminals
• Wire Range: 16 AWG - 14 AWG
• Tang End Shape: Ring Terminal
• SKU: R16-10-P
• Short Description (invoice): Bare Rng 16-14 10 Stud (100 EA)
• FINISH: Tin Plated
• Application: Termination
• Primary Parent Category: Ring Terminals
• Package Type: Pack
• Pack Type: Ea
• Pack Size: 100
• PACK QTY: 1000
• Tongue Type: Ring
• Barrel Type: Brazed Seam
• Tongue Size: 0.334 in W
• Series: R Series
• Length: 0.669 in
