Nsi Industries PTS2/0 PTS Series Pin Terminal 2/0 AWG

Product Description

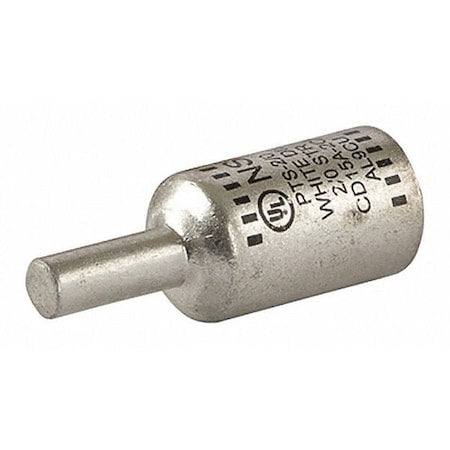

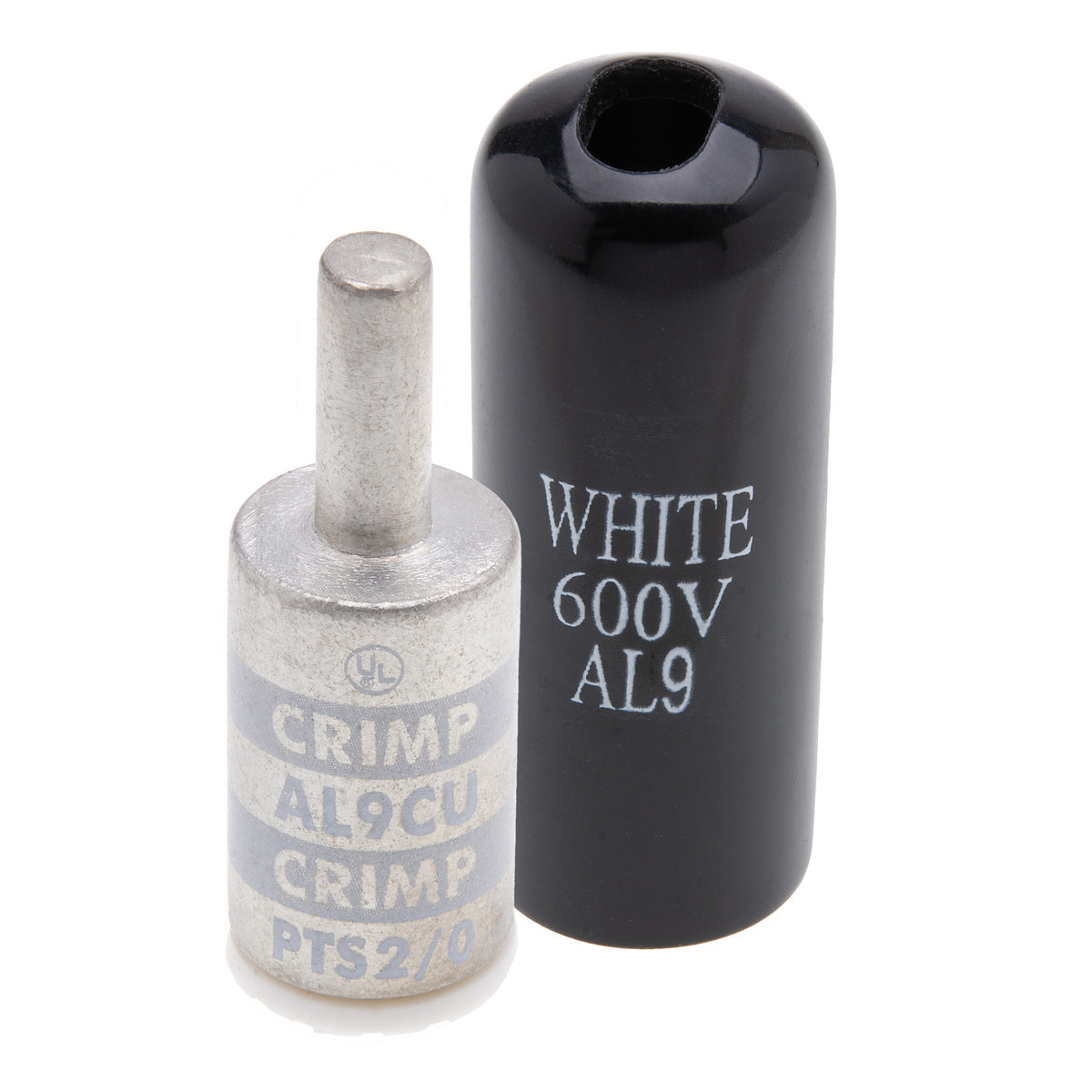

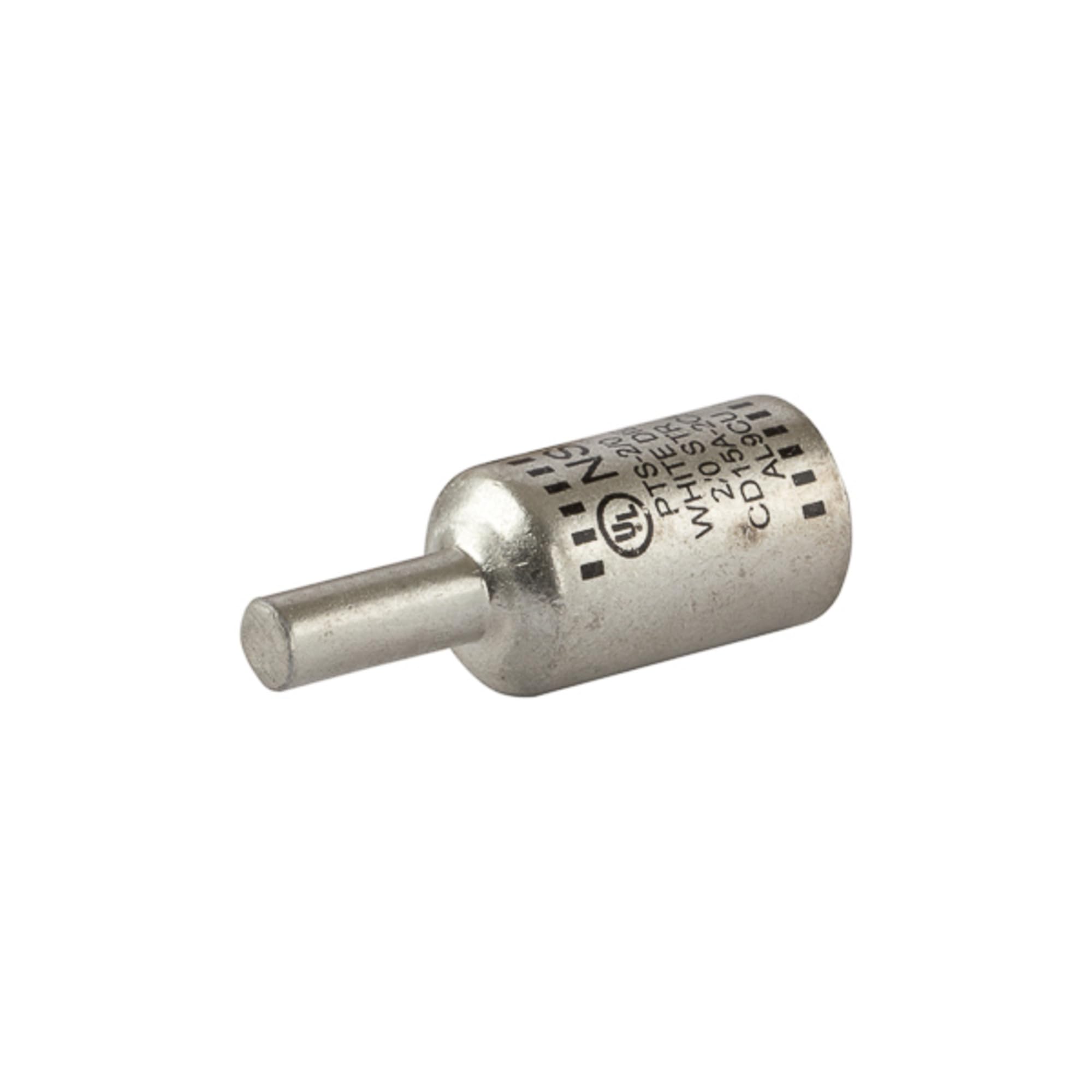

The NSI INDUSTRIES PTS2/0 PTS Series pin terminal is designed for termination of both aluminum and copper conductors. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated at 600 volts.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• The pin is solid aluminum
• The connector is tin plated to provide low contact resistance and oxidation protection

Product Highlights

The NSI PTS2/0 pin terminal ensures a reliable, vibration-resistant connection for both aluminum and copper conductors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS2/0
• Country of Origin: India

Technical Specifications

• GTiN: 00662381033451
• Size: L=2.20 - OD=.850 - ID=.429 - Pin Dia=.330
• Type: Dual Rated
• Brand: NSI Industries
• Width: 0.85 in
• Finish: Tin Plated
• Height: 0.85 Inch
• Length: 2.21 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 2/0 AWG
• Product UPC: 66238103345
• 12-Digit UPC: 662381033451
• Applications: Terminate, Splice, Tap Power Connectors
• TC Connection: # 1 Pin
• Conductor Size: 2/0 AWG
• Connection Type: # 1 Pin
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• Pin Size: 1 AWG
• OD: 0.85"
• Pin Diameter: 0.33 inches
• Body Length: 1.37 inches
• Pin Length: 0.83 in
• Max. Temp. [Specifications]: 90 Degrees C
• Wire Range [Specifications]: 2/0 AWG
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 2.20 in
• Rated Voltage: 600 V
• No. of Poles: 1
• MODEL: PTS2/0
• SKU: 1404236
• UOM: each
• I.D.: .429
• O.D.: .850
• Series: PTS
• Packaging Length: 2.2 in
• Packaging Width: 0.85 in
• Packaging Height: 0.85 in
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper, Aluminum
• Assortment: Pin Terminals
• Die Color Code: White
• Barrel Length: 1.37
