Nsi Industries PTS1 Aluminum Pin Terminal 1 AWG REPLACEMENT MPN

Product Description

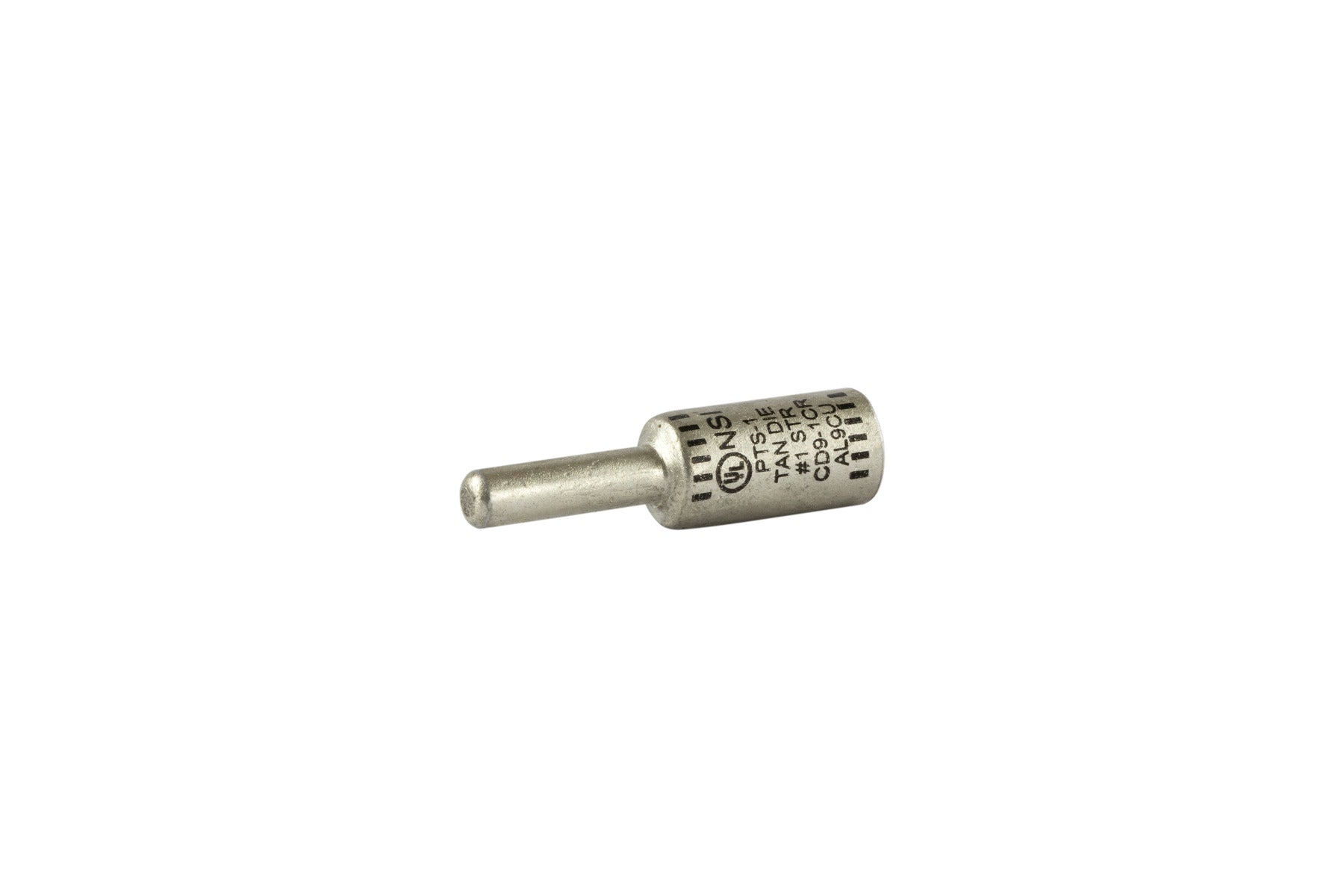

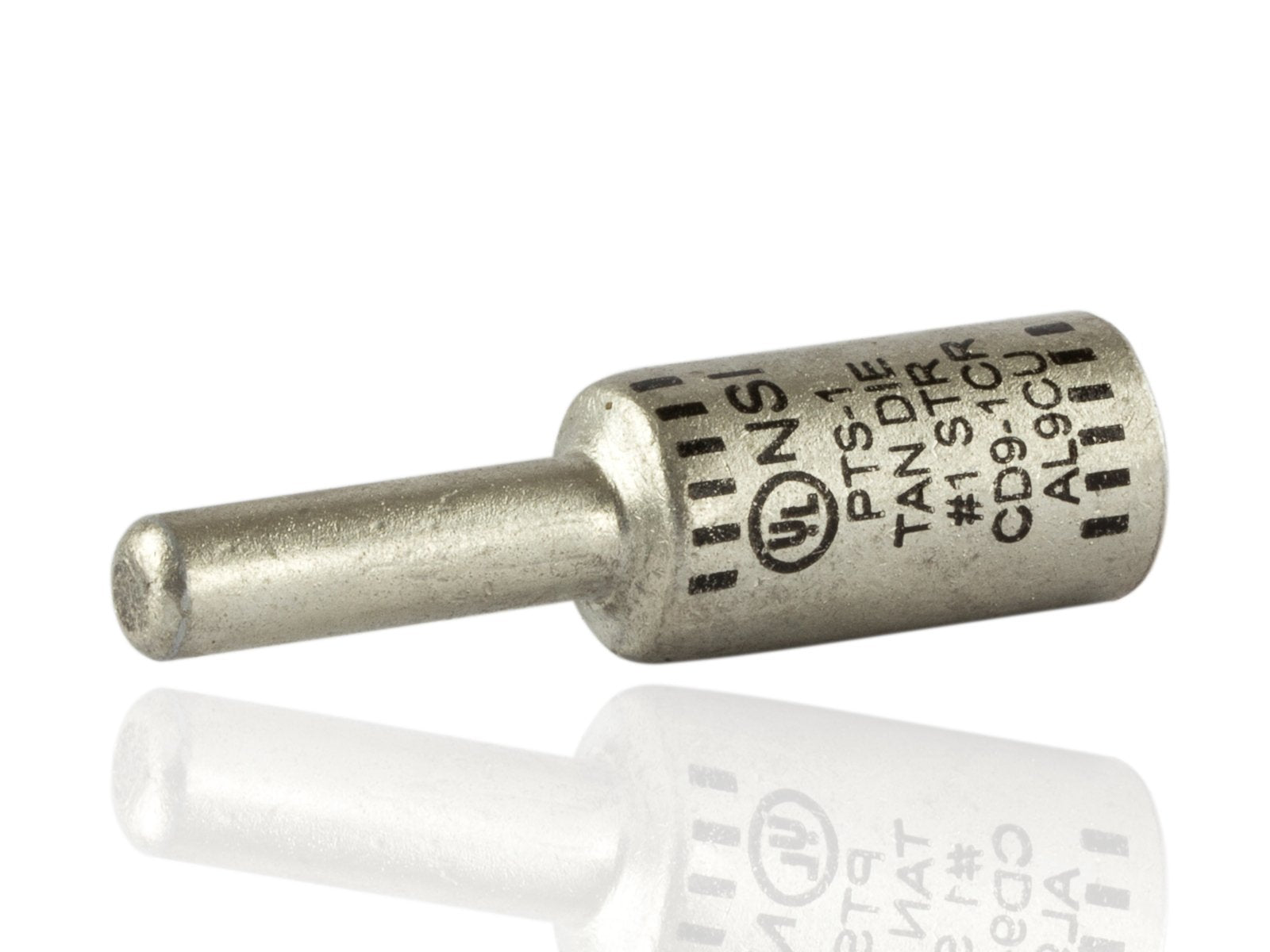

The NSI INDUSTRIES PTS1 is an all-aluminum pin terminal designed for terminating both aluminum and copper conductors. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated at 600 Volts, this terminal is UL486 standard.

• Designed for termination of both aluminum and copper conductors
• Solid aluminum pin is tin-plated for low contact resistance and oxidation protection
• Connector is pre-filled with Oxide Inhibitor and includes a cover for quick installation

Product Highlights

All-aluminum pin terminal for terminating aluminum and copper conductors, featuring a tin-plated solid aluminum pin and oxide inhibitor.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS1
• Country of Origin: India

Technical Specifications

• Type: Solid Pin
• Brand: NSI Industries
• Width: 0.6 in
• Finish: Tin Plated
• Height: 0.6 Inch
• Length: 2.01 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 1 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 1 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• Conductor Material: Copper and Aluminum
• OD: 0.60"
• Pin Diameter: 0.26-inches
• Body Length: 1.17-inches
• Pin Length: 0.84-inches
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 2.00 in
• Insulation Type [Specifications]: Plastisol Cover
• Connection Material [Specifications]: Tin-Plated Aluminum
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper, Aluminum
• Assortment: Pin Terminals
• Die Color Code: Tan
• Barrel Length: 1.17
