Nsi Industries PTS1/0 Aluminum Pin Terminal Al 1/0 AWG

Product Description

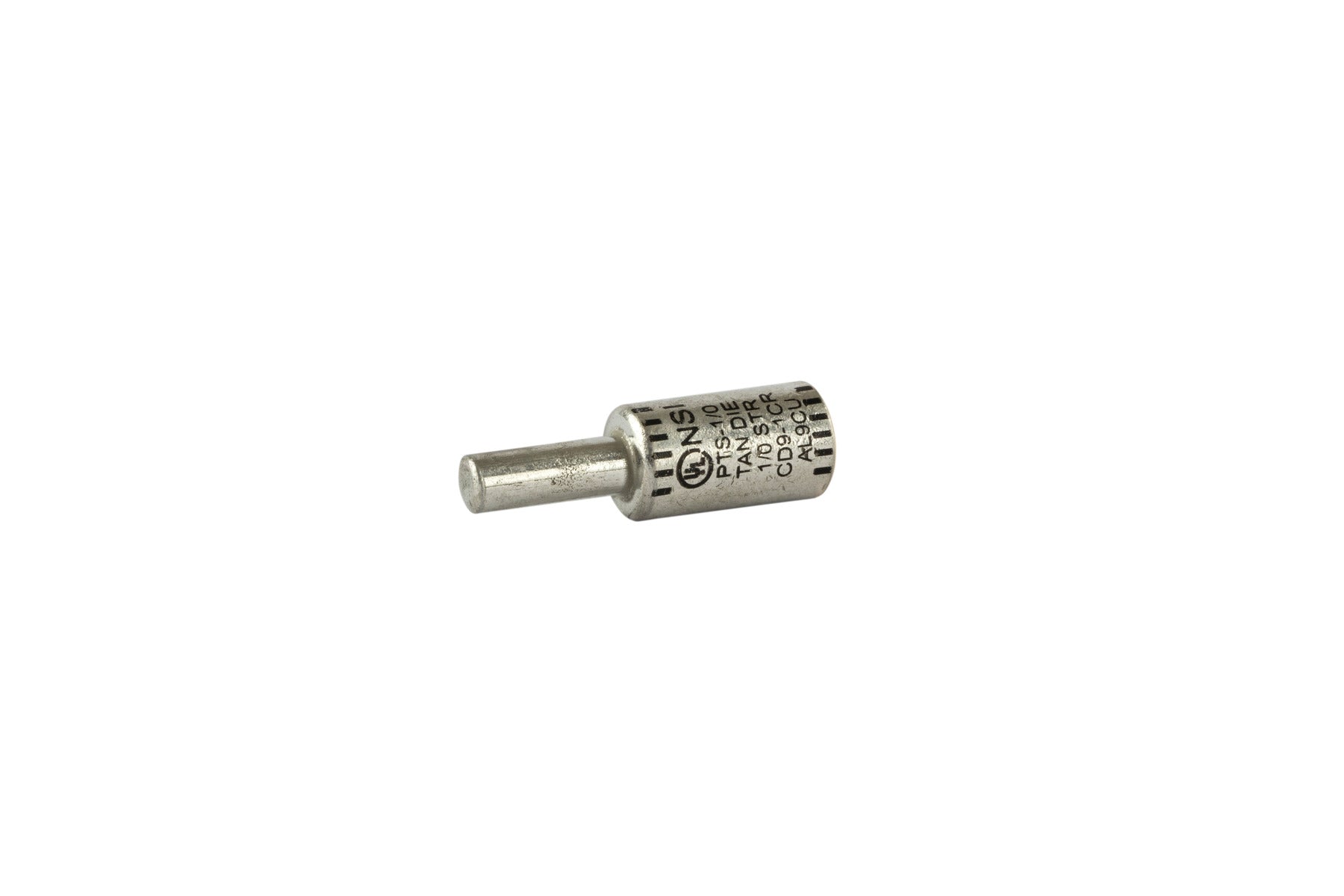

The NSI INDUSTRIES PTS1/0 is an all-aluminum pin terminal designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• The pin is solid aluminum
• The connector is tin plated to provide low contact resistance and oxidation protection

Product Highlights

This aluminum pin terminal is pre-filled with oxide inhibitor and has a color-coded cap. It is UL486 listed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS1/0
• Country of Origin: India

Technical Specifications

• Type: Solid Pin
• Brand: NSI Industries
• Color Code: Tan
• Finish: Tin Plated
• Voltage Rating: 600 VAC
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 1/0 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 1/0 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• Quantity: 1 Count
• Rated: 600 Volts
• Wire Range: 1/0 Str
• Pin Size: 2 AWG
• O.D.: 0.598
• I.D.: 0.370
• Pin Diameter: 0.29 in
• Length: 1.990
• Pin Length: 0.83 in
• Body Length: 1.160
• Brand Equivalent: Burndy AYP1/0 Ilsco ACM-1/0 Penn Union TP10
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 2.00 in
• Insulation Type [Specifications]: Plastisol Cover
• Insulation Color [Specifications]: Tan
• Connection Material [Specifications]: Tin-Plated Aluminum
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper, Aluminum
• Assortment: Pin Terminals
• Die Color Code: Tan
• Barrel Length: 1.16 in
• Series: PTS
• Type / Style: Dual Rated
• Dimensions: 2 in L
• Manufacturer: NSi Industries
• Package Type: 10/PK
• Specifications: 90 deg C Temperature, 1 Pole, 1 Conductor, 0.37 in ID x 0.598 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish
