Nsi Industries PTO-600 Offset Pin Terminal 600 MCM replacement Polaris PTO-600

Product Description

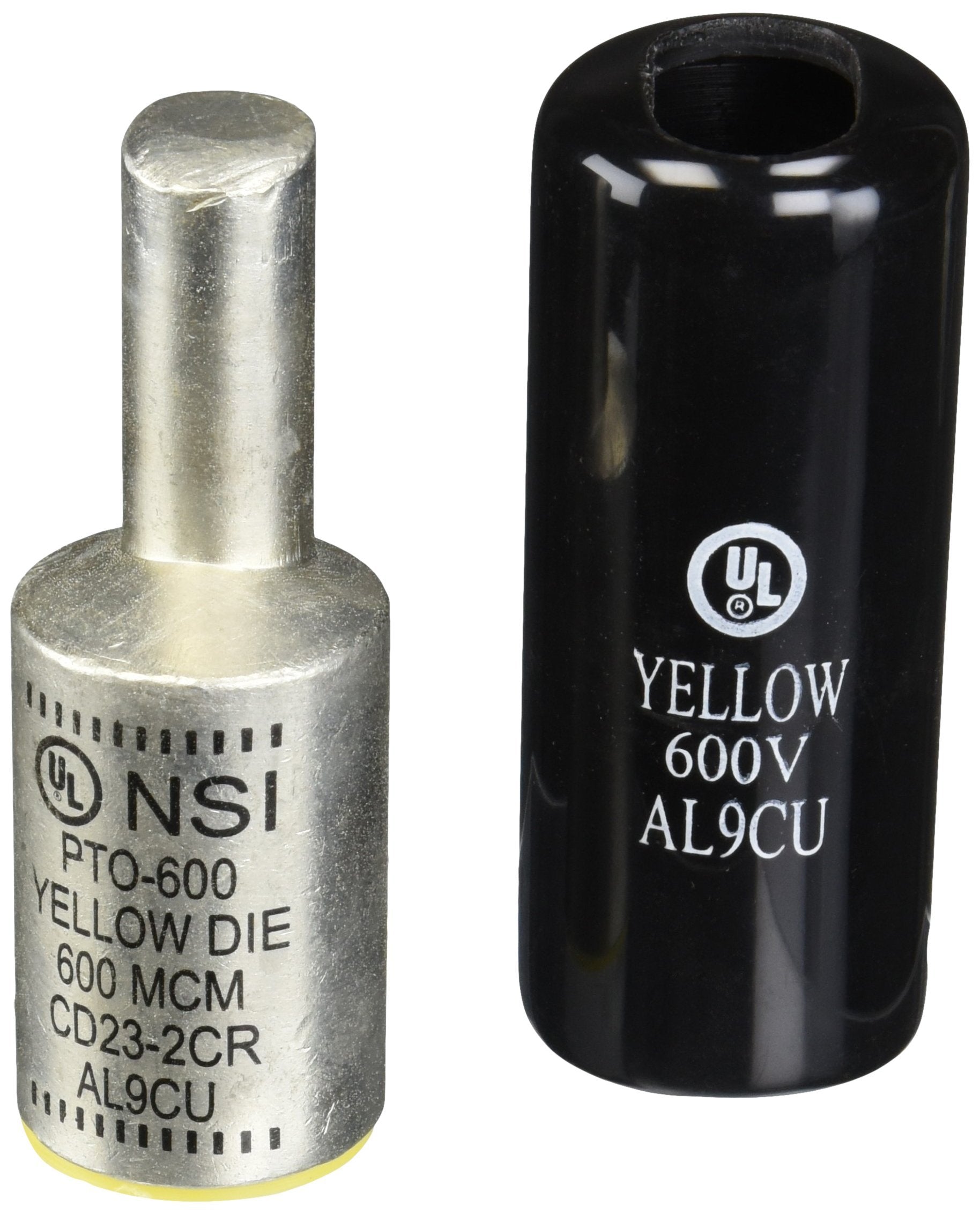

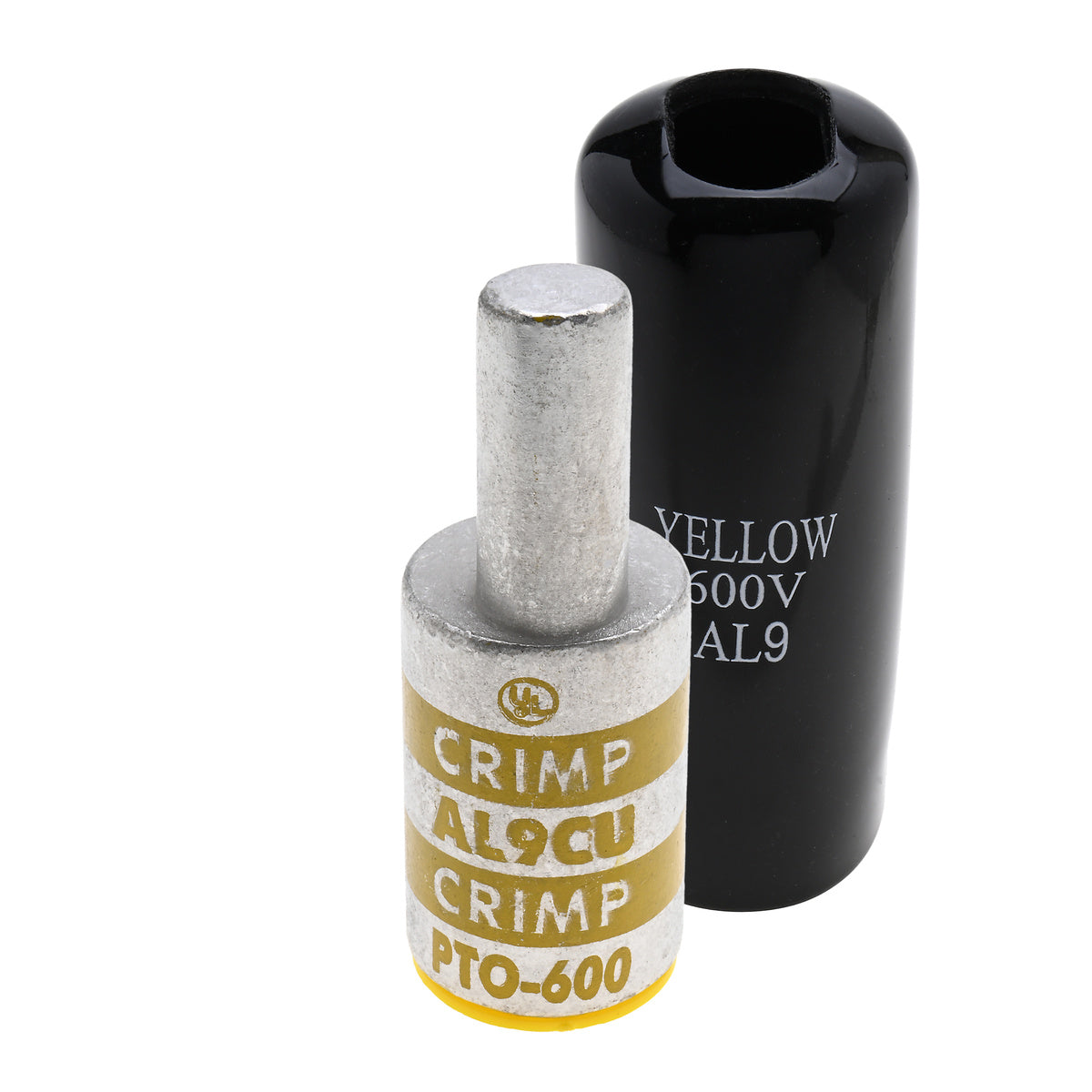

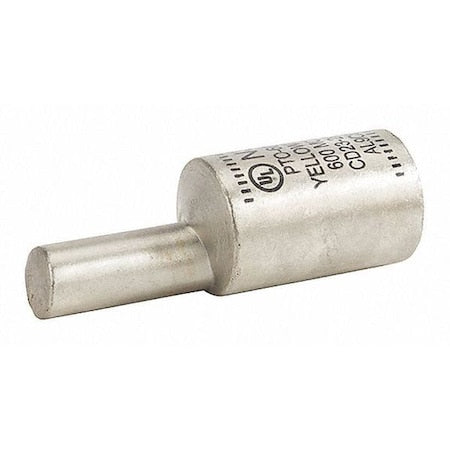

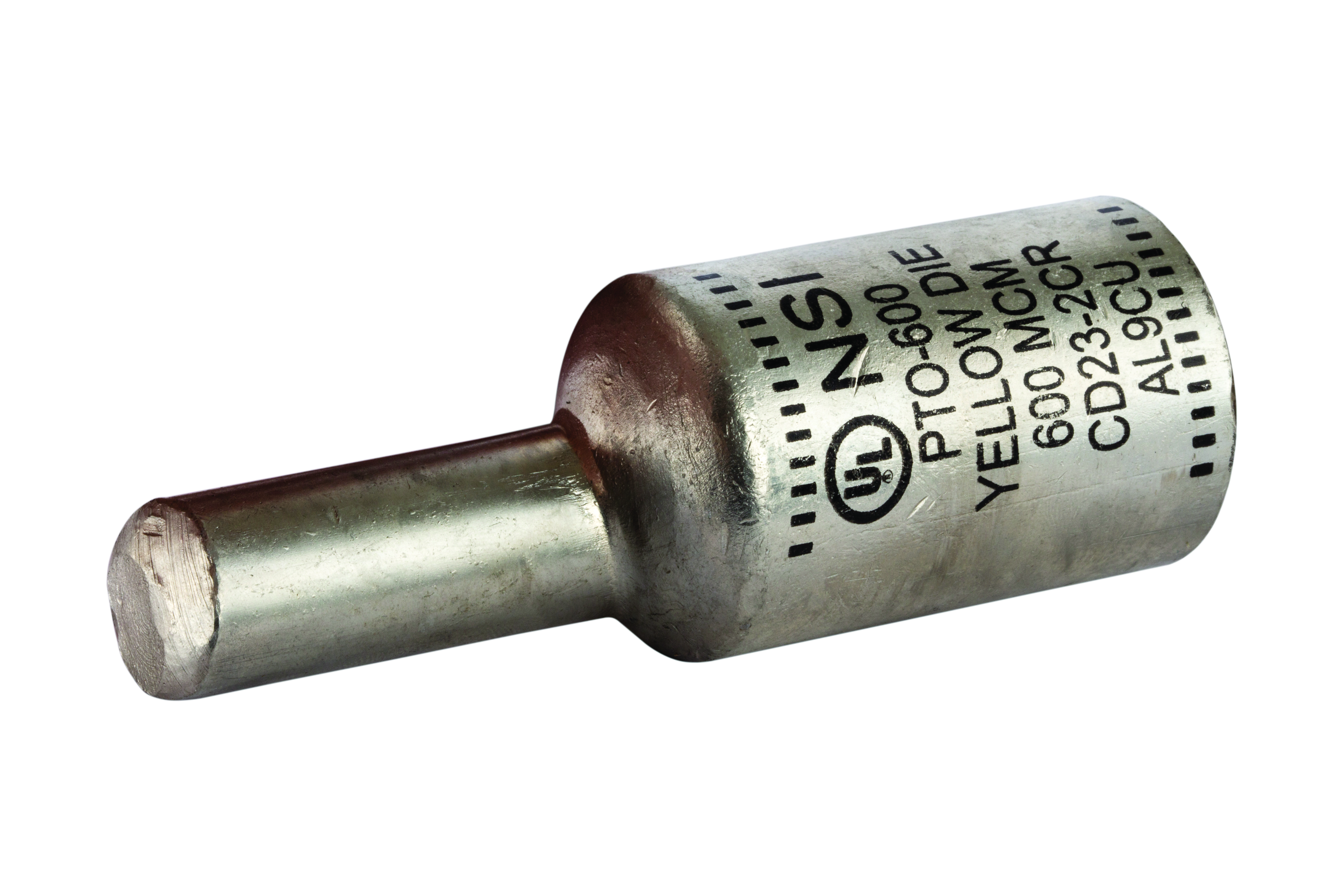

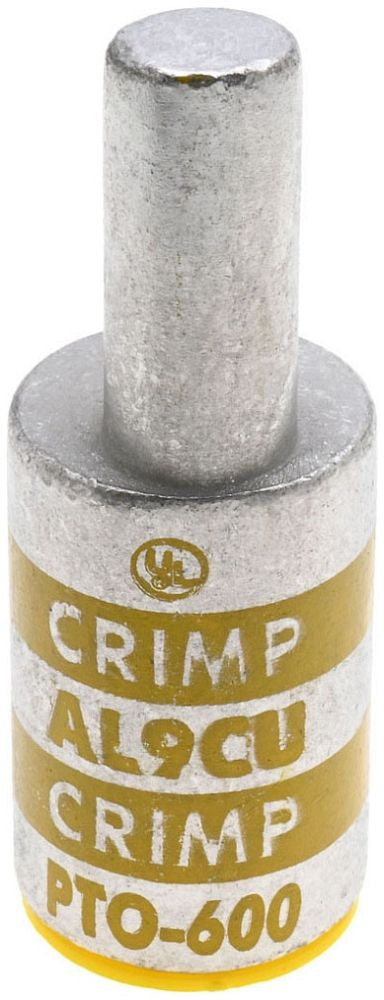

The NSI INDUSTRIES PTO-600 is an all-aluminum pin terminal designed for terminating both aluminum and copper conductors. The offset pin allows for use in tight spaces and easy side-by-side installation. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor, with a cover provided for quick insulation and is rated to 600 Volts.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• Pin is offset for use in tight applications while providing ease of installation in side by side applications
• The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor

Product Highlights

Ideal for terminating or paralleling cable, the NSI PTO-600 ensures a reliable connection. The tin-plated finish provides low contact resistance and oxidation protection.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTO-600
• Country of Origin: India

Technical Specifications

• Pin Material: Aluminum
• Pin Size: 400 MCM
• Wire/Cable Class: Class B, Class C
• Die Color Code: Yellow
• Field Application: Terminate
• Finish: Tin Plated
• Material: Aluminum
• Max Temperature: 90 C (194 F)
• Pin Diameter: 0.72 IN
• Pin Length: 1.72 IN
• Product Assortment: Pin Terminals
• Product Series: PTO
• Slotted Tang: No
• UL File #: E155027
• Voltage Rating: 600V
• Type: Pin Terminals
• Barrel Peep Hole: No
• Conductor Rating: AL9CU
• Barrel Inside Diameter: 0.821 IN
• Barrel Outside Diameter: 1.46 IN
• Barrel Length: 2.27 IN
• Conductor Type: Copper, Aluminum
• Item [Specifications]: Pin Terminal
• Standards [Specifications]: UL486
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Wire Range [Specifications]: 600 MCM
• Application [Specifications]: Terminate, Splice, Tap Power Connectors
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Offset Pin
• Overall Length [Specifications]: 4.00 in
• Insulation Type [Specifications]: Plastisol Cover
• Insulation Color [Specifications]: Yellow
• Pin Length (In.) [Specifications]: 1.72
• Connection Material [Specifications]: Tin-Plated Aluminum
• Country of Origin (subject to change) [Specifications]: India
• Model: POLARIS PTO-600
• No. of Poles: 1
• UNSPSC: 39121432
• Ul Standard: UL 486A-486B
• Assortment: Pin Terminals
