NSI Industries PTO-500 500 MCM Pink Tinned Aluminum 1-Conductor Offset Pin Terminal

Product Description

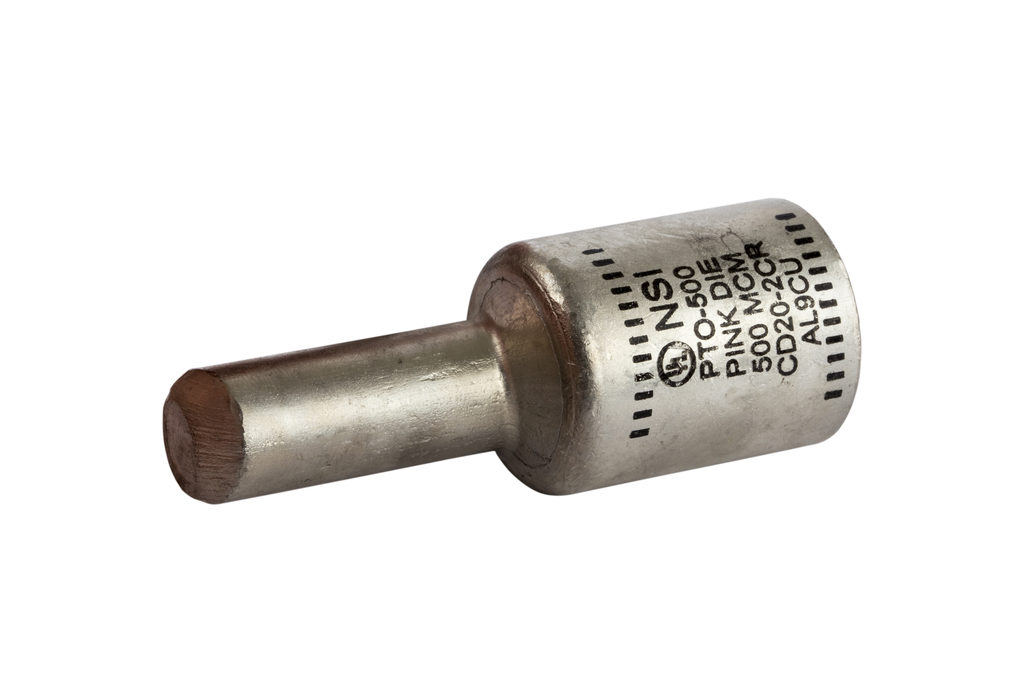

The NSI Industries PTO-500 is a 500 MCM pink tinned aluminum 1-conductor offset pin terminal designed for connecting both aluminum and copper conductors. The unique offset design allows for installation in tight spaces, making it ideal for side-by-side terminations. It features a solid aluminum pin that is tin-plated and pre-filled with an oxide inhibitor for improved performance. The terminal is rated for 600 volts and includes a cover for quick installation.

• Offset design for tight space applications
• Compatible with aluminum and copper conductors
• UL 486 compliant for safety

Product Highlights

This terminal is perfect for paralleling cables and handling various installation tasks.

Product Information

Standard Information

• Catalog Number: PTO-500
• Brand: NSI Industries

Technical Specifications

• Voltage Rating: 600 V
• Temperature Rating: 90 C
• Length: 3.39 inches
• Width: 1.31 inches
• Pin Diameter: 0.680 inches
• Conductor Size: 500 kcmil
• Material: Aluminum
• Finish: Tin Plated
• UL Standard: UL486
• Warranty: 1 year
