Nsi Industries PTO-3/0 3/0 AWG White Tinned Aluminum 1-Conductor Offset Pin Terminal

Product Description

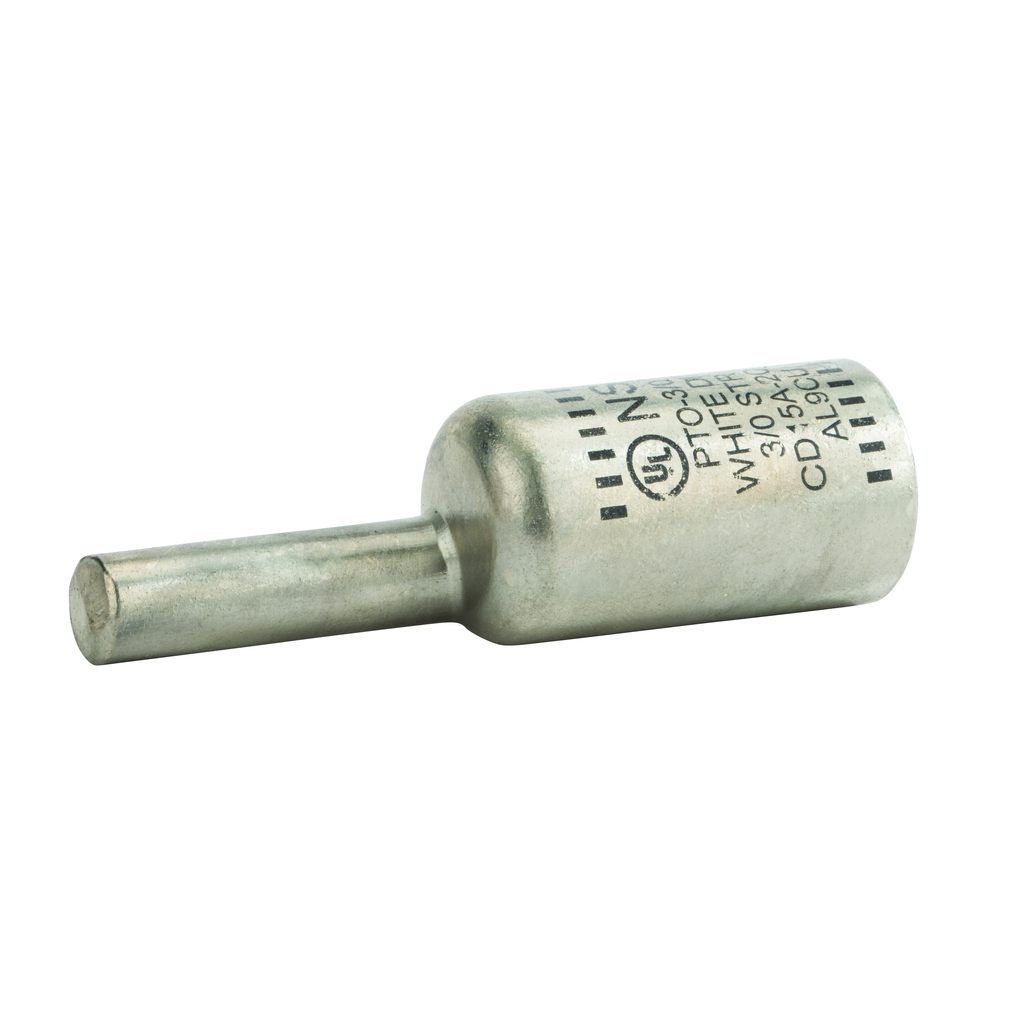

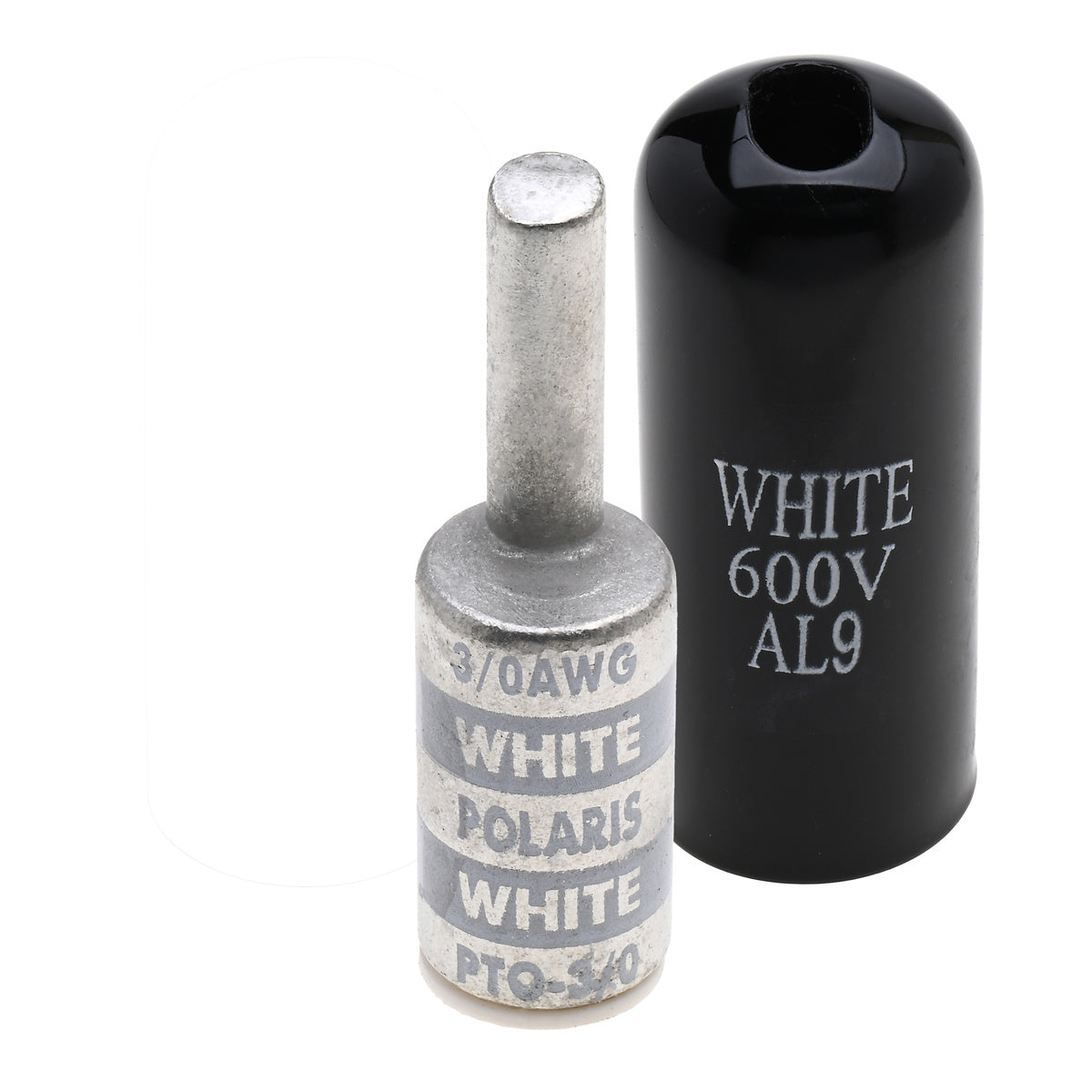

The NSI INDUSTRIES PTO-3/0 is an all-aluminum pin terminal designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• Pin is offset for use in tight applications while providing ease of installation in side by side applications
• The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor

Product Highlights

The NSI INDUSTRIES PTO-3/0 pin terminal is ideal for termination, splice, and tap power connectors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTO-3/0
• Country of Origin: India

Technical Specifications

• Type: Offset Pin
• Brand: NSI Industries
• Finish: Tin Plated
• Material: Aluminum
• Voltage: 600 Volt
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 3/0 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 3/0 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• Width: 0.85 in
• Height: 0.85 in
• Length: 2.8 in
• ECCN: EAR99
• UNSPSC: 39121432
• Item [Specifications]: Pin Terminal
• Standards [Specifications]: UL486
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Wire Range [Specifications]: 3/0 AWG
• Application [Specifications]: Terminate, Splice, Tap Power Connectors
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Offset Pin
• Overall Length [Specifications]: 2.80 in
• Insulation Type [Specifications]: Plastisol Cover
• Pin Length (In.) [Specifications]: 1.25
• Connection Material [Specifications]: Tin-Plated Aluminum
• Conductor Type: Copper, Aluminum
• Rated Voltage: 600 V
• No. of Poles: 1
