Nsi Industries PTO-250 Offset Pin Terminal 250 MCM

Product Description

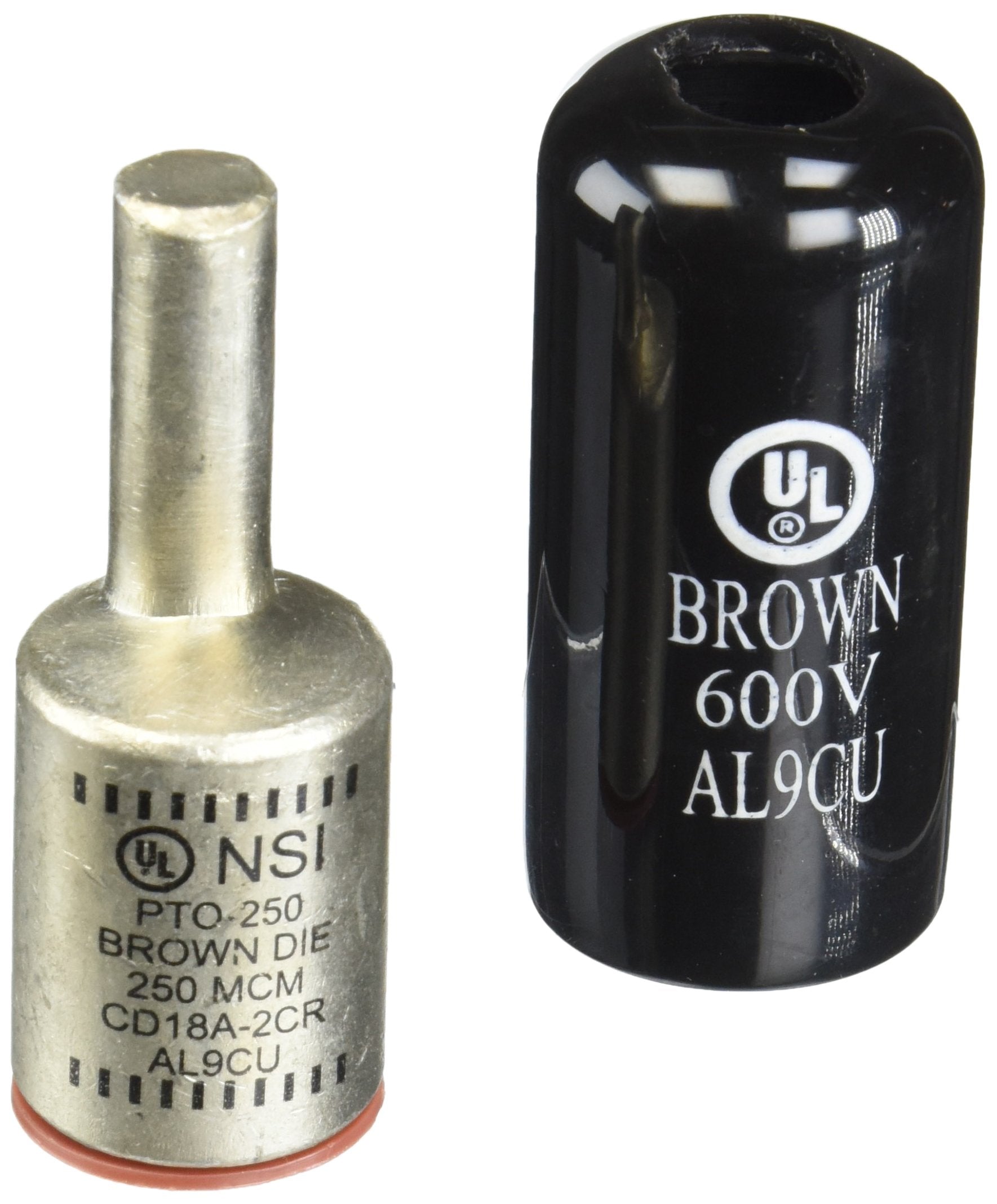

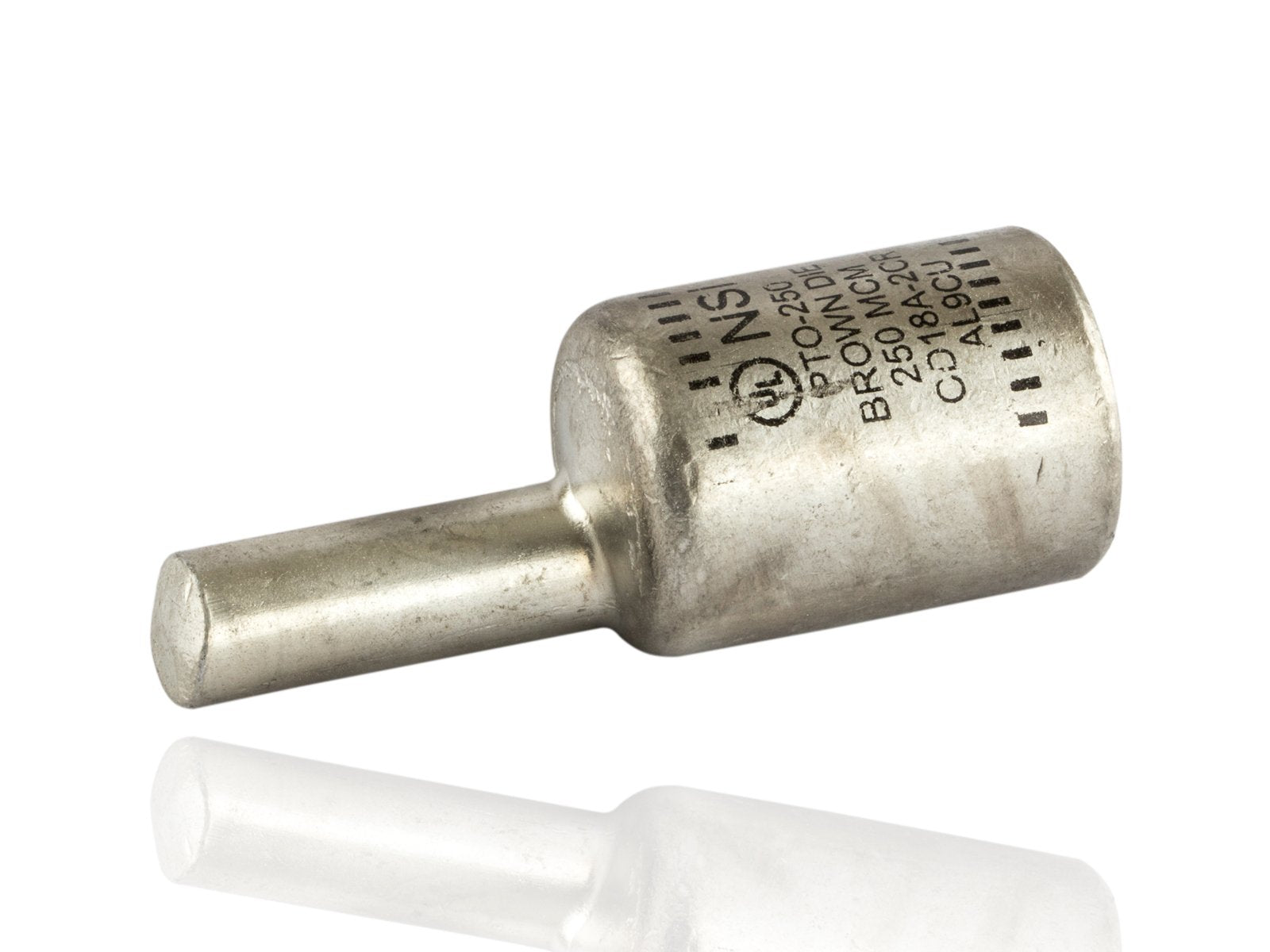

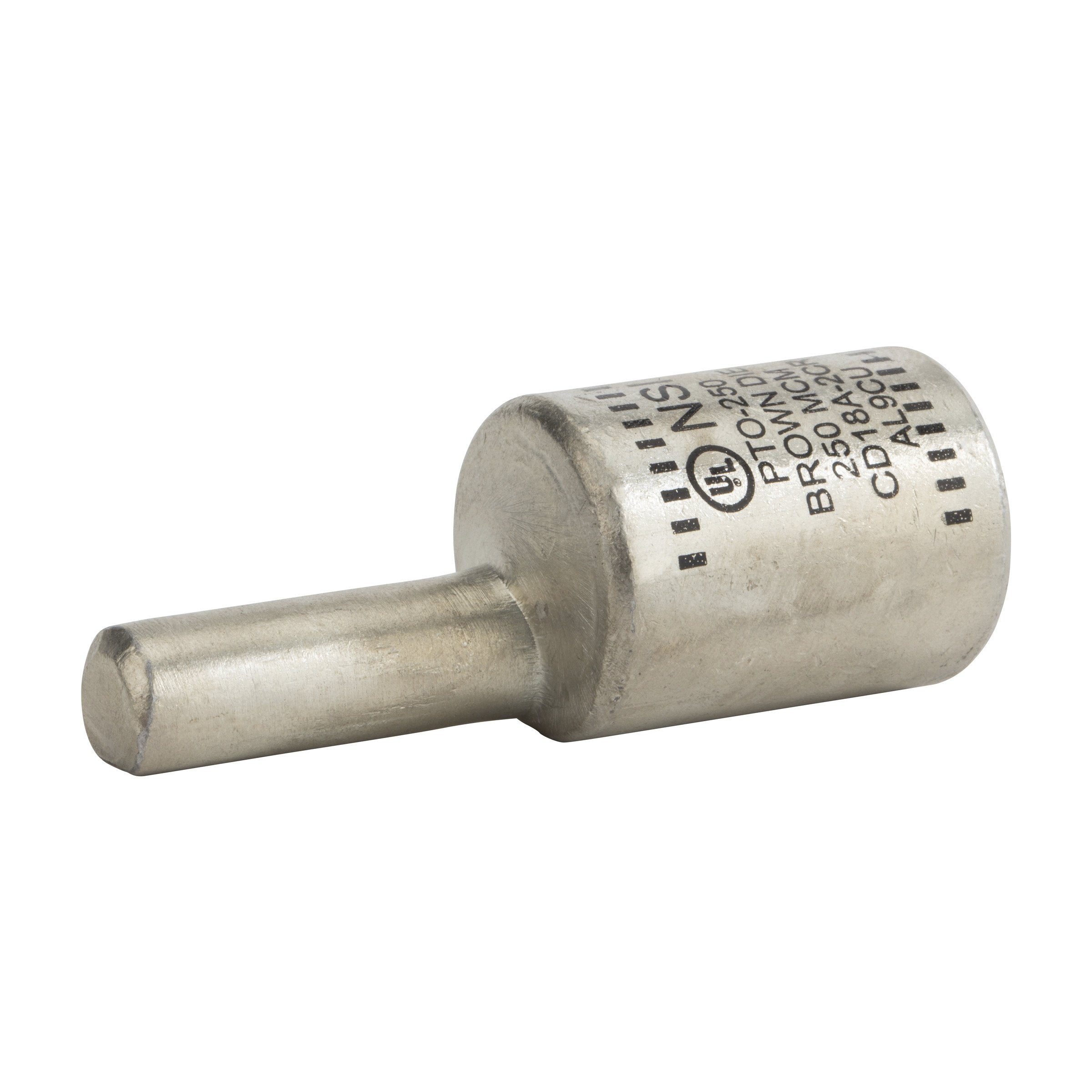

The NSI INDUSTRIES PTO-250 is an all-aluminum pin terminal designed for terminating aluminum and copper conductors. The offset pin design is suitable for tight spaces and facilitates installation in side-by-side configurations. The solid aluminum pin is tin-plated and pre-filled with an oxide inhibitor, and a cover is provided for quick insulation. Rated at 600 volts.

• Designed for termination of both aluminum and copper conductors
• Pin is offset for use in tight spaces
• Ease of installation in side-by-side terminations

Product Highlights

All-aluminum pin terminal with offset pin, tin-plated, and pre-filled with oxide inhibitor. Includes a cover for quick insulation.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTO-250
• Country of Origin: USA

Technical Specifications

• Wire Range: 250 MCM
• Rated Voltage: 600 Volts
• Pin Size: 3/0
• O.D.: 1.090
• I.D.: 0.594
• Pin Diameter: 0.460 IN
• Length: 2.780
• Pin Length: 1.270 IN
• Body Length: 1.510
• Wire Size: 250
• OD: 1.10"
• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Conductor Type: Copper, Aluminum
• Barrel Length: 1.51 IN
• Type: Dual Rated
• Conductor Size: 250 kcmil
• Series: PTO
