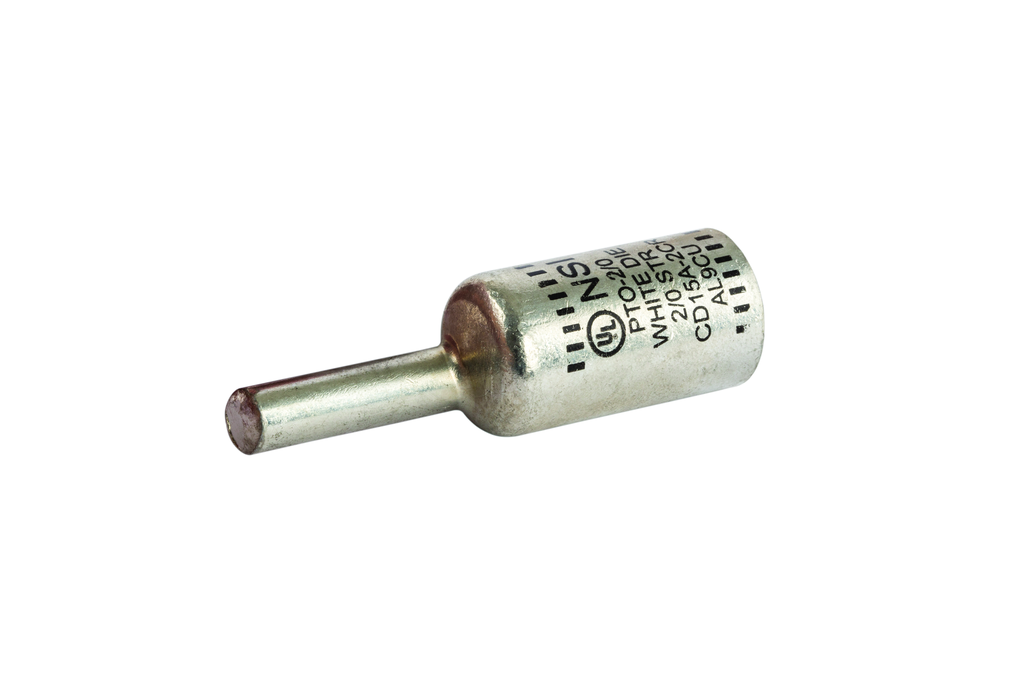

NSI Industries PTO-2/0 2/0 AWG White Tinned Aluminum 1-Conductor Offset Pin Terminal

Product Description

The NSI Industries PTO-2/0 is a 2/0 AWG offset pin terminal designed for both aluminum and copper conductor terminations. The offset design allows for use in tight spaces and facilitates installation in side-by-side configurations. This terminal features a solid aluminum pin that is tin-plated and includes a pre-filled oxide inhibitor for improved conductivity. It comes with a cover for quick application. The terminal is rated for up to six hundred volts.

• Offset pin design ensures ease of use in tight applications
• Compatible with aluminum and copper conductors
• Constructed from tin-plated aluminum for durability

Product Highlights

This terminal series is ideal for creating secure electrical connections in a range of applications including splicing and tapping power connectors.

Product Information

Standard Information

• Brand: NSI Industries
• MPN: PTO-2/0

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 Volt
• Conductor Size: 2/0 AWG
• Length: 2.7 inches
• Outer Diameter: 0.85 inches
• Pin Diameter: 0.33 inches
• Temperature Rating: 90 degrees C
• Number of Poles: 1
• Insulation Material: Plastisol Cover
• Standard: UL486
• Country of Origin: India
