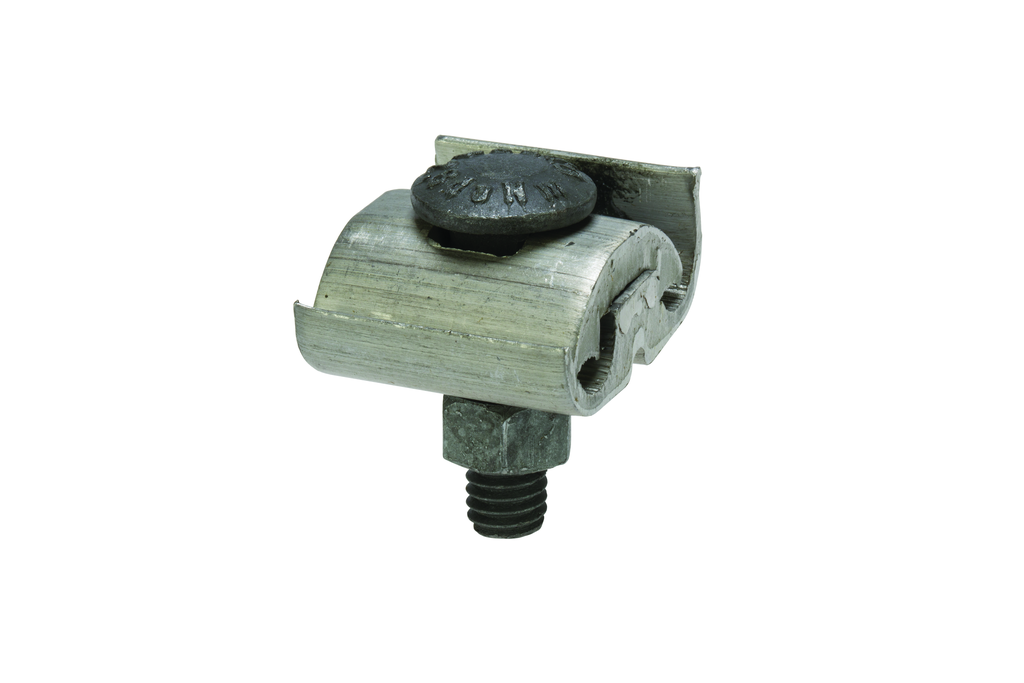

NSI Industries PAA4 Al Parallel Gr Clmp 600V 1/0-6 ACSR - AL/CU

Product Description

NSI Industries PAA4 offers a dual-rated aluminum parallel groove clamp ideal for use with conductors sized from one-aught to six AWG. This clamp features high-strength aluminum extruded alloy materials, specifically designed for heavy-duty service entrance and distribution applications. The clamp is equipped with steel or anodized aluminum flat washers to enhance durability during installation.

• Dual rated for multiple wire types
• Pre-filled with oxide inhibitor for corrosion resistance
• Rated for use with 600 volts

Product Highlights

The NSI parallel groove clamp excels in wire termination applications, providing a reliable connection for ACSR and aluminum conductors. Its serrated grooves increase surface contact, ensuring a secure bond.

Product Information

Standard Information

• Brand: NSI Industries
• Manufacturer: NSI

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 Volt
• Wire Size: 6-0 AWG
• Temperature Rating: 90 degrees C
• Dimensions: L=2.219 in, W=1.500 in, H=1.187 in
• Number of Poles: 1 Pole
• Warranty Length: 1 yr
• Country of Origin: India
