Nsi Industries N-3/0 Split Bolt Copper 2 SOL-3/0 STR

Product Description

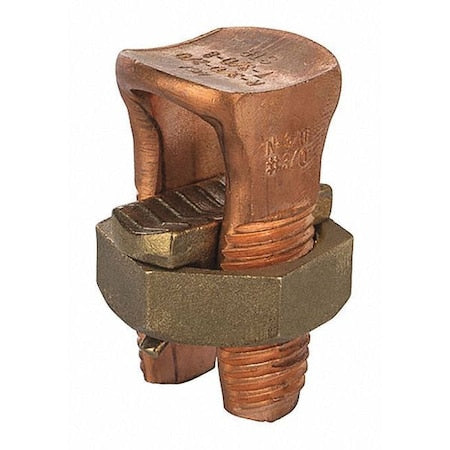

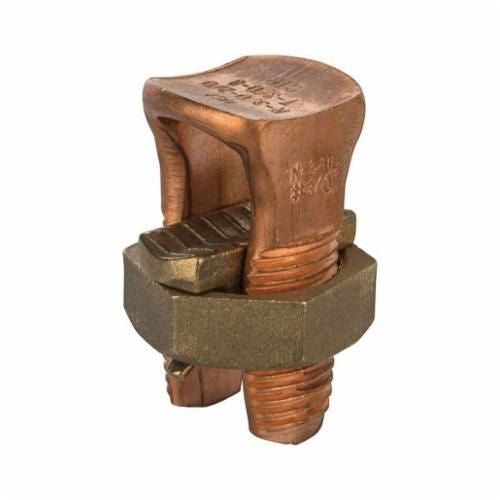

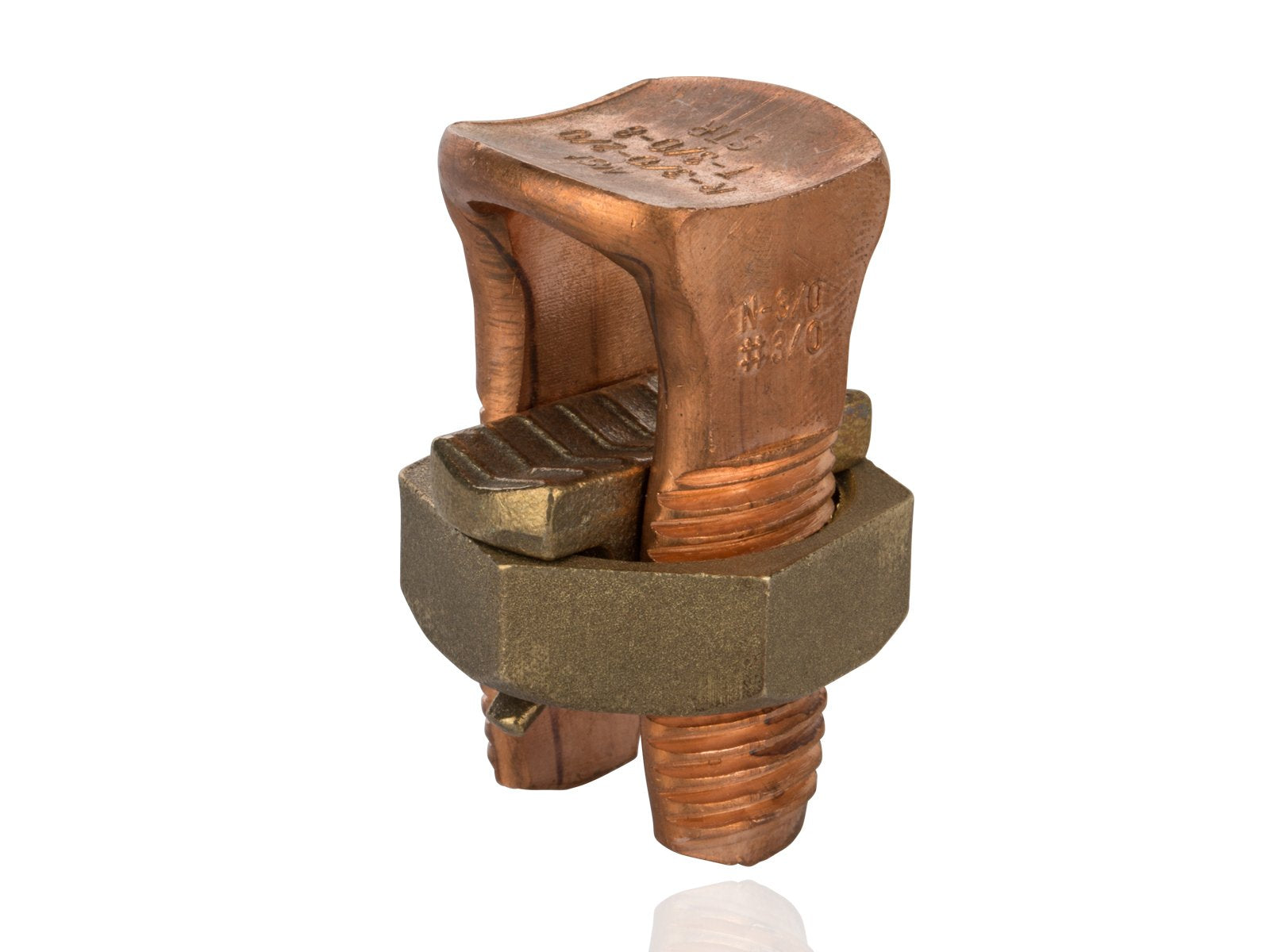

The NSI INDUSTRIES N-3/0 is a copper split bolt designed for connecting 2 SOL-3/0 STR wires using compression. It is a high-strength solderless service connector made of high-copper alloy for copper and copperweld wires and accommodates two maximum wire sizes. It is suitable for wire termination applications.

• High strength solderless service connector made of high-copper alloy for copper and copperweld wires
• Type for two maximum wire sizes
• UL486A Listed Wire Connector\\\\nUL486D Listed Direct Bury

Product Highlights

High-strength copper alloy split bolt for connecting copper and copperweld wires in wire termination applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-3/0
• Country of Origin: United States

Technical Specifications

• Connection Type: COMPRESSION
• Material Rating: COPPER
• UNSPSC Code: 39121400
• GTiN: 00662381020086
• Size: L=2.007 - W=1.102 IN
• Type: Copper Split Bolts
• Brand: NSI Industries
• Width: 1.102 in
• Finish: Copper
• Length: 2.007 Inch
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486B
• Sub Brand: Split Bolts
• Wire Size: 2 SOL-3/0 STR
• Wire Type: A,B
• Product UPC: 66238102008
• 12-Digit UPC: 662381020086
• Applications: Wire Termination
• Conductor Size: 2-3/0 AWG
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Wire Diameter Range: 0.258" - 0.470"
• Voltage Rating: 600 V
• Conductor Type: Copper/Aluminum/ACSR
• Overall Length: 2.007 Inch
• Tightening Torque: 500 lb-Inch
• Includes: Nut, Spacer and Pressure Pad
• Series: N
• Dimensions: 2.007 in L x 1.102 in W
• Bolt Size: 2.007 in x 1.102 in
• Standard & Approvals: CSA Certified, UL486B Listed
• Compatible Wire Gauge (AWG): 3/0 AWG
• Contact Material: Copper
• Number of Ports: N/A
