Nsi Industries N-2/0SP split bolt copper 6 str-2/0 sol

Product Description

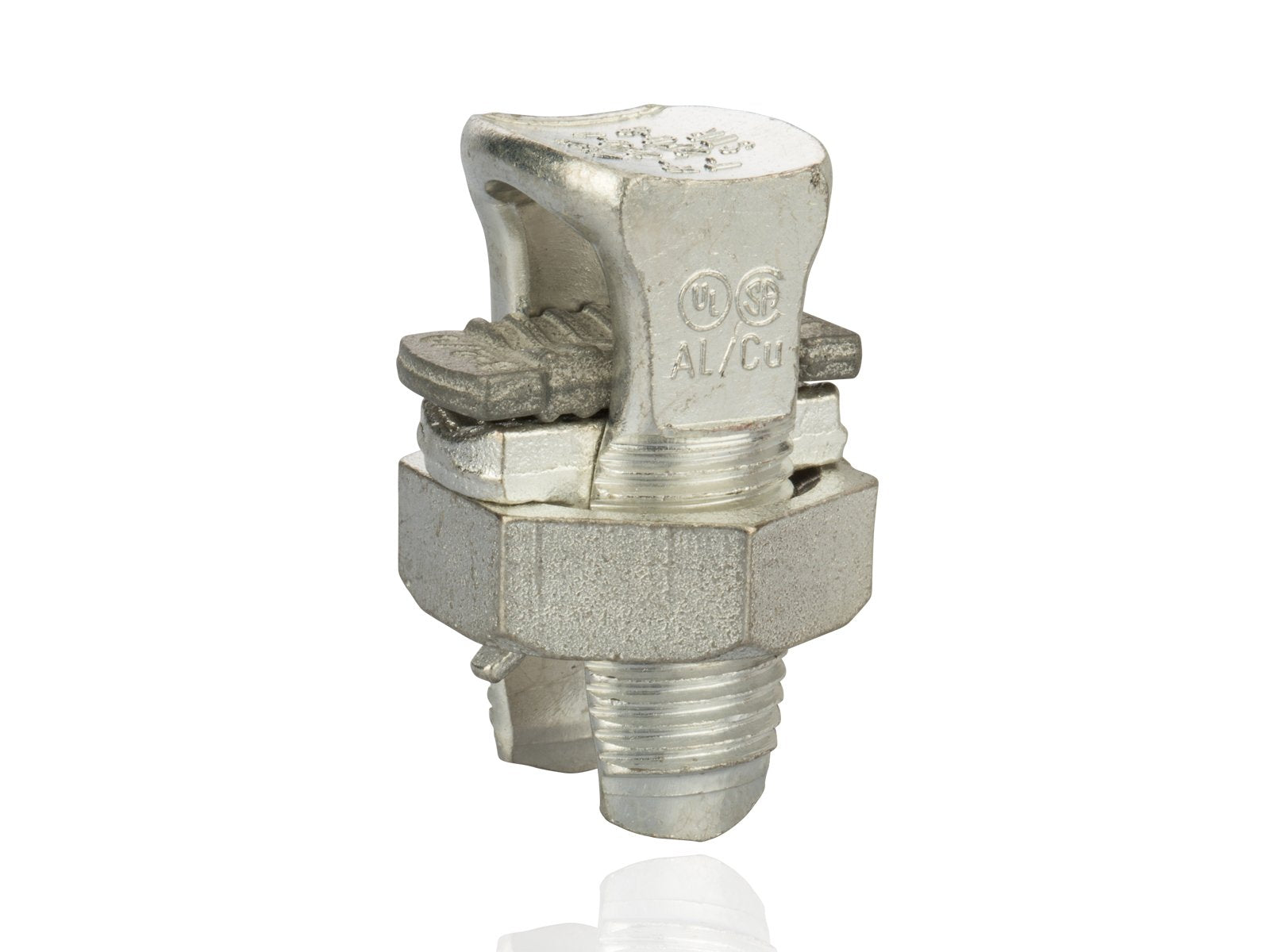

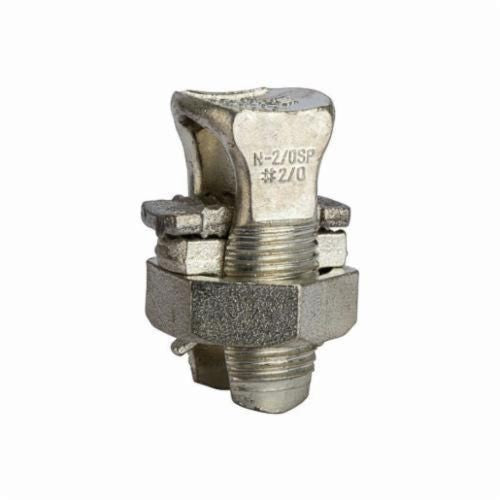

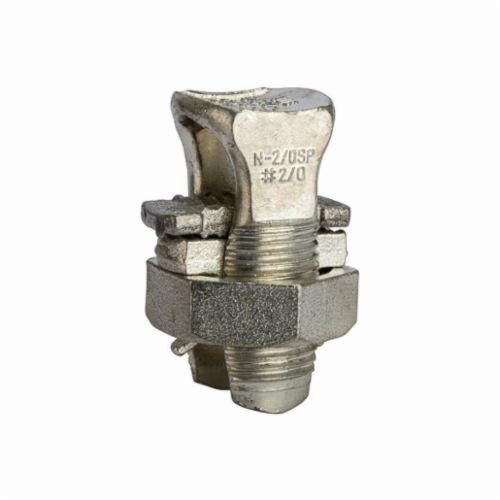

The NSI INDUSTRIES N-2/0SP split bolt is designed for copper and copperweld wires. It facilitates connections between aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper. It features an electro-tinned body and is UL Listed for copper and copperweld wires only.

• For copper and copperweld wires
• Connection includes aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, steel to copper
• Includes nut, spacer and pressure pad

Product Highlights

This split bolt connector is versatile for various metal combinations and ensures secure wire termination.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-2/0SP
• Country of Origin: Brazil

Technical Specifications

• Connection Type: COMPRESSION
• Material Rating: COPPER
• Wire Diameter Range: 0.184" - 0.419"
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 15
• GTIN: 662381020376
• UPC: 662381020376
• EAN: 0662381020376
• Ul Standard: UL 486A-486B, UL 486D
• Conductor Type: Solid/Stranded/ACSR Copper/Aluminum
• Assortment: Copper Split Bolts
• Series: N-SP
• Temperature Rating: 90 deg C
• Type: All-Purpose
• Voltage Rating: 600 VAC
• Application: For Combinations of Aluminum to Copper, Aluminum to Aluminum, Steel to Aluminum, Copper to Copper and Steel to Copper Applications and Wire Termination
• Standard & Approvals: UL486B Listed
• Conductor Size: 6 to 2/0 AWG
• Includes: Nut, Spacer and Pressure Pad
• Brand: Nsi
• Model: N-2/0SP
• Number in Pack: 15
