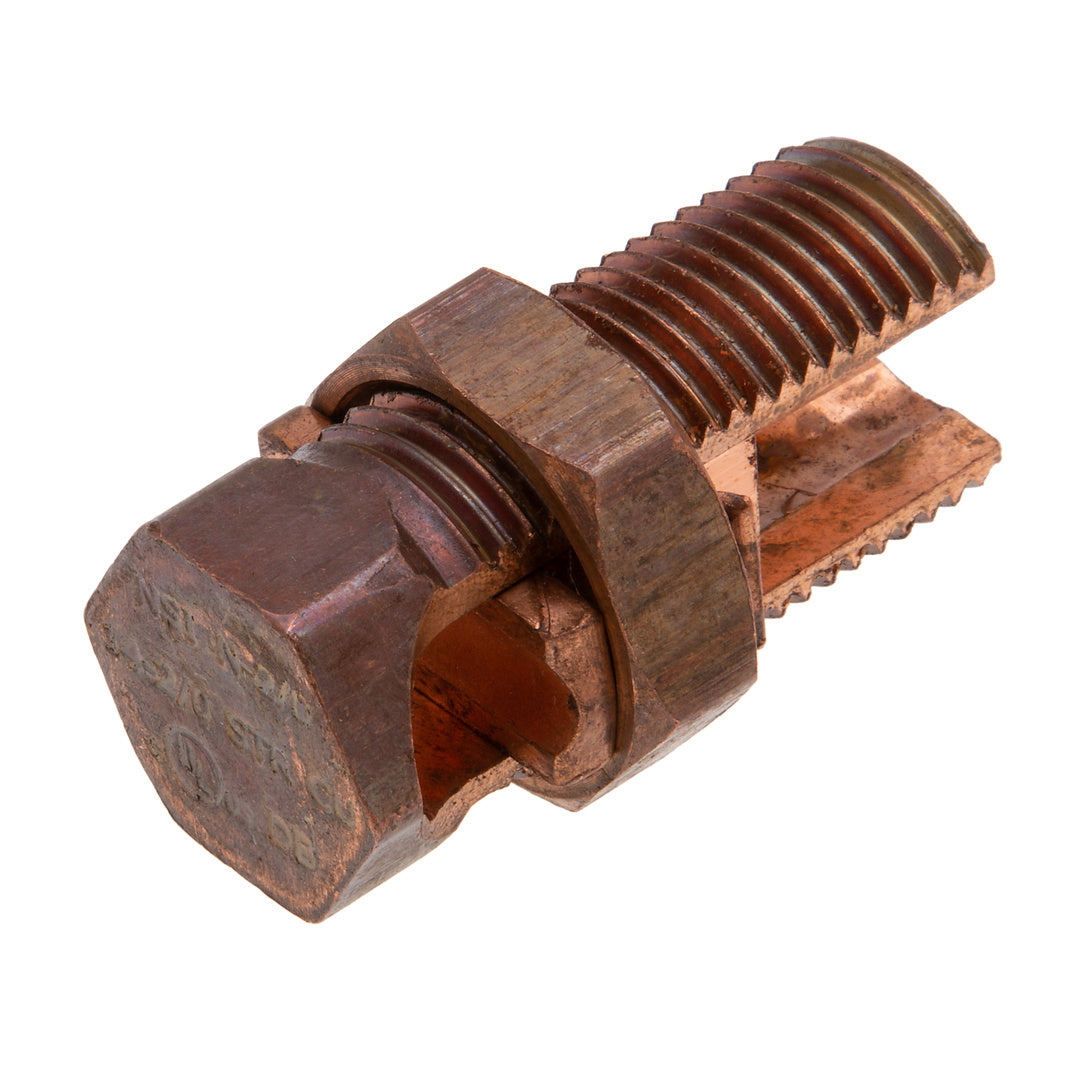

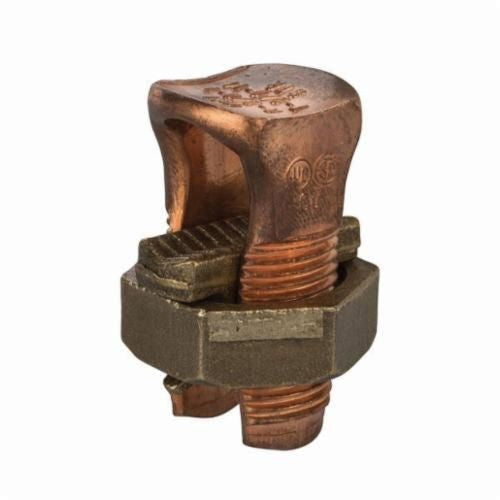

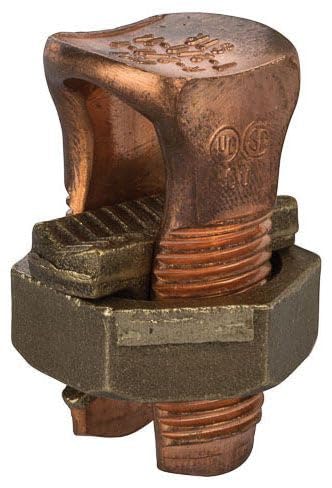

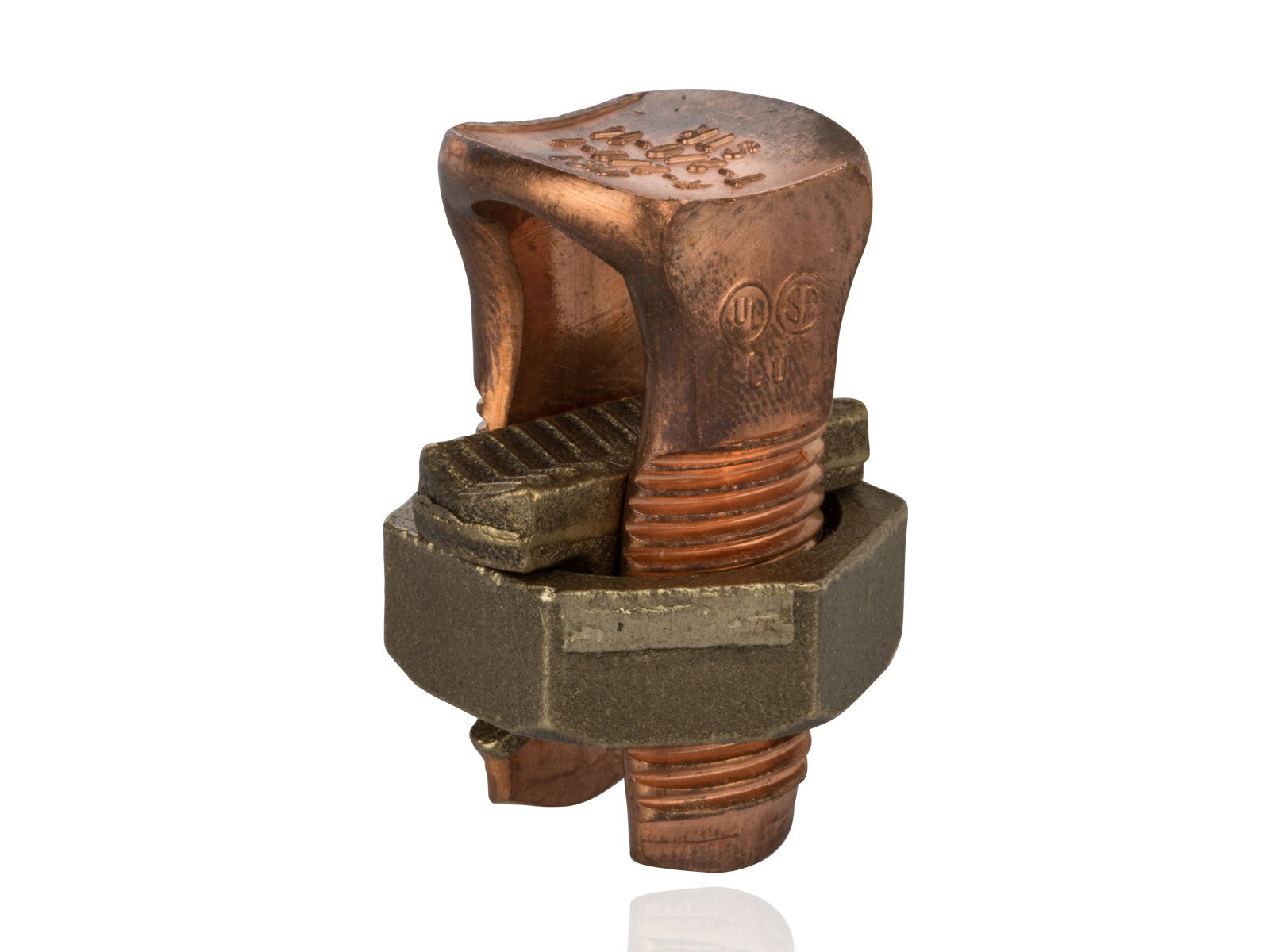

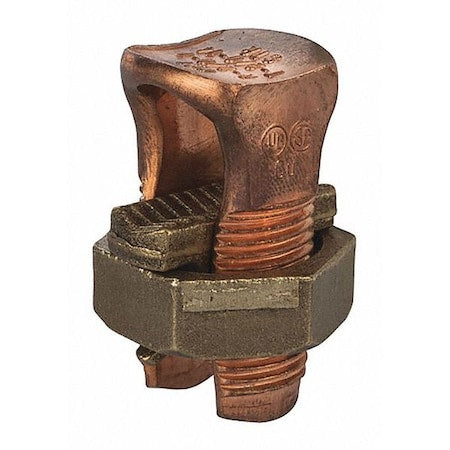

The NSI INDUSTRIES N-2/0 copper split bolt is for connecting conductors. This high-strength solderless service connector is made of high-copper alloy for copper and copperweld wires. It is designed for two maximum wire sizes and is suitable for wire termination applications.
Made of high-copper alloy for copper and copperweld wires
Suitable for 2 SOL-2/0 STR wire sizes
Rated for 600V
Product Highlights
The NSI N-2/0 split bolt connector ensures a strong, reliable connection for copper and copperweld wires in various applications.
Product Information
Standard Information
Brand: NSI INDUSTRIES
Manufacturer Part Number: N-2/0
Country of Origin: India
Technical Specifications
Connection Type
COMPRESSION
Material Rating
COPPER
UNSPSC Code
39121400
Type
Copper Split Bolts
Brand
NSI Industries
Finish
Copper
Voltage
600 Volt
Material
Copper
Standard
UL486B
Sub Brand
Split Bolts
Wire Size
2 SOL-2/0 STR
Wire Type
A,B
Applications
Wire Termination
Conductor Size
2-2/0 AWG
Number of Poles
1 Pole
Country of Origin
India
Temperature Rating
90 degrees C
Number of Conductors
2
Environmental Conditions
90 degrees C
Size
L=1.574 - W=.866 IN
ECCN
EAR99
Wire Diameter Range
0.258" - 0.418"
Torque
385lbs
Voltage Rating
600 VAC
Installation
Split Bolt
Conductor Material
Copper, Copperweld
Minimum Run Conductor Size
2 AWG Solid (Copper)
Maximum Run Conductor Size
2/0 AWG Stranded (Copper)
Minimum Tap Conductor Size
14 AWG Stranded (Copper)
Maximum Tap Conductor Size
2/0 AWG Stranded (Copper)
Approval
UL 486A/D, CSA
Series
N
Standard & Approvals
CSA Certified, UL486B Listed
Dimensions
1.574 in L x 0.866 in W
Bolt Size
1.574 in x 0.866 in
Conductor Type
Solid/Stranded Copper
Specifications
1 Pole, 2 Conductors, 0.42 in Split, 1.06 in Hex Nut, 385 in lb Torque
