Product Description

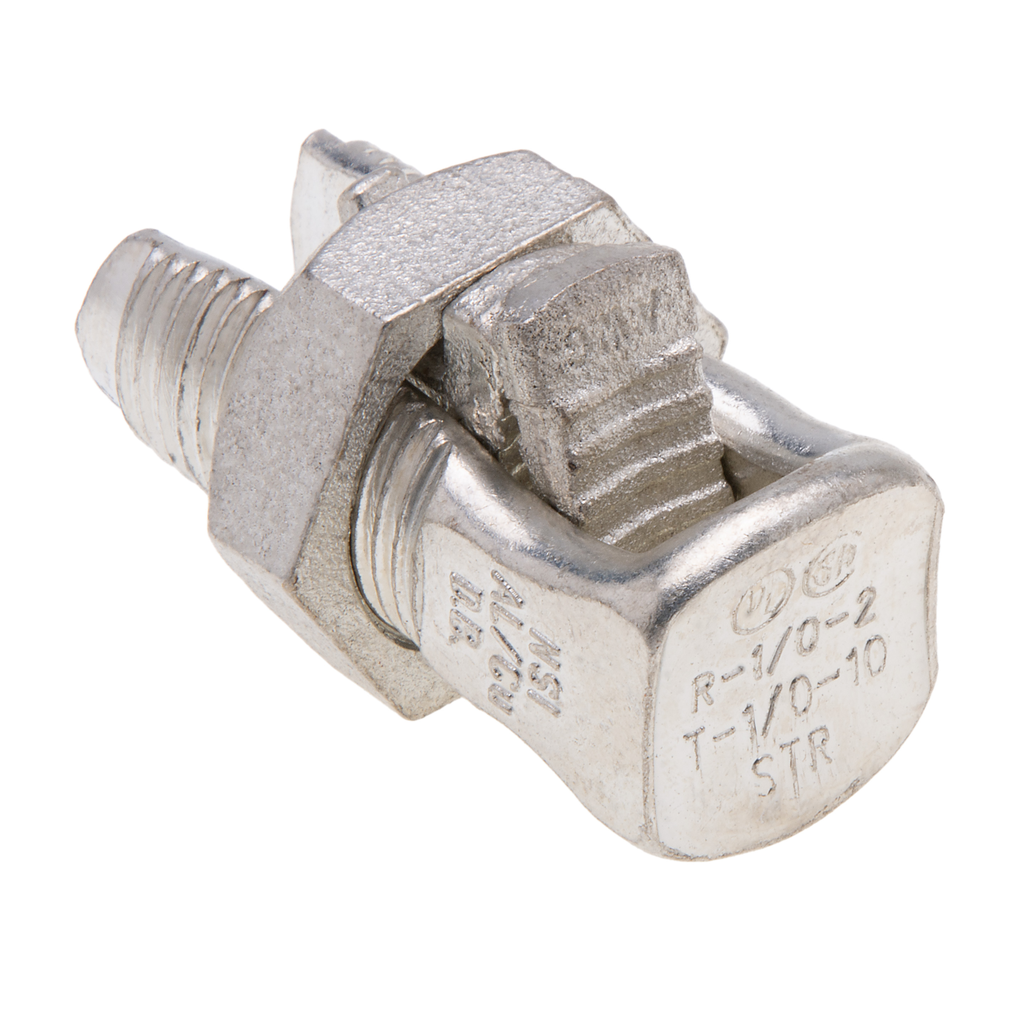

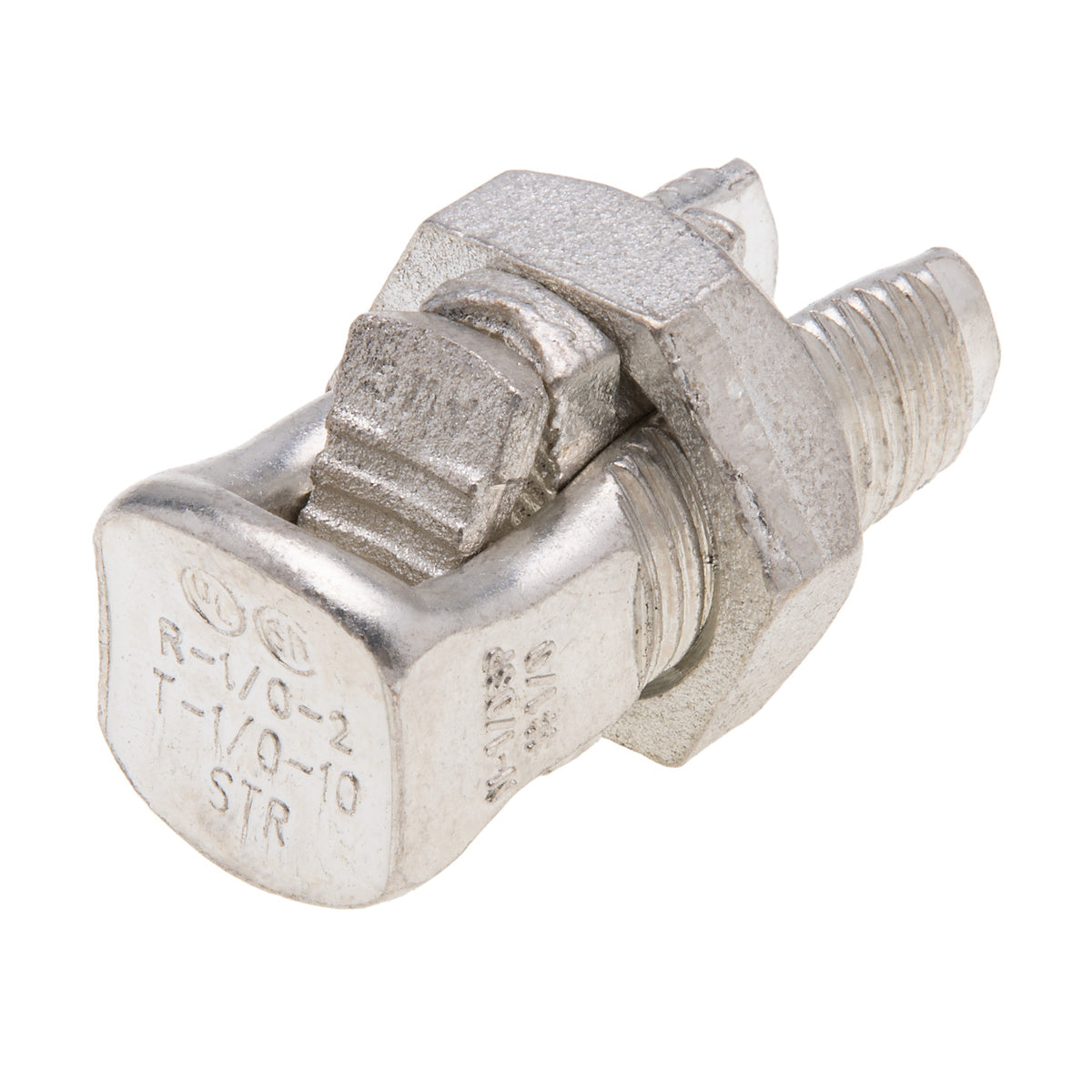

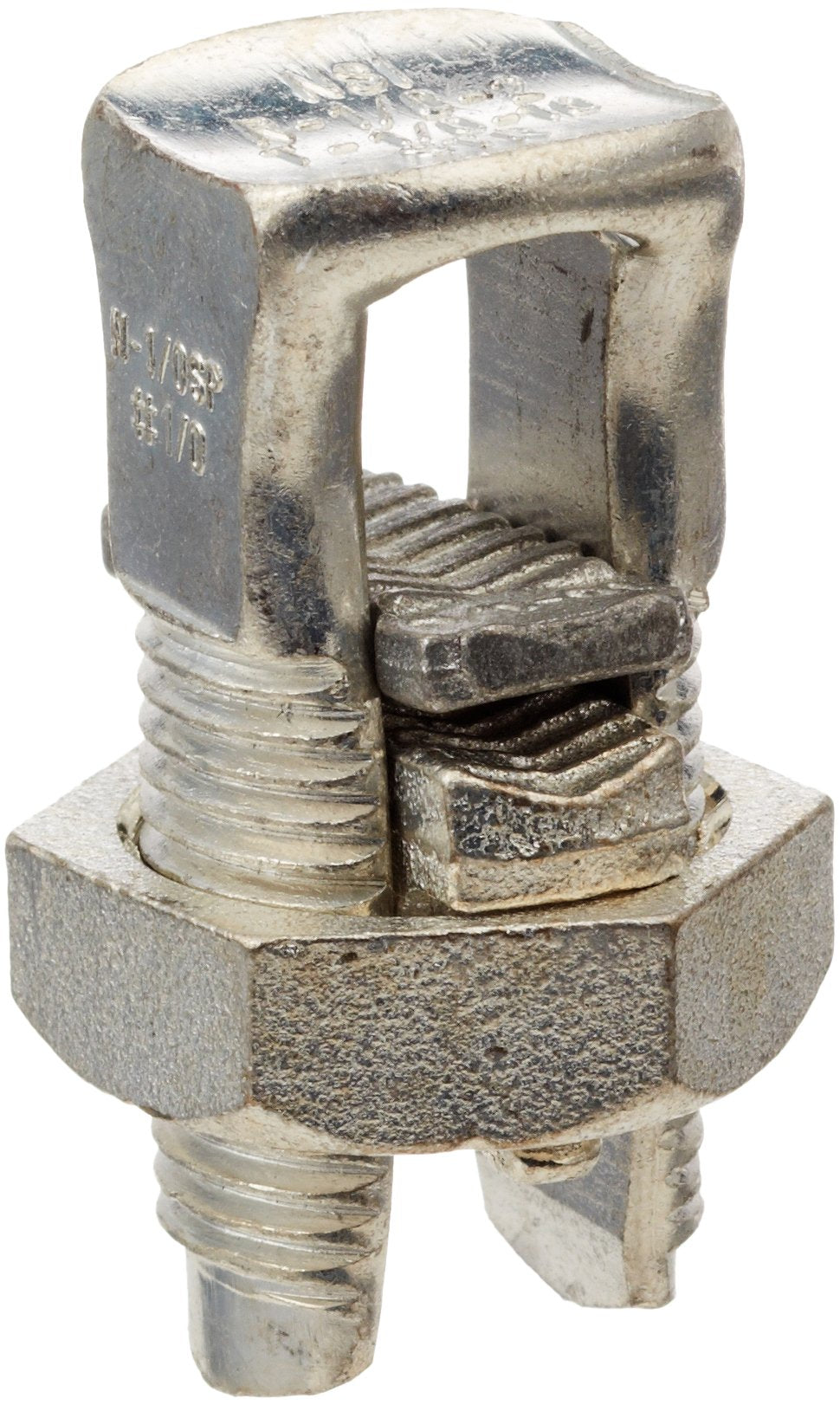

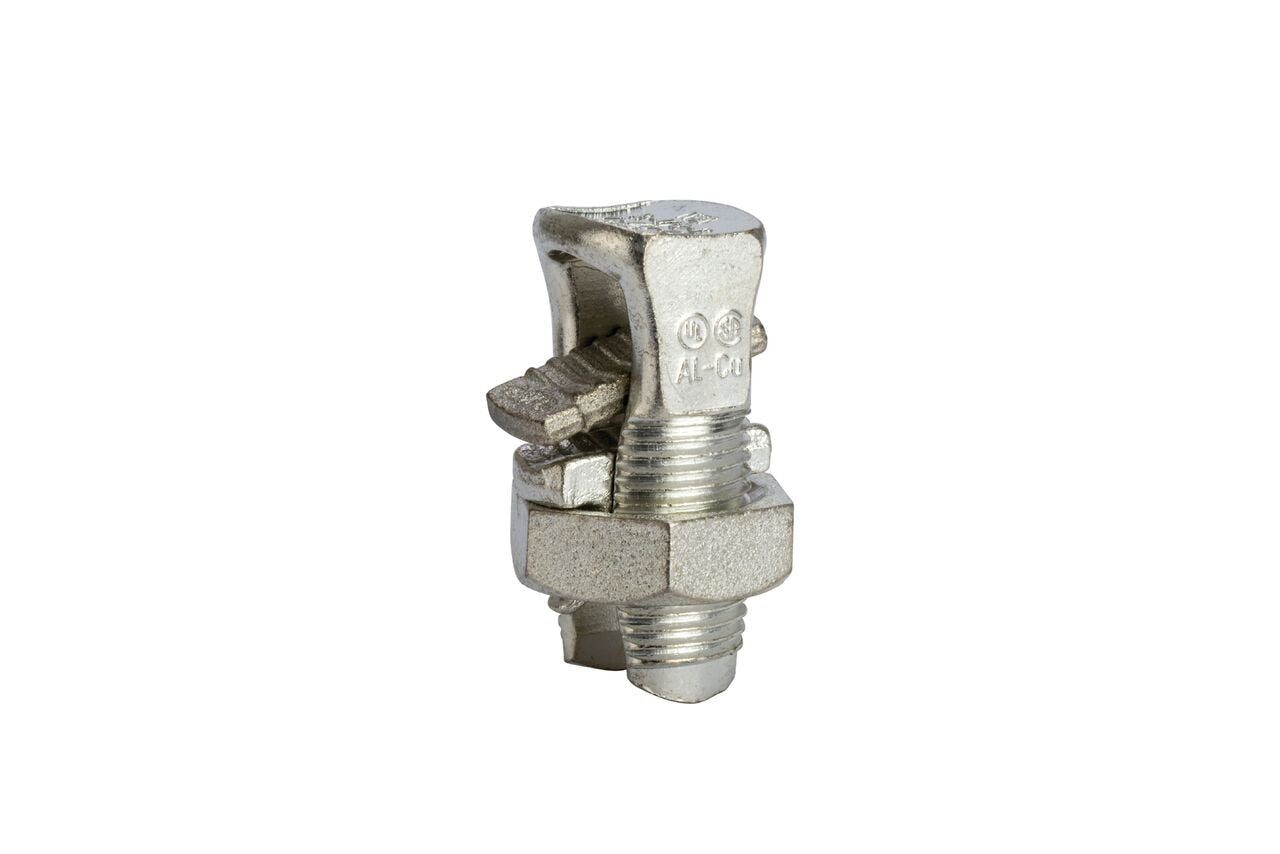

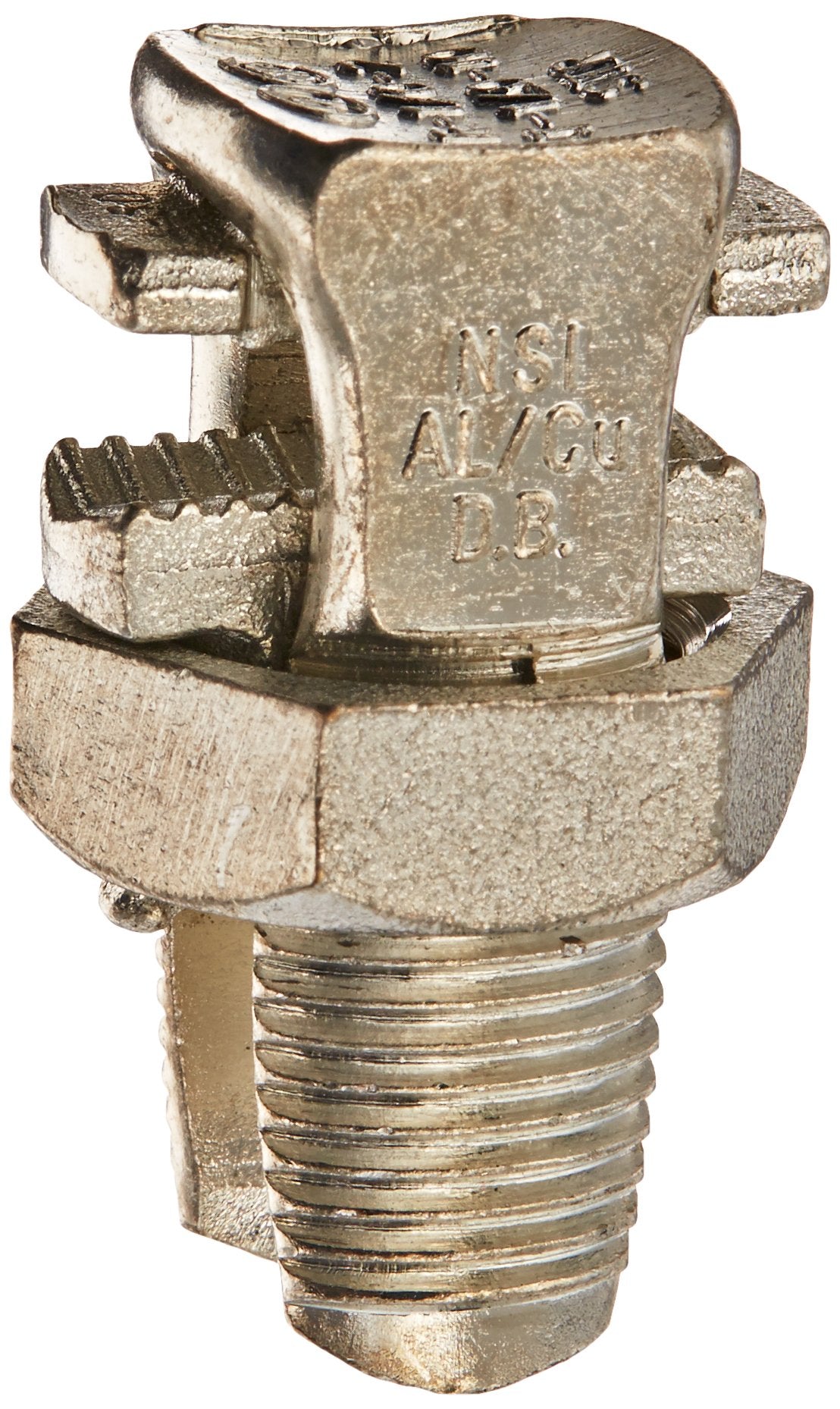

The NSI INDUSTRIES N-1/0SP is a copper split bolt designed for connecting electrical wires. It is suitable for aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. Features an electro-tinned body and is UL listed for copper and copperweld wires only.
- Can be used Aluminum to copper (Dual Rated), Aluminum to aluminum, Steel to aluminum, Copper to copper, Steel to copper
- Electro-tinned body
- UL listed for copper and copperweld wires only
Product Highlights
This split bolt connector includes a nut, spacer, and pressure pad and is suitable for wire termination.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: N-1/0SP
-
Country of Origin: Brazil
Technical Specifications
-
Connection Type: COMPRESSION
-
Material Rating: COPPER
-
Type: Tin Plated Copper Split Bolt
-
Brand: NSI Industries
-
Finish: Tin Plated
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486B
-
Sub Brand: Split Bolts
-
Wire Size: 6 SOL-1/0 STR
-
Wire Type: A,B
-
Applications: Wire Termination
-
Conductor Size: 6-1/0 AWG
-
Number of Poles: 1 Pole
-
Country of Origin: Brazil
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 2
-
Environmental Conditions: 90 degrees C
-
Size: 1.417 inch L x 0.787 inch W
-
UL Listing: For copper and copperweld wires only
-
Includes: Nut, spacer and pressure pad
-
Recommended Torque: 385 lbs
-
Manufacturer: NSI Industries
-
Part Number: N-1/0SP
-
UPC: 662381020369
-
Wire Diameter Range: 0.162" - 0.375"
-
Torque: 385lbs
-
GTIN: 662381020369
-
EAN: 0662381020369
-
Ul Standard: UL 486A-486B, UL 486D
-
Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
-
Series: N-SP
-
Voltage Rating: 600 VAC
-
Bolt Size: 0.787 x 1.417 in
-
Conductor Range: 6 AWG Solid to 1/0 AWG Stranded
