Nsi Industries L638 Lug Long 6 AWG 3/8 Bolt Size

Product Description

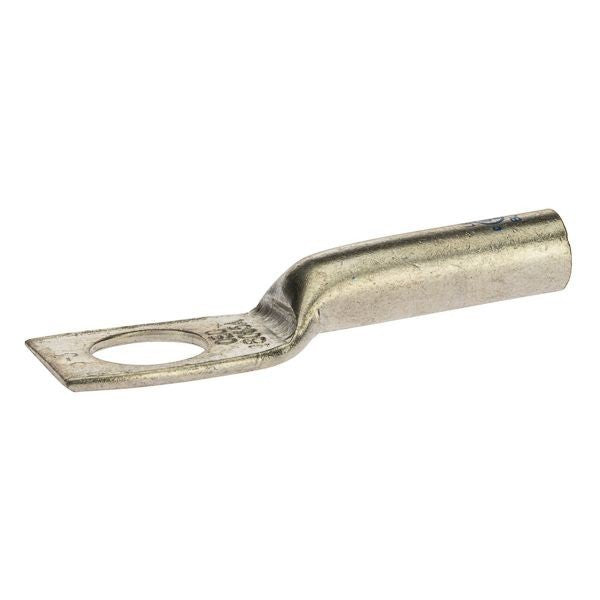

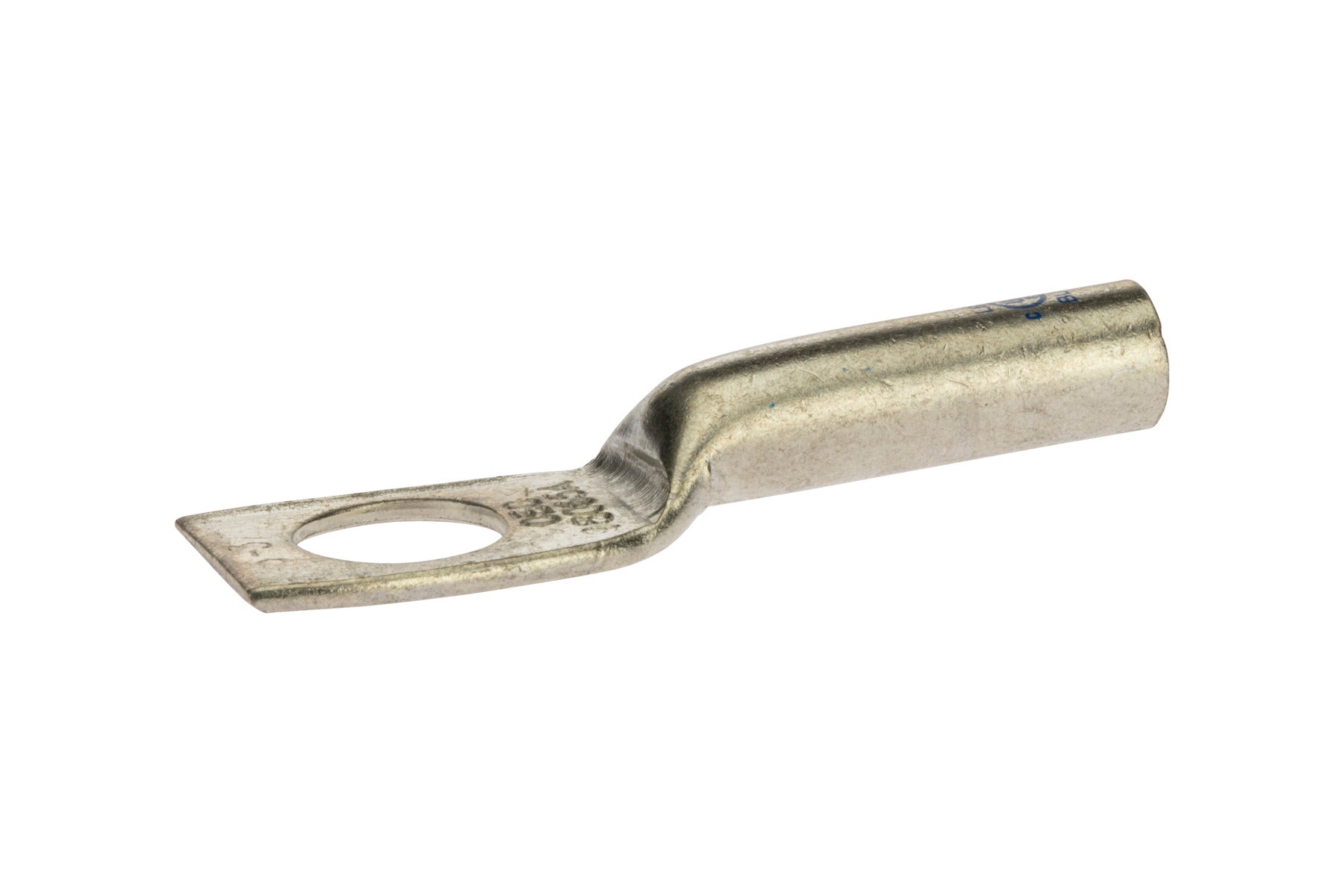

The NSI INDUSTRIES L638 lug is a long barrel, one-hole compression connector designed for 6 AWG cables and a 3/8 In. bolt size. Constructed from tin-plated, high-conductivity copper, it ensures a reliable, vibration-resistant connection suitable for power distribution and grounding. It is marked with a die index and color coded.

• Made from high conductivity copper tubing with a tin-plated finish for corrosion resistance.
• Features a long barrel design.
• UL/cULus listed and rated for B/C class wire.

Product Highlights

This copper compression lug offers a secure and lasting connection for various applications, including power distribution, grounding, and data transmission.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L638
• Country of Origin: India

Technical Specifications

• Item: One-Hole Lug Compression Connector
• Width: 0.591"
• Length: 1.913"
• Material: Copper
• Cable Size: 6 AWG
• Voltage Rating: 600 VAC
• Finish: Tin Plated
• UPC: 662381034281
• Ul Standard: UL 486A-486B, UL467
• Barrel Inside Diameter: 0.21
• Barrel Outside Diameter: 0.3
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.08
• Tang Length: 0.81
• Wire Range: 6 AWG
• Expanded Wire Range: 6 AWG – 8 AWG
• Die Color Code: Blue
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Barrel Size: 0.2 in ID x 0.3 in OD x 0.984 in L
• Catalog ID: NSIL638
• Color: Blue
• Conductor Size: 6 AWG
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Type: 1-Hole
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: UL 486, KM Approved, cULus Listed
• Barrel Type: Long
• Overall Length: 1.91 in
• Mounting Hole Size: 3/8 in
• Series: L Series
• Tongue Size: 0.811 in L x 0.591 in W x 0.083 in THK
• Conductor Cu Size Range: 250 MCM-6 AWG
• Conductor Al Size Range: 250 MCM-6 AWG
