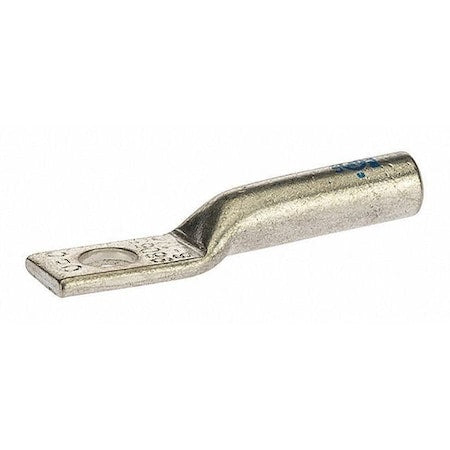

Nsi Industries L614 Compression Lug, 1 Hole, Long Barrel, Copper, # 6 AWG (STR), 1/4 inches Stud Size

Product Description

The NSI INDUSTRIES L614 is a compression lug with 1 hole and a long barrel, constructed from copper. It accommodates #6 AWG (STR) wire and features a 1/4" stud size. These long barrel copper compression lugs are produced from high conductivity copper tubing and tin-plated for corrosion resistance and low contact resistance.

• Made of high conductivity copper tubing
• Tin-plated to provide corrosion resistance
• Marked with die index and color coded

Product Highlights

This copper compression lug is designed for secure and reliable electrical connections, suitable for a variety of applications requiring a durable and conductive termination.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L614
• Country of Origin: India

Technical Specifications

• Barrel: LONG
• Bolt Hole: 1/4 INCH
• Gauge: 6 AWG
• Holes: 1 HOLE
• Lug Material: COPPER
• Type: STANDARD COMPRESSION
• Wire Range: 6 AWG
• Expanded Wire Range: 6-8 AWG
• Bolt Size: 1/4"
• ID: 0.205
• OD: 0.295
• Length: 1.772"
• Width: 0.421"
• Color Code: Blue
• Temperature Rating: 90 degrees C
• Material: Tin-Plated High Conductivity Copper
• Cable Size: 6AWG
• Voltage Rating: 35kV
• No. of Holes: 1
• Stud Size: 0.25 inch
• Standards: UL486, CUL Listed
