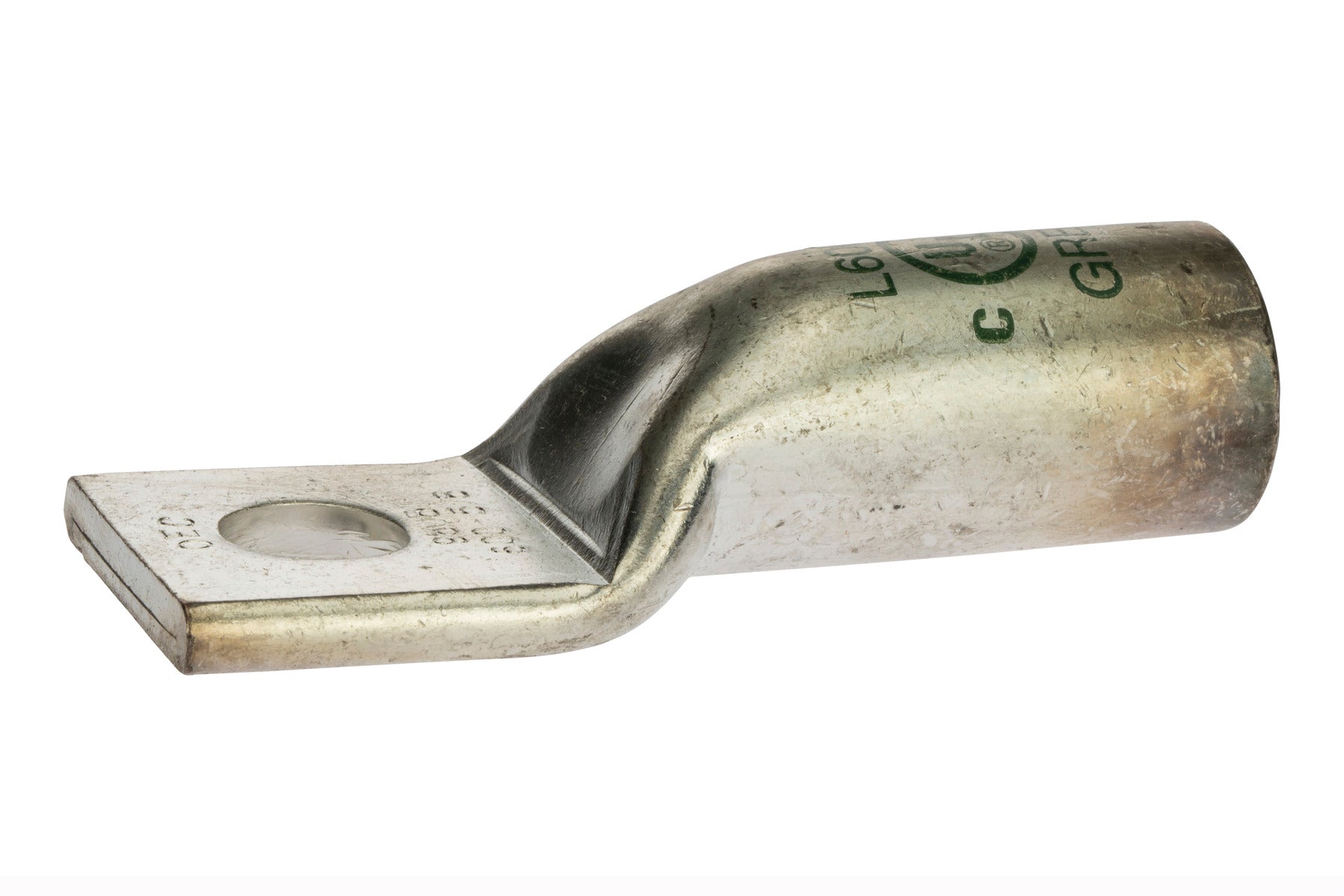

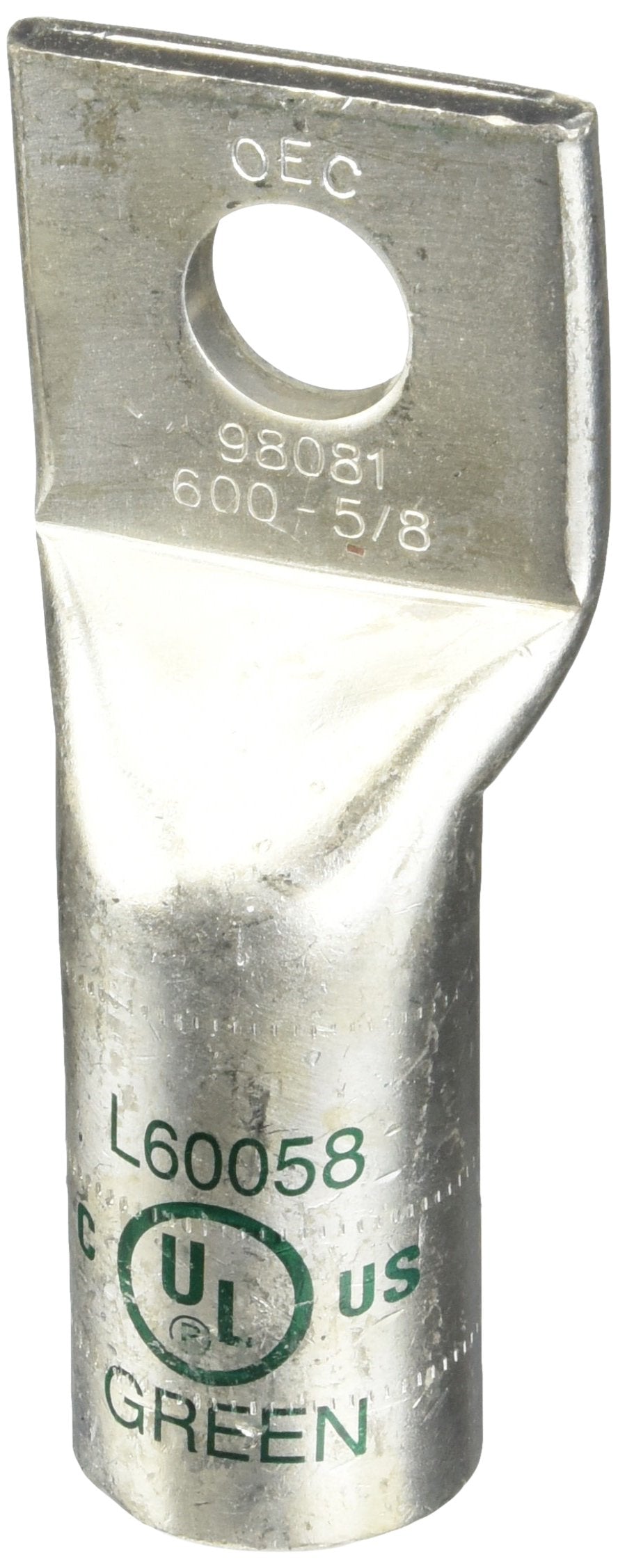

Nsi Industries L60058 1 Hole Long Barrel Copper Compression Lug 600 MCM 5/8 inches Bolt

Product Description

The NSI INDUSTRIES L60058 is a 1 Hole Long Barrel Copper Compression Lug produced from high conductivity copper tubing. It is tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

Suitable for power distribution, grounding and data transmission. UL listed to 35kV when properly installed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L60058
• Country of Origin: India

Technical Specifications

• Quantity: 1 Count
• Rated: 35KV Max
• Wire Range: 600 MCM
• Expanded Wire Range: 600 - 250 MCM
• Bolt Size: 5/8"
• ID: 0.925
• OD: 1.189
• Length: 4.252"
• Width: 1.717"
• Color Code: Green
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 600 MCM
• Connector Type [Specifications]: Long Barrel
• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.25
• Tang Length: 1.46
• Die Color Code: Green
• Mounting Bolt Size: 5/8
• Mounting Hole Diameter: 0.67
• Barrel Length: 2
• Type: Copper Long Lug
• MPN: L60058
