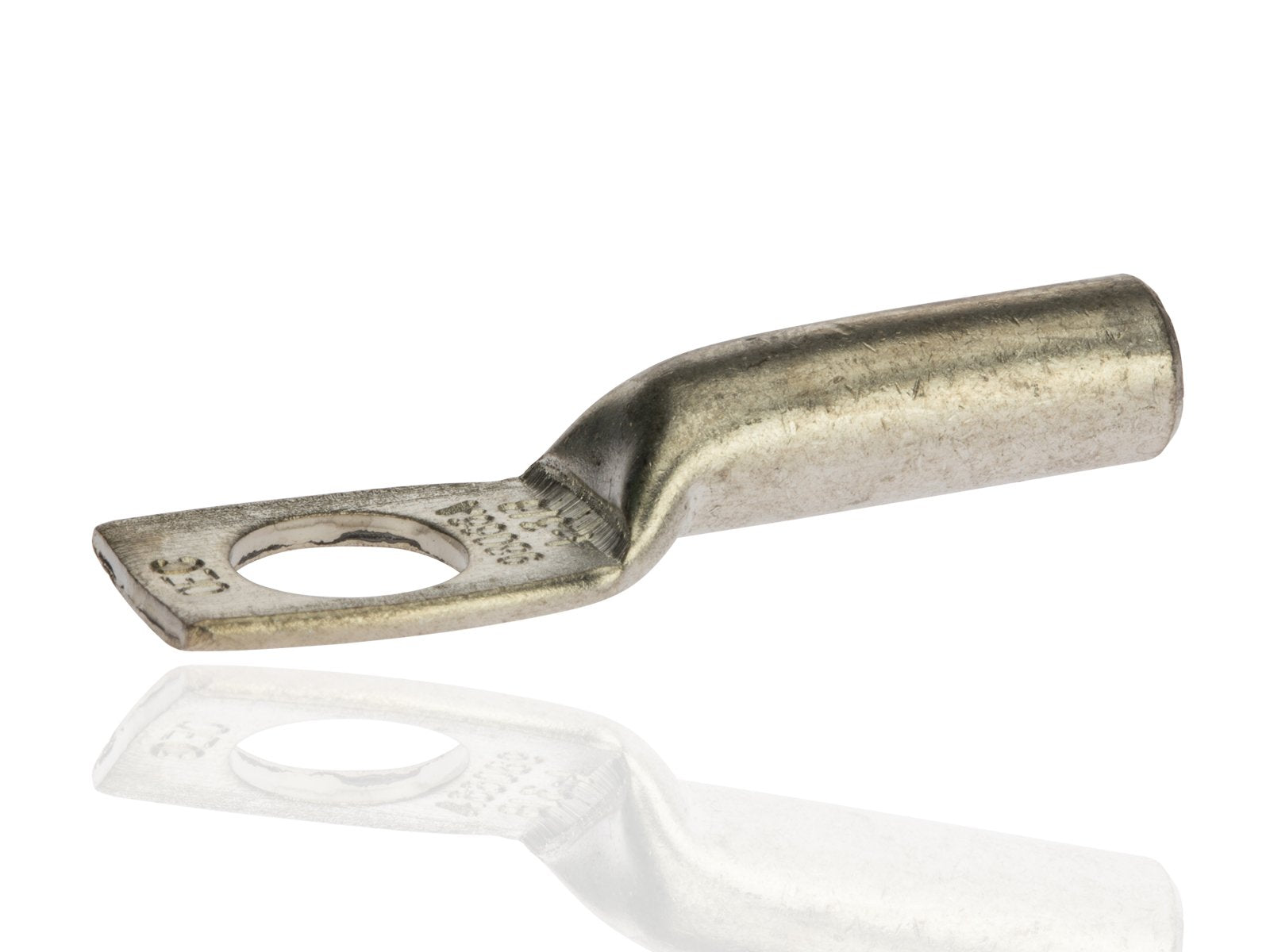

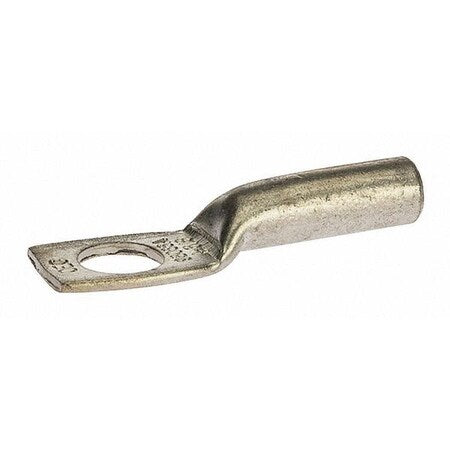

Nsi Industries L438 L Series Compression Long Barrel Copper Lug, One Hole, 3/8 inches Stud

Product Description

The NSI INDUSTRIES L438 is a copper compression connector produced from high conductivity copper tubing. It is tin-plated to provide corrosion resistance and marked with die index and color coded. This lug is listed for 35 KV maximum when properly installed and for applications greater than 2000 volts.

• Produced from high conductivity copper tubing
• Tin-Plated to provide corrosion resistance
• Marked with die index and color coded
• Listed for 35 KV maximum when properly installed
• For applications greater than 2000 volts

Product Highlights

The NSI L438 copper compression lug ensures secure electrical connections with its durable construction and corrosion resistance.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L438
• Country of Origin: India

Technical Specifications

• Brand: NSI
• Model / MPN: L438
• MPN: L438
• Part ID / MPN: L438
• Product Group: BISS
• Item [Specifications]: One-Hole Lug Compression Connector
• Width [Specifications]: 0.591"
• Length [Specifications]: 1.913"
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 4 AWG
• Color Code [Specifications]: Gray
• Connector Type [Specifications]: Long Barrel
• Number of Ports: 1
• Color: Gray
• Number of Poles: 1
• UPC: 662381986689
• Country of Origin: United States
• Stud Size: 3/8 inches
