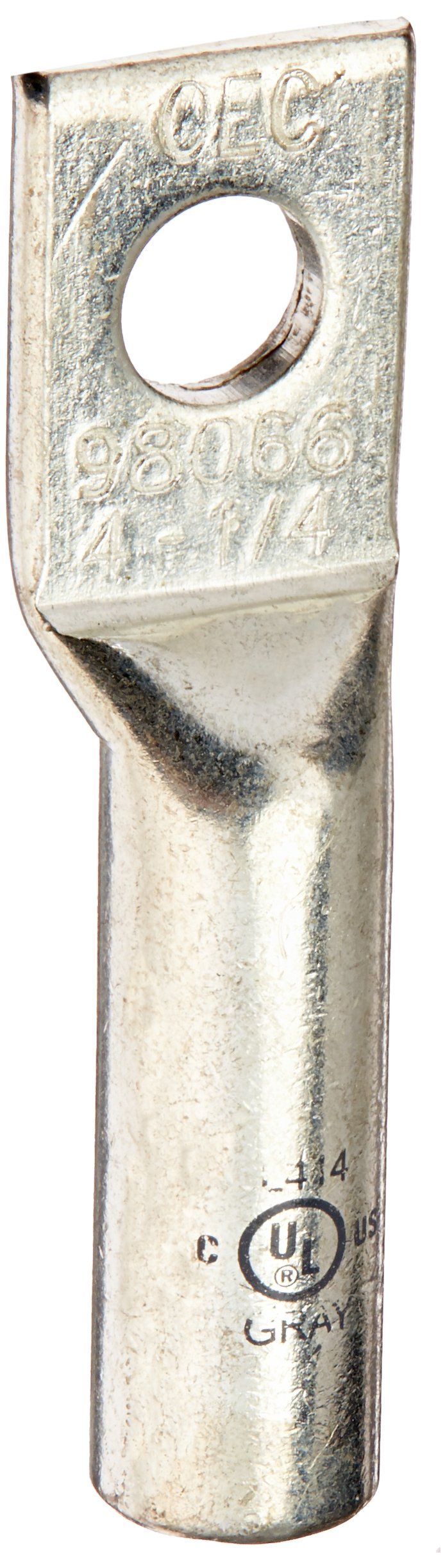

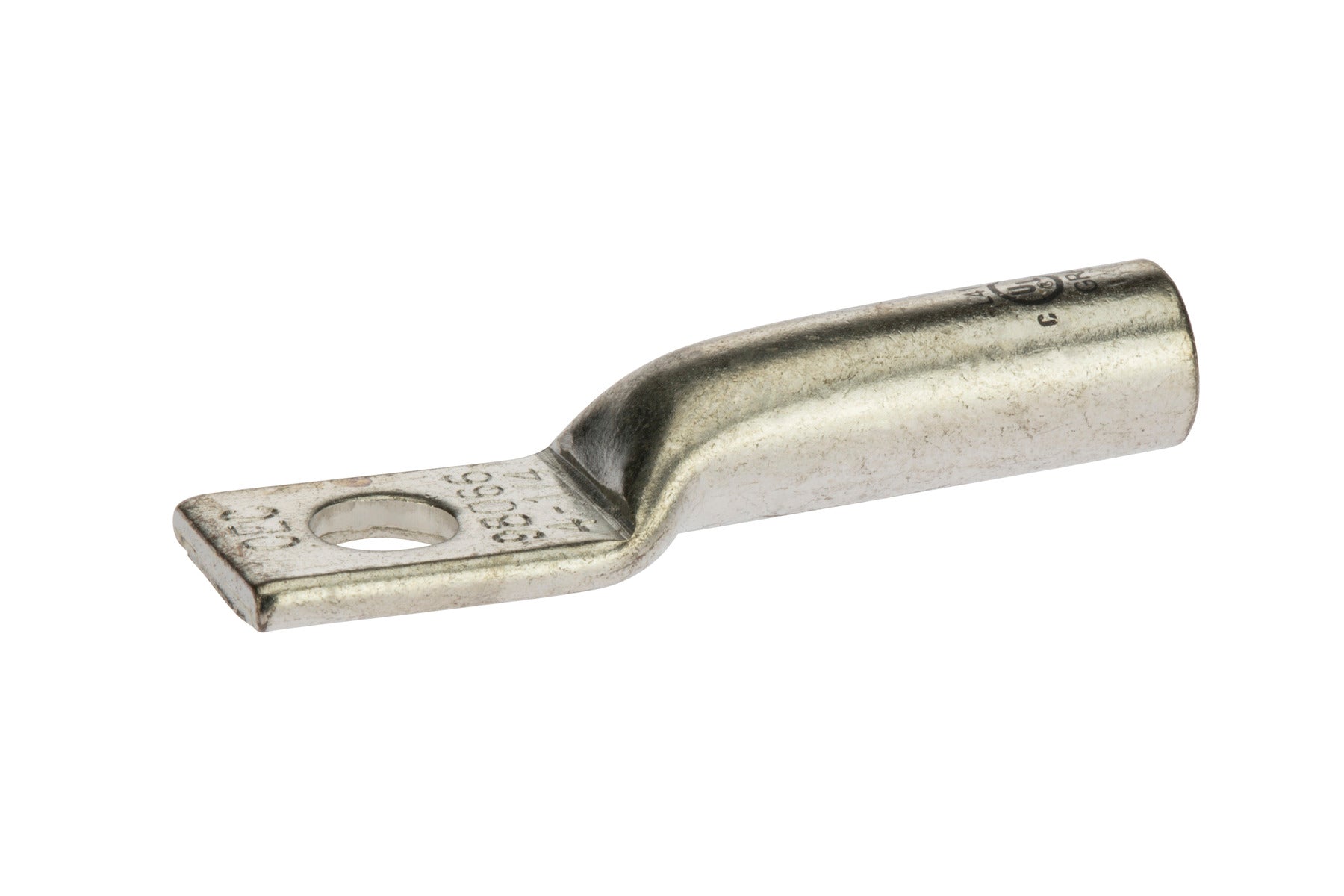

Nsi Industries L414 L Series Compression Lug Copper 1-Hole 4 AWG Stranded 1/4 in. Stud 600V

Product Description

The NSI INDUSTRIES L414 compression connectors terminate high-current wires safely, with a max voltage rating of 35kV when properly installed. It features a tin-plated copper body and a chamfered entry. The NSI L414 Copper Compression Long Lug features a standard installation hole sized for 1/4” mounting bolts and a chamfered port to terminate a 4 AWG conductor.

• Terminates high-current wires safely
• Max voltage rating of 35kV when properly installed
• Tin-plated copper body

Product Highlights

This lug is suitable for secondary power distribution in buildings, power plants, industrial applications, or with electrical equipment.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L414
• Country of Origin: India

Technical Specifications

• Series: L Series
• Stud Size: 1/4 in.
• Quantity: 1 Count
• Rated Voltage: 600 V
• Wire Range: 4 AWG
• Expanded Wire Range: 4-6 AWG
• ID: 0.252
• OD: 0.343
• Length: 1.772"
• Width: 0.488"
• Temperature Rating: 90 deg C
• Item: One-Hole Lug Compression Connector
• Material: Tin-Plated High Conductivity Copper
• Cable Size: 4 AWG
• Connector Type: Long Barrel
• Voltage Rating: 600V
• Finish: Tin Plated
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.09
• Tang Length: 0.67
• Mounting Bolt Size: 1/4
• Mounting Hole Diameter: 0.26
• Barrel Length: 1
• Application: Terminate, Splice, Tap Power Connectors
• Use With: Copper Conductors
• No. of Holes: 1
• Barrel Size: 0.25 in ID x 0.34 in OD x 0.984 in L
• Barrel Type: Long
• Overall Length: 1.77 in
• Tongue Size: 0.669 in L x 0.49 in W x 0.087 in THK
• Type: 1-Hole
• Conductor Size: 4 AWG
• Mounting Hole Size: 1/4 in
