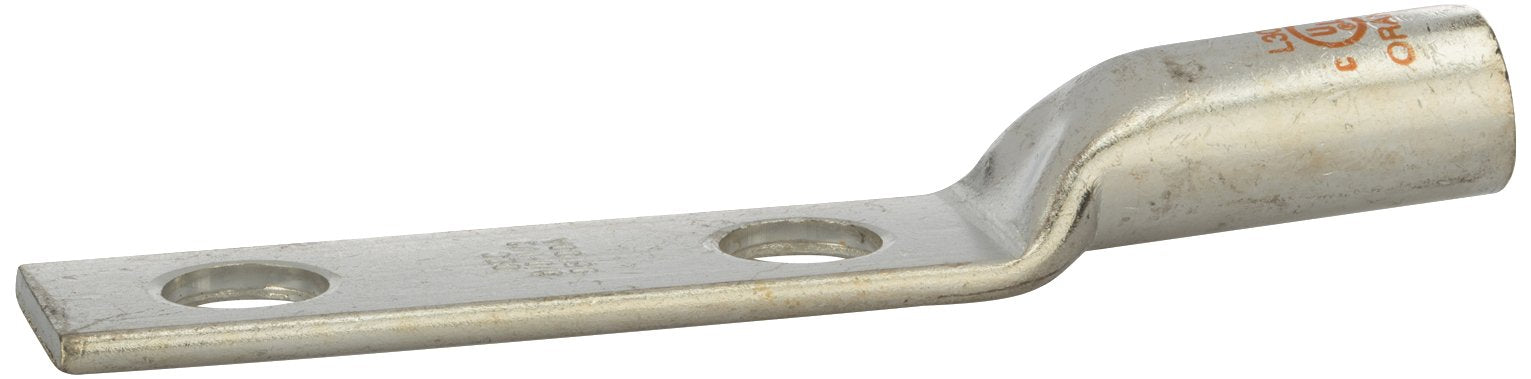

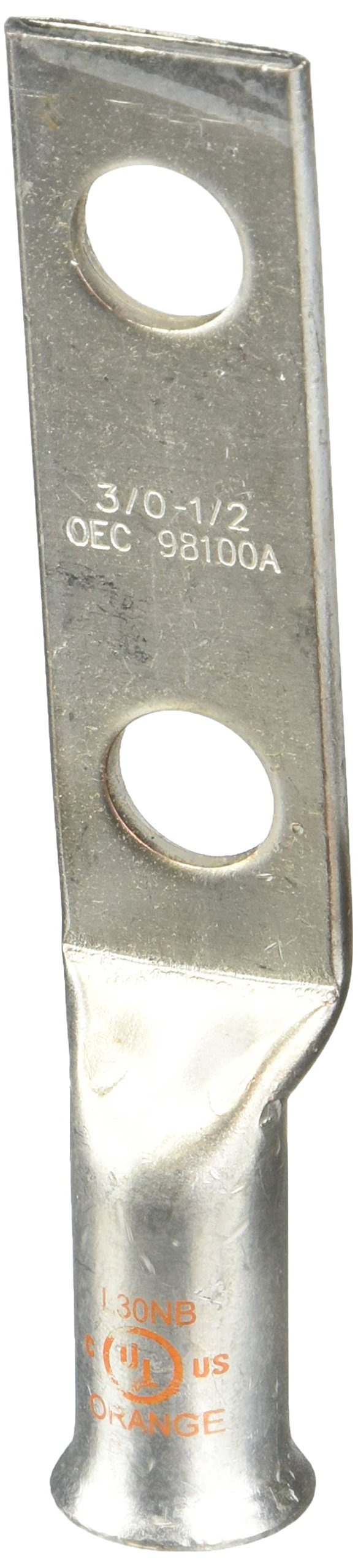

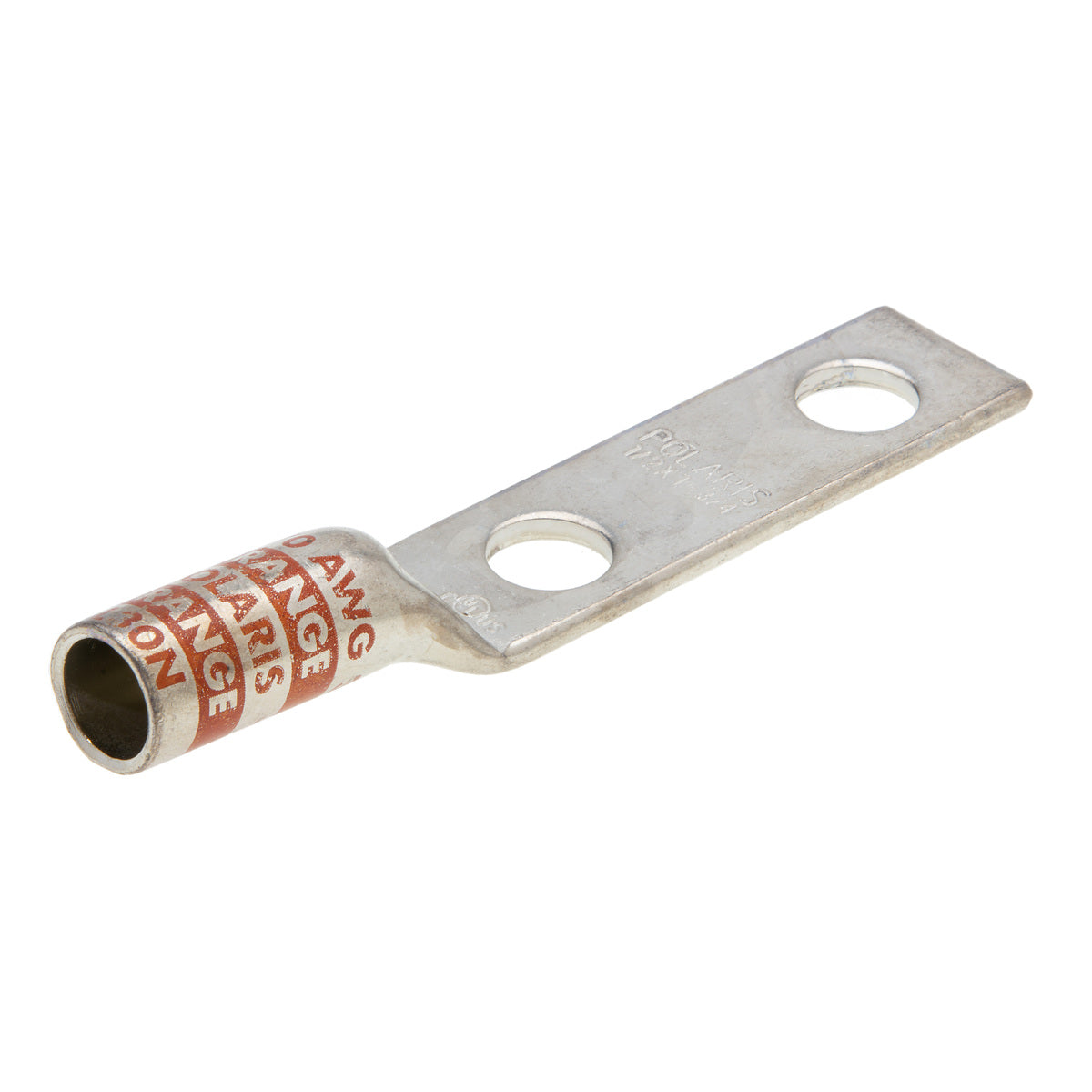

Nsi Industries L30N Compression Lug 2 Hole Long Barrel Copper 3/0 AWG 1/2 inches Stud Size

Product Description

The NSI INDUSTRIES L30N is a compression lug with 2 holes and a long barrel, made of copper, designed for 3/0 AWG (STR) wires, and features a 1/2" stud size. It is produced from high conductivity copper tubing. It allows easy inspection of the termination to assure complete cable insertion and is tin-plated to provide corrosion resistance.

• Made from high conductivity copper tubing
• Allows easy inspection of the termination to assure complete cable insertion
• Tin-Plated to provide corrosion resistance

Product Highlights

This copper compression lug ensures a secure and corrosion-resistant connection for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L30N
• Country of Origin: India

Technical Specifications

• Barrel: LONG
• Bolt Hole: 1/2 INCH
• Gauge: 3/0 AWG
• Holes: 2 HOLE
• Inspection Hole: NO
• Lug Material: COPPER
• Type: STANDARD COMPRESSION
• UNSPSC Code: 39121400
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Copper Compression
• Cable Size: 3/0 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Model / MPN: L30N
• Wire Range: 3/0 AWG
• Expanded Wire Range: 3/0-2 AWG
• Rated: 35KV Max
• ID: 0.490
• OD: 0.620
• LENGTH: 4.650
• WIDTH: 0.900
• END OF CONN TO CTR.: 0.620
• TANG LENGTH: 2.990
• BARREL LENGTH: 1.380
• TANG THICKNESS: 0.130
• MTG. HOLE DIA.: 0.510
• MTG. HOLE SPACING: 1.750
• Item [Specifications]: Two-Hole Compression Lug
• Length [Specifications]: 4.65"
• Connector Type [Specifications]: Long Barrel
• Country of Origin (subject to change) [Specifications]: India
• Voltage Rating: 35kV
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Assortment: Copper Compression Terminations
• Die Color Code: Orange
• Series: LN Series
• Temperature Rating: 90 deg C
• Conductor Size: 3/0 AWG
• Overall Length: 4.65 in
• Mounting Hole Size: 1/2 in
• Pad Hole Spacing: 1.75 Inch
• Pad Size: 2.99 Inch Length x 0.9 Inch Width x 0.13 Inch Thickness
• Die Index: 9/14/50
• Tongue Size: 2.99 in L x 0.9 in W x 0.13 in THK
