Nsi Industries L3038 CMP Lug Cu Long 3/0 AWG 3/8 Bolt Size

NSI INDUSTRIES
Brand: NSI INDUSTRIES
SKU: L3038
Availability: In Stock

Ships same day if ordered by 12 pm
$36.38
$36.38
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

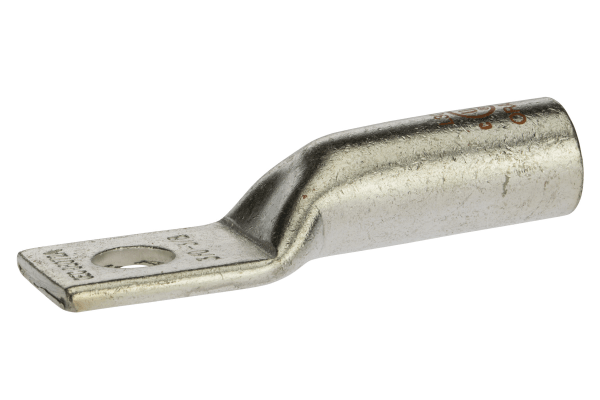

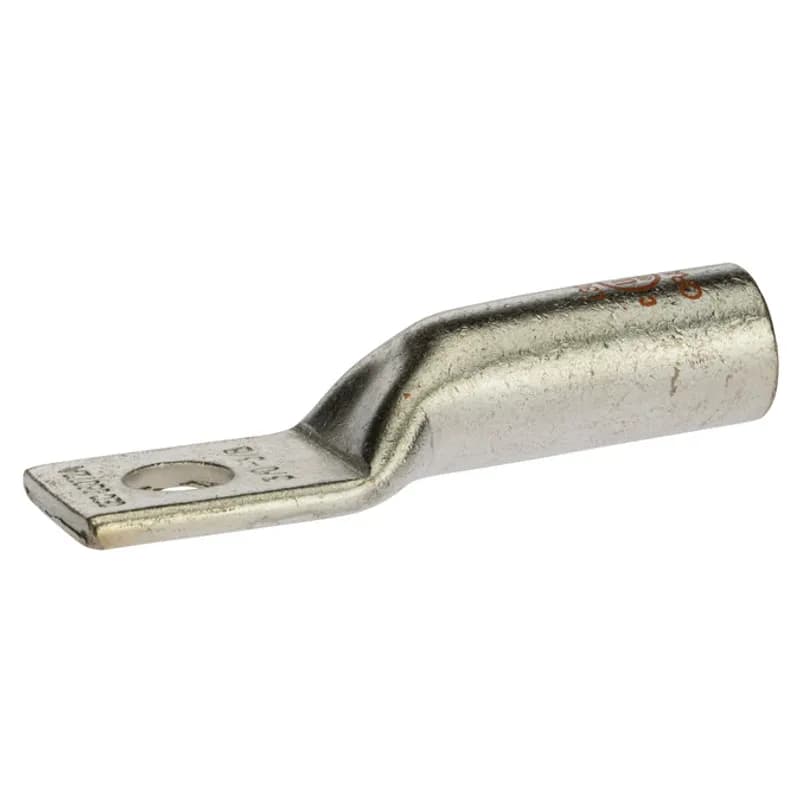

The NSI Industries L3038 is a single-hole long barrel copper compression lug designed for reliable electrical connections. Manufactured from high conductivity copper tubing, this lug ensures excellent electrical performance and durability. Its tin plating provides superior corrosion resistance and maintains low contact resistance.

  • High conductivity copper tubing
  • Tin-plated to provide corrosion low contact resistance
  • Marked with die index and color coded for easy reference

Product Highlights

The NSI Industries L3038 compression connectors terminate high-current wires safely, with a max voltage rating of 35kV when properly installed.

Product Information

Standard Information

  • Brand: NSI INDUSTRIES
  • Manufacturer Part Number: L3038
  • Country of Origin: India
Technical Specifications
Quantity
1 Count
Rated
35KV Max
Wire Range
3/0 AWG
Expanded Wire Range
3/0-2 AWG
Bolt Size
3/8"
ID
0.492
OD
0.622
Length
2.795"
Width
0.902"
Color Code
Orange
Brand Equivalent
Greaves L3038Homac L 3/0-38Ilsco CLNS-3/0-38Panduit LCB3/0-38-XPenn Union BBLU-3/0S2
Manufacturer
NSi Industries
Part Number
L3038
Temperature Rating
90 degrees C
Item [Specifications]
One-Hole Lug Compression Connector
Material [Specifications]
Tin-Plated High Conductivity Copper
Cable Size [Specifications]
3/0 AWG
Connector Type [Specifications]
Long Barrel
Voltage Rating
600 V
Material
Copper
Finish
Tin Plated
GTIN
662381034106
UPC
662381034106
EAN
0662381034106
UNSPSC
39121405
Ul Standard
UL 486A-486B, UL467
Huskie Die
HT41BA (4 CRIMPS); CD10 (4 CRIMPS)
Huskie Tools
EP510C
Tb Die
15530 (4 CRIMPS)
Tb Tools
TBM-15, TBM-14M
Burndy Die
U27RT (2 CRIMPS)
Burndy Tools
Y-35, T750, PAT750
Ilsco Die
ILD-9 (4 CRIMPS), KC12-3/0 (2 CRIMPS)
Ilsco Tools
ILC-12, ILC-15
Greenlee Die
KC12-3/0 (2 CRIMPS)
Greenlee Tools
EK, RK, HK1240 Series
Nsi Die
CD10 (4 CRIMPS), KC12-3/0 (2 CRIMPS), HT41BA (4 CRIMPS)
Nsi Tools
N1240, NSI-12, N12ID, M-250, M-500
Wire Cable Class
Class B, Class C
Conductor Cu Size Range
250 MCM ">">– 6 AWG
Conductor Al Size Range
250 MCM ">">– 6 AWG
Conductor Type
Copper
Tang Thickness
0.13
Tang Length
1.06
Assortment
Copper Compression Terminations
Mounting Bolt Size
3/8
Mounting Hole Diameter
0.41
Barrel Length
1
Origin Country
IN
Certifications
cULus
Barrel Inside Diameter
0.49
Barrel Outside Diameter
0.62
Ul File No
E155027
Al Conductor Max Amp
230
Cu Conductor Max Amp
290
Temp Rating
90C, 9CU
Hole Count
1
Conductors Count
3
Env Temp
90C, 9CU
Max Torque
360
Application
Terminate, Splice, Tap Power Connectors
Cable Size
3/0 AWG (STR)
Color
Orange
Environmental Conditions
90 C
Mounting
3/8 Mounting Hole
Number Of Holes
1
Size
L=2.79 - W=.902 - OD=.622 - ID=.492
Special Features
3/0 AWG (STR) - 3/8 Mounting Hole
Standard
UL486A/B, UL467 (8 AWG -3/0 AWG)
Stud Size
3/8 IN
Type
Long Barrel - One Hole
