Product Description

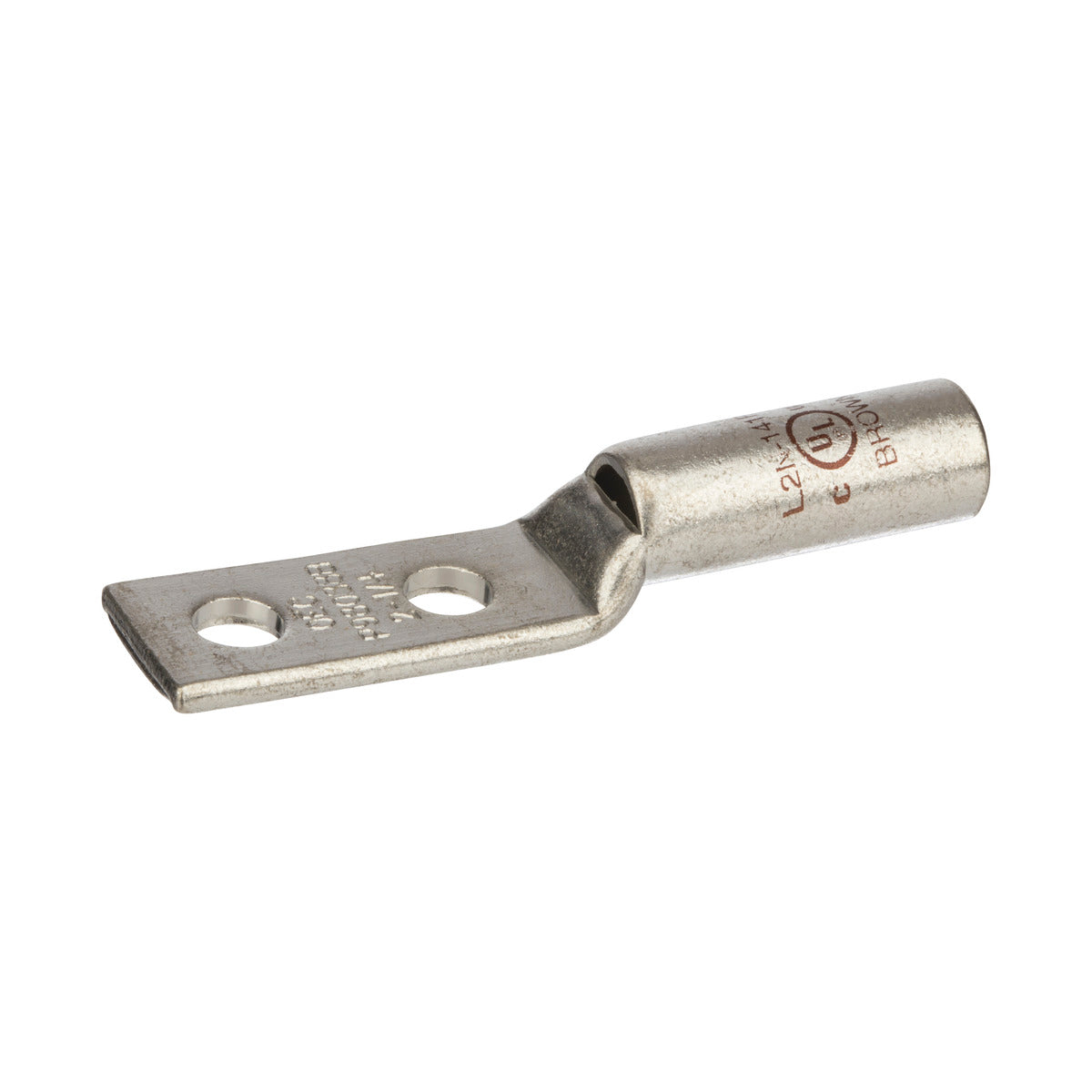

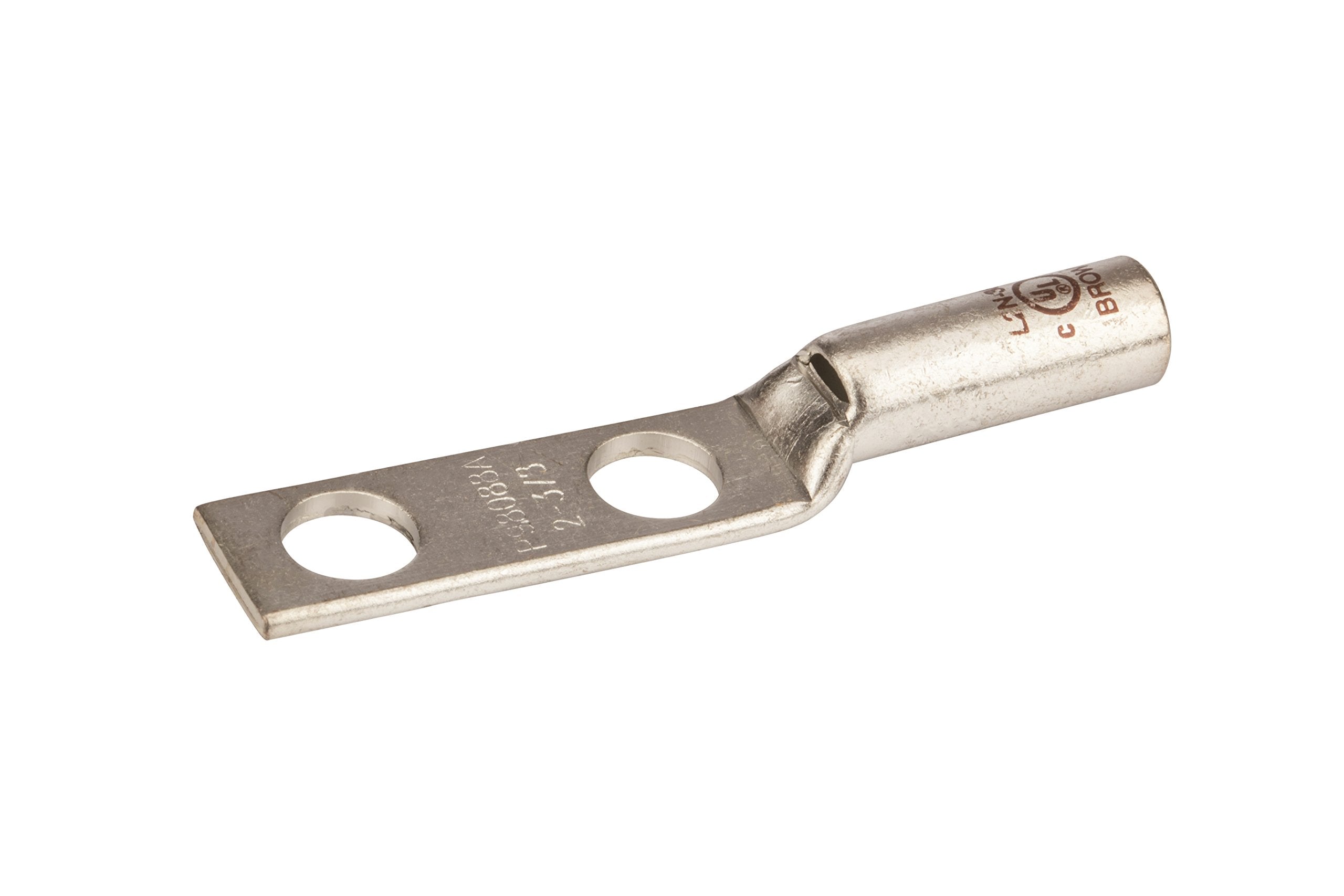

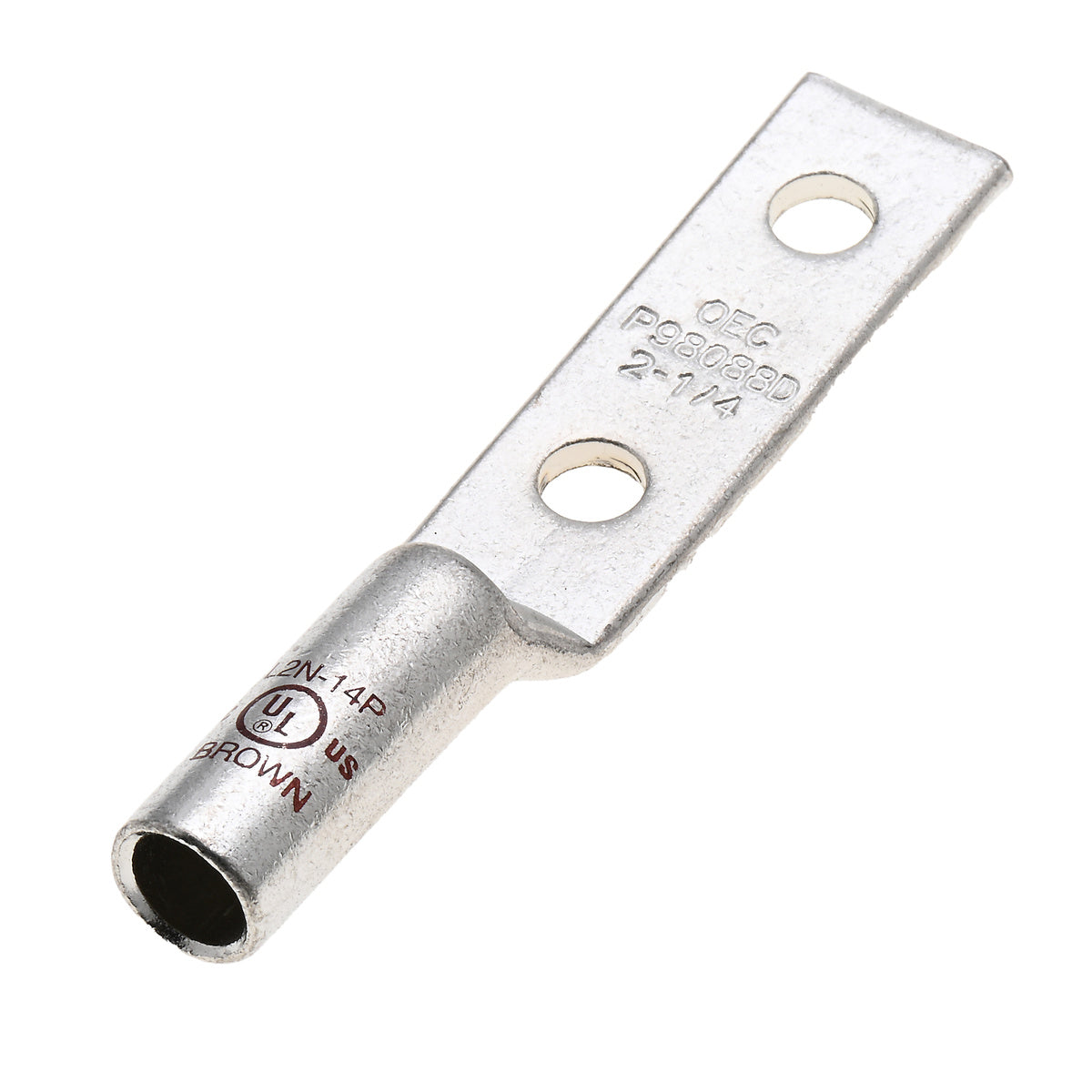

The NSI INDUSTRIES L2N is a copper compression lug designed for terminating, splicing, and tapping power connectors. This 2 AWG lug is made from high conductivity copper tubing and tin-plated for corrosion resistance. It features two standard installation holes sized for 1/2" mounting bolts.
- Terminate, Splice, Tap Power Connectors
- Two standard installation holes, sized for 1/2", mounting bolts
- Made from tin-plated copper for improved conductivity and corrosion resistance
Product Highlights
The NSI INDUSTRIES L2N ensures a reliable connection for power distribution, grounding, and data transmission applications. It is marked with a die index and color-coded for easy identification.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: L2N
-
Country of Origin: India
Technical Specifications
-
Type: 2-Hole
-
Brand: NSI Industries
-
Voltage: 600 Volt to 35Kilovolt
-
Material: Copper
-
Standard: UL486
-
Stud Size: 1/2 in
-
Sub Brand: Copper Compression
-
Cable Size: 2 AWG
-
Applications: Terminate, Splice, Tap Power Connectors
-
Mounting Type: 1/2 Mounting Holes
-
Number of Holes: 2 Hole
-
Environmental Conditions: 90 degrees C
-
Series: LN Series
-
Die Color: Brown
-
Stud Hole Spacing: 1.75 in.
-
Wire range: 2 AWG
-
Expanded wire range: 2-6 AWG
-
Bolt size: 1/2 inch
-
Inside diameter: 0.310
-
Outside diameter: 0.42
-
Model / MPN: L2N
-
Connector Type [Specifications]: Long Barrel
-
Voltage Rating: 35kV
-
Finish: Tin Plated
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Tang Thickness: 0.1
-
Tang Length: 1.81
-
Hole Spacing: 1
-
Assortment: Copper Compression Terminations
-
Expanded Wire Range: 2 AWG – 6 AWG
-
Die Color Code: Brown
-
Mounting Bolt Size: 1/4
-
Mounting Hole Diameter: 0.25
-
Barrel Length: 1
-
Approval: UL 486A/B, 467, UL (Canada and US), CSA
-
Conductor Size: 2 AWG
-
Pad Hole Spacing: 1.75 Inch
-
Conductor Material: Copper
-
Number of Pad Holes: 2
-
Pad Size: 2.99 Inch Length x 0.81 Inch Width x 0.1 Inch Thickness
-
Die Index: 4/10/33
-
Overall Length: 4.25 Inch
-
No. of Holes: 2
-
Rated Voltage: 600 V
-
Barrel Type: Long
-
Barrel Size: 0.31 in ID x 0.42 in OD x 1.1 in L
-
Tongue Size: 2.99 in L x 0.81 in W x 0.1 in THK
-
Temperature Rating: 90 deg C
-
Mounting Hole Size: 3/8 in
-
Specifications: 3/4 in Hole Spacing
