Nsi Industries L25048 Lug Long 250 MCM 1/2 Bolt Size

Product Description

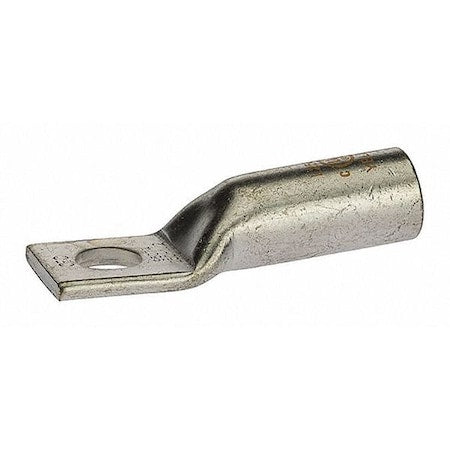

The NSI INDUSTRIES L25048 is a long lug designed for 250 MCM cable with a 1/2 bolt size. Constructed from high-conductivity copper tubing with a corrosion-resistant tin-plated finish, this lug ensures a reliable connection. It is suitable for power distribution, grounding, and data transmission applications. Marked with a die index and color-coded for easy identification.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable
• UL/cULus listed and rated for B/C class wire

Product Highlights

This copper compression long lug offers strong conductivity and corrosion resistance, making it ideal for various applications requiring a secure and lasting connection.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L25048
• Country of Origin: India

Technical Specifications

• Item [Specifications]: One-Hole Lug Compression Connector
• Width [Specifications]: 1.091"
• Length [Specifications]: 3.031"
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 250 MCM
• Color Code [Specifications]: Yellow
• Connector Type [Specifications]: Long Barrel
• Country of Origin (subject to change) [Specifications]: India
• Voltage Rating: 600V
• Finish: Tin Plated
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.15
• Tang Length: 1.06
• Wire Range: 250 MCM
• Expanded Wire Range: 250 MCM – 1/0 AWG
• Die Color Code: Yellow
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 2
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Mounting Type: 1/2 Mounting Hole
• Number of Holes: 1 Hole
• Standard: UL486
• Stud Size: 1/2 in
• Type: Long Barrel - One Hole
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Copper Compression
• Environmental Conditions: 90 degrees C
• Height: 3/4 Inch
• Width: 1.09 in
• Certifications and Standards: cULus, UL Listed, UL 486A-486B
