Product Description

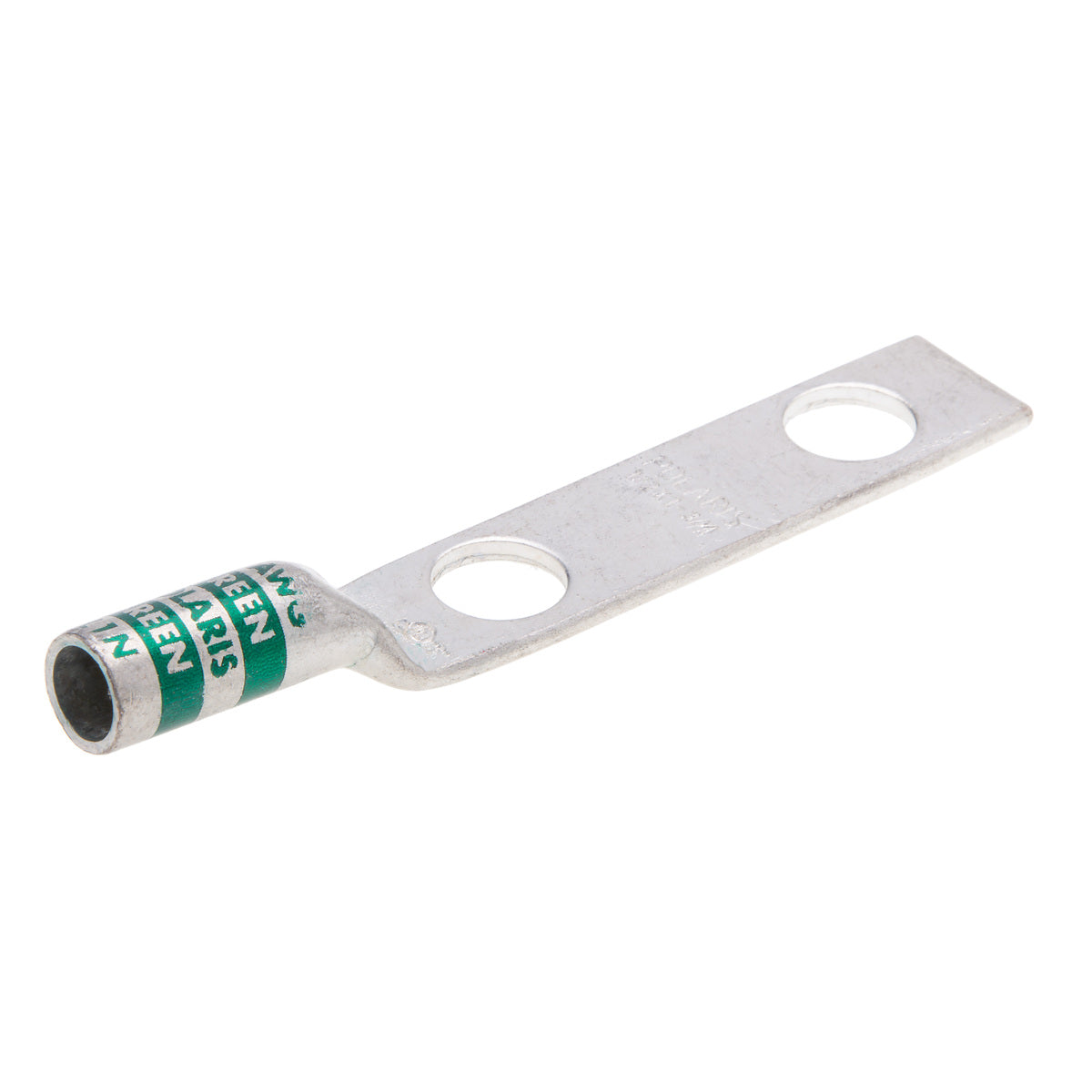

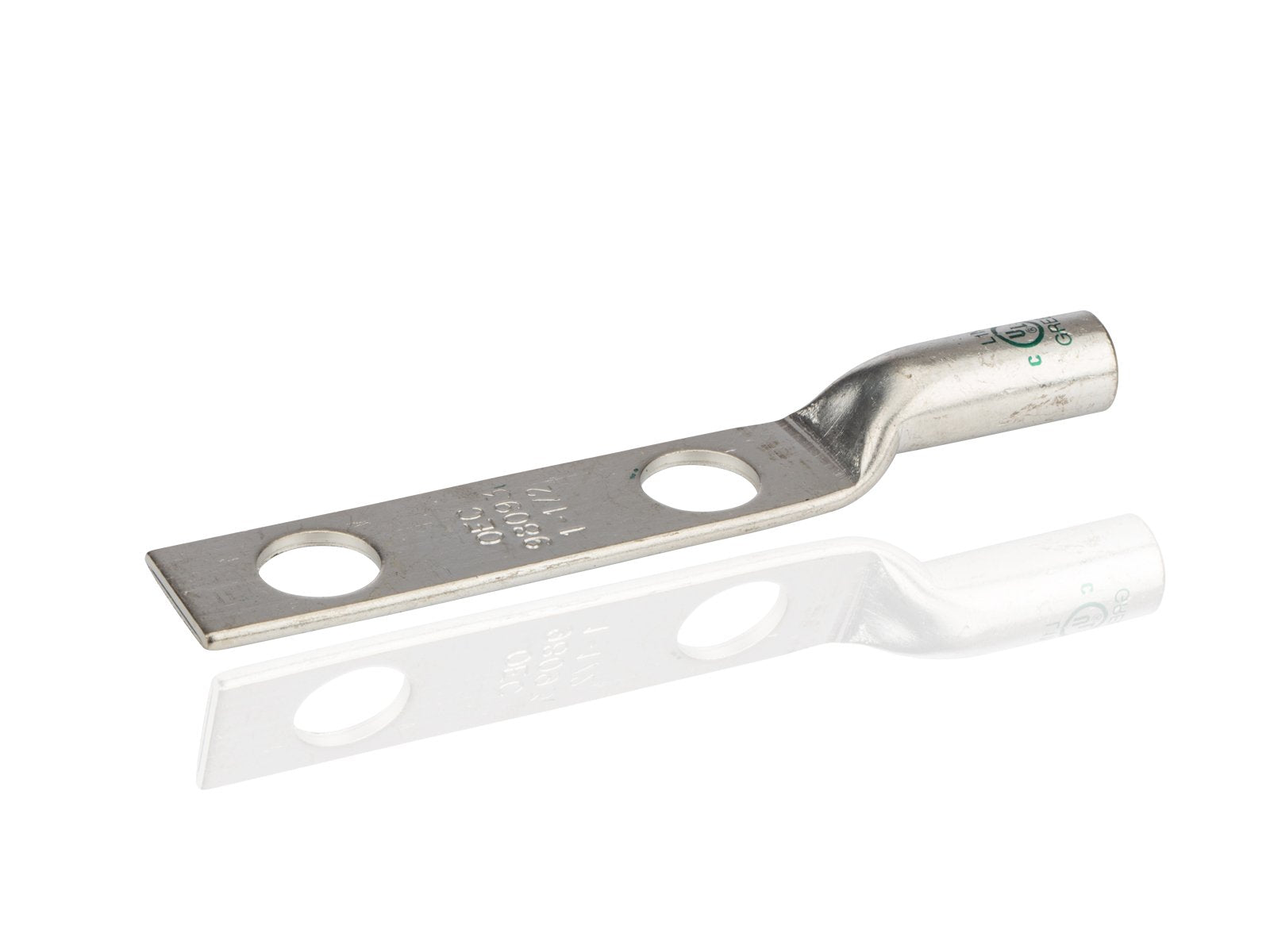

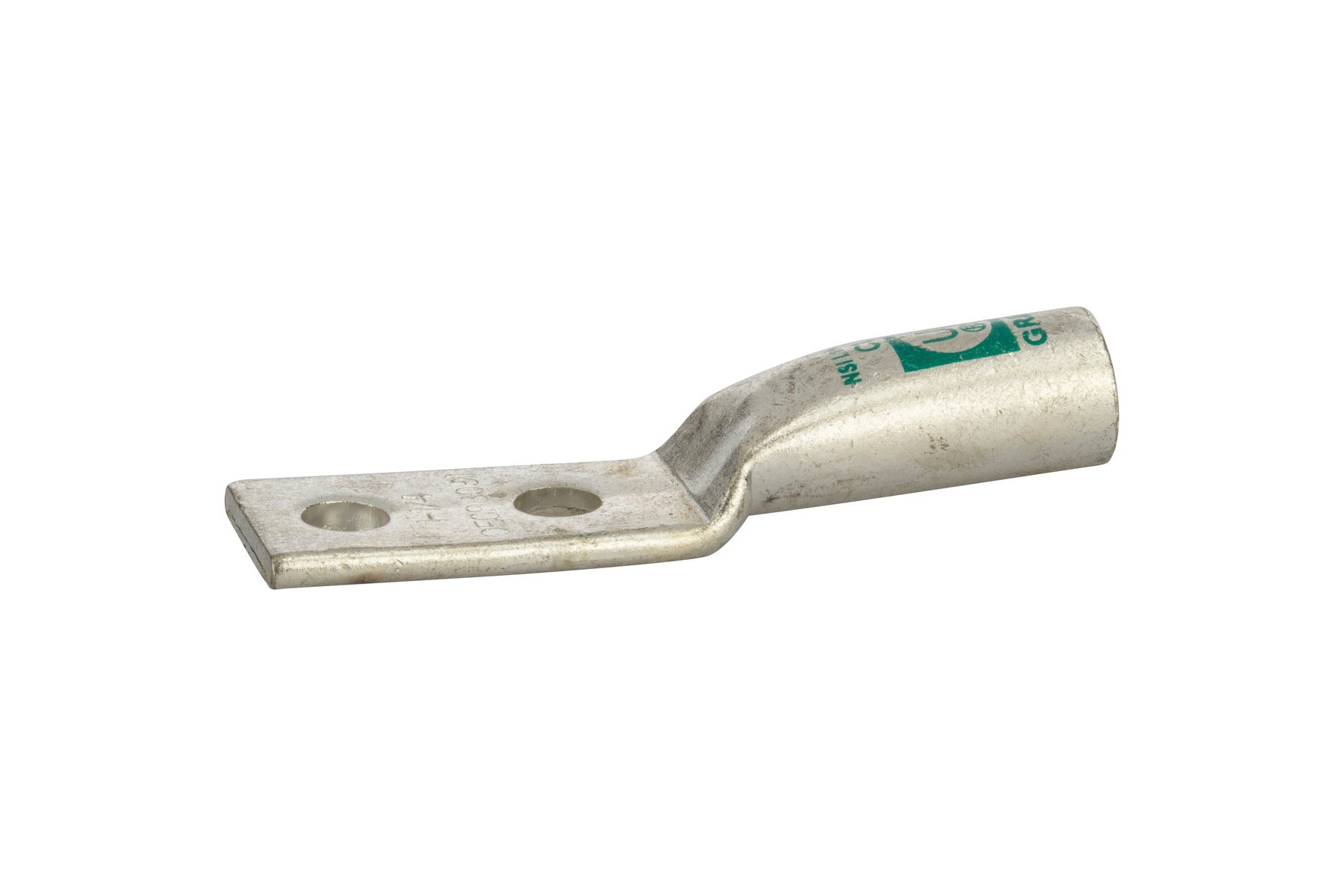

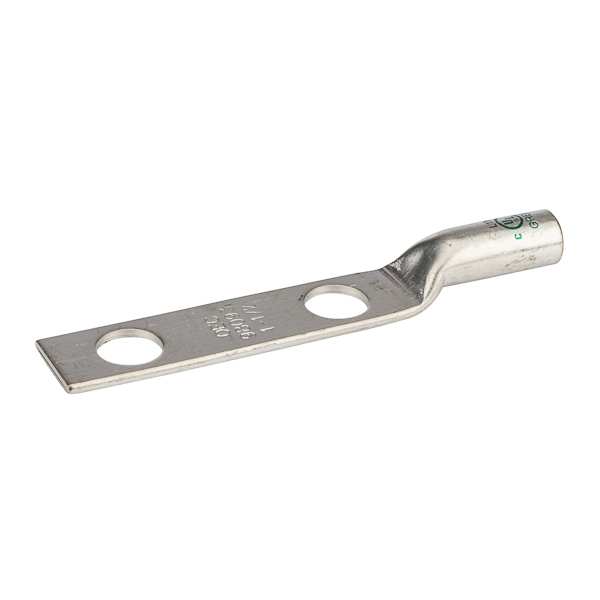

The NSI INDUSTRIES L1N is a 1 AWG copper compression lug with a 1/2 inch bolt size and two holes. It is designed for terminating, splicing, and tapping power connectors. This lug is made from high conductivity copper tubing and is tin-plated for corrosion resistance. It is marked with a die index and color-coded.
- Made from high conductivity copper tubing
- Tin-plated for corrosion resistance
- Allows easy inspection of termination
Product Highlights
This NSI INDUSTRIES copper compression lug ensures a reliable connection for power distribution, grounding, and data transmission applications.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: L1N
-
Country of Origin: India
Technical Specifications
-
Type: Long Barrel - Two Hole
-
Brand: NSI Industries
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486
-
Stud Size: 1/2 in
-
Sub Brand: Copper Compression
-
Cable Size: 1 AWG
-
Product UPC: 66238103508
-
12-Digit UPC: 662381035080
-
Applications: Terminate, Splice, Tap Power Connectors
-
Mounting Type: 1/2 Mounting Holes
-
Number of Holes: 2 Hole
-
Environmental Conditions: 90 degrees C
-
GTiN: 00662381035080
-
Size: L=4.29 - W=.750 - OD=.470 - ID=.360
-
Series: LN Series
-
Die Color: Green
-
Stud Hole Spacing: 1.75 in.
-
Model / MPN: L1N
-
Number of Items: 50.0
-
Item [Specifications]: Two-Hole Lug Compression Connector
-
Width [Specifications]: 3/4"
-
Length [Specifications]: 4.29"
-
Material [Specifications]: Tin-Plated High Conductivity Copper
-
Color Code [Specifications]: Green
-
Connector Type [Specifications]: Long Barrel
-
Country of Origin (subject to change) [Specifications]: India
-
Voltage Rating: 35kV
-
Finish: Tin Plated
-
UNSPSC: 39121405
-
Ul Standard: UL 486A-486B, UL467
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Tang Thickness: 0.1
-
Tang Length: 2.99
-
Hole Spacing: 1.75
-
Wire Range: 1 AWG
-
Assortment: Copper Compression Terminations
-
Expanded Wire Range: 1 AWG – 6 AWG
-
Die Color Code: Green
-
Mounting Bolt Size: 1/2
-
Mounting Hole Diameter: 0.51
-
Barrel Length: 1
-
Approval: UL (Canada and US), UL 486
-
Pad Hole Spacing: 1.75 Inch
-
Conductor Material: Copper
-
Number of Pad Holes: 2
-
Pad Size: 2.99 Inch Length x 0.75 Inch Width x 0.1 Inch Thickness
-
Die Index: CD5 (NSI), KC12-1 (NSI/Greenlee), ILD-4/ILD-37 (ILSCO), U1CRT-1 (Burndy), 15513-CK (T and B), HT41AX (Huskie)
-
Overall Length: 4.29 Inch
-
Rated Voltage: 600 V
-
Use With: Copper Conductors
