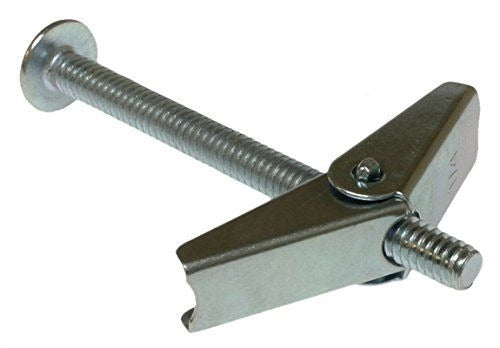

Nsi Industries j1505 Toggle Bolt 3/16 X 2 in 50 Pack

Product Description

The NSI INDUSTRIES j1505 is a zinc-plated, round combo-head spring wing toggle bolt designed for fastening to hollow walls, ceilings, and other thin-material surfaces where a standard screw anchor will not hold. The 3/16-inch diameter by 2-inch length bolt ships in a 50-count pack, making it a practical choice for contractors and electricians who need a reliable quantity on hand for a single job or general stock. The spring-loaded wing mechanism expands behind the substrate once inserted, distributing load across the back face of the material. The combo head accepts both a flathead and Phillips driver, reducing the need to switch bits mid-task.

This toggle bolt is suited for residential and light commercial installation work, including mounting electrical boxes, conduit straps, lighting fixtures, and similar hardware to drywall, plaster, and hollow block surfaces. The 50-count pack format supports moderate-volume installations such as a full room rough-in or a panel feed run where multiple anchor points are required. Licensed electricians and general contractors are the primary installers, though experienced maintenance technicians and knowledgeable DIYers also use this fastener type routinely.

Key Features

• 3/16-inch diameter by 2-inch length toggle bolt fits standard hollow-wall anchor applications
• Zinc plating provides corrosion resistance in typical interior environments
• Spring wing design expands automatically behind the substrate for positive engagement
• Round combo head accepts both flathead and Phillips drive bits
• 50-count pack suits single-job quantity needs and general shop stock

Compatibility

Designed as a standard 3/16-inch spring wing toggle bolt for use in hollow drywall, plaster, and similar thin-wall substrates where through-hole anchor access is available from the front face only.

Installation Notes

Toggle bolts are installed by threading the wing assembly onto the bolt, folding the wings flat, inserting the assembly through a pre-drilled hole, and then tightening until the wings seat firmly against the back of the substrate. De-energize any circuits in the work area before drilling into walls or ceilings, in accordance with NFPA 70 (NEC) lockout requirements. Use a drill bit matched to the bolt diameter to avoid an oversized hole that could allow the toggle to spin. Once the wing is pulled into the wall cavity, the fastener is not retrievable without damage to the substrate.

Technical Specifications

• Bolt Diameter: 3/16 inches
• Bolt Length: 2 inches
• Head Style: Round Combo (Flathead and Phillips)
• Wing Type: Spring Wing Toggle
• Finish: Zinc Plated
• Quantity: 50 per pack

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: j1505
