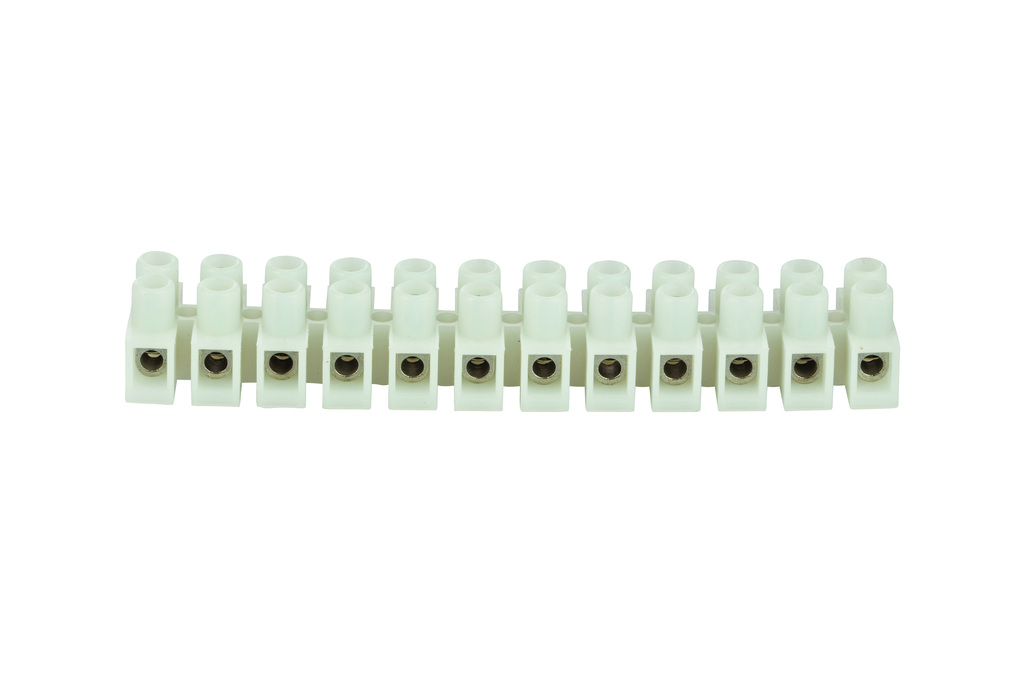

NSI Industries ITB20-12 Insulated Terminal Block 20A (12 Circuit) Replacement MPN

Product Description

The NSI Industries ITB20-12 is an insulated terminal block designed for efficient wire termination. It accommodates wire sizes from 22 to 12 AWG and supports a maximum of 20 amps. The terminal block ensures touchproof safety with recessed screws and tubular contacts. It is modular, allowing users to cut it into smaller sections or stack multiple blocks end-to-end for versatile applications.

• Supports wire range 22-12 AWG
• Rated for 20 amps and 300 volts
• Touchproof safety features included

Product Highlights

This insulated terminal block is built with a nylon 66 housing and features a brass metal alloy with nickel-plated terminal inserts, ensuring durability and reliability.

Product Information

Standard Information

• Brand: NSI Industries
• MPN: ITB20-12

Technical Specifications

• Type: Insulated
• Voltage: 300 Volt
• Amperage: 20 Amp
• Material: Nylon
• Height: 0.57 inches
• Width: 0.669 inches
• Length: 3.787 inches
• Number of Positions: 12
• Country of Origin: China
