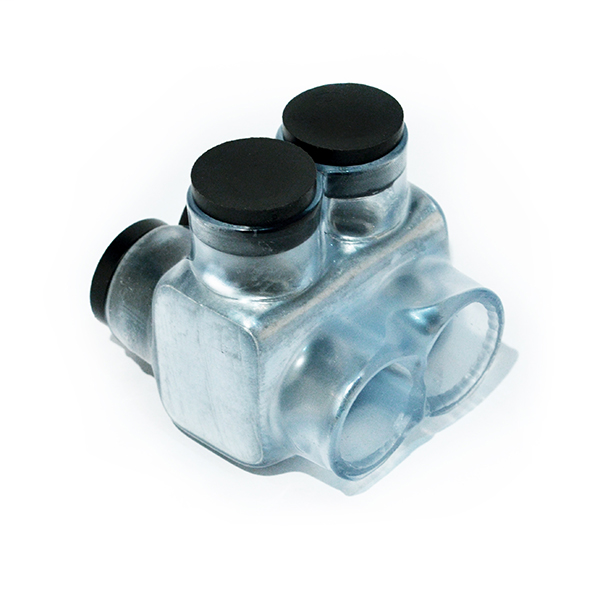

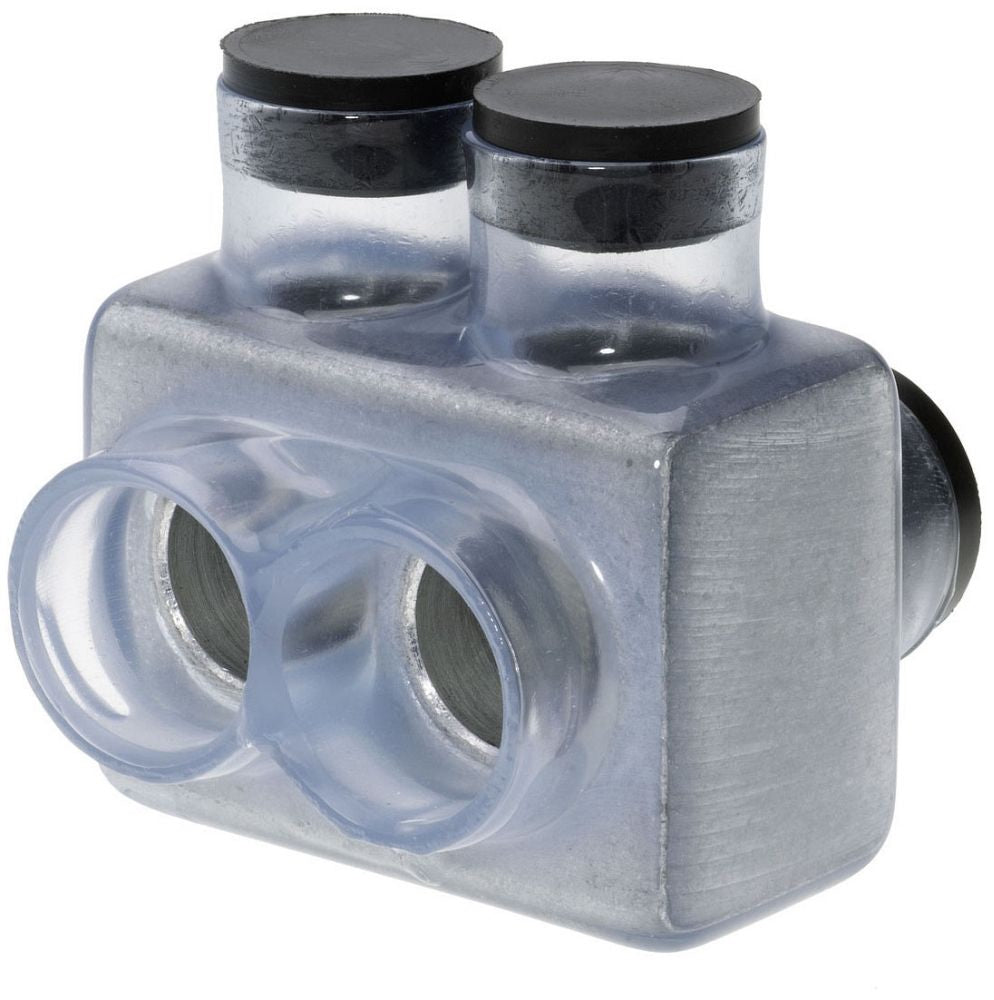

NSI Industries IT-600C Polaris Vision Tap 2 Port 600

Product Description

NSI Industries IT-600C is a Polaris Vision Tap insulated connector designed for wire termination applications. This connector supports dual-sided entry and accommodates wire sizes ranging from six AWG to six hundred kcmil. It is rated for six hundred volts and suitable for copper and aluminum conductors.

• Dual-rated for copper and aluminum
• Temperature rating up to ninety degrees Celsius
• Clear Plastisol enclosure for easy visibility

Product Highlights

Ideal for electrical installations requiring reliable multi-tap connections, the IT-600C features a durable design suitable for dry locations.

Product Information

Standard Information

• Brand: NSI Industries
• Manufacturer PN: IT-600C

Technical Specifications

• Application: Wire Termination
• Conductor Size: 6 AWG to 600 kcmil
• Conductor Type: Copper/Aluminum
• Voltage Rating: 600 V
• Temperature Rating: 90 degrees C
• Material: Plastisol
• Dimensions: 2.34 inches L x 2.94 inches W x 3.05 inches H
• Number of Conductors: 2
• Number of Poles: 1
• Type: Double Sided Entry Dual Rated
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus Listed, UL 486B
