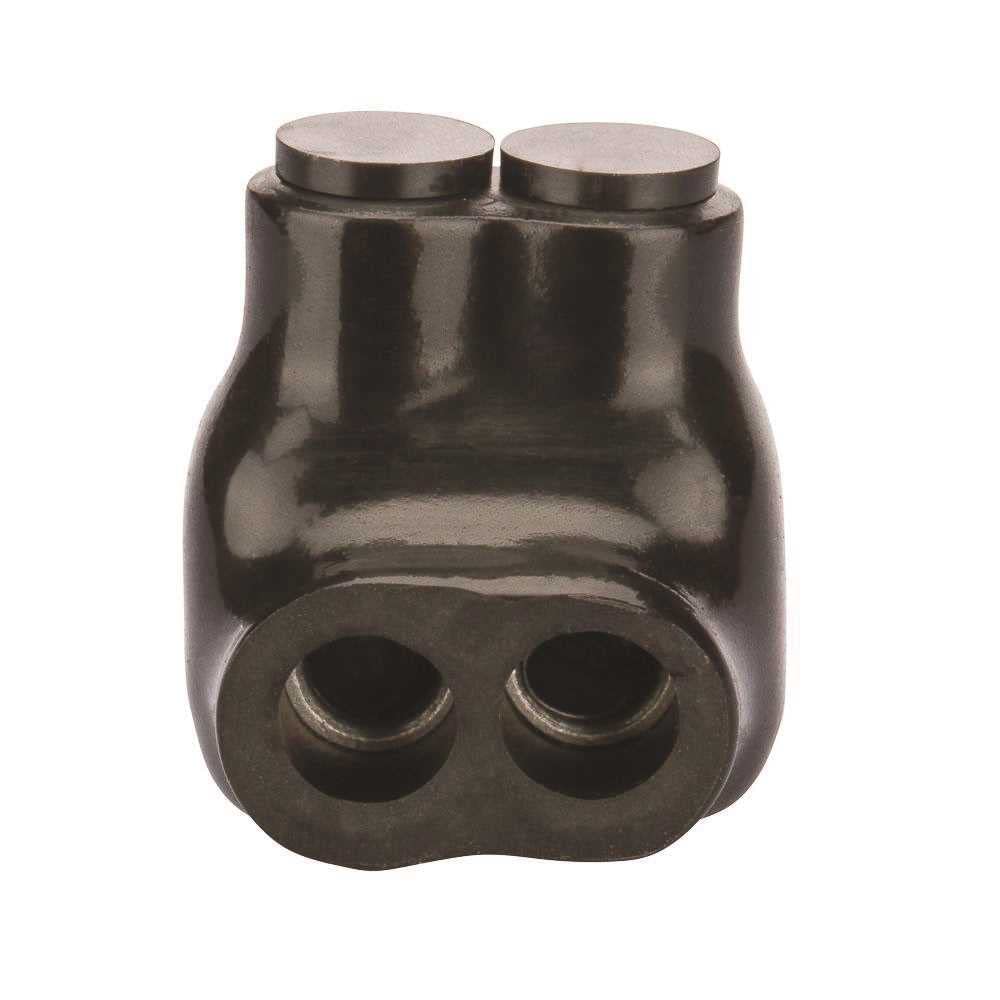

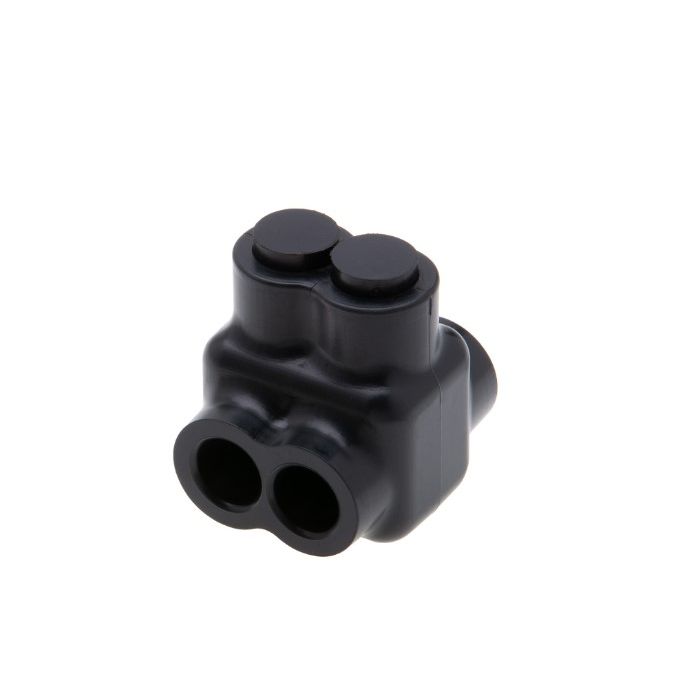

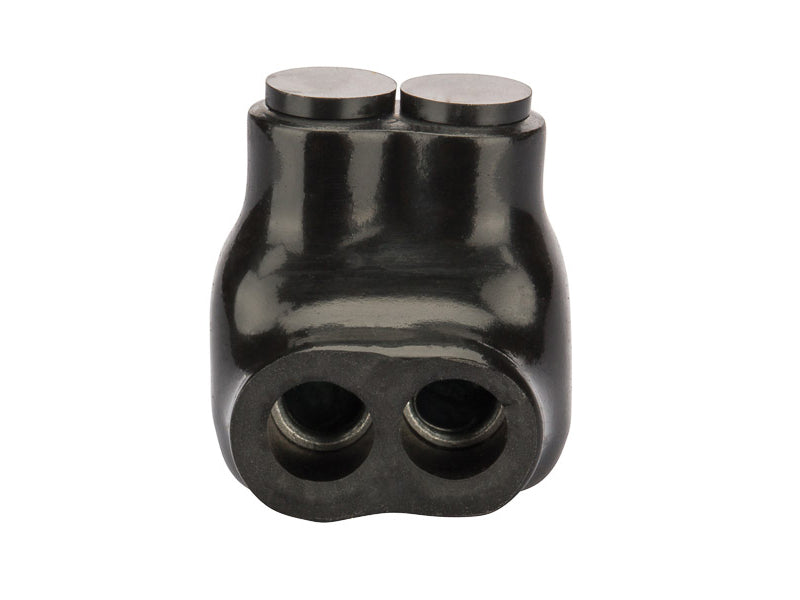

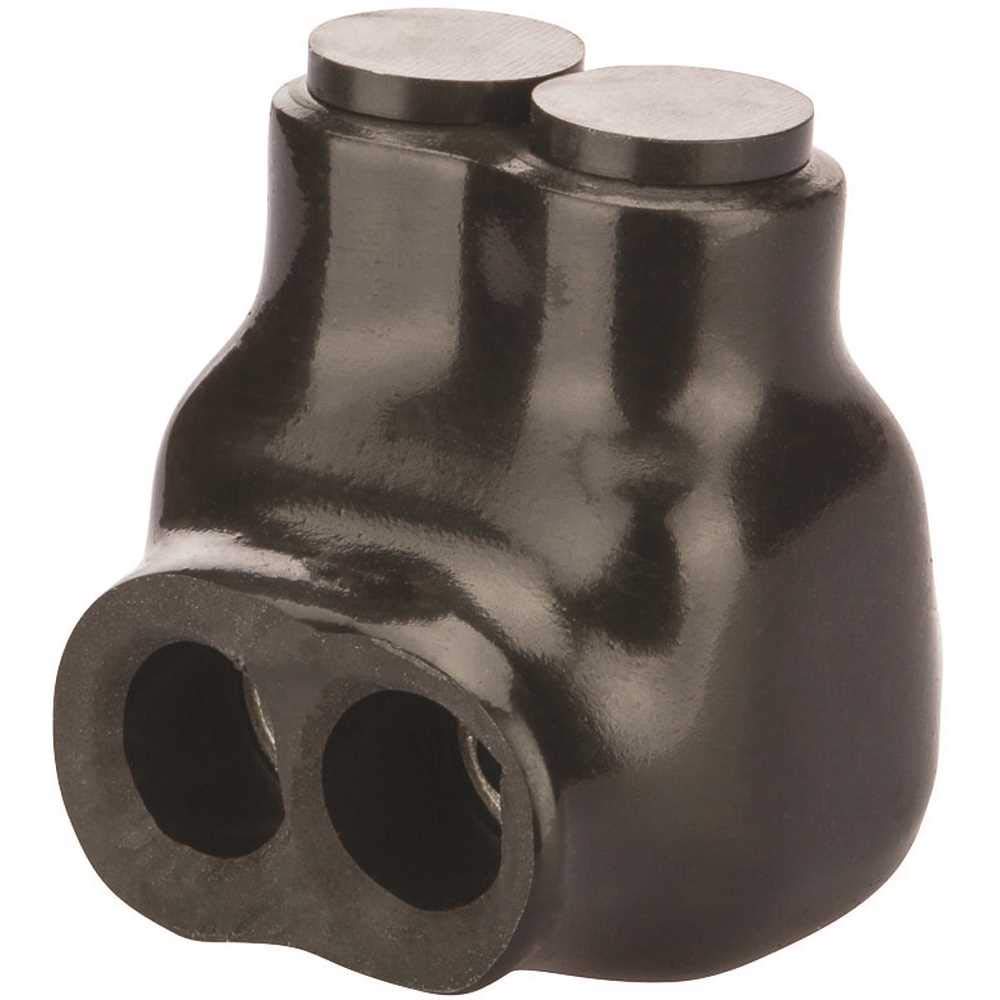

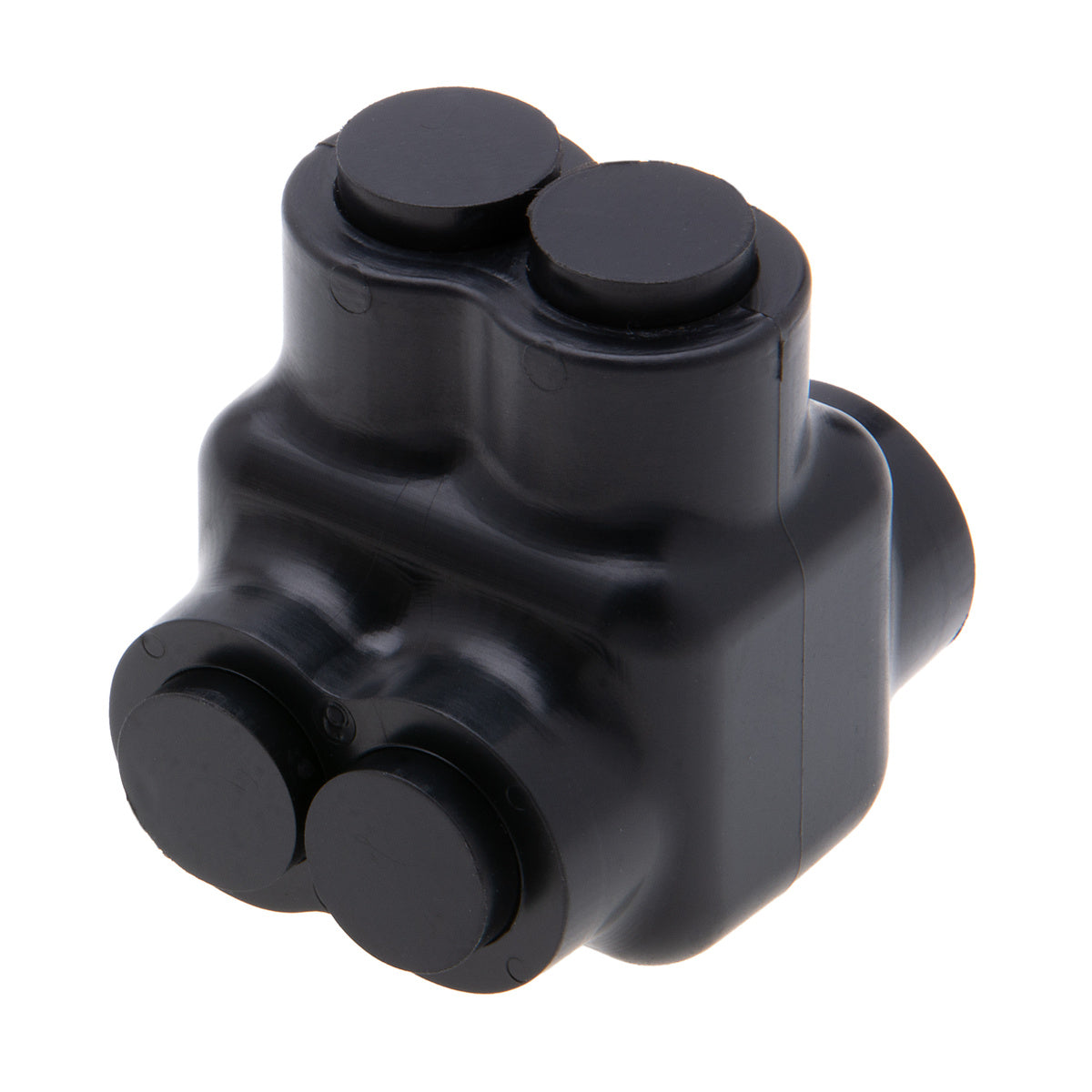

Nsi Industries IT-4 2 port polaris 4-14 awg insul-tap connector

Product Description

The NSI INDUSTRIES IT-4 is a 2-port Polaris insulated tap connector designed for 4-14 AWG wires. This multi-tap connector features a durable plastisol insulation and is pre-filled with an oxide inhibitor. It is suitable for connecting two wires with open wire entry ports on both sides.

• Suitable for indoor and outdoor use.
• Dual rated for use with copper and/or aluminum cables.
• Abrasion and chemical resistant, UV rated.

Product Highlights

The NSI IT-4 provides a secure and reliable connection for a range of wire termination applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IT-4
• Country of Origin: US - United States

Technical Specifications

• Conductor Size: 4-14 AWG
• Termination/Splice: TERMINATION
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600 V
• Brand Name: NSi
• Type: Multi Cable
• Number Of Conductors: 2
• Temperature Rating: 90 deg C
• Finish: Plastisol Insulated
• Material: Aluminum
• Standard: UL 486A/B
• Wire Type: Class B & C
• Application: Wire Termination
• Voltage Rating: 600 VAC
• Number of Poles: 1 Pole
• Series: IT Series
• Conductor: Aluminum/Copper Conductor
• Drive Type: Slotted Hex
• Length: 1.12 in
• Width: 1.18 in
• Height: 1.38 in
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|AL9CU Approved|cULus Listed|UL 486B
• Conductor Type: Copper, Aluminum
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 4 AWG – 14 AWG
• Conductor Al Size Range: 4 AWG – 12 AWG
• Use With: Aluminum Conductors, Copper Conductors, Plastisol Wires
