Product Description

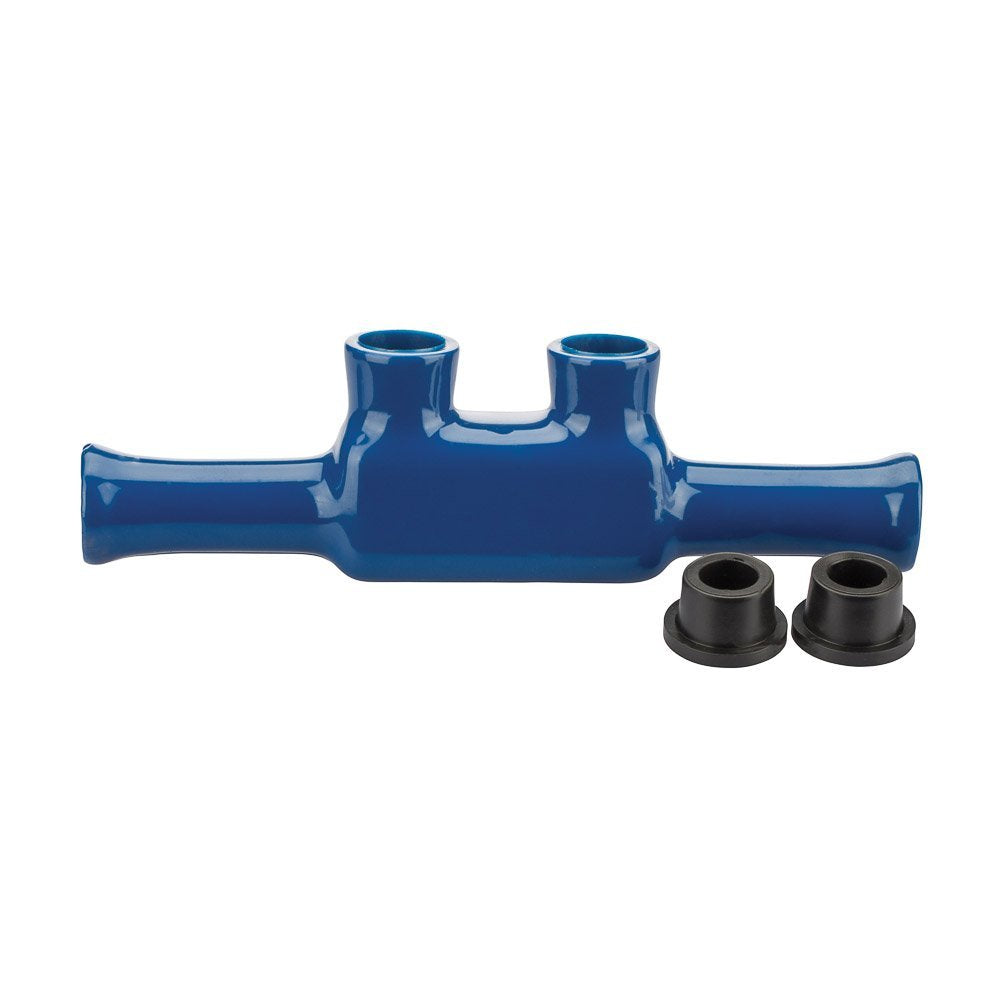

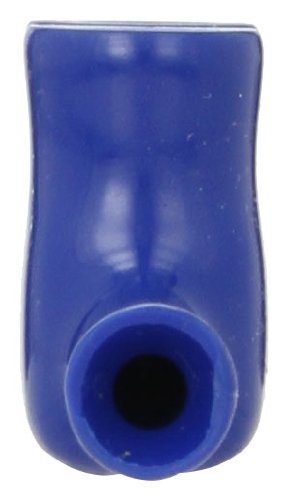

The NSI INDUSTRIES ISW-4 Polaris insulated in-line splicer/reducer connects wires from American Wire Gauge (AWG) #4 to #6, suitable for direct burial and submersible applications with conductors properly insulated for wet or damp locations. It features plastisol insulation for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation and is dual rated for use with both copper and aluminum cables.
- Insulated in-line splicer/reducer for use with wires from #4 to #6 AWG in direct burial and submersible applications
- Insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation
- Dual rated for use with both copper and aluminum cables
Product Highlights
This in-line splicer/reducer is suitable for a wide range of direct burial and submersible electrical applications with appropriately sized conductors.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: ISW-4
-
Country of Origin: United States
Technical Specifications
-
Brand: NSI Industries
-
Manufacturer: NSi
-
Wire Range: 4-6 AWG
-
Width: 0.75"
-
Height: 1.38"
-
Length: 6.39"
-
Voltage: 600V
-
Temperature Range: -45 to +90 degrees C
-
Material: Plastisol insulation
-
Application: Direct burial and submersible
-
Series: ISW
-
Temperature Rating: -45 to 90 deg C
-
Voltage Rating: 600 VAC
-
Conductor Size: 4 to 6 AWG
-
CATALOG NO.: ISW-4
-
URD/USE MIN DIA: 0.244
-
URD/USE MAX DIA: 0.412
-
INSULATION: Slotted
-
STRIP LENGTH: 1-3/16
-
TIGHTENING TORQUE: 45
-
Number of Ports: 2
-
Connector Style: Underground
-
Country of Origin: United States
