Nsi Industries ISW-3/0 Polaris Blue Insulated Splice 3/0-1/0 Awg

Product Description

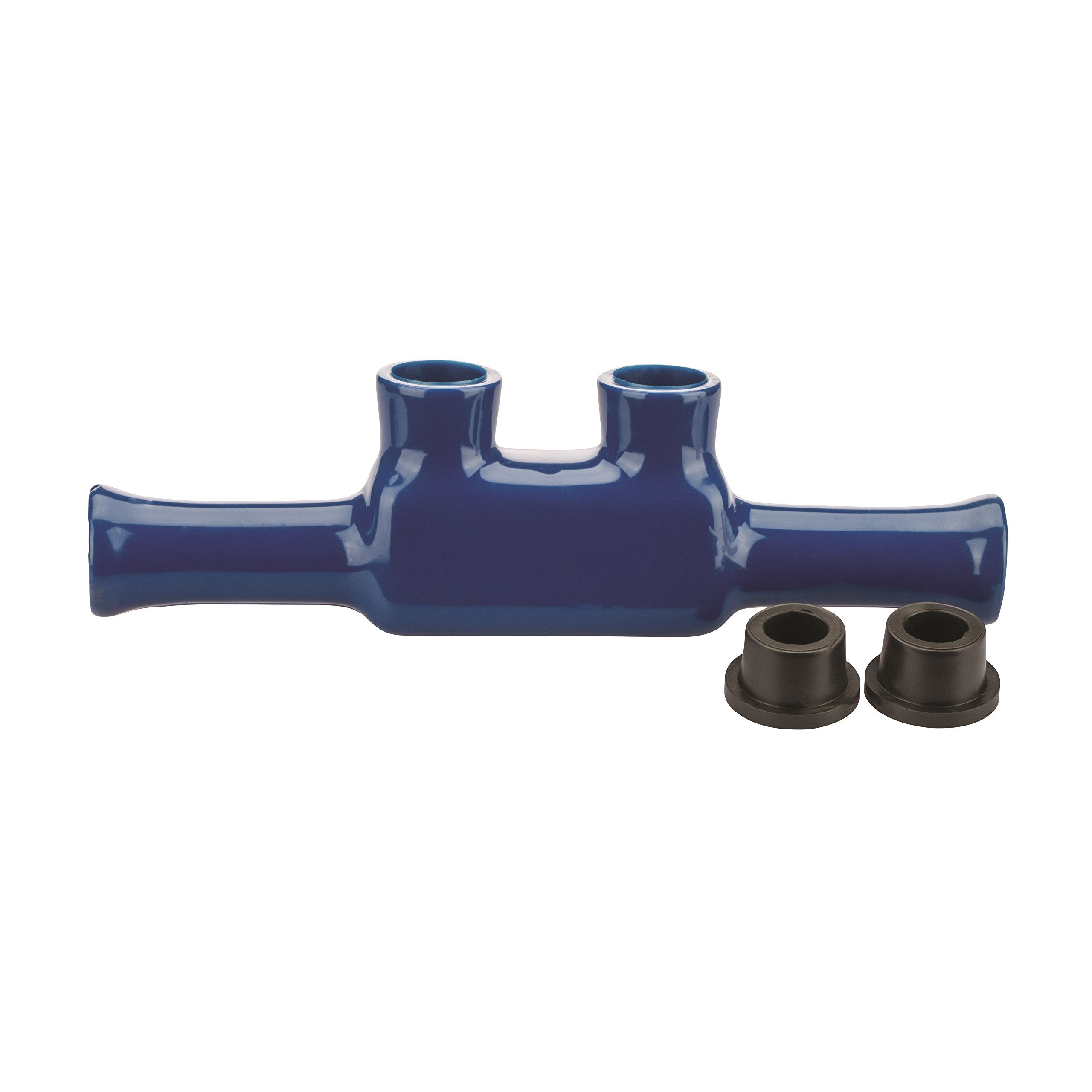

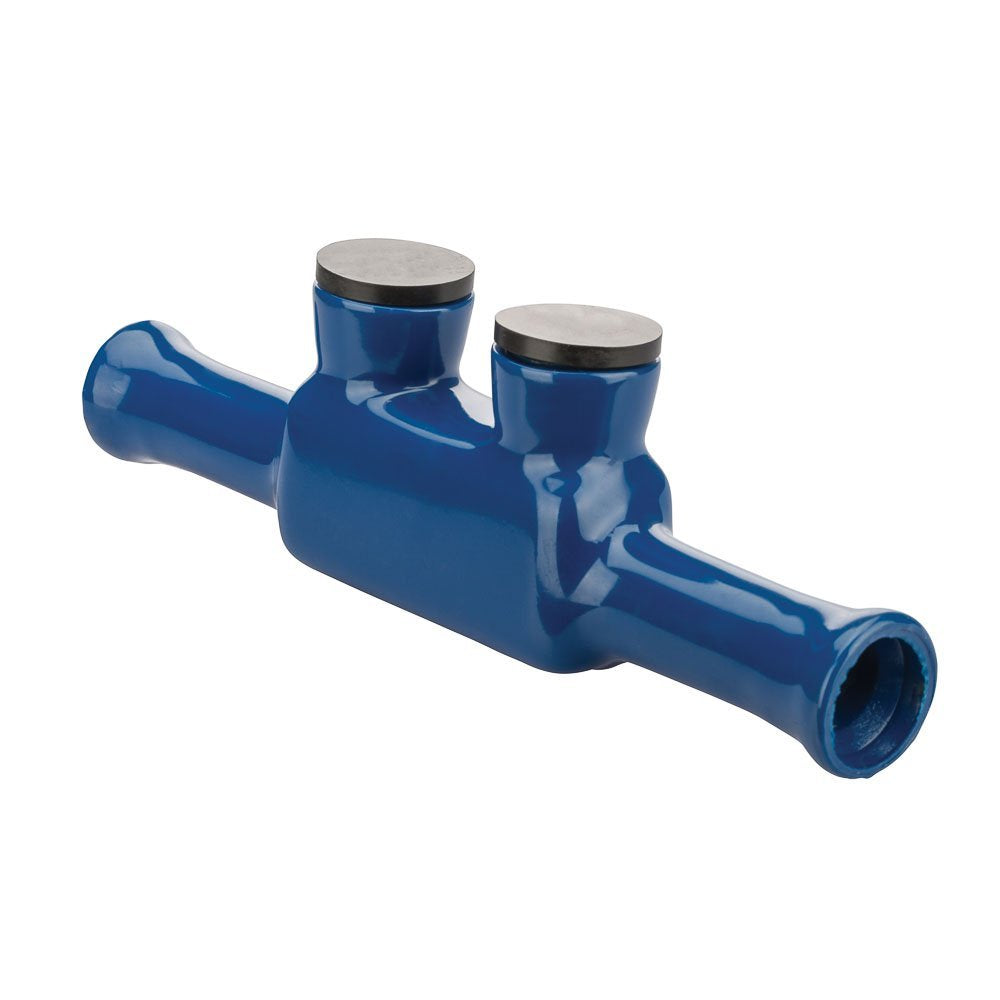

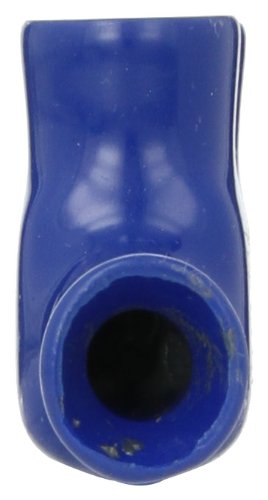

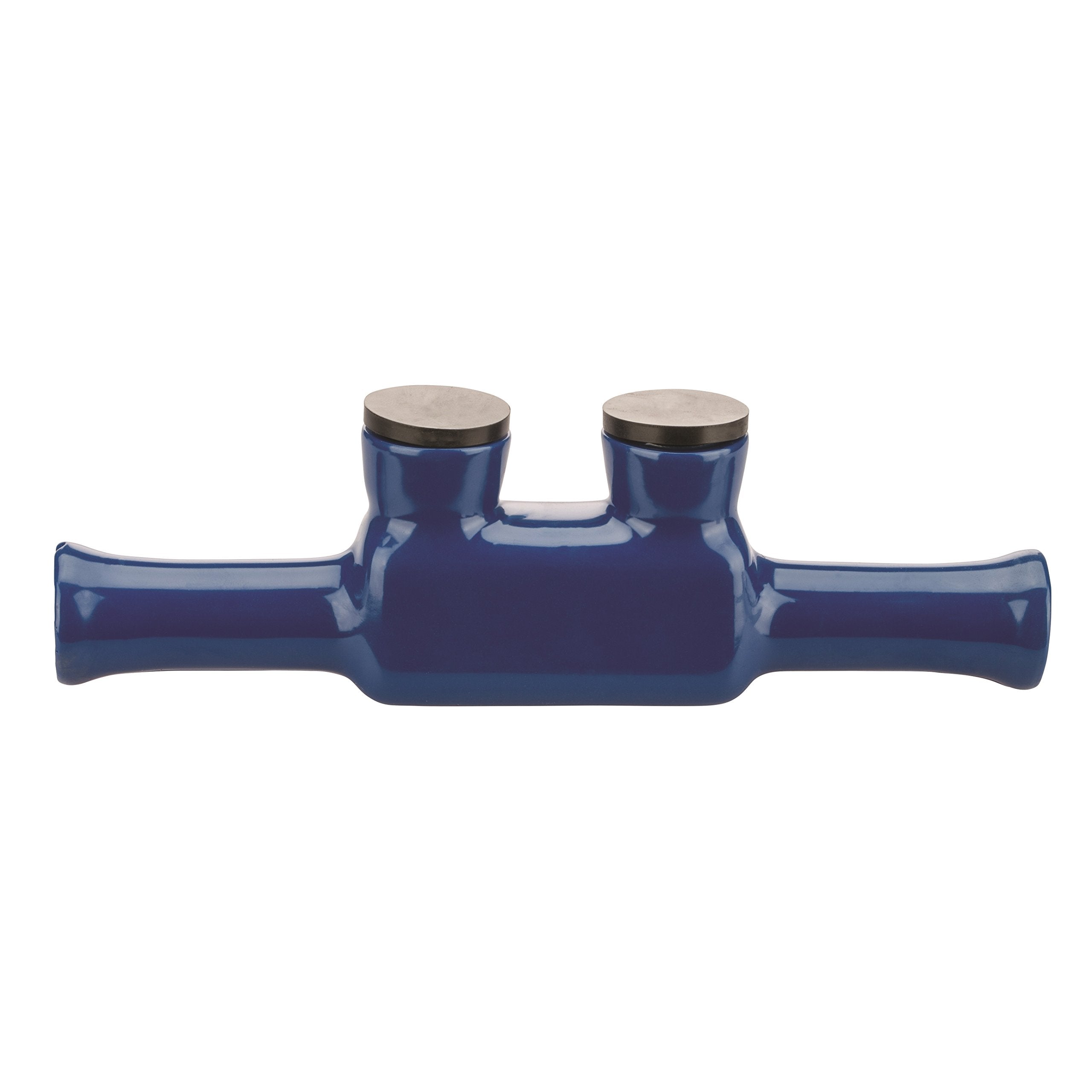

The NSI INDUSTRIES ISW-3/0 Polaris Blue Insulated Splice is suitable for connecting two wires in-line. It is UL Listed for direct burial and submersible applications (UL486D). Insulated with high-strength dielectric plastisol and molded for a precise fit, this splice requires no taping or heat shrinking. It is abrasion and chemical resistant and UV rated.

• Suitable for connecting two wires in-line
• Direct burial and submersible applications
• Abrasion and chemical resistant

Product Highlights

The NSI ISW series connectors are suitable for connecting two wires in-line and are UL Listed for direct burial and submersible applications. Requires no taping, compounds, heat shrink or cutting-to-size in the field.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ISW-3/0

Technical Specifications

• Conductor Size: 3/0
• Termination/Splice: TERMINATION
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Series: ISW
• Wire Range: 3/0-1/0 AWG
• Hex Size: 1/4"
• Width: 0.94"
• Height: 1.78"
• Length: 7.05"
• Temperature Rating: 90 degrees C
• Application: Direct burial and submersible
• Brand: NSI Industries
• CATALOG NO.: ISW-3/0
• STRIP LENGTH: 7/8"
• TIGHTENING TORQUE: 250 in-lbs
