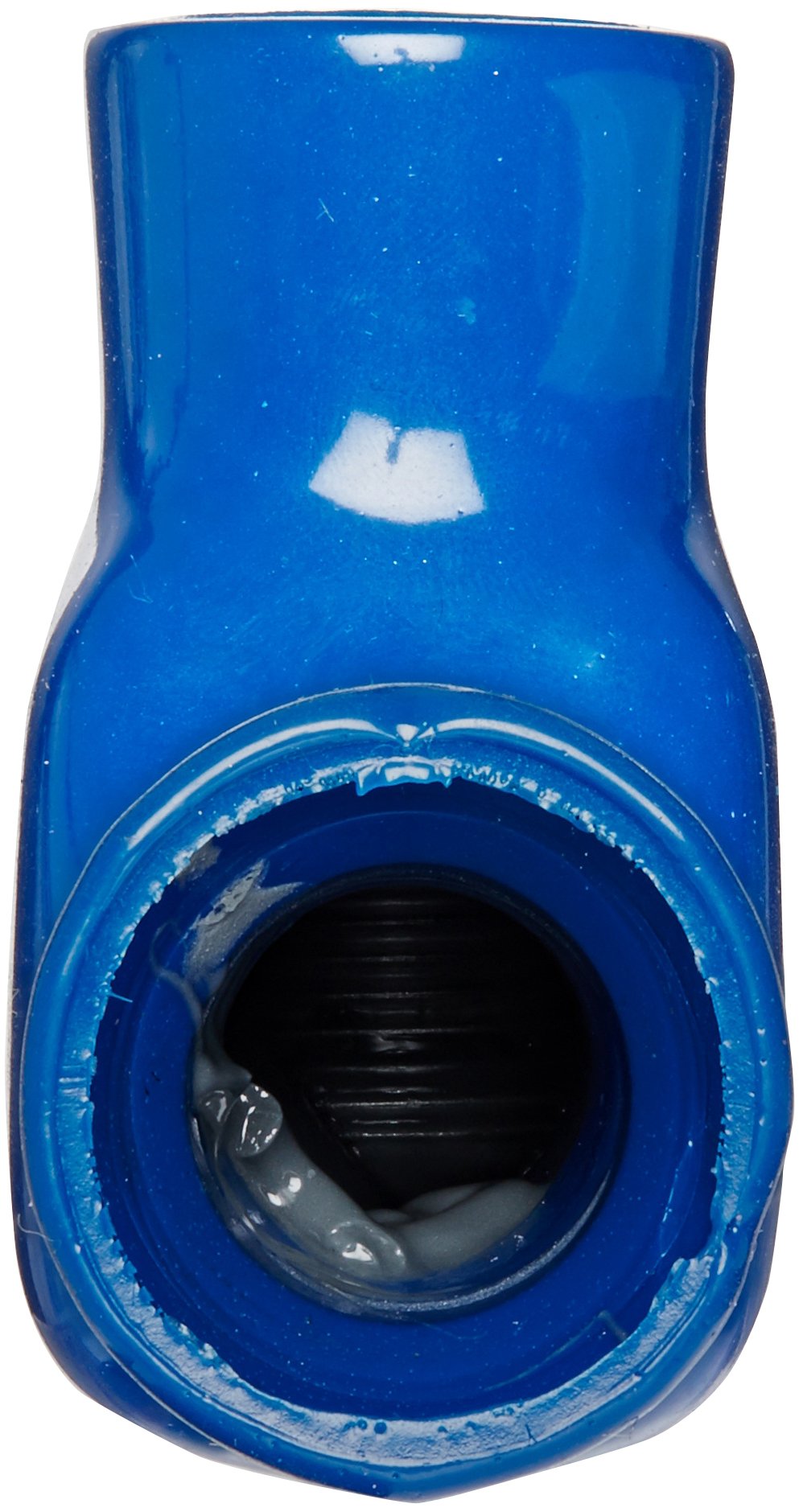

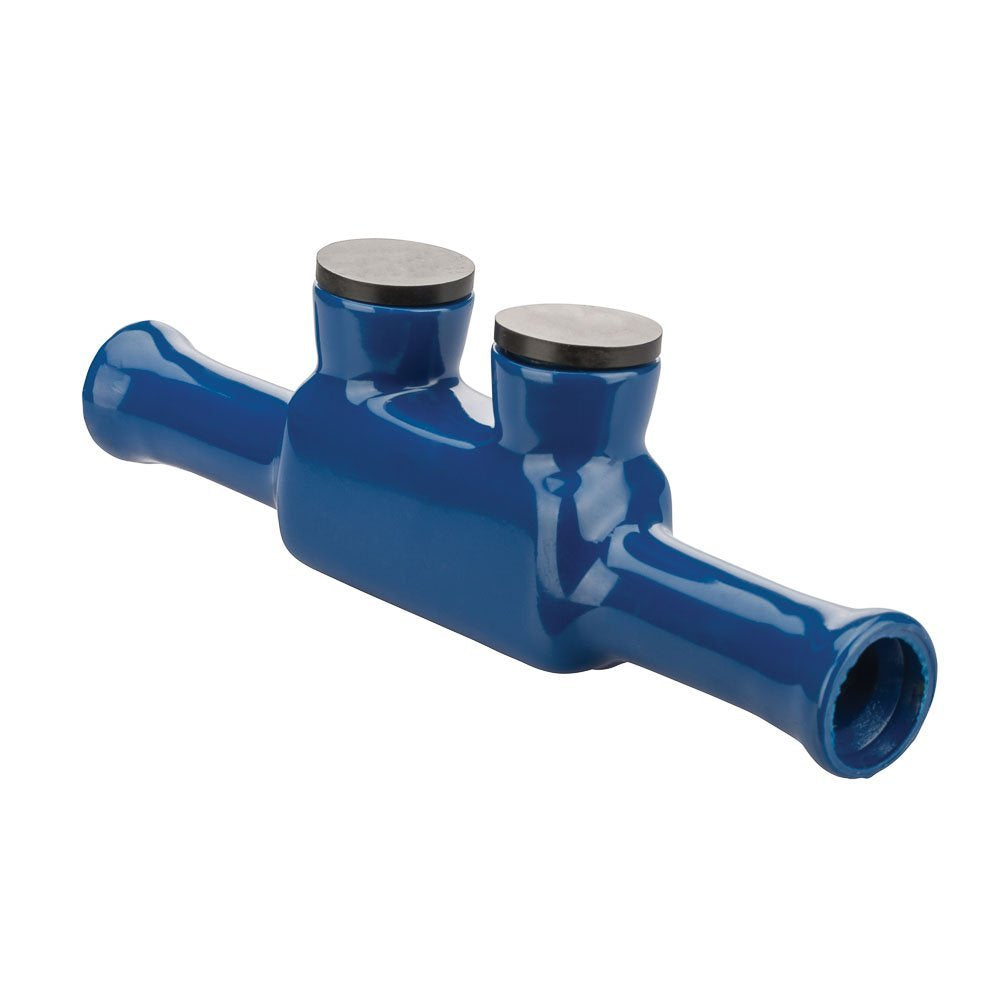

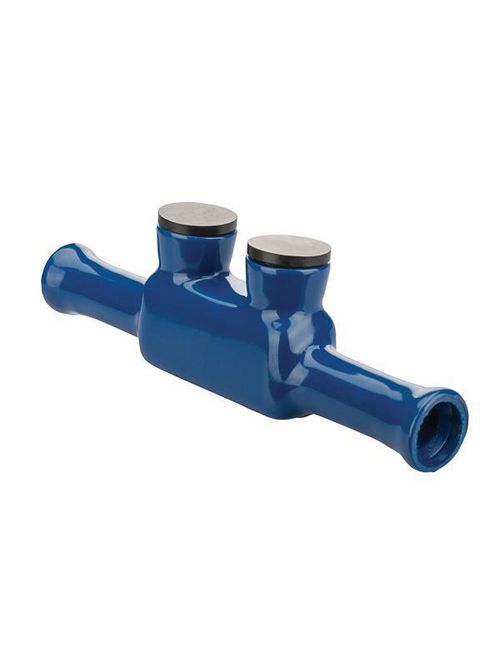

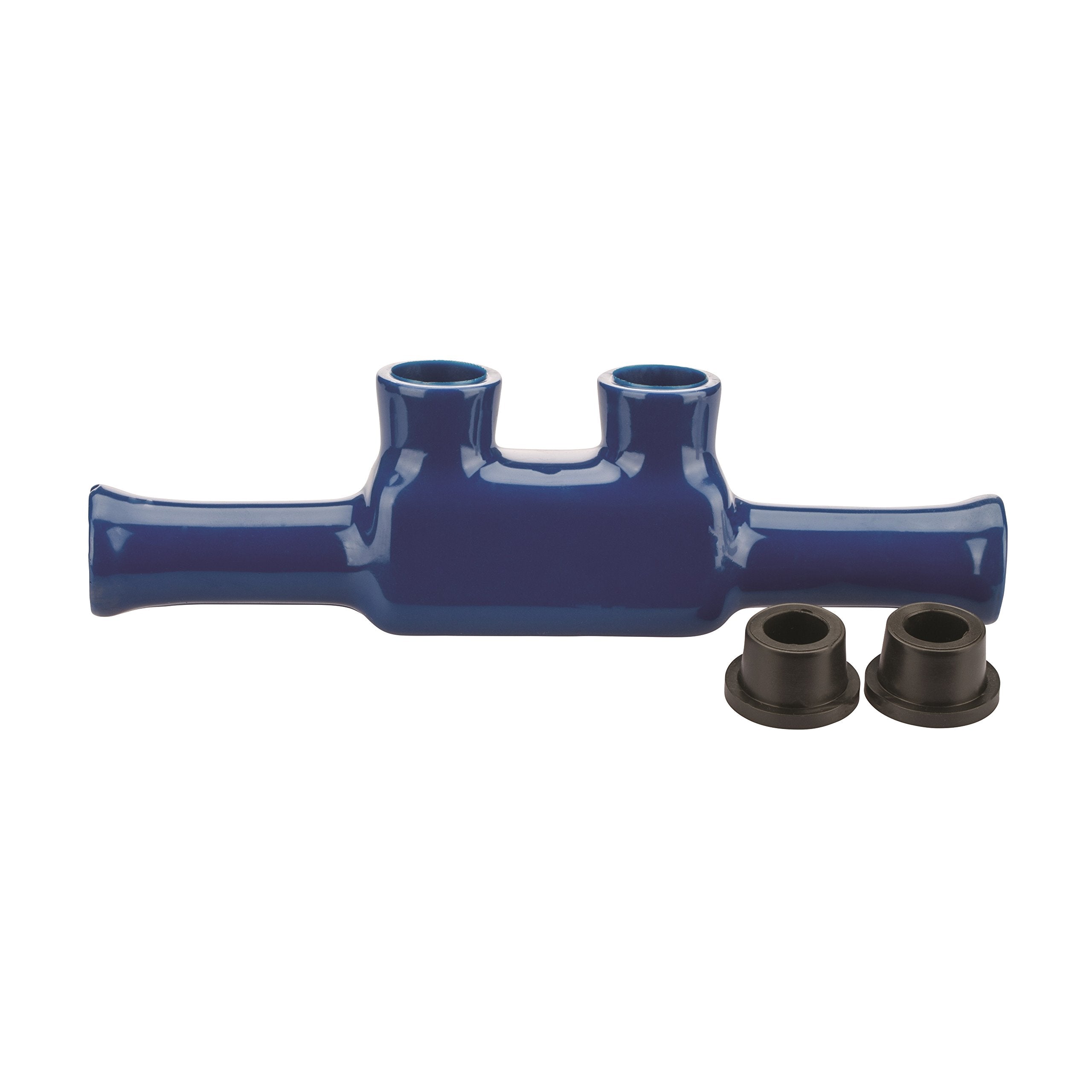

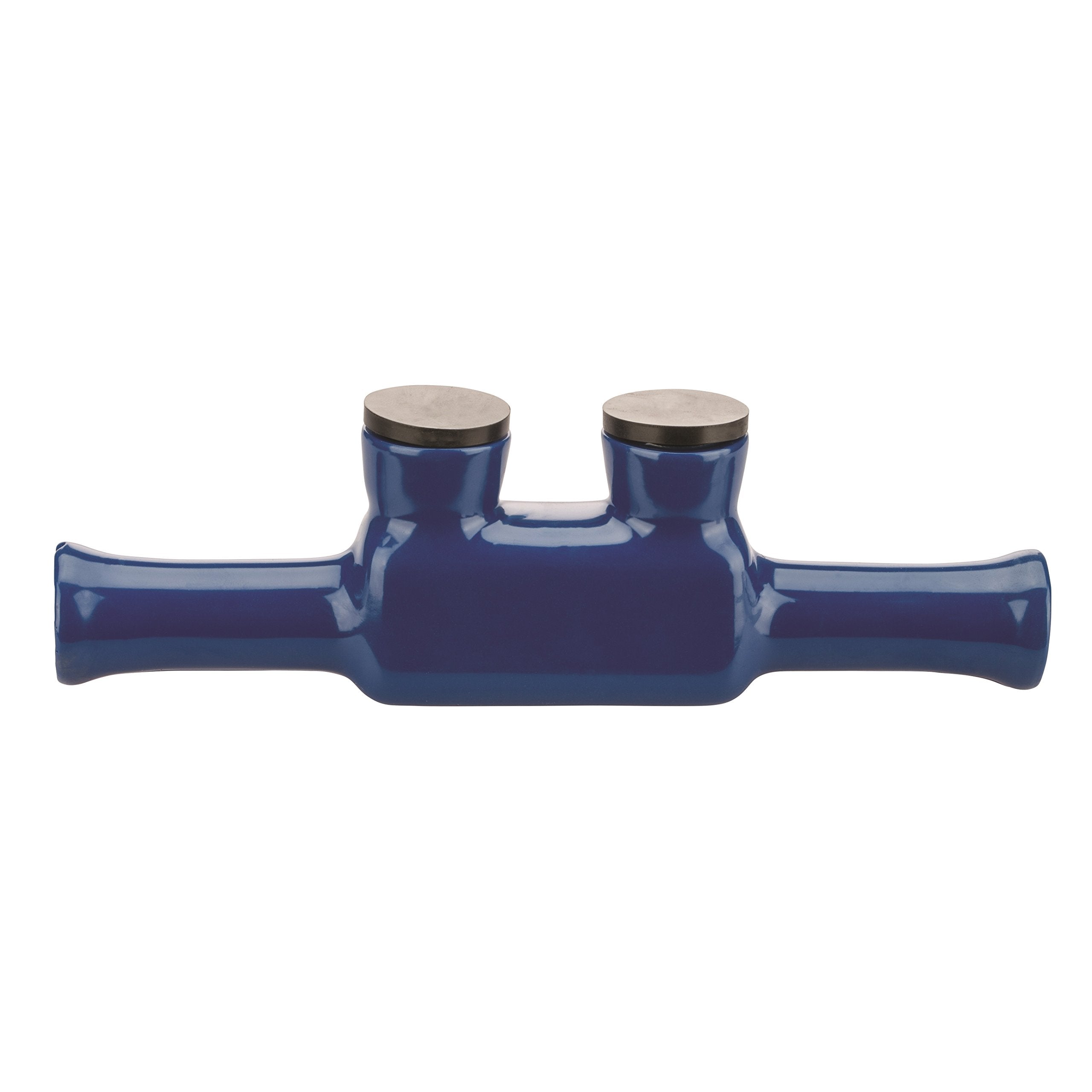

Nsi Industries Isw-250 Polaris Blue Insulated Splice, 250-4/0 Awg

Product Description

The NSI INDUSTRIES ISW-250 Polaris Blue Insulated Splice is designed for 250-4/0 AWG connections. Suitable for indoor and outdoor use, this in-line connector is abrasion and chemical resistant and UV rated. It will not support combustion and is cold temperature rated to -45 degrees Celsius. Rated to 600V and suitable for direct burial and submersible applications.

• Suitable for connecting two wires
• Abrasion and chemical resistant
• UV rated
• Suitable for use with aluminum and/or copper conductors

Product Highlights

The NSI ISW-250 Polaris connector is ideal for creating a secure, insulated in-line splice. It is suitable for direct burial and submersible applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ISW-250

Technical Specifications

• Voltage: 600V
• Brand: NSI Industries
• Manufacturer: NSi
• Cable Type: Copper and/or aluminum cables
• Temperature Rating: 90 degrees C
• Cold Temperature Rated: -45 degrees C
• Application: Direct burial and submersible
• Wire Range: 250-4/0 AWG
• Hex Size: 5/16"
• Width: 1.13"
• Height: 2.13"
• Length: 7.58"
• Conductor: CU/AL
• Insulation: Plastisol
