Product Description

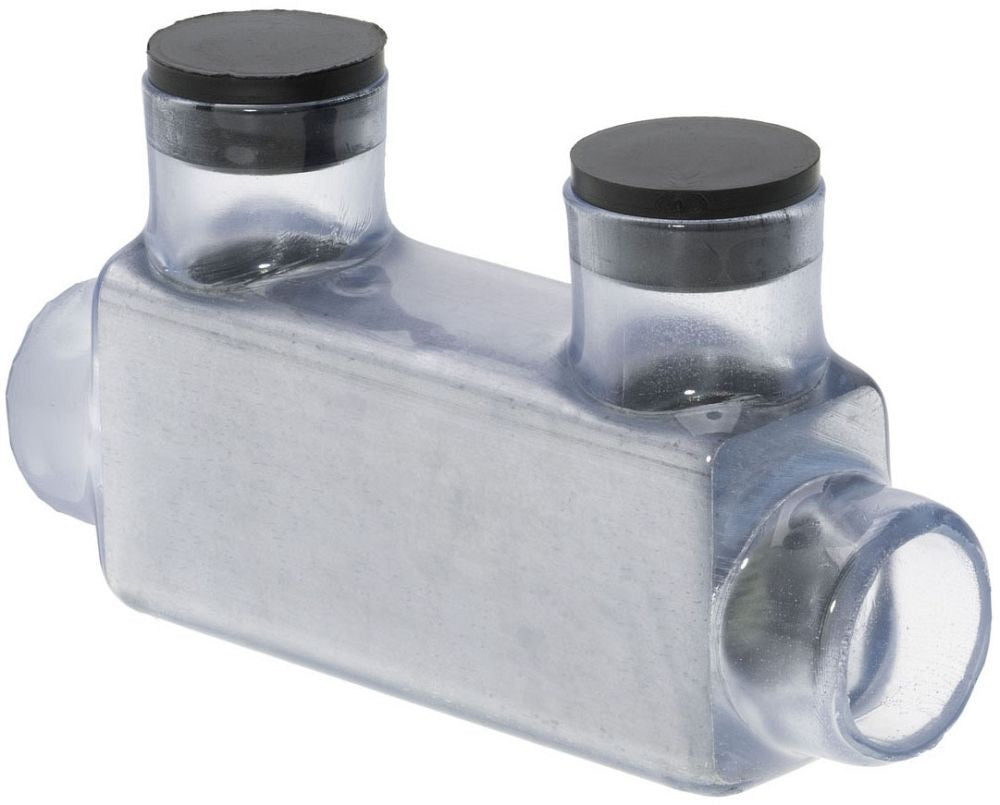

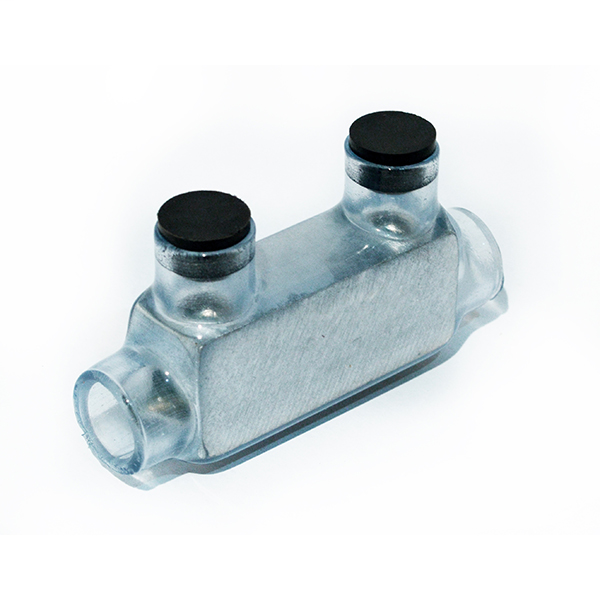

NSI Industries ISR-1/0C is a pre-insulated connector designed for dual-rated splicing and reducing of wires. This product accommodates conductor sizes ranging from fourteen to one aught American Wire Gauge, making it suitable for various electrical applications. The connector supports copper and aluminum wires and is rated for six hundred volts.
- Applications include wire termination in dry locations.
- Temperature rating of ninety degrees Celsius.
- Available in a clear plastisol enclosure.
Product Highlights
The NSI ISR-1/0C is built for robust performance in demanding conditions. It is designed for efficiency and safety in connecting wires.
Product Information
Standard Information
-
Brand: NSI Industries
-
Type: Dual Rated Splicer/Reducer
-
Voltage Rating: 600 V
Technical Specifications
-
Conductor Size: 14 to 1/0 AWG
-
Dimensions: 3.25 inches L x 0.9 inches W x 1.48 inches H
-
Material: Plastisol
-
Number of Poles: 1 Pole
-
Number of Conductors: 2
-
Temperature Rating: 90 degrees C
-
Application: Dry Location and Wire Termination Applications
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus Listed, UL 486B
