NSI INDUSTRIES ISPB2/0-2 2-Port Edge EPDM Rubber Connector

Product Description

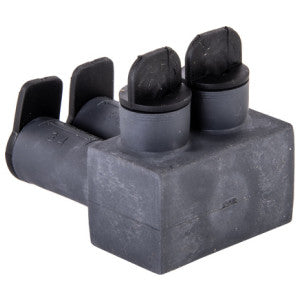

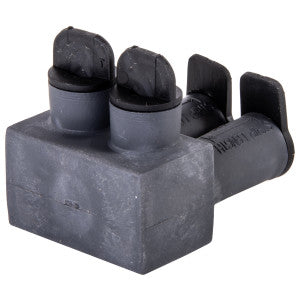

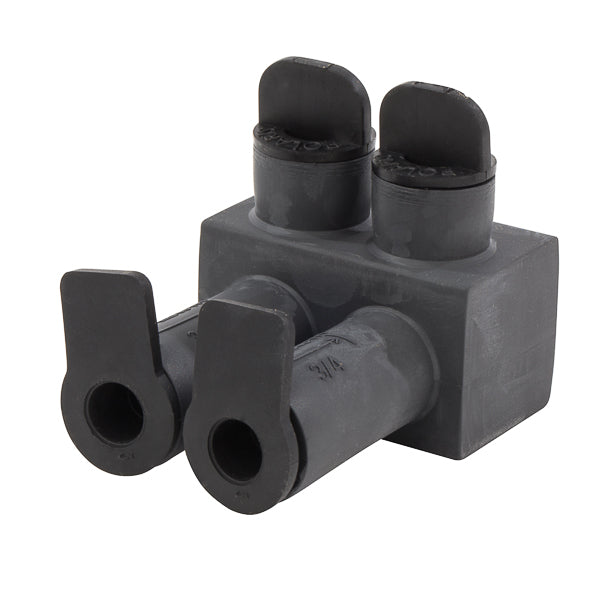

NSI INDUSTRIES ISPB2/0-2 is a submersible pedestal connector suitable for 2/0 to 14 AWG wires. This multi-tap connector features a robust design for durable and reliable connections in wet or damp conditions.

• Dual rated for both copper and aluminum conductors
• Rated for up to 600V voltage applications
• Designed for direct burial or temporary submersion

Product Highlights

NSI INDUSTRIES ISPB2/0-2 provides a secure connection in various environmental conditions. The design ensures easy installation using a hex key and torque wrench without the need for additional materials.

Product Information

Standard Information

• Manufacturer: NSI INDUSTRIES
• Part Number: ISPB2/0-2

Technical Specifications

• Conductor Size: 2/0-14 AWG
• Type: Submersible Pedestal Connector
• Voltage Rating: 600V
• Temperature Rating: 90 °C
• Material: EPDM Rubber Insulation
• Dimensions: 1.93 in L x 2.65 in W x 2.10 in H
• Installation: Hex key and torque wrench required
• Standards/Approvals: UL 486D, ANSI C119.1
