Product Description

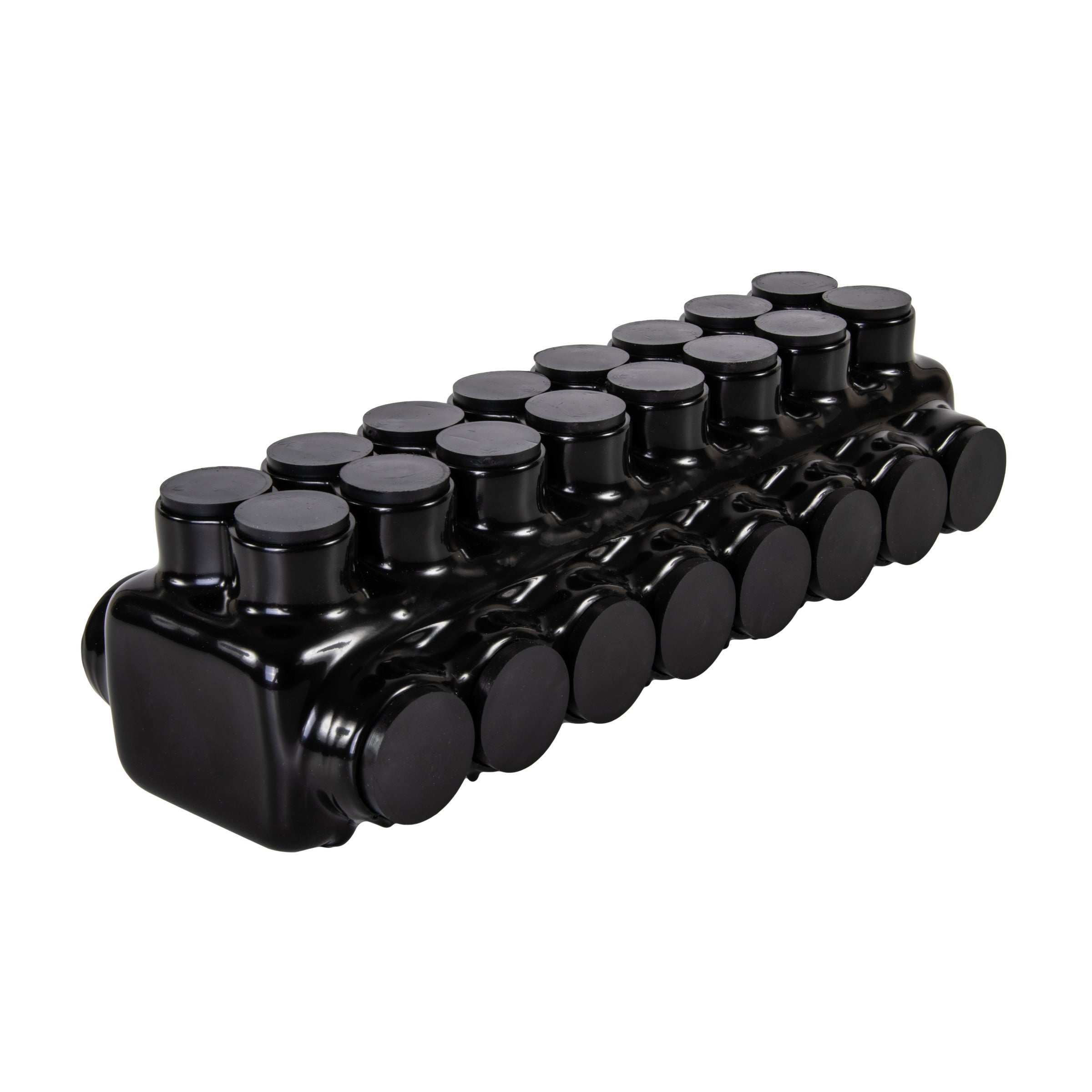

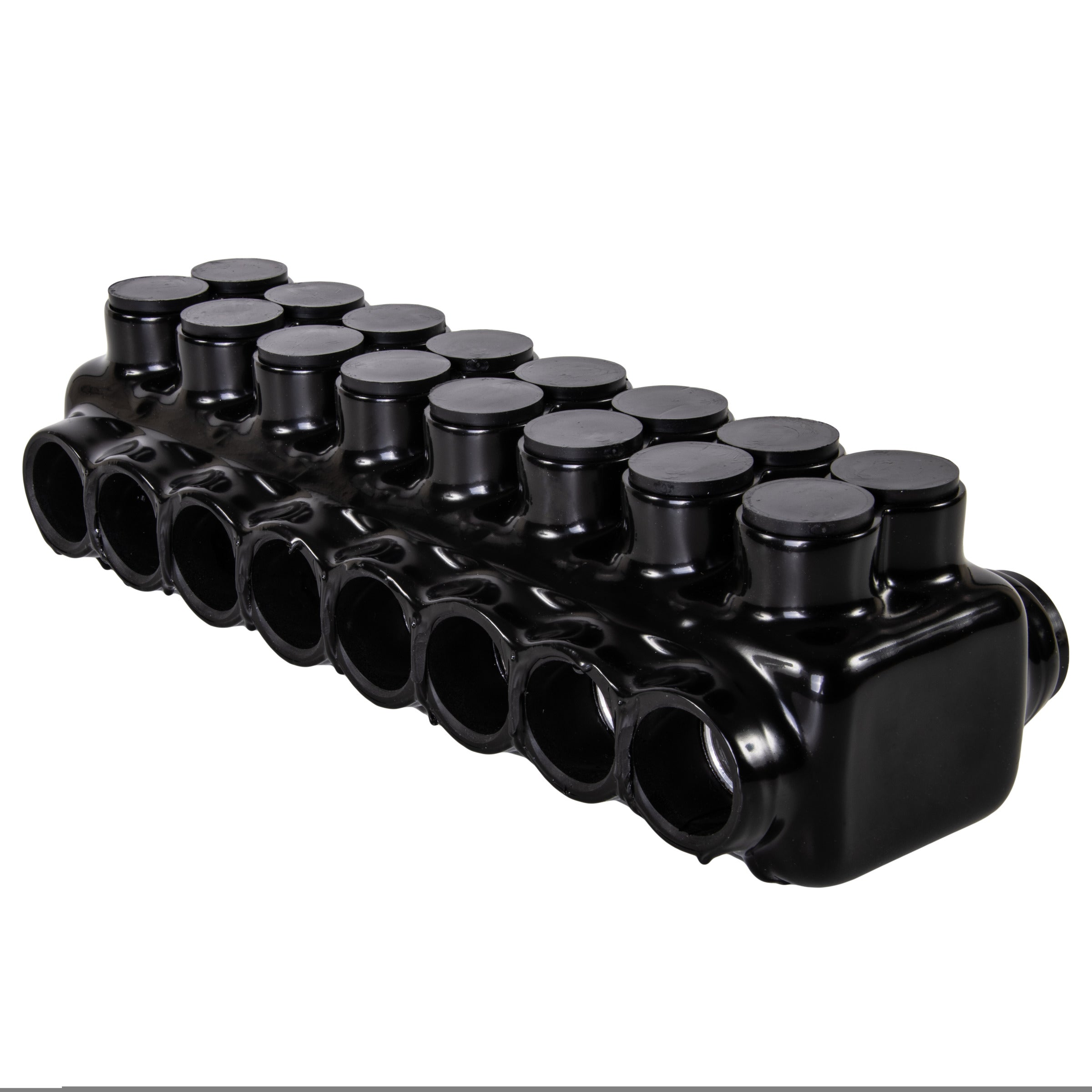

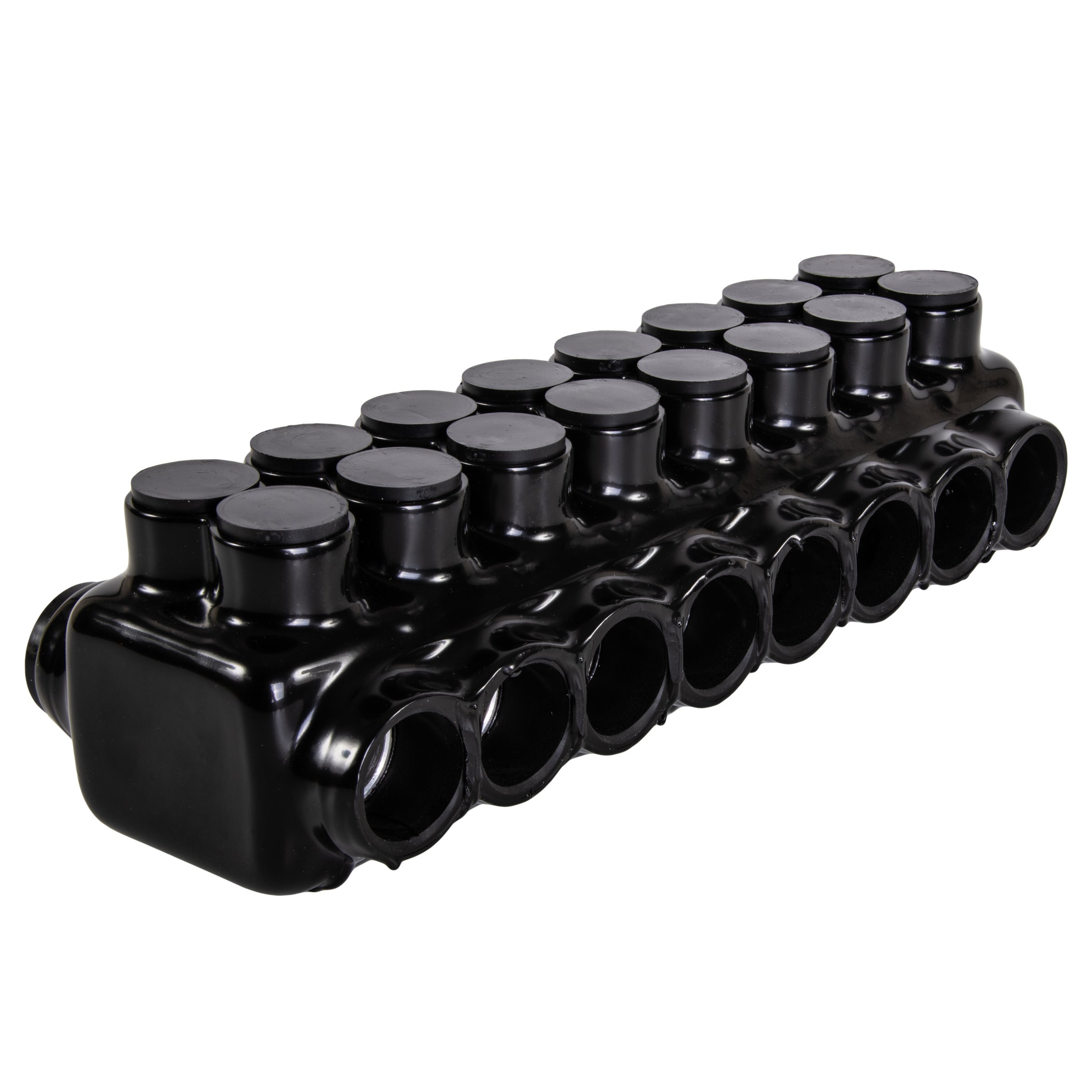

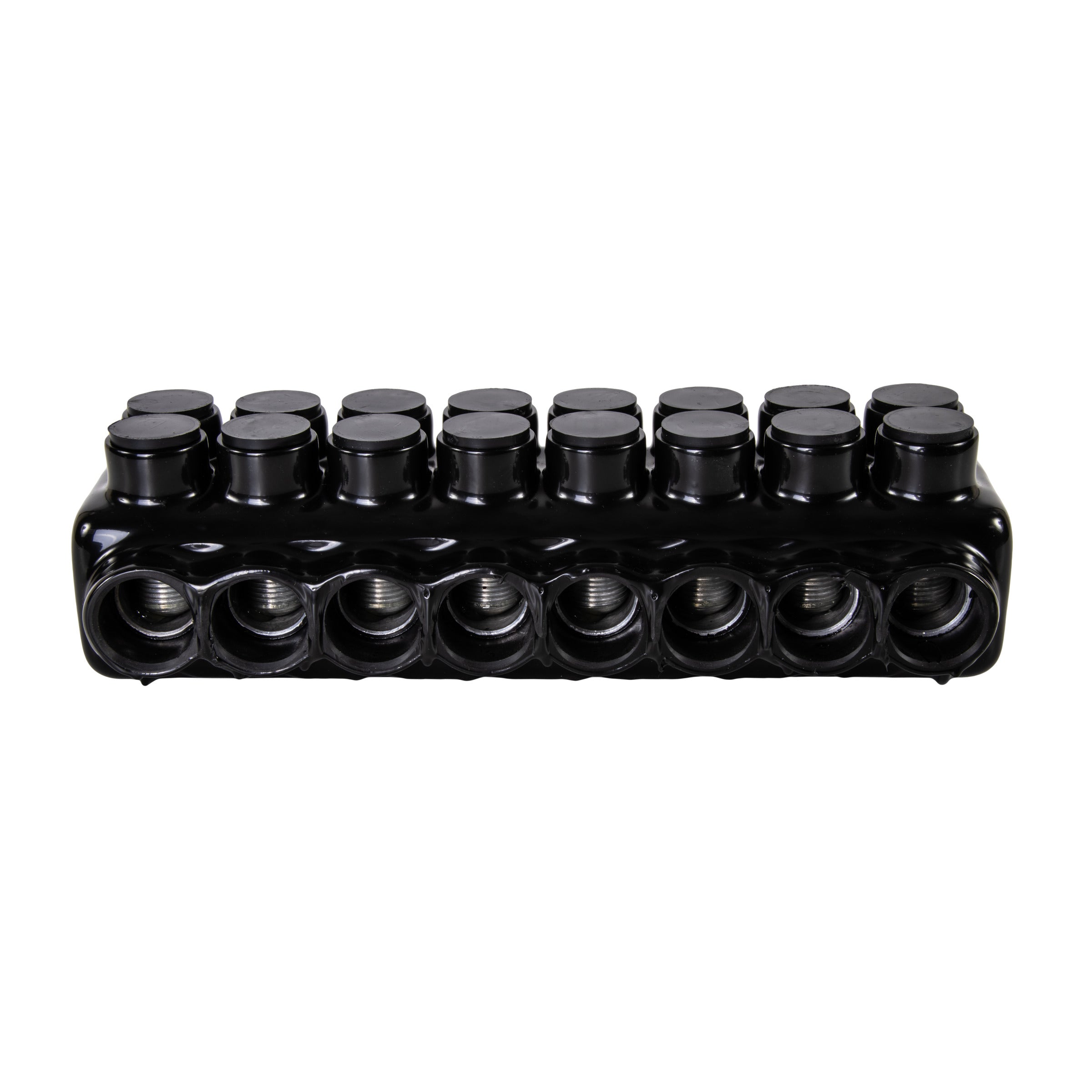

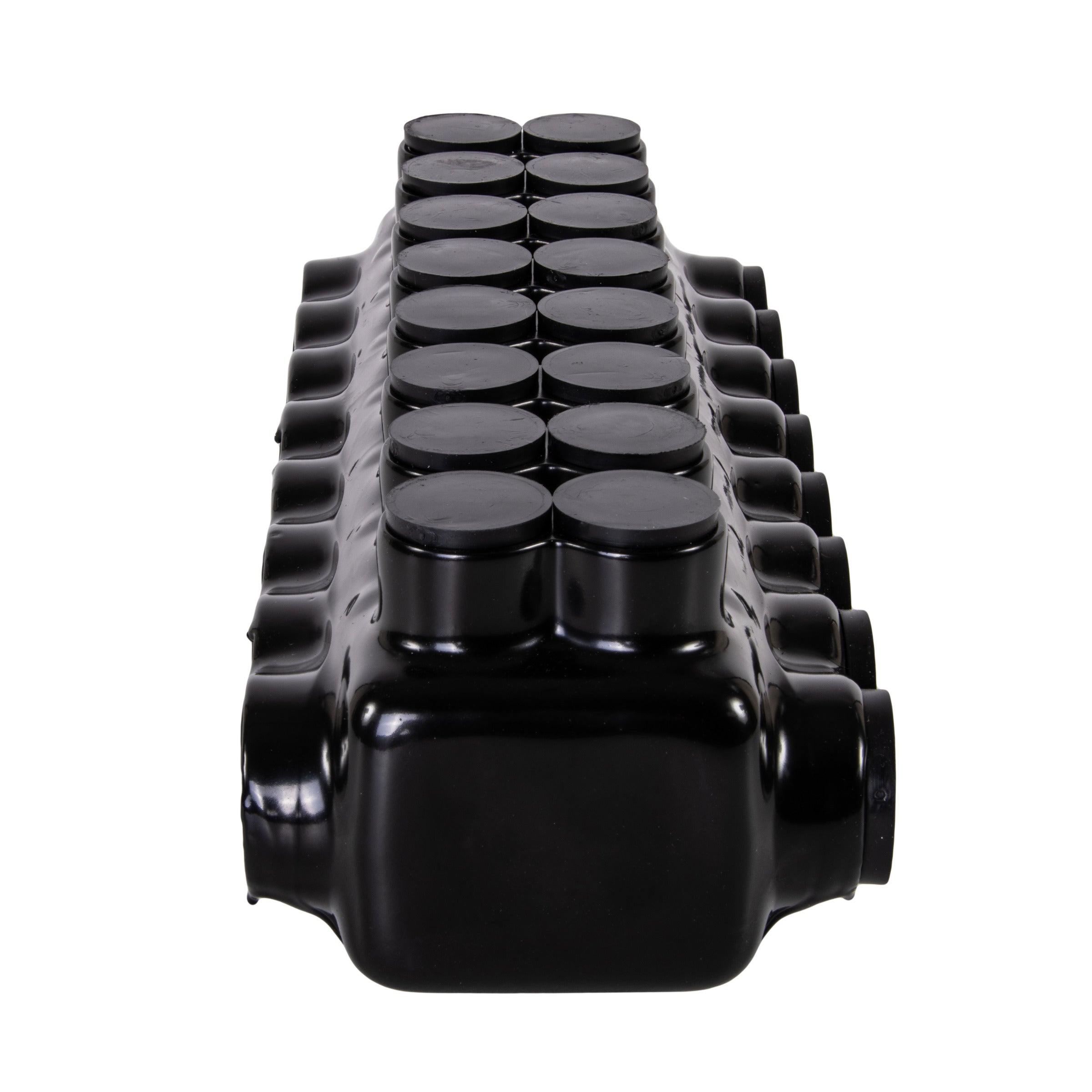

The NSI Industries IPLDH750-8 Polaris heavy-duty connector provides a solution for forming connections between conductors in cable trays, panel boards, and raceways. Sized for 750-250 MCM wires and rated for 600V. The aluminum alloy body is wrapped in plastisol insulation, resistant to abrasion, chemicals, and UV rays. Installs using a hex key and torque wrench.
- Dual-Sided Wire Entry: Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 750 and 250 MCM
- Heavy-Duty Performance: Wider and stronger connector blocks feature two pressure screws for each cable to ensure a secure connection in demanding applications
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
Product Highlights
The Polaris IPLDH750-8 connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: IPLDH750-8
-
Country of Origin: US
Technical Specifications
-
GTiN: 00662381926555
-
Type: Dual-Side Entry, Double Screw
-
Brand: NSI Industries
-
Finish: Plastisol
-
Voltage: 600 Volt
-
Material: Aluminum alloy body with plastisol insulation
-
Standard: CULUS
-
Sub Brand: Polaris Black
-
Wire Size: 250-750 kcmil
-
Wire Type: B,C
-
Product UPC: 66238192655
-
12-Digit UPC: 662381926555
-
Applications: Wire Termination
-
Conductor Size: 250-750 kcmil
-
Number of Poles: 1 Pole
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 8
-
Buy American Compliant: Y
-
Ports: 8
-
Hex Size: 5/16"
-
Voltage Rating: 600V
-
Operating Temperature: 90 degrees Celsius
-
Torque Value: 550 IN./LBS
-
Manufacturer: NSi Industries
-
PRODUCT NUMBER: IPLDH750-8
-
UL Standard: UL 486A/B
-
UL File #: E186991
-
WIRE/CABLE CLASS: Class B, Class C
-
COUNTRY OF ORIGIN: US
-
APPLICATION: Splice, Tap
-
CONDUCTOR TYPE: Copper, Aluminum
-
PRODUCT LINE: Insulated Mechanical Connectors
-
PRODUCT CATEGORY: Insulated Connectors
-
PRODUCT GROUP: Power Connectors and Grounding
-
PRODUCT GROUP SUB-BRAND: Polaris Black
-
PRODUCT SERIES: IPLDH Series
-
ADDITIONAL TITLE: Polaris IPLDH750-8 Dual Sided Entry Heavy-Duty 8-Port Connector
-
Fits Bolt Size (in): 5/16
-
Conductor - AL Size Range: 750 MCM-1/0 AWG
-
Conductor - CU Size Range: 750 MCM-1/0 AWG
-
Copper Conductor Max AMP: 2356
-
Aluminum Conductor Max AMP: 1860
-
Max Torque Value (IN/LBS): 550
-
Environmental Temperature: Cold Temperature rated to -45C
-
Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables, Parallel Rated to provide safety and NEC complaince when installing parallel
-
Short Description (invoice): Polaris Black Heavy-Duty Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key
