Product Description

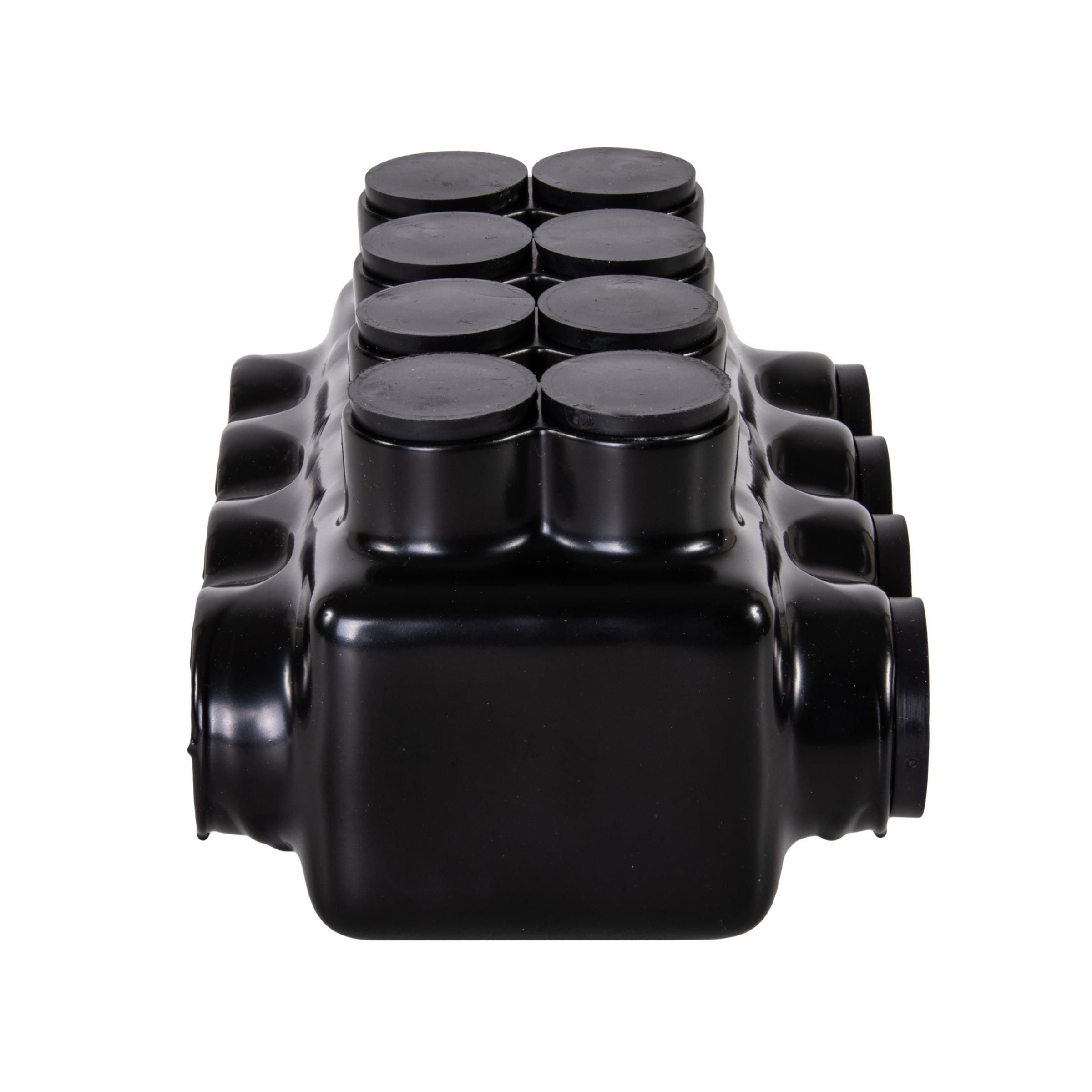

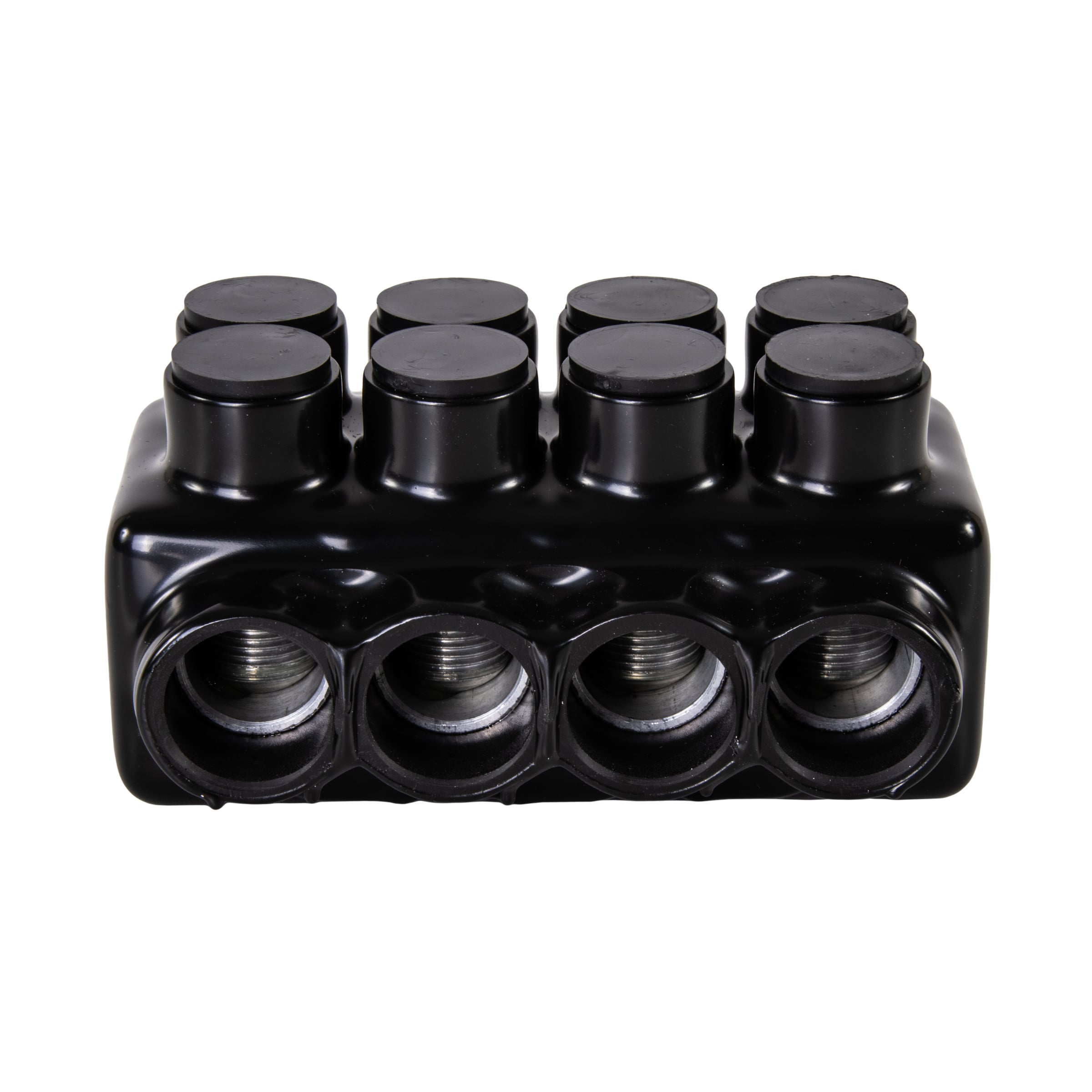

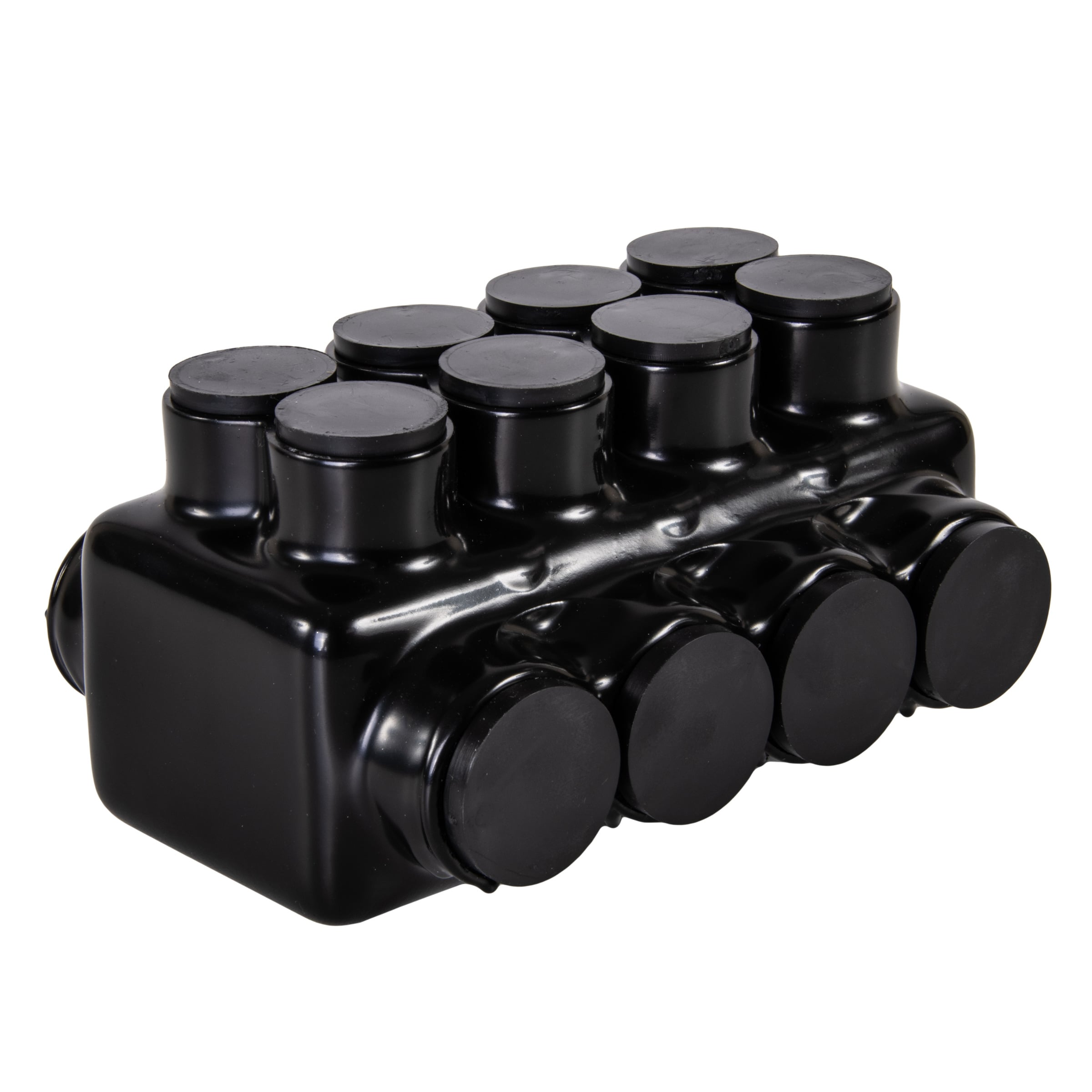

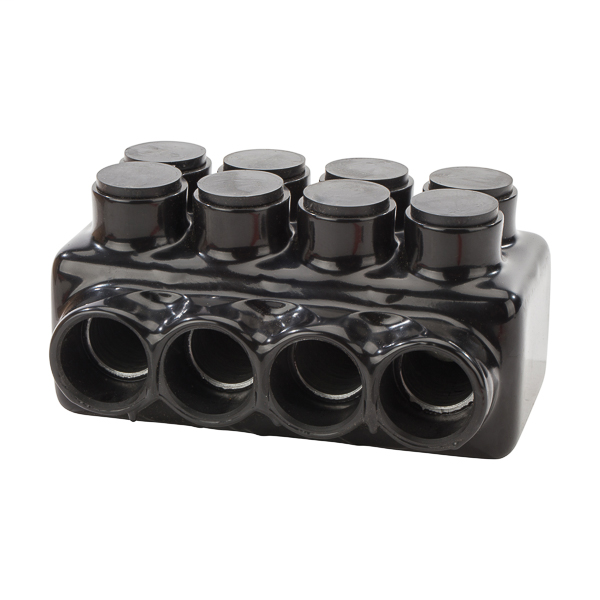

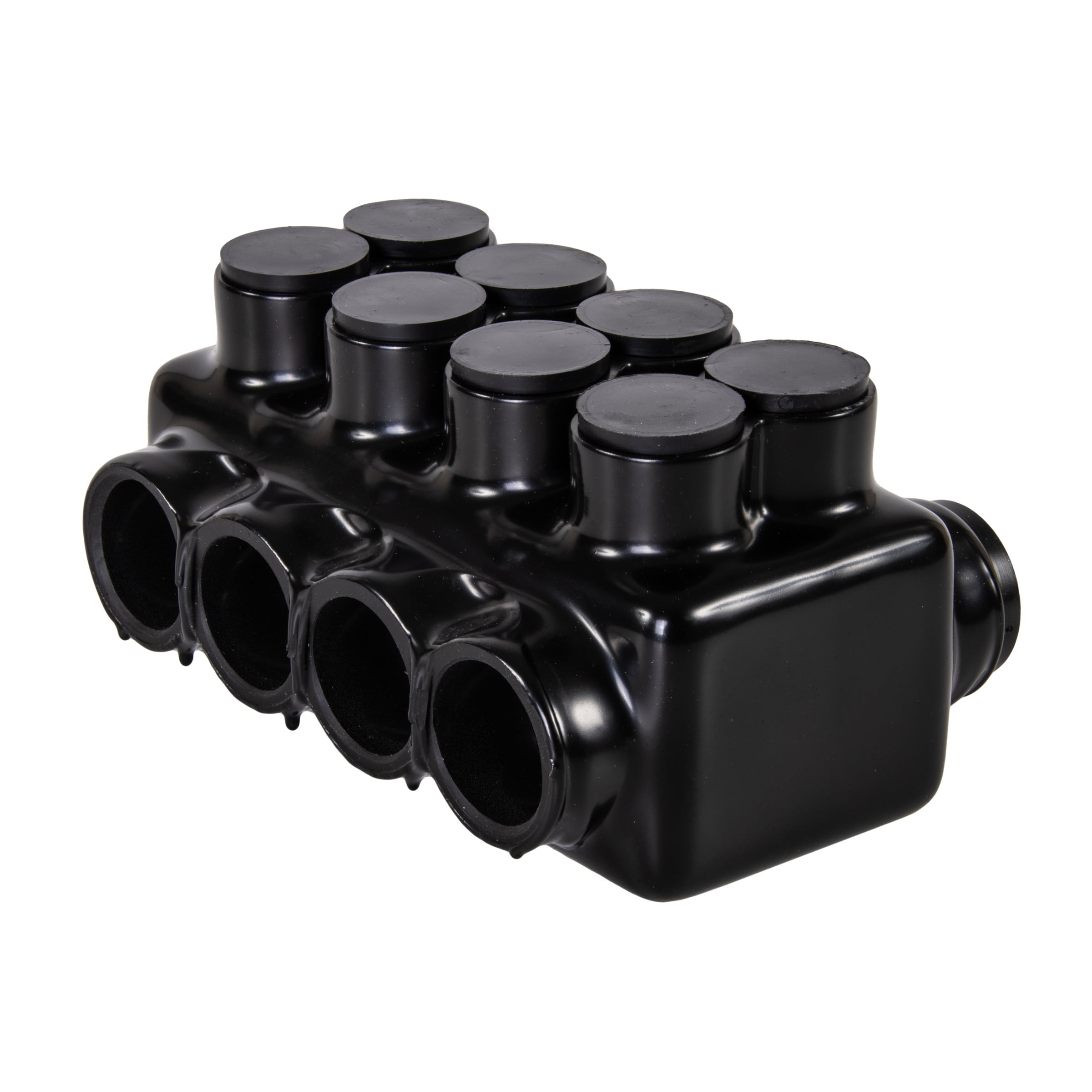

The NSI INDUSTRIES IPLDH750-4 Polaris HD insulated multi-tap connector features 4 ports with dual sided entry. Constructed from 6061-T6 aluminum alloy for conductivity and corrosion resistance, it's insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation. Rated for 600V and a temperature range of -45 to +90 degrees C.
- Insulated four-cable connector block for use with wires from 750 to 250 MCM
- Dual rated for use with both copper and aluminum cables
- Either side wire entry
Product Highlights
The NSI IPLDH750-4 connector is suitable for a wide range of electrical applications with appropriately sized conductors.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: IPLDH750-4
-
Country of Origin: US
Technical Specifications
-
Type: Double Sided Entry Heavy Duty
-
Brand: NSI Industries
-
Finish: Plastisol
-
Voltage: 600V AC
-
Material: Plastisol
-
Standard: CULUS
-
Sub Brand: Polaris Black
-
Wire Size: 250-750 kcmil
-
Wire Type: B,C
-
Applications: Wire Termination
-
Conductor Size: 250-750 kcmil
-
Number of Poles: 1 Pole
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 4
-
Buy American Compliant: Y
-
Environmental Conditions: 90 degrees C
-
Wire Range: 750-250 MCM AWG
-
Number of Ports: 4
-
Hex Size: 5/16"
-
Voltage Rating: 600V
-
Temperature Range: -45 to +90 degrees C
-
Conductor Type: Aluminum/Copper
-
Series: IPLDH
-
PRODUCT NUMBER: IPLDH750-4
-
UL Standard: UL 486A/B
-
UL File #: E186991
-
CONDUCTOR - AL SIZE RANGE: 750 MCM-1/0 AWG
-
CONDUCTOR - CU SIZE RANGE: 750 MCM-1/0 AWG
-
APPLICATION: Splice, Tap
-
NUMBER OF CONDUCTORS/CIRCUITS/TERMINALS: 4
-
PRODUCT CATEGORY: Insulated Connectors
-
PRODUCT LINE: Insulated Mechanical Connectors
-
PRODUCT SERIES: IPLDH Series
-
CERTIFICATIONS & STANDARDS: cULus, Meets NEC 230.46 Suitable for Line Side of Service
-
ALUMINUM CONDUCTOR MAX AMP: 930
-
COPPER CONDUCTOR MAX AMP: 1178
-
MAX TORQUE VALUE (IN/LBS): 550
-
WIRE/CABLE CLASS: Class B, Class C
-
Entry Type: Double Sided
-
AWG Min: 250mcm
-
AWG Max: 750mcm
-
Aluminum Conductor Note: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded or flexible cables, Parallel Rated to provide safety and NEC complaince when installing parallel runs.
-
Copper Conductor Max: 1178 Amp
-
Operating Temperature Rating: -45 C to 90 C (-49 F to 194 F)
