Nsi Industries IPLD750-10 Polaris insulated multi-tap connector 600 V 10-port

Product Description

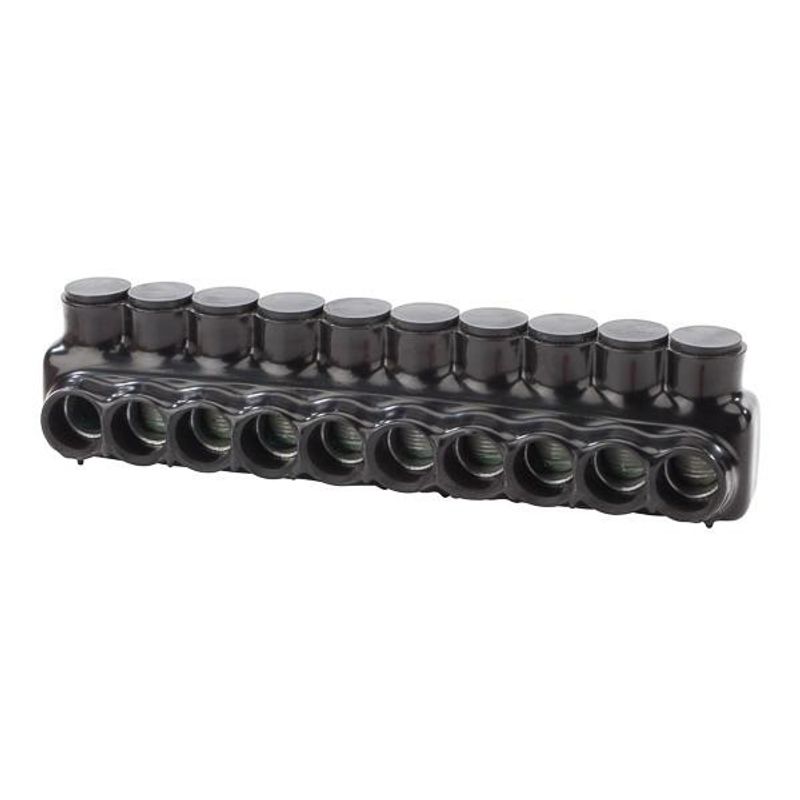

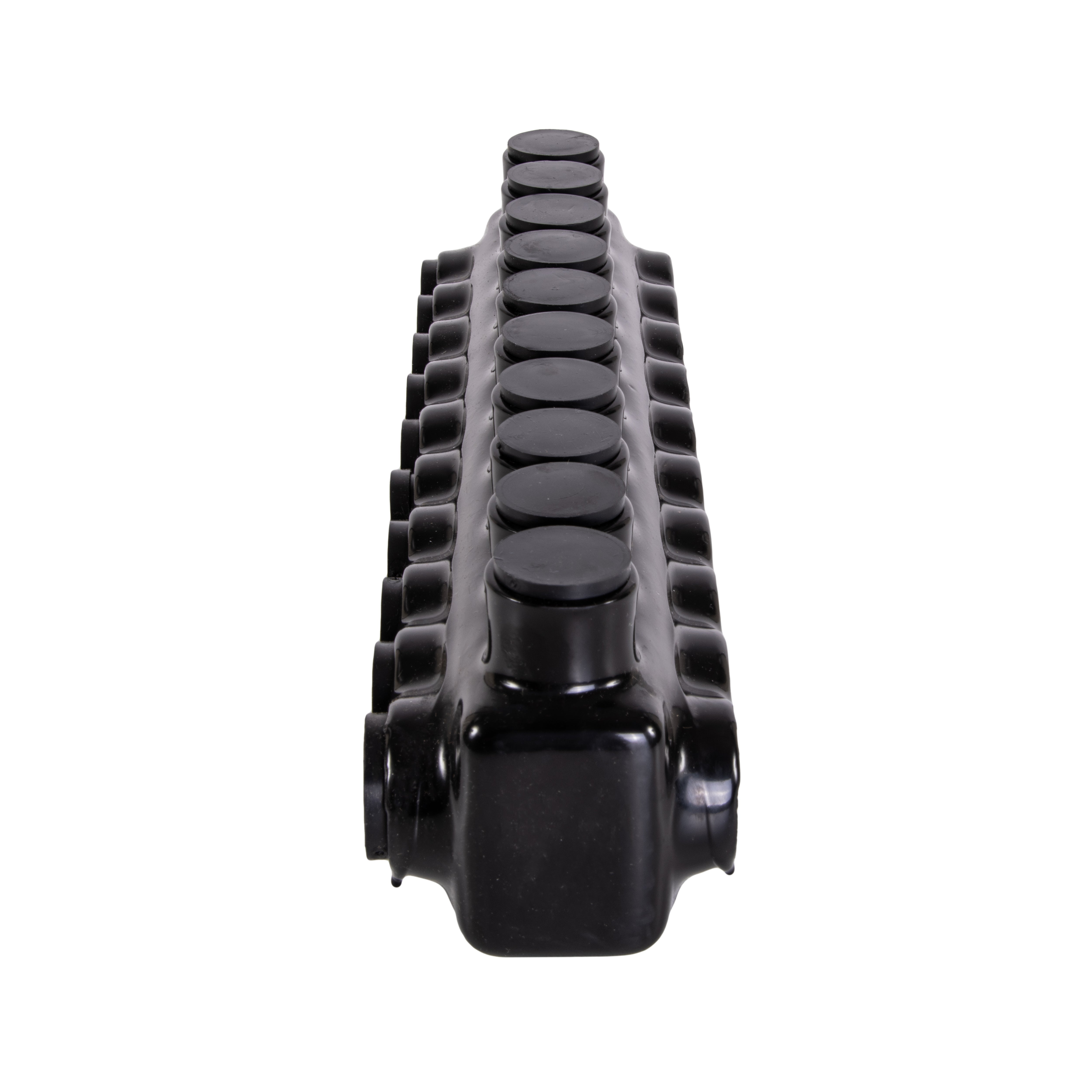

Nsi Industries IPLD750-10 is a Polaris insulated multi-tap connector designed for wire termination, featuring ten dual-sided ports that accept 250–750 kcmil conductors. The connector uses plastisol insulation over a conductive body, is rated for 600 V and 75 C, and is intended for splicing multiple conductors in power distribution applications.

• Ten dual-sided entry ports for multi-tap wire terminations; accepts 250–750 kcmil conductors
• Plastisol insulated housing with 600 V rating and 75 C temperature rating; Buy American compliant
• Installs with hex key/torque wrench; 3/8 in hex size and 550 in-lb torque value for set screws

Product Highlights

10-port dual-sided insulated connector for 250–750 kcmil conductors, 600 V, 75 C

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPLD750-10
• Country of Origin: United States

Technical Specifications

• Brand: NSI Industries
• Manufacturer Part Number: IPLD750-10
• Product Name: Polaris insulated multi-tap connector
• Voltage Rating: 600 V
• Temperature Rating: 75 C
• Conductor Size: 250-750 kcmil
• Number of Ports: 10
• Cable Entry: Dual-sided (either side)
• Insulation Material: Plastisol
• Body Material: 6061-T6 aluminum alloy
• Finish: Plastisol insulated
• Wire Type: Class B, Class C
• Dimensions: 14.93 in x 3.41 in x 3.42 in
• Torque Value: 550 in-lb
• Hex Size: 3/8 in (0.375 in)
• Certifications: UL 486A/B
• Dual Rated: For use with copper and aluminum cables
• Buy American Compliant: Yes
• Application: Wire termination
• UPC: 66238192608
