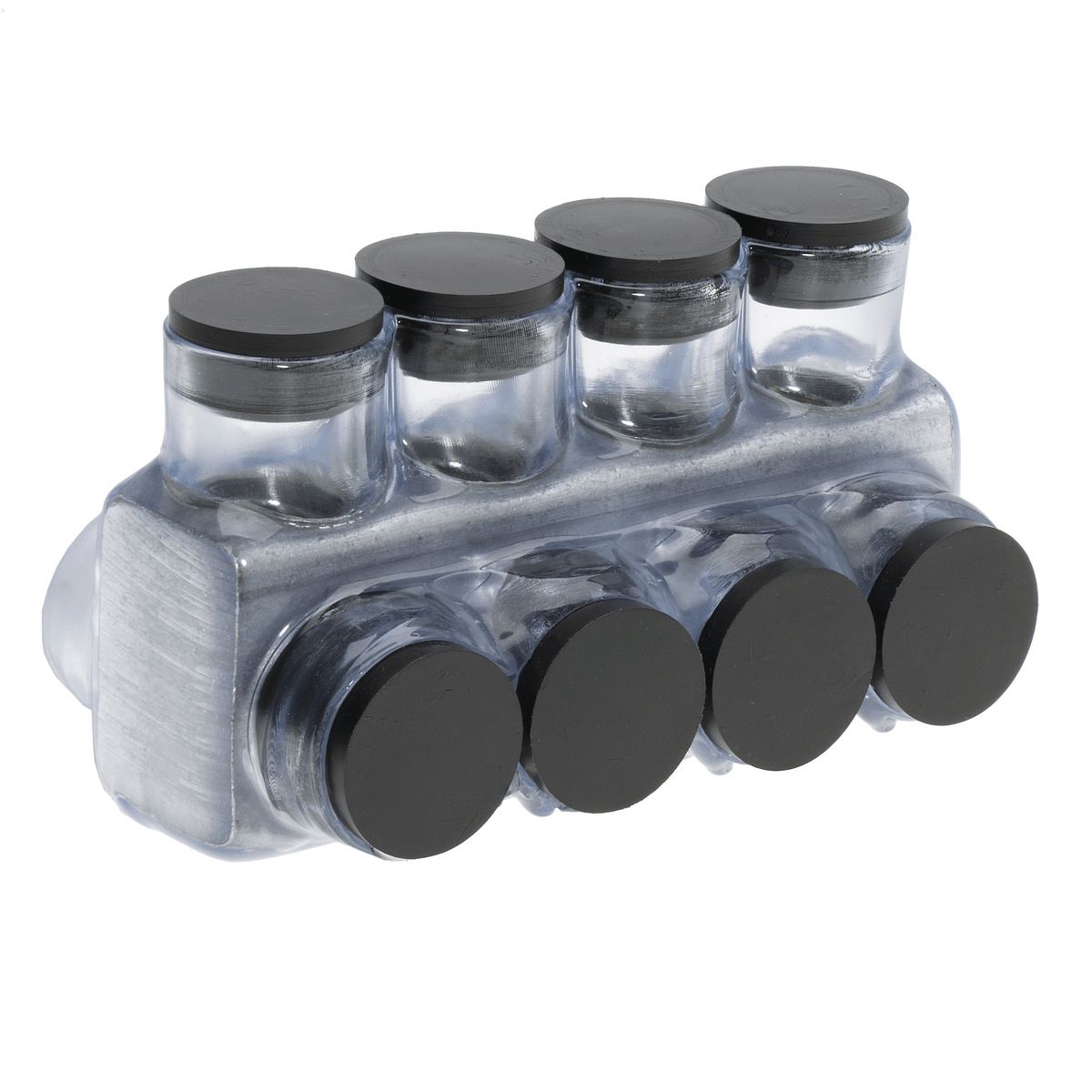

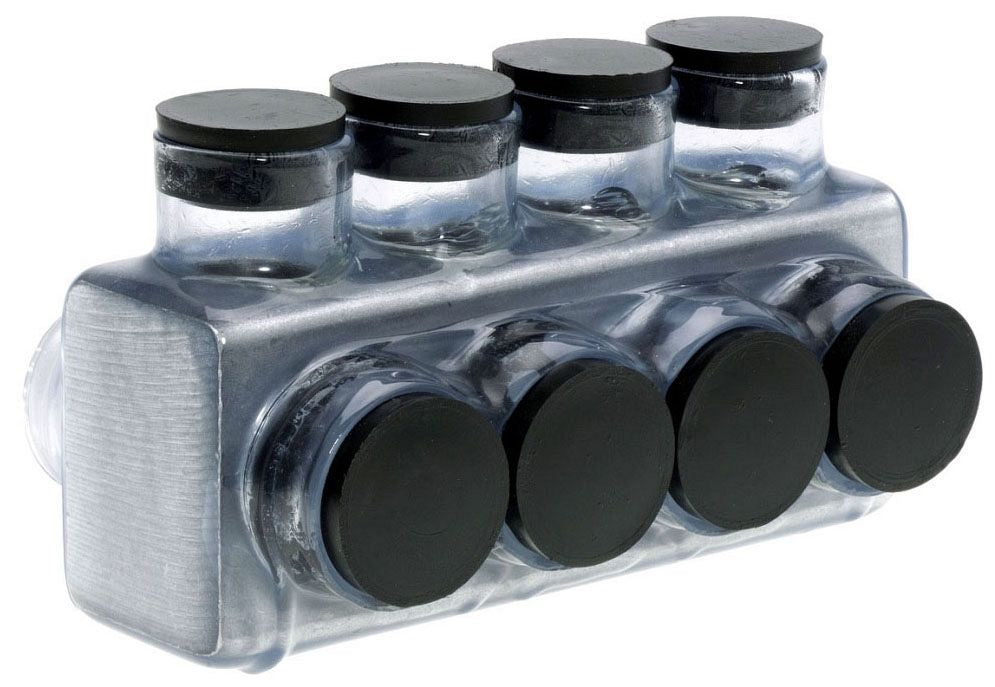

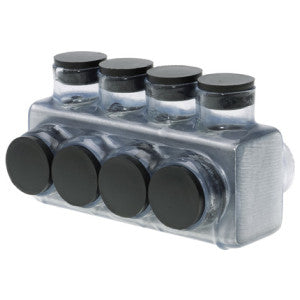

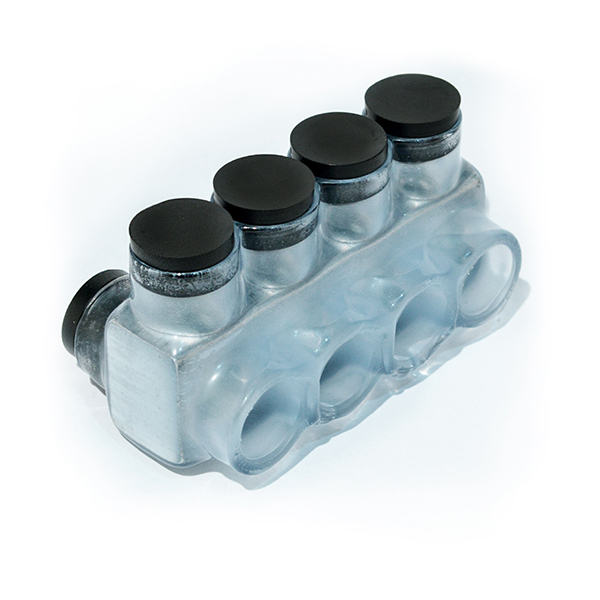

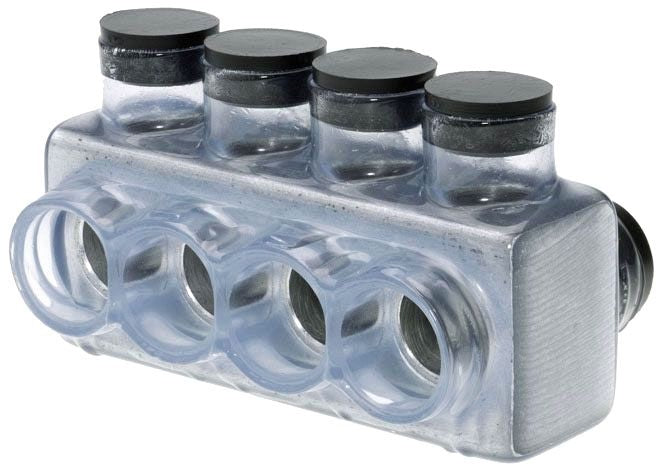

Nsi Industries IPLD600-4C Polaris Vision Tap 600 V (4-Port Dual-Sided Entry)

Product Description

Nsi Industries IPLD600-4C is a pre-insulated Polaris Vision Tap multi-tap connector that accepts conductors from 6 AWG to 600 kcmil and is rated 600 V. The plastisol-insulated clear body allows visual confirmation of conductor placement and provides high dielectric strength; the connector features dual-sided entry and four conductor ports (1 pole) with pre-filled oxide inhibitor and removable plugs. It supports copper and aluminum conductors, is UL 486B listed, and is rated 90 degrees C.

• Pre-insulated plastisol body, rated 600 V and 90 degrees C; dual-sided entry with four ports for 6 AWG�600 kcmil conductors.
• Accepts copper and aluminum conductors; ports pre-filled with oxide inhibitor and supplied with removable access plugs and hex-screw covers.
• Installs with 5/16 in hex and torque wrench (550 inch-pound torque rating); UL 486B and cULus listed; abrasion, chemical and UV resistant.

Product Highlights

4-port pre-insulated multi-tap connector for 6 AWG�600 kcmil conductors; clear plastisol body for visual inspection; rated 600 V, 90 degrees C, UL 486B.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPLD600-4C
• Country of Origin: Unknown

Technical Specifications

• Manufacturer: NSI Industries
• Manufacturer Part Number: IPLD600-4C
• Brand: Nsi Industries
• Series: IPLD
• Voltage Rating: 600 V
• Temperature Rating: 90 degrees C
• Body Material: Plastisol
• Finish: Plastisol insulated
• Number of Ports: 4
• Number of Poles: 1
• Cable Entry: Double-sided entry
• Conductor Size: 6 AWG - 600 kcmil
• Conductor Type: Copper/Aluminum
• Wire Type: Class B, Class C
• Dimensions: 5.85 in L x 2.96 in W x 3.03 in H
• Torque Rating: 550 inch-pound
• Hex/Wrench Size: 5/16 in
• Approvals: UL 486B; cULus Listed; RoHS Compliant; Buy American Compliant; ARRA Compliant
• Applications: Wire termination; splicing in cable trays, panelboards, ducts, raceways, troughs
• Features: Clear plastisol body for visual inspection; pre-filled oxide inhibitor; removable access plugs; abrasion-, chemical- and UV-resistant; will not support combustion; not recommended for fine-stranded or flexible wire
