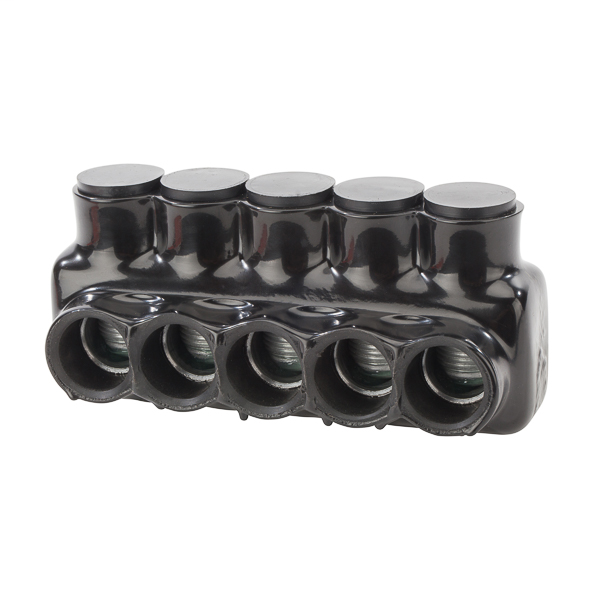

Nsi Industries IPLD500-5 Polaris Ins Multi-Tap (5) 500 MCM-4 AWG

Product Description

The NSI INDUSTRIES IPLD500-5 Polaris Ins Multi-Tap is dual rated for use with aluminum and copper conductors, accommodating sizes from 4 AWG to 500 kcmil. This connector features a double-sided entry and is insulated with a dielectric strength plastisol for mechanical protection. Rated for 600V and temperatures from -45 to 90 deg C.

• Insulated with dielectric strength plastisol for tough mechanical protection
• Molded for precise fit and supplied with removable plugs to close the entry port not being utilized
• Wire entry ports on both sides of the connector to allow for access from either side

Product Highlights

The IPLD series multi-tap connector eliminates the need for cover and taping. It is suitable for indoor and outdoor applications and will not support combustion.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPLD500-5

Technical Specifications

• Conductor Size: 4 AWG to 500 kcmil
• Termination/Splice: TERMINATION
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Size: L=6.380 - W=2.830 - H=2.910 IN
• Type: Double Sided Entry
• Brand: NSI Industries
• Color: Black
• Finish: Plastisol
• Material: Plastisol
• Standard: CULUS
• Sub Brand: Polaris Black
• Wire Size: 4 AWG
• Wire Type: B,C
• Applications: Wire Termination
• Number of Poles: 1 Pole
• Temperature Rating: 90 degrees C
• Number of Conductors: 5
• Buy American Compliant: Y
• Environmental Conditions: 90 degrees C
• Application: For aluminum and copper cables and wire termination
• Conductor Type: Aluminum/Copper
• Series: IPLD
• Specifications: 1 Pole, 5 Conductor, Class B and C Wire Type, 5/16 in Hex
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|AL9CU Approved|cULus Listed|UL 486B
• Voltage Rating: 600 VAC
