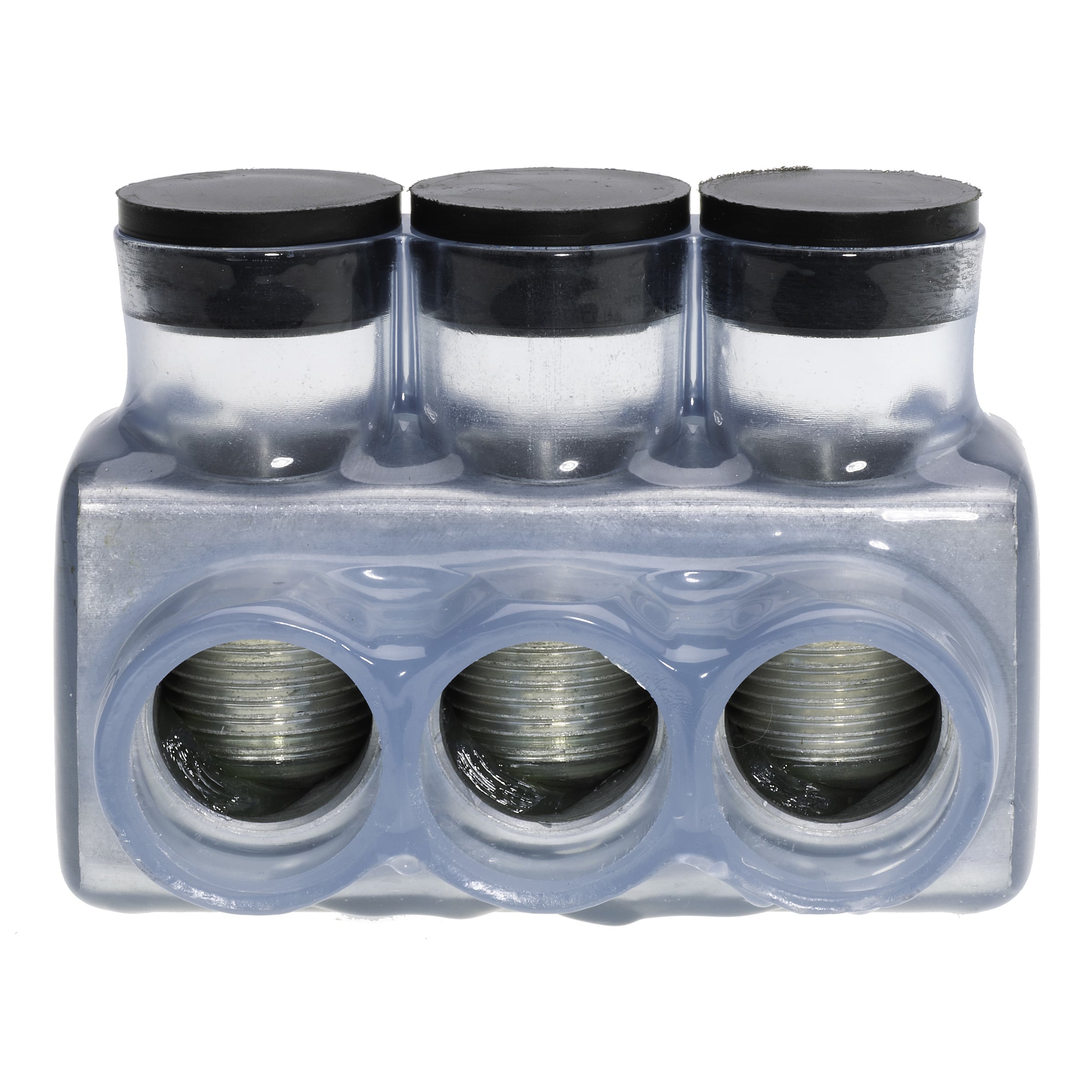

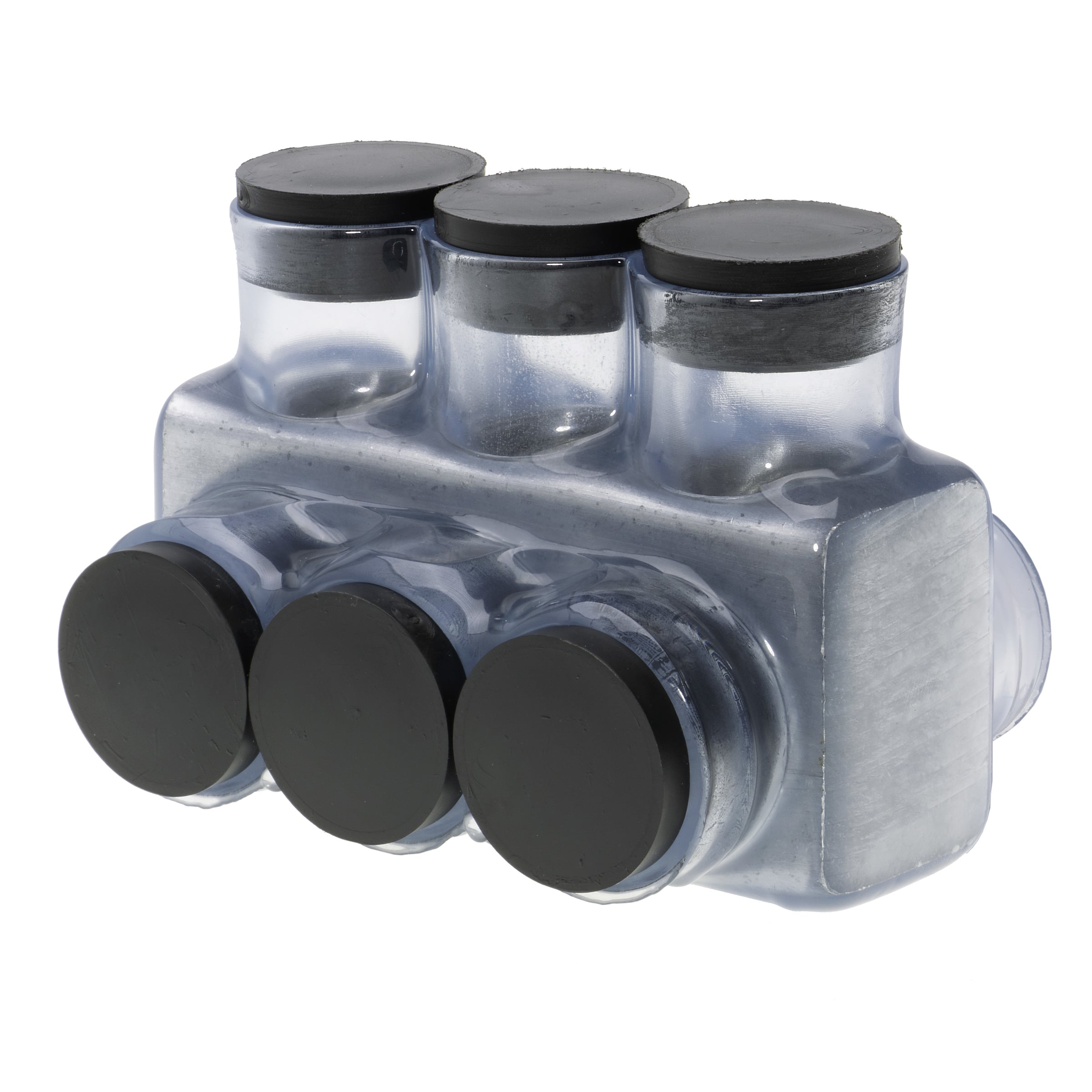

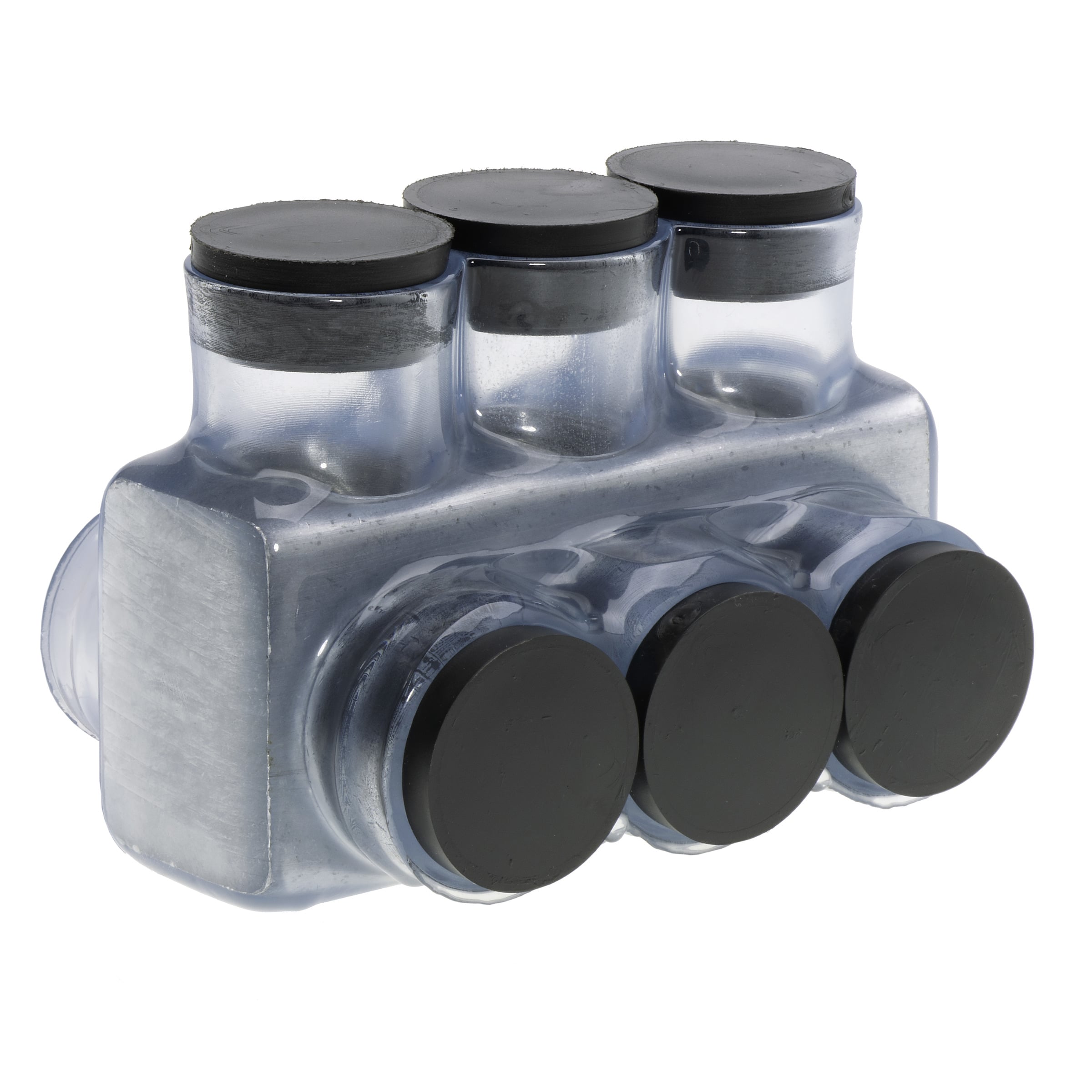

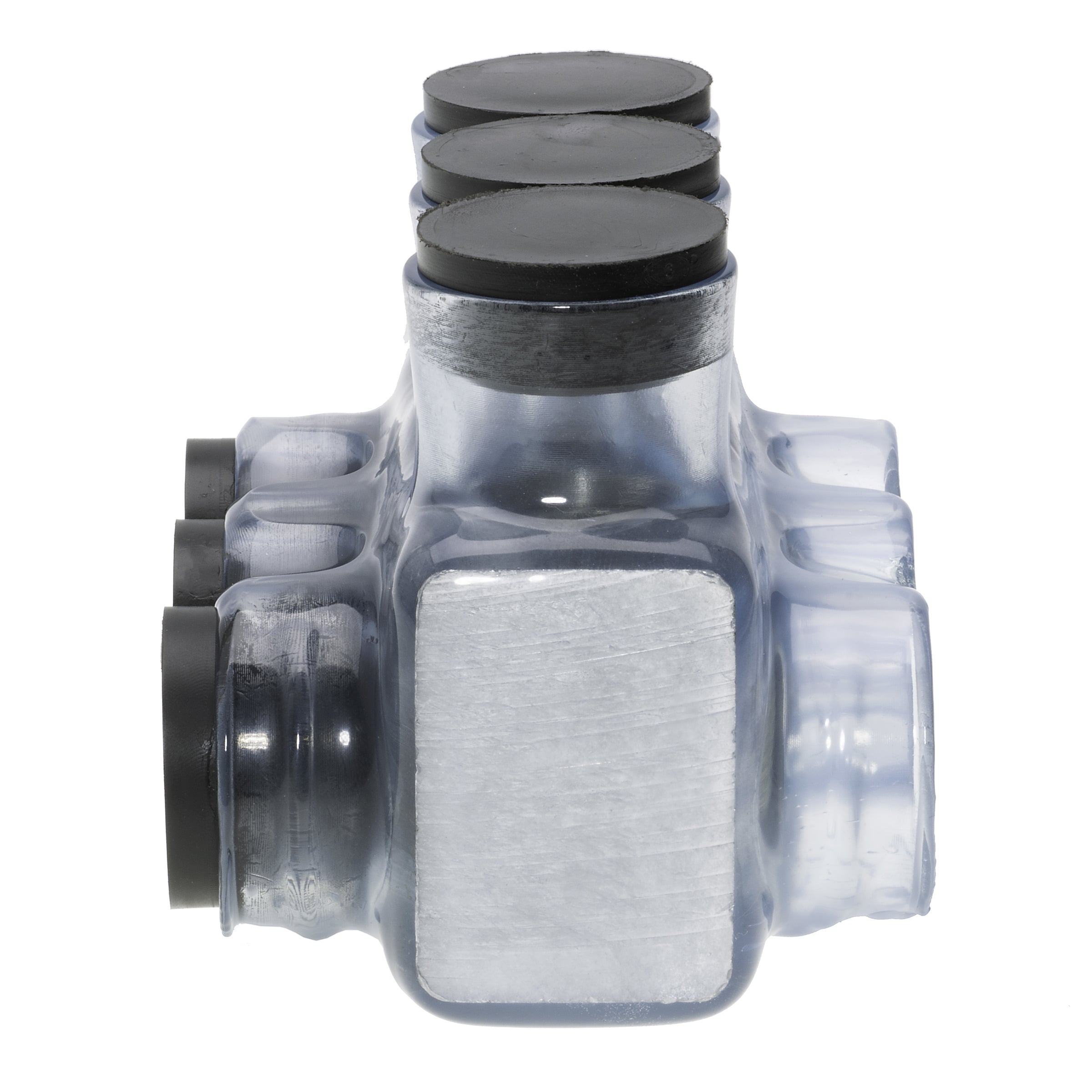

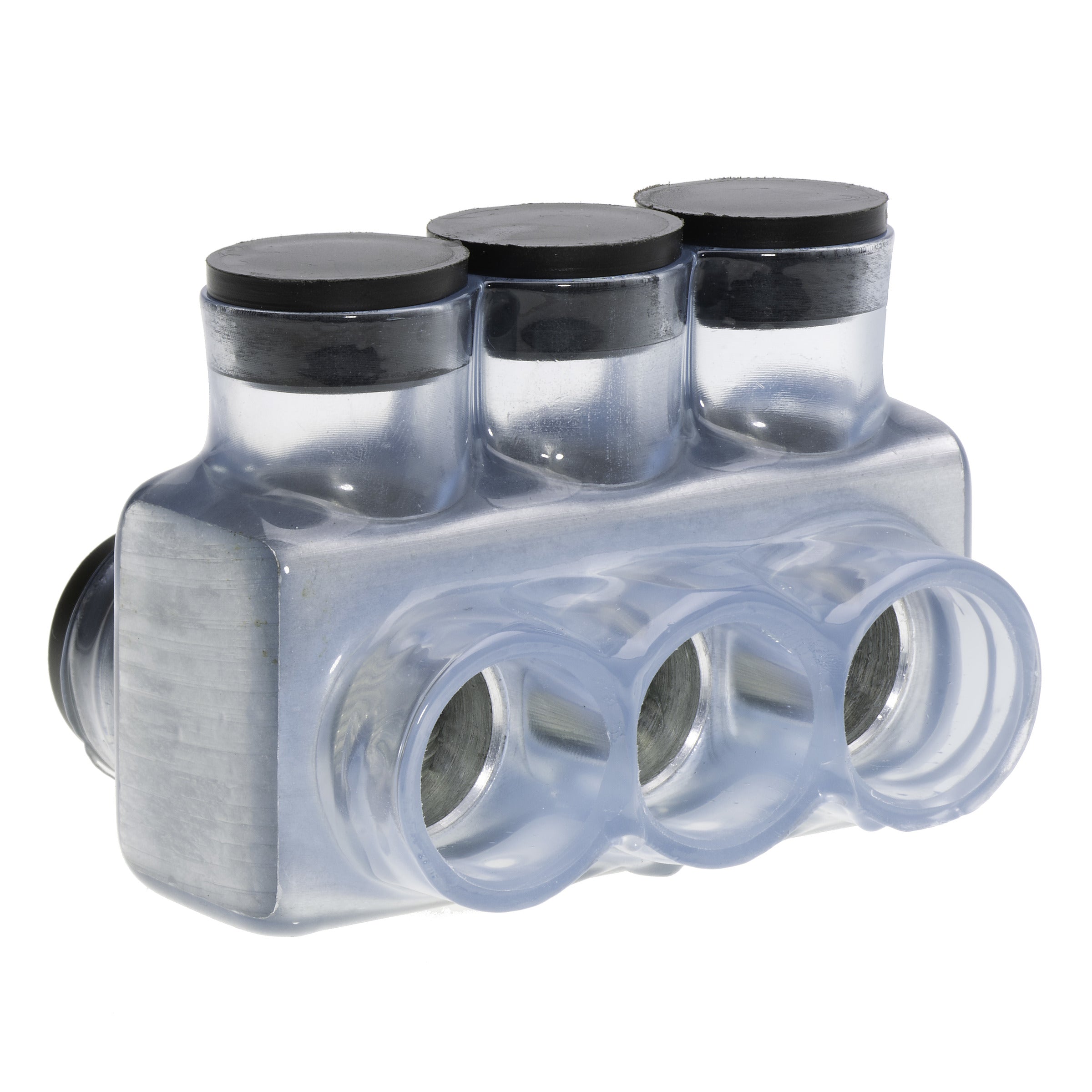

Nsi Industries IPLD500-3C Polaris Vision Tap 600 V (3-Port)

Product Description

Nsi Industries IPLD500-3C is a pre-insulated Polaris Vision Tap dual-sided entry multi-conductor connector rated 600 V and 90�C, with three ports sized for 500 MCM to 4 AWG. The clear plastisol-insulated body permits visual verification of conductor placement; each port is pre-filled with oxide inhibitor and uses a hex set screw for mechanical connection. It is dual-rated for copper and aluminum conductors and designed for dry-location wire termination and splicing.

• Three dual-sided ports sized 500 MCM to 4 AWG, dual-rated for copper and aluminum conductors
• Pre-filled oxide inhibitor in each port, removable access plugs, installs with 5/16 in hex/torque wrench (450 in-lb max)
• Plastisol-insulated clear body for visual confirmation, rated 600 V and 90�C; UL 486A/B and cULus listed

Product Highlights

Pre-insulated 3-port vision tap connector for 500 MCM�4 AWG, 600 V, 90�C; dual-rated CU/AL with oxide inhibitor and removable access plugs.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPLD500-3C
• Country of Origin: UNITED STATES

Technical Specifications

• Manufacturer: NSI Industries
• MPN: IPLD500-3C
• Brand: Polaris
• Series: IPLD
• Product Type: Pre-insulated dual-sided entry multi-conductor connector
• Number of Ports: 3
• Number of Conductors / Poles: 3 conductors / 1 pole
• Conductor Size Range: 500 MCM to 4 AWG
• Conductor Type: Copper, Aluminum
• Voltage Rating: 600 V
• Temperature Rating: 90 C (194 F); cold temperature rated to -45 C
• Material - Body Insulation: Plastisol
• Material - Housing: Aluminum
• Dimensions (L x W x H): 4.01 in x 2.83 in x 2.91 in
• Torque Rating: 450 in-lb
• Hex / Wrench Size: 5/16 in
• Current Rating (Copper): 430 A
• Current Rating (Aluminum): 350 A
• Approvals / Standards: UL 486A/B, UL 486B, cULus Listed, RoHS Compliant, ARRA / Buy American compliant (per manufacturer)
• Application: Wire termination, splice, tap; suitable for cable trays, panel boards, ducts, raceways, troughs; dry locations
• Wire Type: Class B and C
• Features: Pre-filled oxide inhibitor gel in ports; removable access plugs over hex screws; clear vision tap for visual conductor placement; dual-sided entry
• UPC / GTIN: 662381996589
• Country of Origin: United States
