Product Description

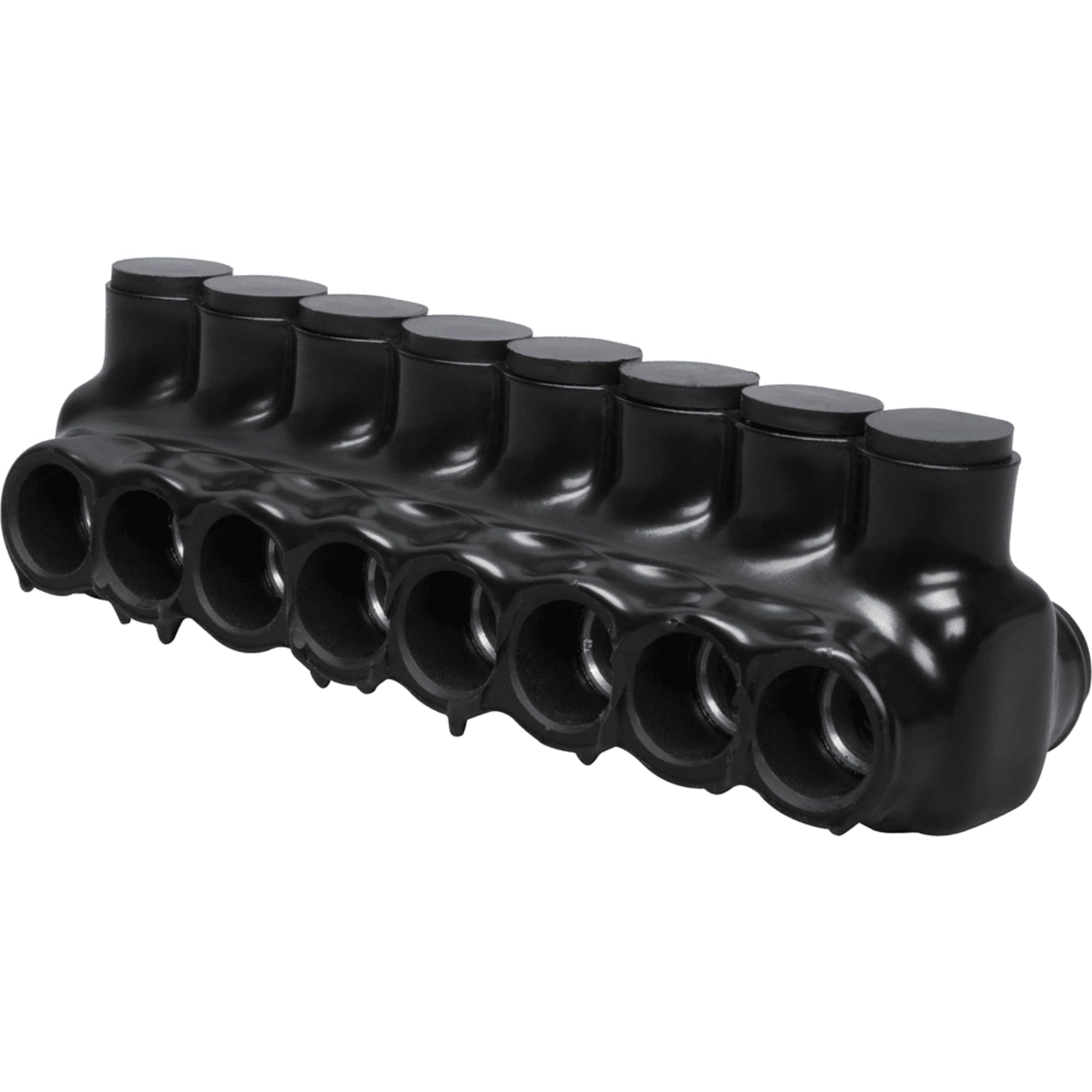

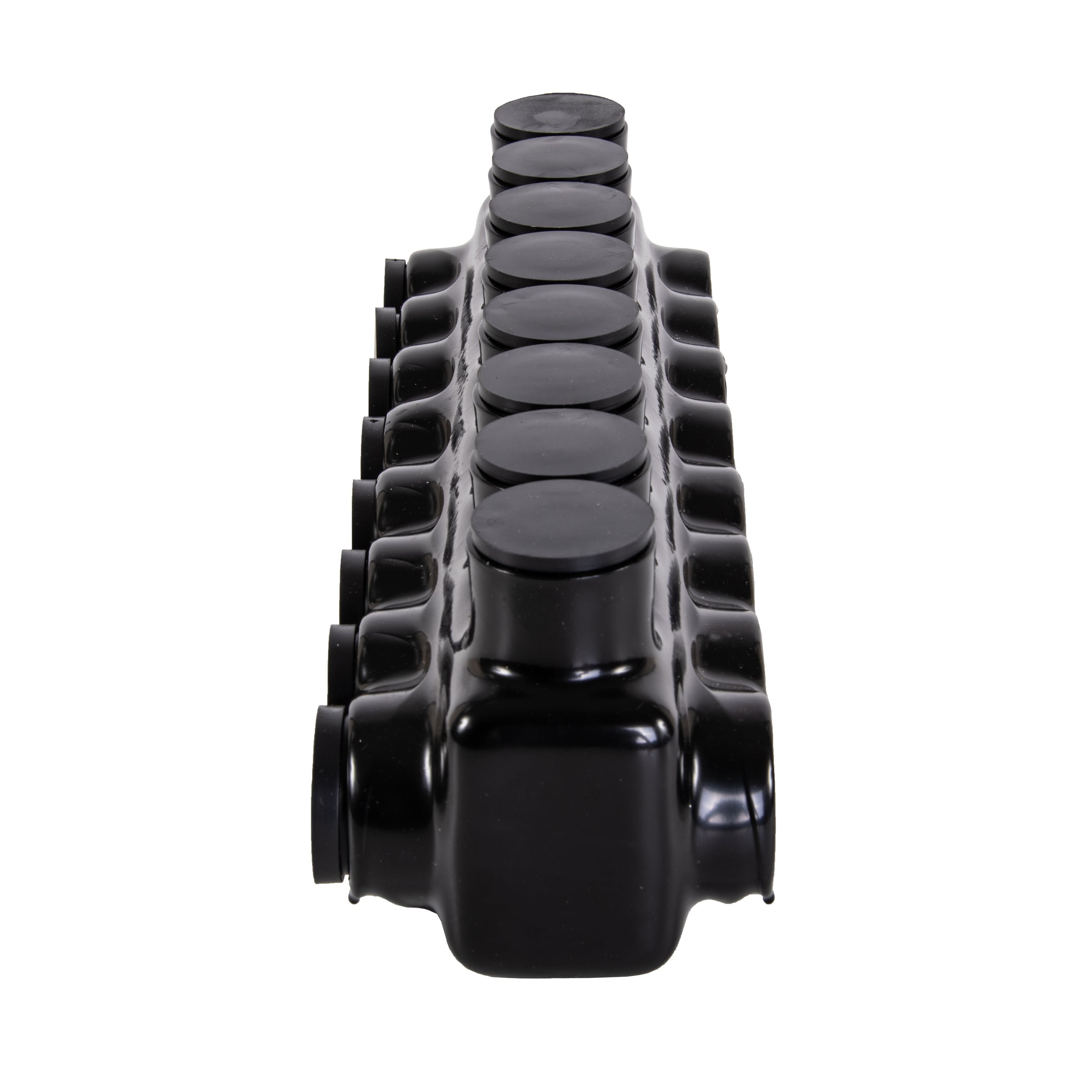

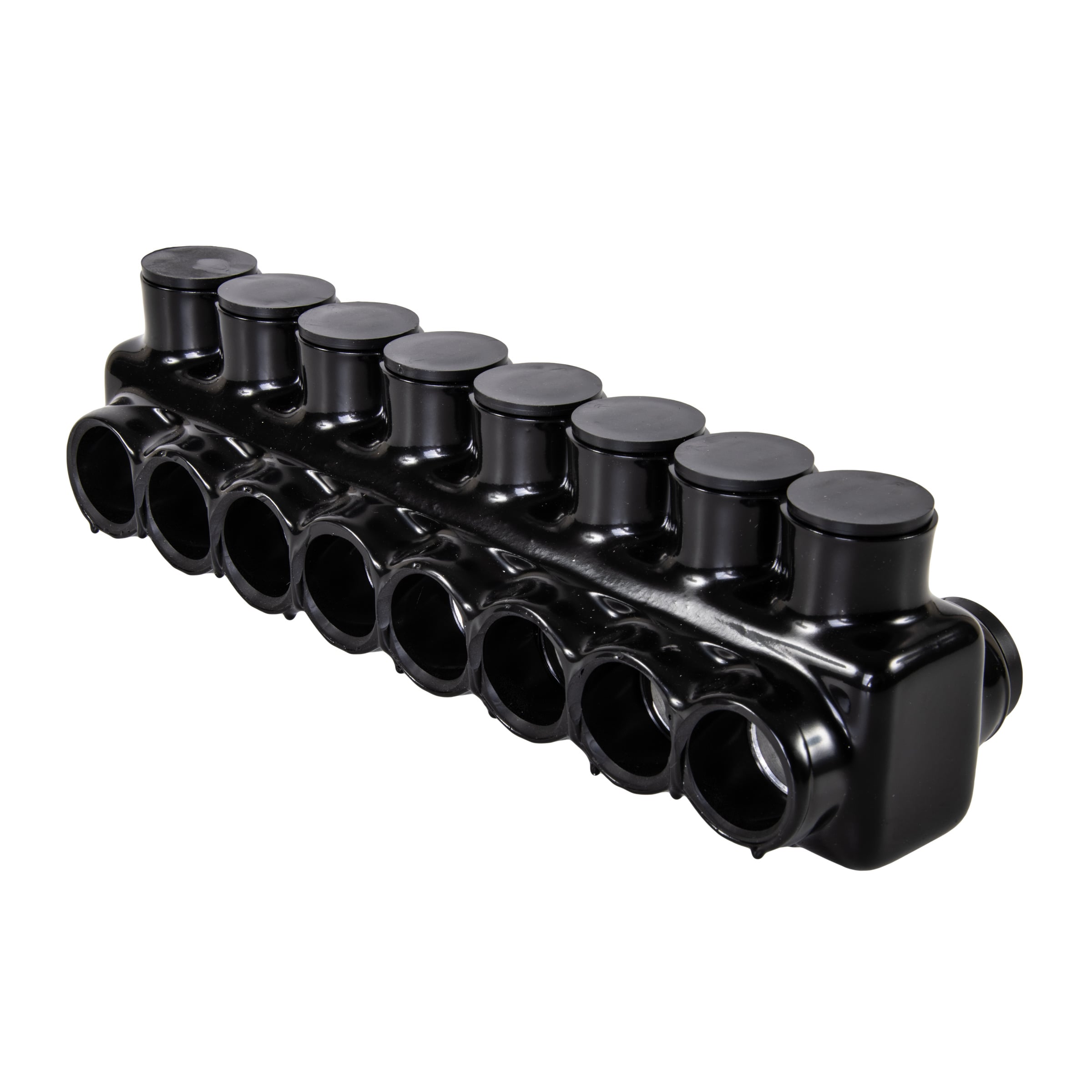

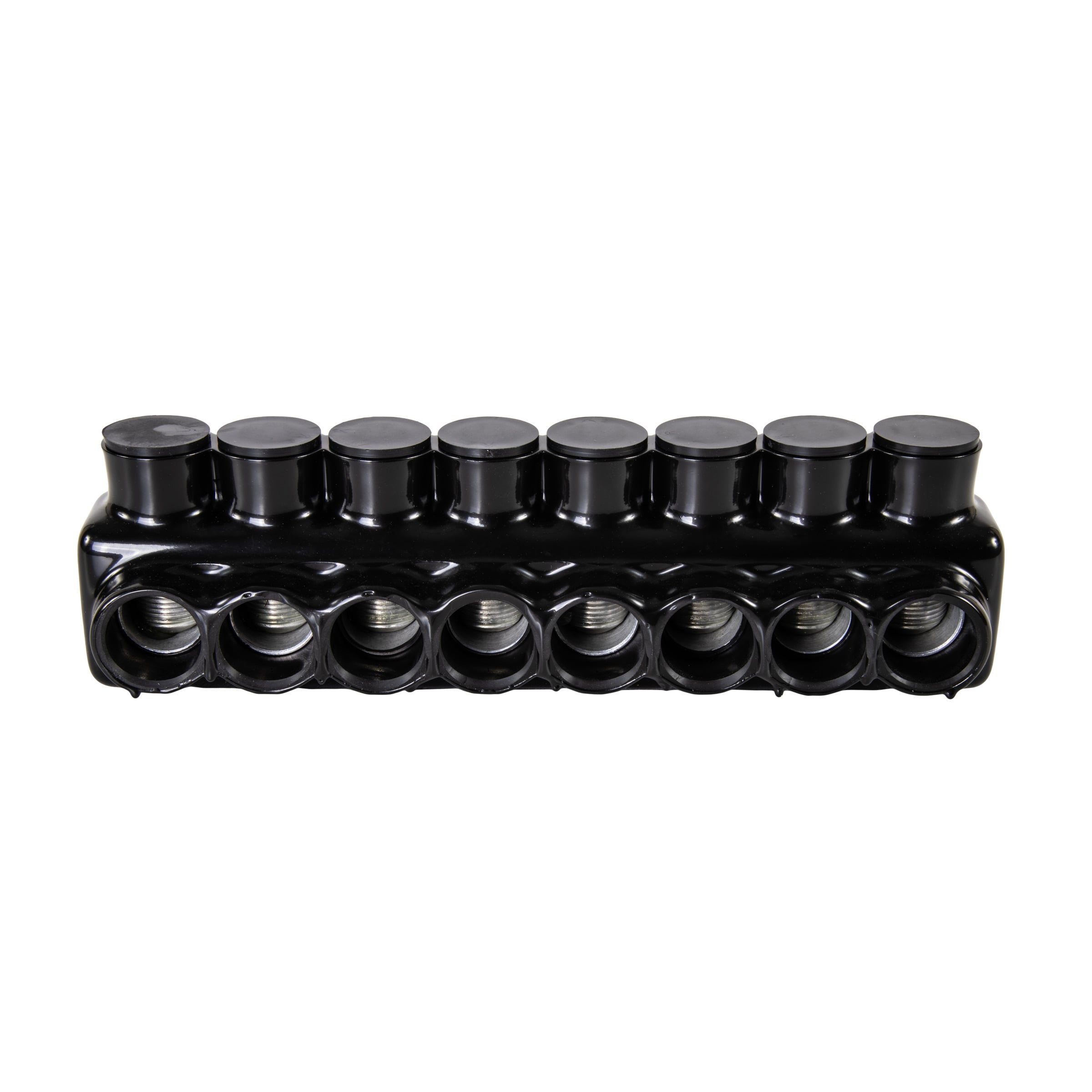

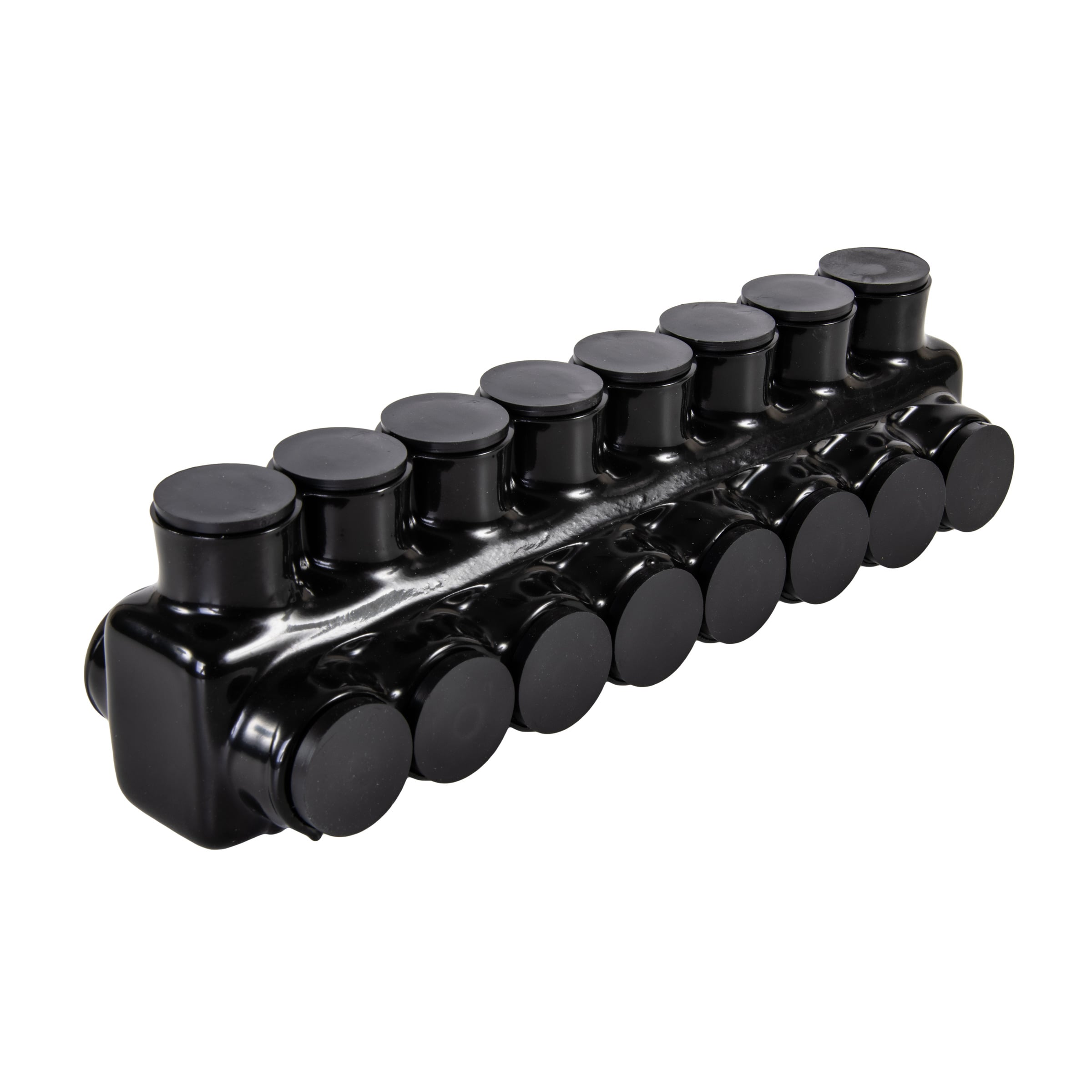

The NSI INDUSTRIES IPLD250-8 multi-tap connector features 8 ports sized for 250 MCM - 6 AWG wires. It is designed to form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. The body is made from aluminum alloy wrapped in a layer of plastisol insulation.
- Dual-Sided Wire Entry: Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 250 MCM and 6 AWG.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Pre-filled Oxide Inhibitor: All 8 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Product Highlights
The IPLD250-8 connector is pre-filled with an oxide inhibitor and installs easily with a hex key and torque wrench. It is suitable for use on the line side of service equipment.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: IPLD250-8
-
Country of Origin: US
Technical Specifications
-
Type: Double Sided Entry
-
Brand: Polaris
-
Color: Black
-
Finish: Plastisol Insulated
-
Voltage Rating: 600 V
-
Material: Aluminum alloy with plastisol insulation
-
Standard: CULUS
-
Sub Brand: Polaris Black
-
Wire Size: 250 kcmil
-
Wire Type: B,C
-
Applications: Wire Termination
-
Conductor Size: 250 kcmil
-
Number of Poles: 1 Pole
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 8
-
Buy American Compliant: Y
-
Ports: 8
-
Application: Splicing in cable trays, panel boards, ducts, raceways or troughs
-
Ul Standard: UL 486A/B
-
Wire Cable Class: Class B, Class C
-
Conductor Cu Size Range: 250 MCM-6 AWG
-
Conductor Al Size Range: 250 MCM-6 AWG
-
Conductor Type: Copper, Aluminum
-
PRODUCT GROUP: Power Connectors and Grounding
-
Product Group (L2): Power Connectors and Grounding
-
Product Family (L1): Connectivity
-
Primary Parent Category: Insulated Mechanical Connectors
-
Product Category (L3): Insulated Connectors
-
Product Category: Insulated Connectors
-
PRODUCT GROUP SUB-BRAND: Polaris Black
-
PRODUCT HEIGHT (IN): 2.29
-
TITLE: 8-Port Black Multi-Tap Pre-Insulated Connector, 250 MCM - 6 AWG
-
UL: UL 486A/B
-
UL File #: E186991
-
PRODUCT LENGTH (IN): 7.32
-
PRODUCT LINE: Insulated Mechanical Connectors
-
Product Line (L4): Insulated Mechanical Connectors
-
PRODUCT NUMBER: IPLD250-8
-
Product Series: IPLD Series
-
PRODUCT WIDTH (IN): 2.28
-
Short Description (invoice): Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque
-
SKU: IPLD250-8
-
Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded or flexible cables, Parallel Rated to provide safety and NEC compliance when installing parall
-
Certifications: cULus
-
CERTIFICATIONS & STANDARDS: cULus, Meets NEC 230.46 Suitable for Line Side of Service
-
Conductor - AL Size Range: 250 MCM-6 AWG
-
Conductor - CU Size Range: 250 MCM-6 AWG
-
COUNTRY OF ORIGIN: US
-
Drive Type: Cold Temperature rated to -45C
-
Aluminum Conductor Max AMP: 820
-
Environmental Temperature: Cold Temperature rated to -45C
-
Fits Bolt Size (in): 5/16
-
Hex Wrench Size (IN): 16-May
-
Max Torque Value (IN/LBS): 360
-
Current Rating: 6 Amps
-
Connector Type: Clamp
-
Number Of Contacts: 8
-
Number Of Poles: 8
-
Upper Temperature Rating: 90 Degrees Celsius
-
Number of Positions: 8
-
Gauge: 6.0
-
Model: IPLD250-8
-
ECCN: EAR99
-
Use With: Aluminum Conductors, Copper Conductors, Plastisol Wires
-
Rated Voltage: 600 V
-
Color Family: Black
-
Copper Conductor Max: 1053
-
Size: L=7.240 - W=2.280 - H=2.180
-
Special Features: (8) 250 MCM-6 AWG - Dual Rated
-
Wire/Cable Class: Class B, Class C
